Transmission Case & Oil Pan (ATM)

20 part groups · 4 illustrations

Illustrations

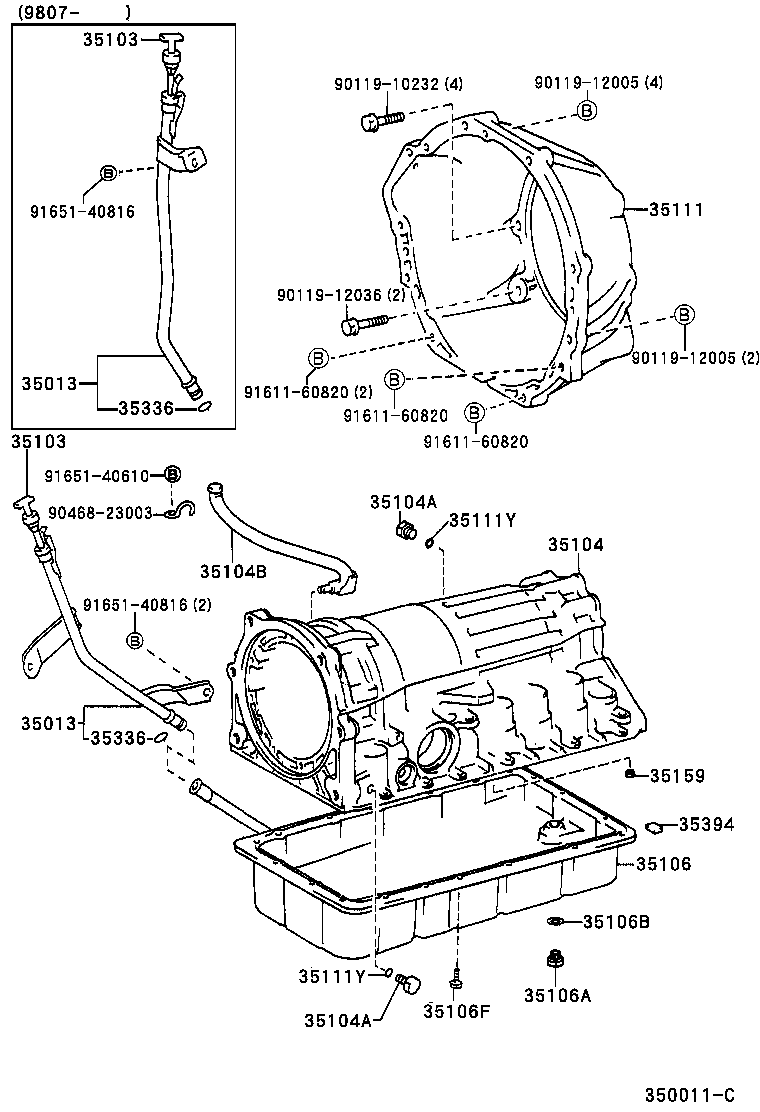

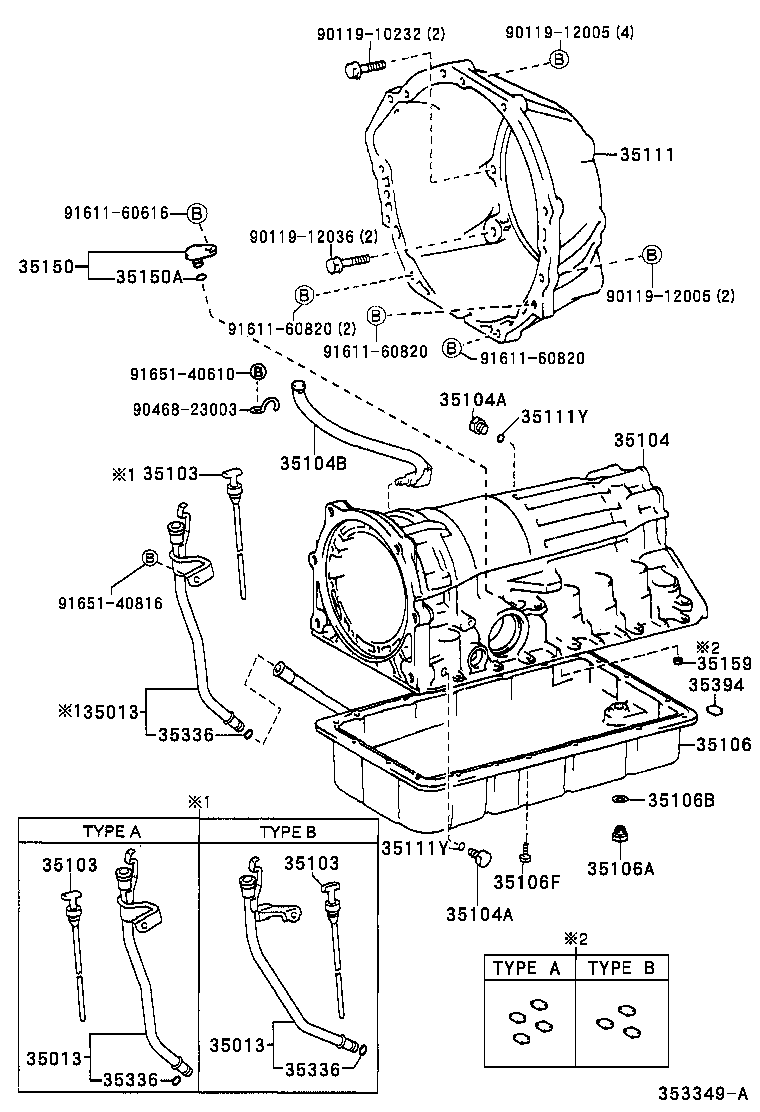

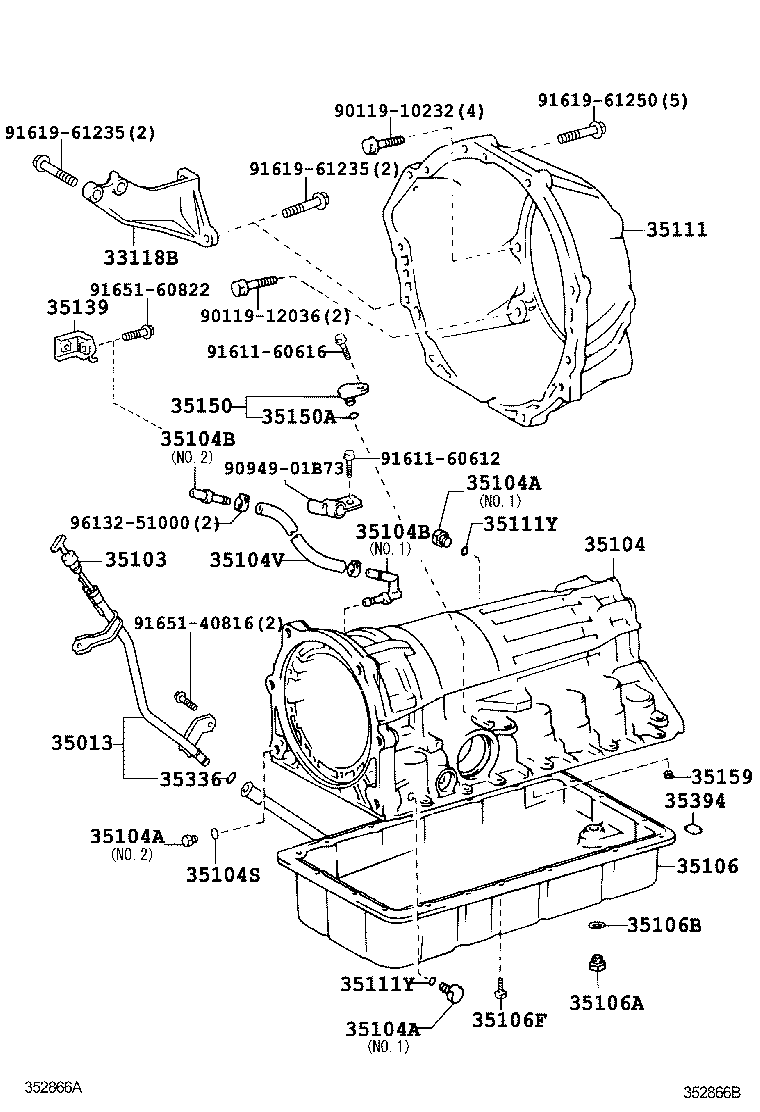

Figure 352703C 352703C 1996-04 → — Figure 352866B 352866B 2000-08 → — Figure 350011C 350011C 1996-04 → 2001-08 Figure 353349A 353349A 2001-08 → —

Part groups

PNCDescription
33118B Plate, Stiffener, RH(ATM)
35013 Tube Sub-assy, Transmission Oil Filler
35103 Gage Sub-assy, Transmission Oil Level
35104 Case Sub-assy, Automatic Transmission
35104A Plug, Automatic Transmission Case
35104B Plug, Breather, NO.1 (ATM)
35104S Ring, O (FOR TRANSAXLE CASE PLUG NO.1)
35104V Hose (FOR BREATHER PLUG)
35106 Pan Sub-assy, Automatic Transmission Oil
35106A Plug Sub-assy, Drain (ATM)
35106B Gasket, Drain Plug (ATM)
35106F Bolt (FOR AUTOMATIC TRANSMISSION OIL PAN)
35111 Housing, Automatic Transmission
35111Y Ring, O (FOR AUTOMATIC TRANSMISSION CASE)
35139 Bracket, Oil Filler Tube
35150 Plug Assy, Transmission Case
35150A Ring, O (FOR AUTOMATIC TRANSMISSION CASE PLUG)
35159 Gasket, Brake Drum
35336 Ring, O (FOR TRANSMISSION OIL FILLER TUBE)
35394 Magnet, Oil Cleaner (FOR TRANSMISSION)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
