Toyota Land Cruiser 90
1996-04 → 2002-09 · chassis KDJ9#,KZJ9#,VZJ9# · catalogue 781540 · Europe
Discontinued model
Data version 2003-02

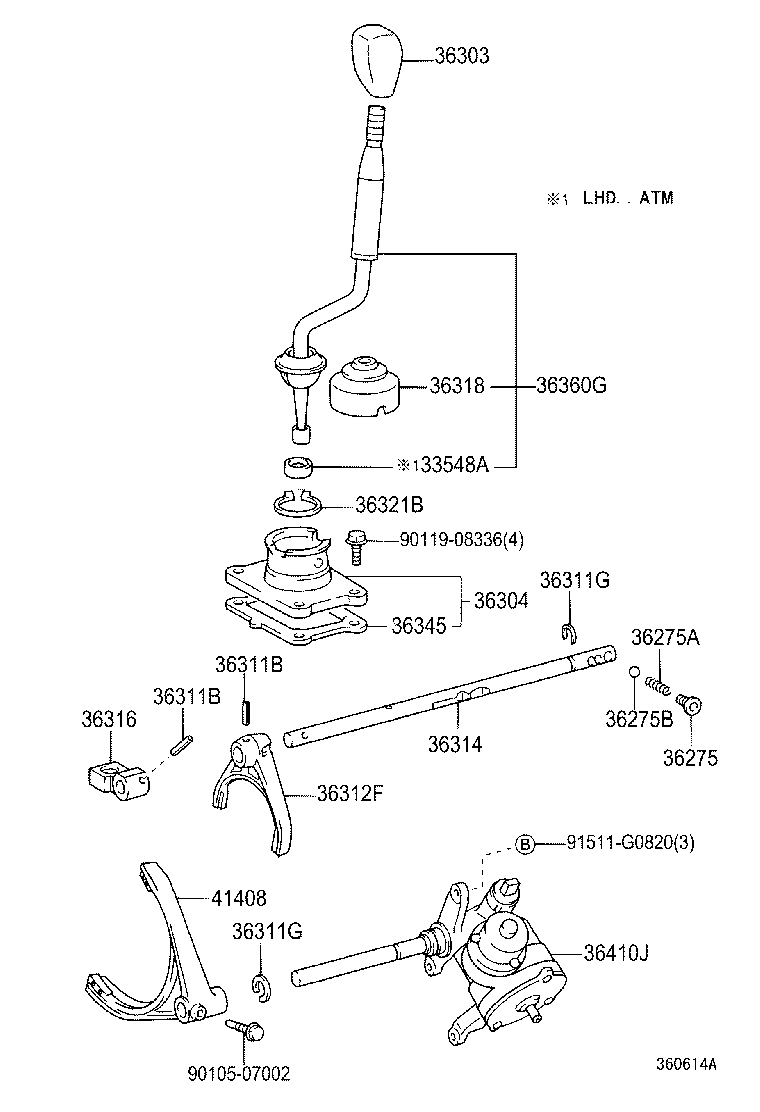

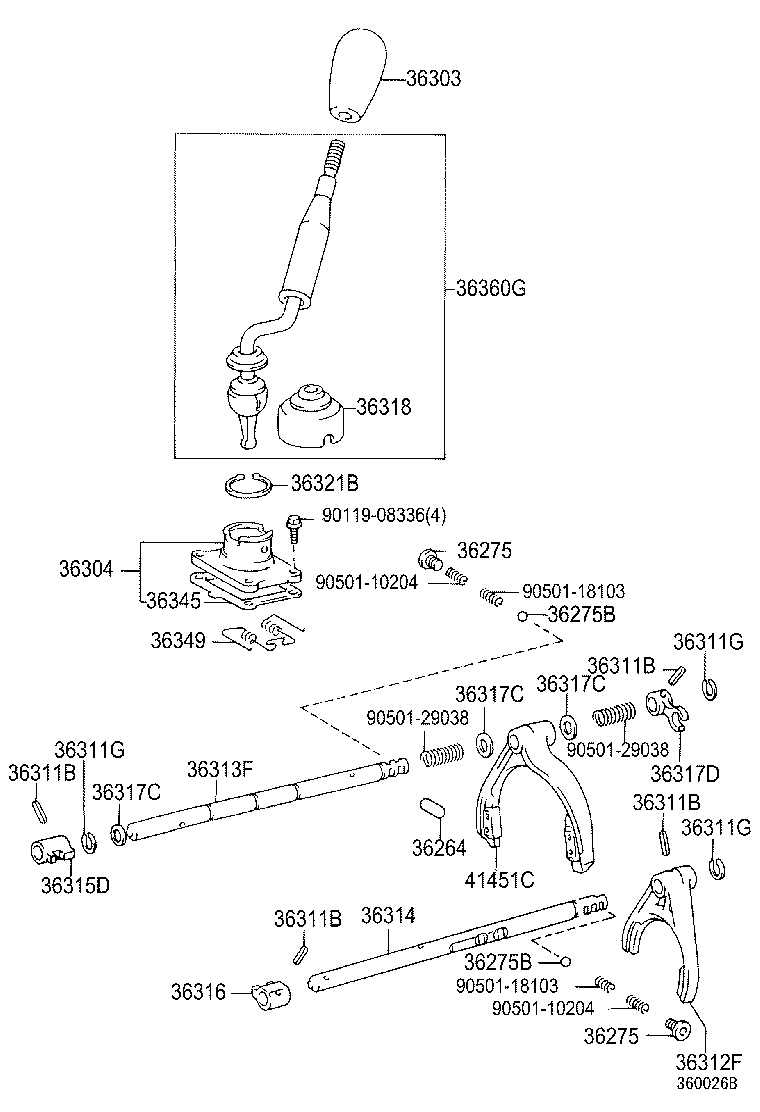

Transfer Lever & Shift Rod
24 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|
| 33548A | Bush, Transfer Shift Lever |
| 36264 | Pin OR Roller, Shift Inter-lock |
| 36275 | Plug, Shift Detent Ball Spring |
| 36275A | Spring, Compression (FOR SHIFT DETENT BALL) |
| 36275B | Ball, Shift Detent |
| 36303 | Knob Sub-assy, Shift Lever |
| 36304 | Retainer Sub-assy, Transfer Control Shift Lever |
| 36311B | Pin, Slotted Spring (FOR TRANSFER SHIFT FORK) |
| 36311G | Ring, Shaft Snap (FOR TRANSFER GEAR SHIFT FORK) |
| 36312F | Fork, Transfer Gear Shift, NO.2 |
| 36313F | Shaft, Transfer Front Drive Shift Fork |
| 36314 | Shaft, Transfer High And Low Shift Fork |
| 36315D | Head, Transfer Gear Shift, NO.1 |
| 36316 | Head, Transfer Gear Shift, NO.2 |
| 36317C | Stopper, Transfer Shift Shaft |
| 36317D | Stopper, NO.2, Transfer Shift Shaft |
| 36318 | Boot, Transfer Front Drive Shift |
| 36321B | Ring, Hole Snap (FOR TRANSFER FRONT DRIVE SHIFT LEVER) |
| 36345 | Gasket, Transfer Control Shift Lever Retainer |
| 36349 | Spring, Transfer Select Return |
| 36360G | Lever Assy, Transfer High & Low Shift |
| 36410J | Actuator Assy, Transfer Shift |
| 41408 | Fork Sub-assy, Center Differential Lock |
| 41451C | Fork, Differential Lock Shift |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
