Toyota Land Cruiser 90
1996-04 → 2002-09 · chassis KDJ9#,KZJ9#,VZJ9# · catalogue 781540 · Europe
Discontinued model
Data version 2003-02

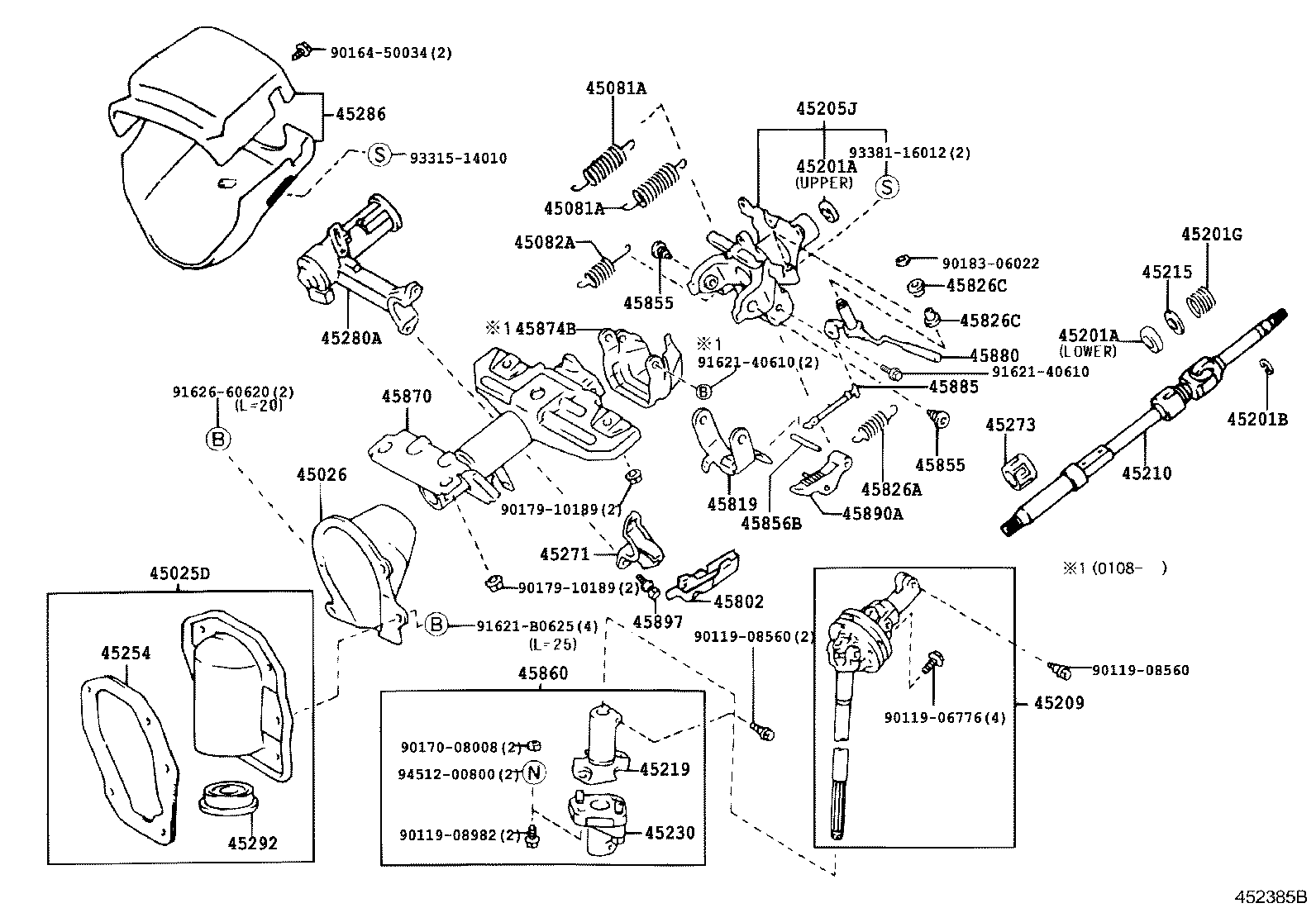

Steering Column & Shaft
34 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 45025D | Cover Sub-assy, Steering Column Hole, NO.1 |
| 45026 | Cover Sub-assy, Steering Column Hole, NO.2 |
| 45081A | Spring, Tension(FOR TILT STEERING) |
| 45082A | Spring, Torsion(FOR TILT STEERING RETURN) |
| 45201A | Bearing(FOR STEERING MAIN SHAFT) |
| 45201B | Ring, Shaft Snap(FOR STEERING MAIN SHAFT) |
| 45201G | Spring, Compression(FOR STEERING MAIN SHAFT) |
| 45205J | Tube Sub-assy, Steering Column, Upper |
| 45209 | Yoke Sub-assy, Steering Sliding |
| 45210 | Shaft Assy, Steering Main |
| 45215 | Collar, Main Shaft Bearing Thrust |
| 45219 | Yoke, Steering Sliding |
| 45230 | Coupling Assy, Flexible |
| 45231D | Ring, Hole Snap(FOR STEERING MAIN SHAFT) |
| 45254 | Shield, Steering Column Hole |
| 45271 | Clamp, Steering Column, Upper |
| 45273 | Bush, Steering Main Shaft |
| 45280A | Bracket Assy, Steering Column, Upper |
| 45286 | Cover, Steering Column |
| 45292 | Seal, Main Shaft Lower Dust |
| 45802 | Protector Sub-assy, Steering Column, NO.1 |
| 45819 | Retainer, Tilt Lever |
| 45826A | Spring, Tension(FOR STEERING TILT LEVER) |
| 45826C | Bush(FOR STEERING TILT LEVER) |
| 45855 | Bolt, Tilt Steering, NO.1 |
| 45856B | Shaft, T1LT Steering, NO.2 |
| 45860 | Shaft Assy, Steering Intermediate, NO.2 |
| 45865 | Collar, Steering Main Shaft |
| 45870 | Tube Assy, Steering Column |
| 45874B | Protector, Steering Column, NO.1 |
| 45880 | Lever Assy, Steering Tilt |
| 45885 | Link, Tilt Lever |
| 45890A | Pawl Assy, Tilt Steering |
| 45897 | Bolt, Steering Lock Set |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
