Toyota Land Cruiser 90
1996-04 → 2002-09 · chassis KDJ9#,KZJ9#,VZJ9# · catalogue 781540 · Europe
Discontinued model
Data version 2003-02

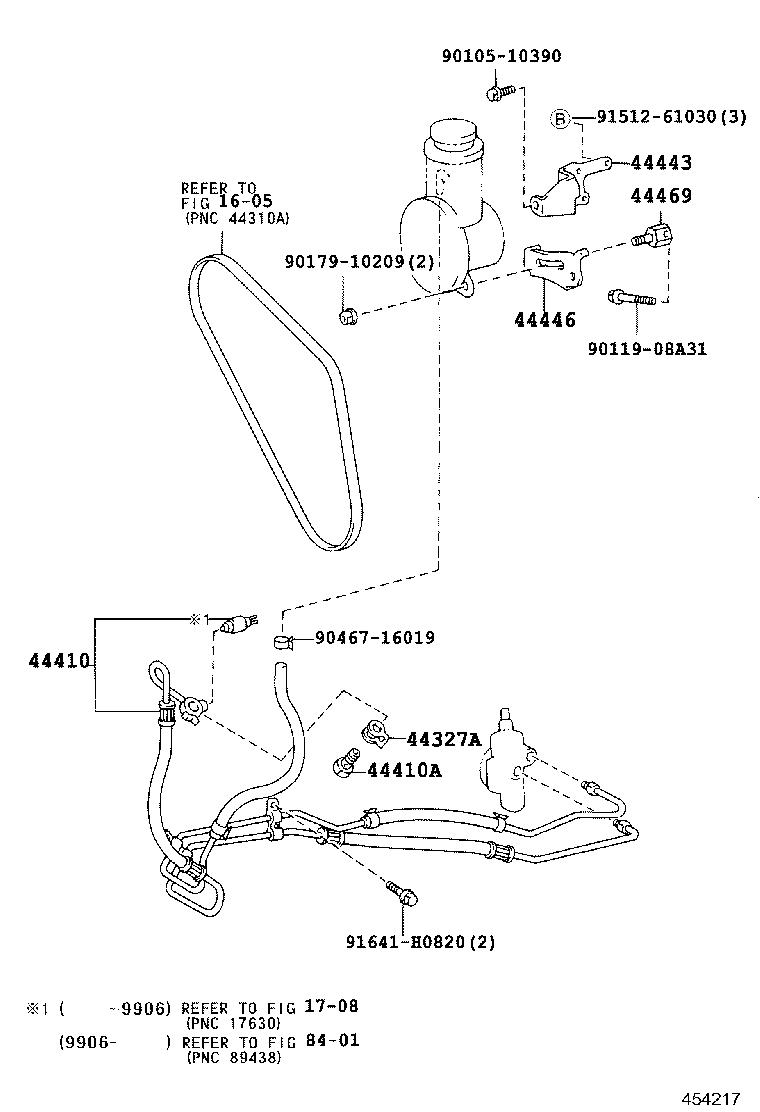

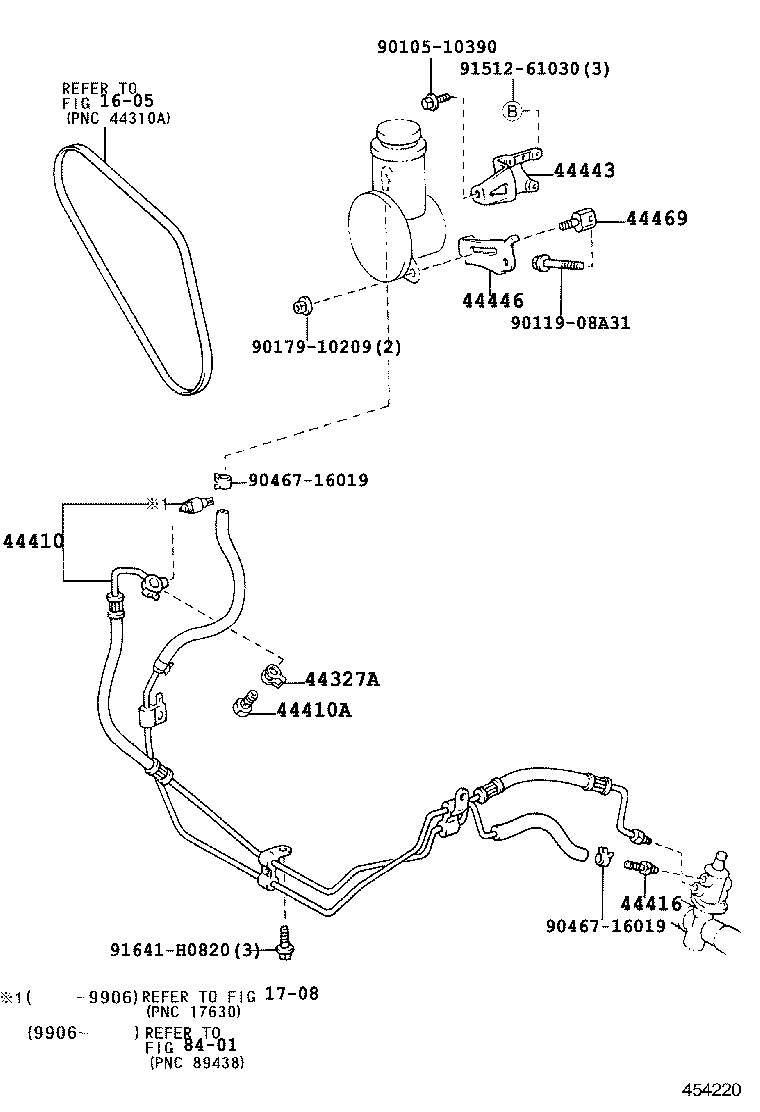

Power Steering Tube
11 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|
| 44327A | Gasket, Pressure Port, NO.1 |
| 44348A | Hose, Oil Reservoir TO Pump, NO.1 |
| 44348B | Clamp(FOR OIL RESERVOIR TO PUMP HOSE) |
| 44410 | Tube Assy, Pressure Feed |
| 44410A | Bolt, Union(FOR PRESSURE FEED TUBE) |
| 44411 | Hose, Pressure Feed |
| 44416 | Tube, Return(FOR STEERING GEAR OUTLET) |
| 44420A | Tube Assy, Return |
| 44443 | Bracket, Pump |
| 44446 | Strut, Adjusting |
| 44469 | Slider, Power Steering Belt Adjusting |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
