Toyota Land Cruiser 90

1996-04 → 2002-09 · chassis KDJ9#,KZJ9#,VZJ9# · catalogue 781540 · Europe

Discontinued model Data version 2003-02
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Brake Booster & Vacuum Tube

18 part groups · 6 illustrations

Illustrations

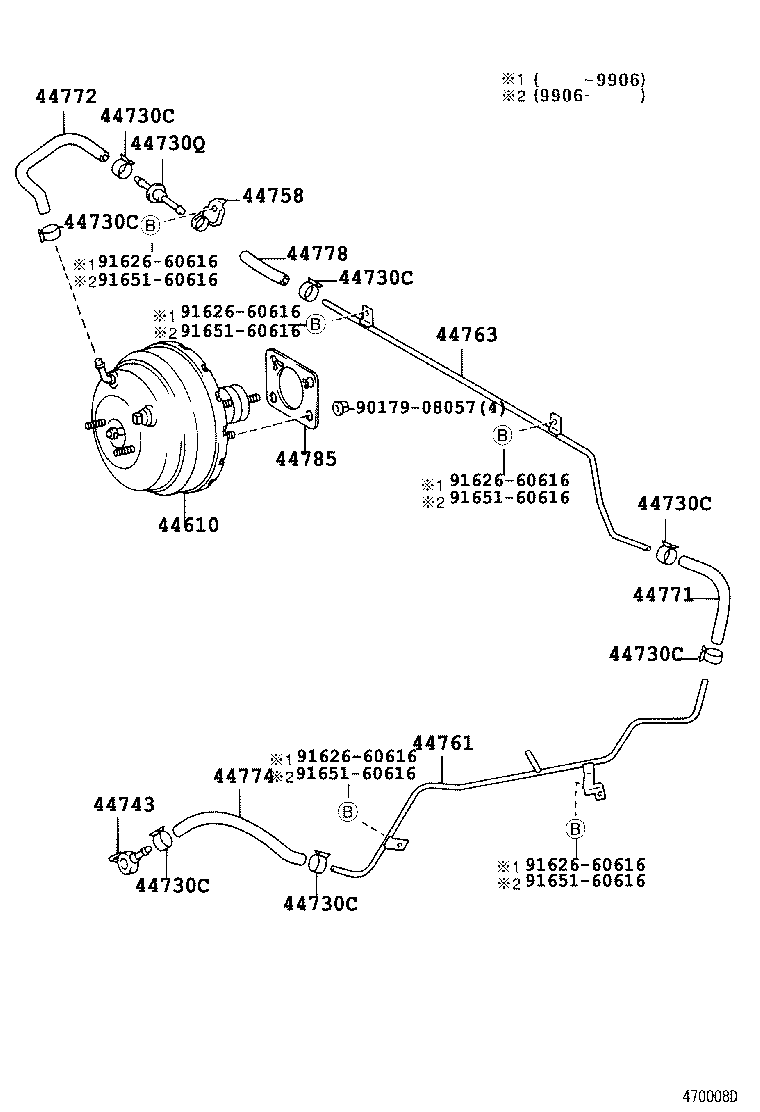

Figure 470010C 470010C 1996-04 → — Figure 470008D 470008D 1996-04 → — Figure 470017 470017 1996-04 → — Figure 470009D 470009D 1996-04 → — Figure 472217A 472217A 2000-08 → — Figure 472217A 472217A 2001-08 → —

Part groups

PNCDescription
44610 Booster Assy, Brake
44696 Grommet, Check Valve
44730 Valve Assy, Vacuum Check(FOR BRAKE)
44730C Clip(FOR VACUUM HOSE)
44730D Clip(FOR VACUUM HOSE, NO.1)
44730F Union, Vacuum Hose(FOR MANIFOLD SIDE)
44730Q Valve Assy, Vacuum Check, NO.2
44730U Plug(FOR VACUUM HOSE UNION)
44743 Union(FOR VACUUM PUMP)
44758 Bracket, Vacuum Check Valve
44761 Tube, Intake Manifold OR Vacuum Pump TO Connector
44763 Tube, Booster Vacuum
44771 Hose, Vacuum Tube Connector
44772 Hose, Check Valve TO Connector Tube
44773 Hose, Vacuum, NO.2
44774 Hose, Union TO Connector Tube
44778 Hose, Connector TO Check Valve
44785 Gasket, Brake Booster
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
