Toyota Land Cruiser 90
1996-04 → 2002-09 · chassis KDJ9#,KZJ9#,VZJ9# · catalogue 781540 · Europe
Discontinued model
Data version 2003-02

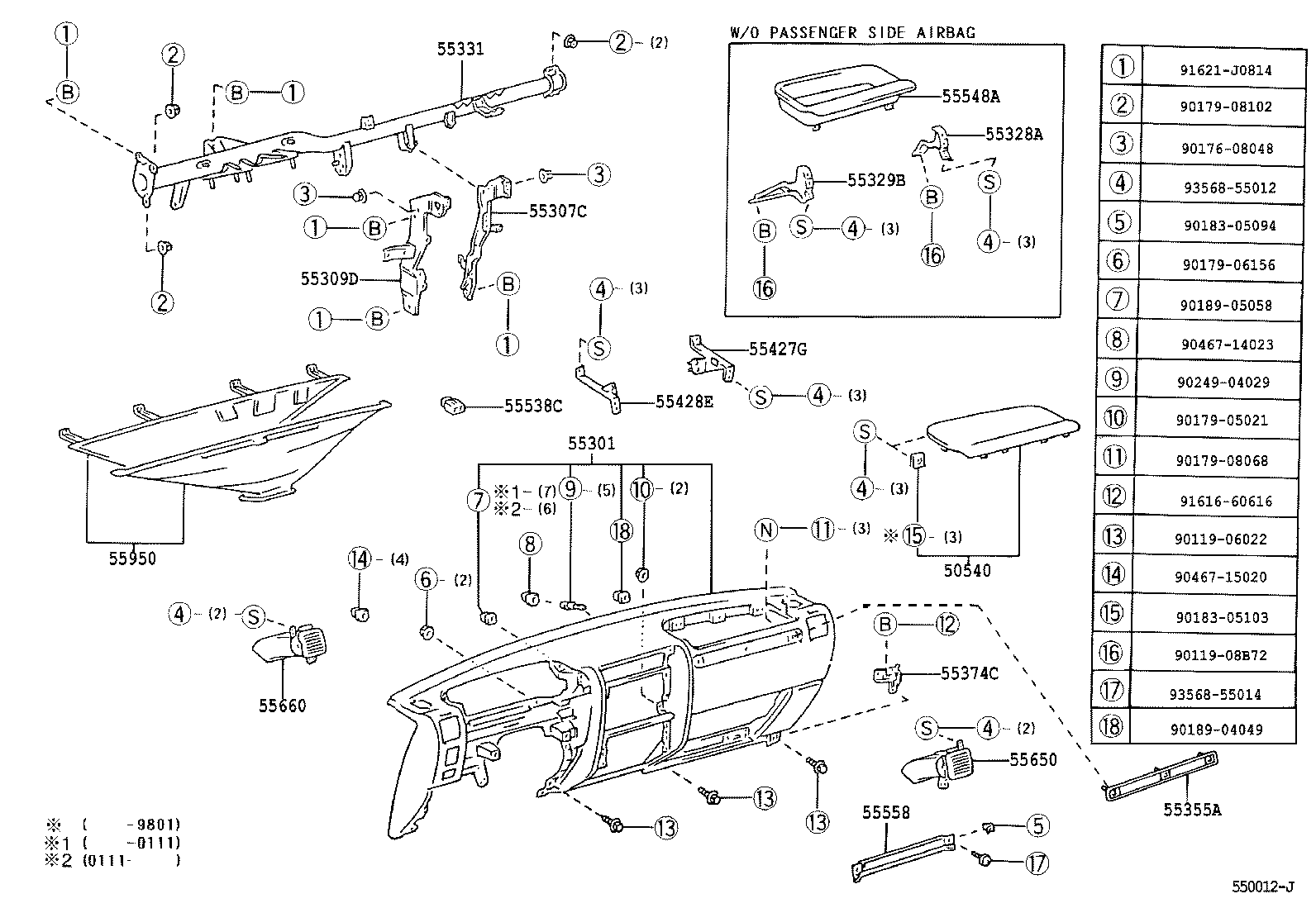

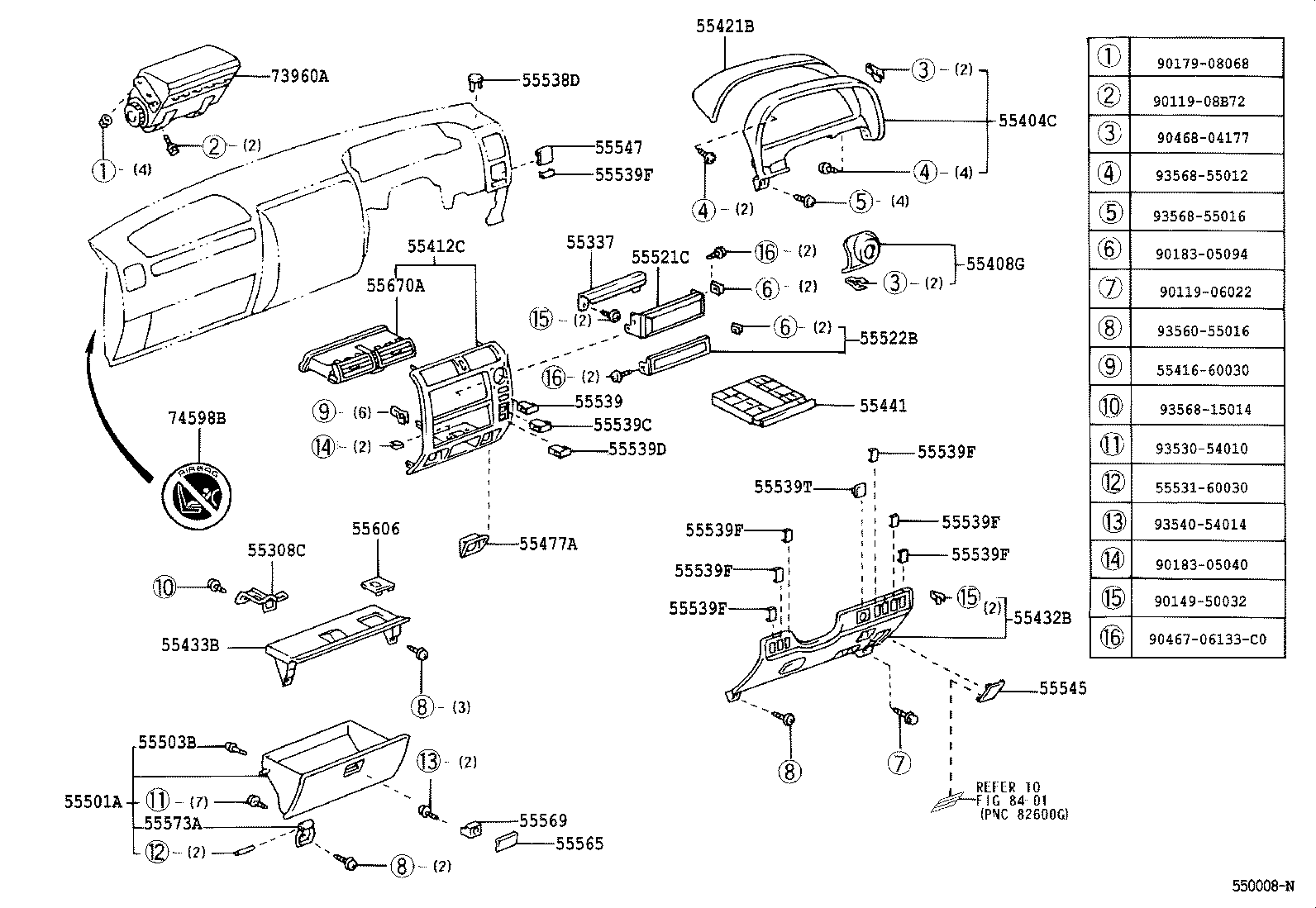

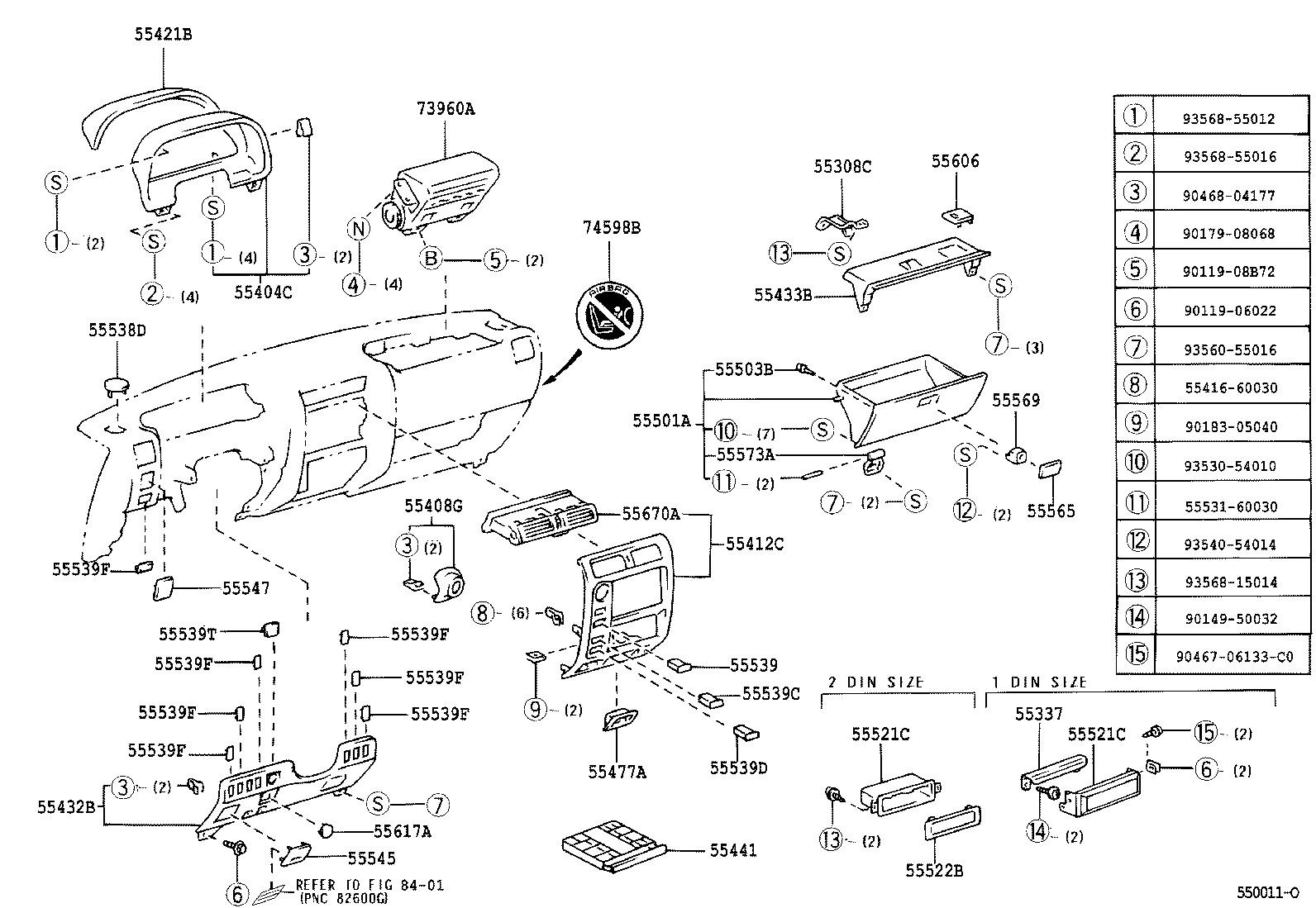

Instrument Panel & Glove Compartment
47 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|
| 50540 | DO0R Assy, Airbag Passenger |
| 55301 | Panel Sub-assy, Instrument |
| 55307C | Brace Sub-assy, Instrument Panel, NO.2 |
| 55308C | Bracket Sub-assy, Instrument Panel, Center |
| 55309D | Brace Sub-assy, Instrument Panel TO Floor |
| 55328A | Stay, Instrument Panel, NO.3 |
| 55329B | Stay, Instrument Panel, NO.4 |
| 55331 | Reinforcement, Instrument Panel |
| 55337 | Reinforcement, Instrument Panel Sub |
| 55355A | Plate, Instrument Panel |
| 55374C | Bracket, Instrument Panel Lower Mounting, NO.1 |
| 55404C | Panel Sub-assy, Instrument Cluster Finish, NO.2 |
| 55408G | Bezel Sub-assy, Starter Switch |
| 55412C | Panel, Instrument Cluster Finish, Center NO.1 |
| 55421B | Panel, Instrument Cluster Finish, Upper |
| 55427G | Bracket, Airbag Passenger Mounting, NO.1 |
| 55428E | Bracket, Airbag Passenger Mounting, NO.2 |
| 55432B | Panel, Instrument Panel Finish, Lower |
| 55433B | Panel, Instrument Panel Finish, Lower NO.2 |
| 55441 | Box, Instrument Panel |
| 55477A | Bezel, Cigarette Lighter Hole |
| 55501A | Door Sub-assy, Glove Compartment |
| 55503B | Cushion(FOR GLOVE COMPARTMENT) |
| 55521C | Cover, Stereo Opening |
| 55522B | Cover, Radio Tuner Opening |
| 55538C | Cover, Cooler Switch Hole |
| 55538D | Cover, Sunshine Sensor Hole |
| 55539 | Cover, Spare Switch Hole |
| 55539C | Cover, Spare Switch Hole |
| 55539D | Cover, Spare Switch Hole |
| 55539F | Cover, Spare Switch Hole |
| 55539T | Cover, Spare Switch Hole |
| 55545 | Cover, Fuse Box Opening |
| 55547 | Cover, Remote Control Mirror Hole |
| 55548A | Cover, Instrument Panel Hole |
| 55558 | Reinforcement, Glove Compartment Door |
| 55565 | Handle, Glove Compartment Door Lock |
| 55569 | Cover, Glove Compartment Door Lock |
| 55573A | Hinge, Glove Compartment Door |
| 55606 | Cover Sub-assy, Instrument Panel Under, NO.1 |
| 55617A | Cover, Throttle Knob Hole |
| 55650 | Register Assy, Instrument Panel, NO.1 |
| 55660 | Register Assy, Instrument Panel, NO.2 |
| 55670A | Register Assy, Instrument Panel, Center |
| 55950 | Nozzle Assy, Defroster |
| 73960A | Airbag Assy, Instrument Panel Passenger W/O Door |
| 74598B | Label, Passenger Airbag Caution |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
