Toyota Land Cruiser 90
1996-04 → 2002-09 · chassis KDJ9#,KZJ9#,VZJ9# · catalogue 781540 · Europe
Discontinued model
Data version 2003-02

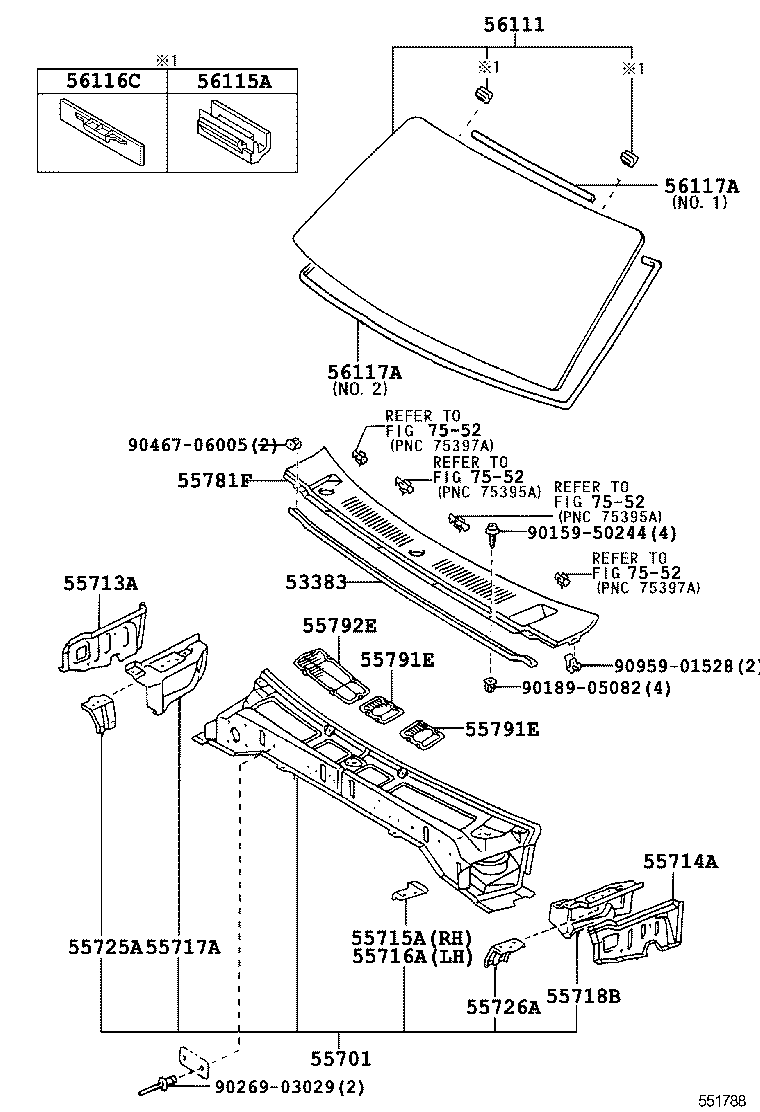

Cowl Panel & Windshield Glass
17 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 53383 | Seal, Hood TO Cowl Top |
| 55701 | Panel Sub-assy, Cowl |
| 55713A | Panel, Cowl Top Side, RH |
| 55714A | Panel, Cowl Top Side, LH |
| 55715A | Brace, Cowl Top TO Apron, RH |
| 55716A | Brace, Cowl Top TO Apron, LH |
| 55717A | Panel, Cowl Top Side, Inner RH |
| 55718B | Panel, Cowl Top Side, Inner LH |
| 55725A | Reinforcement, Hood Hinge Mounting, RH |
| 55726A | Reinforcement, Hood Hinge Mounting, LH |
| 55781F | Louver, Cowl Top Ventilator |
| 55791E | Cover, Heater Duct Hole |
| 55792E | Cover, Heater Air Duct Hole, NO.2 |
| 56111 | Glass, Windshield |
| 56115A | Stopper, Windshield Glass, NO.1 |
| 56116C | Stopper, Windshield Glass, NO.2 |
| 56117A | Dam, Window Glass Adhesive |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
