Toyota Land Cruiser 90

1996-04 → 2002-09 · chassis KDJ9#,KZJ9#,VZJ9# · catalogue 781540 · Europe

Discontinued model Data version 2003-02
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Floor Mat & Silencer Pad

13 part groups · 2 illustrations

Illustrations

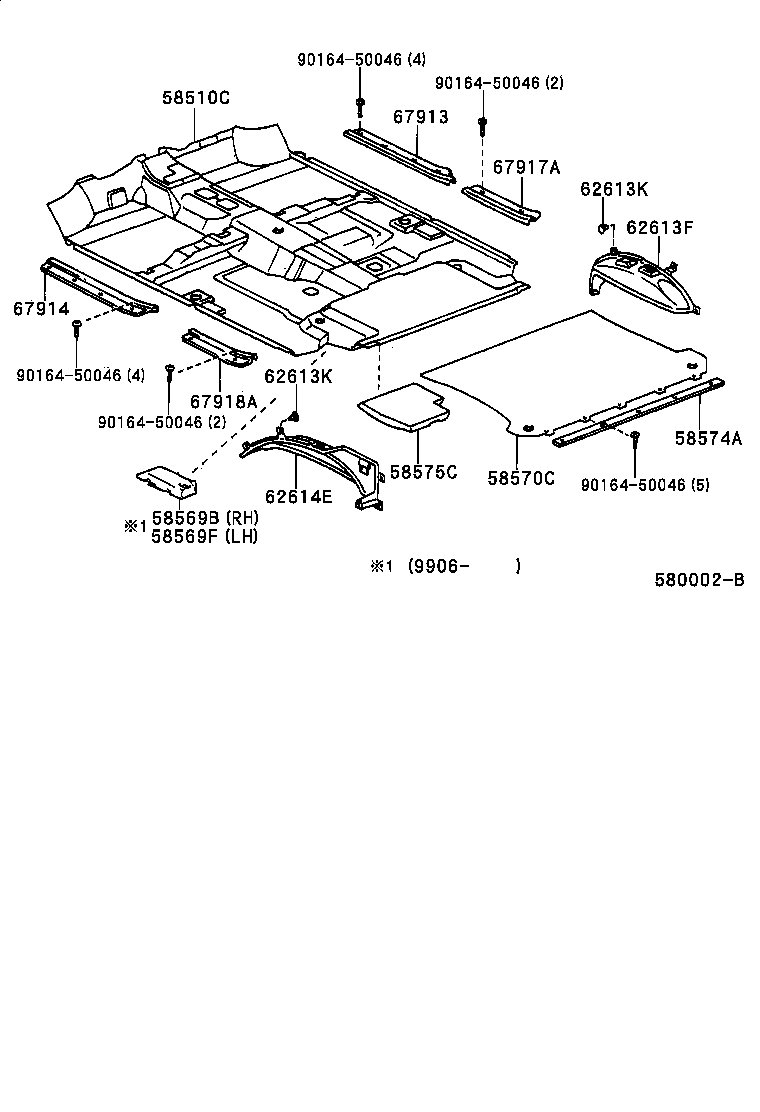

Figure 580001 580001 1996-04 → — Figure 580002B 580002B 1996-04 → —

Part groups

PNCDescription
58510C Carpet Assy, Front Floor, Front
58569B Packing, Rear Floor Plate, NO.2
58569F Pad, Front Floor Side, LH
58570C Carpet Assy, Rear Floor
58574A Plate, Rear Floor Mat Support, Rear
58575C Pad, Front Floor, Front
62613F Cover, Quarter Wheel House, RH
62613K Clip (FOR QUARTER WHEEL HOUSE COVER)
62614E Cover, Quarter Wheel House, LH
67913 Plate, Front Door Scuff, RH
67914 Plate, Front Door Scuff, LH
67917A Plate, Rear Door Scuff, RH
67918A Plate, Rear Door Scuff, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
