Toyota Land Cruiser 90

1996-04 → 2002-09 · chassis KDJ9#,KZJ9#,VZJ9# · catalogue 781540 · Europe

Discontinued model Data version 2003-02
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Roof Headlining & Silencer Pad

9 part groups · 2 illustrations

Illustrations

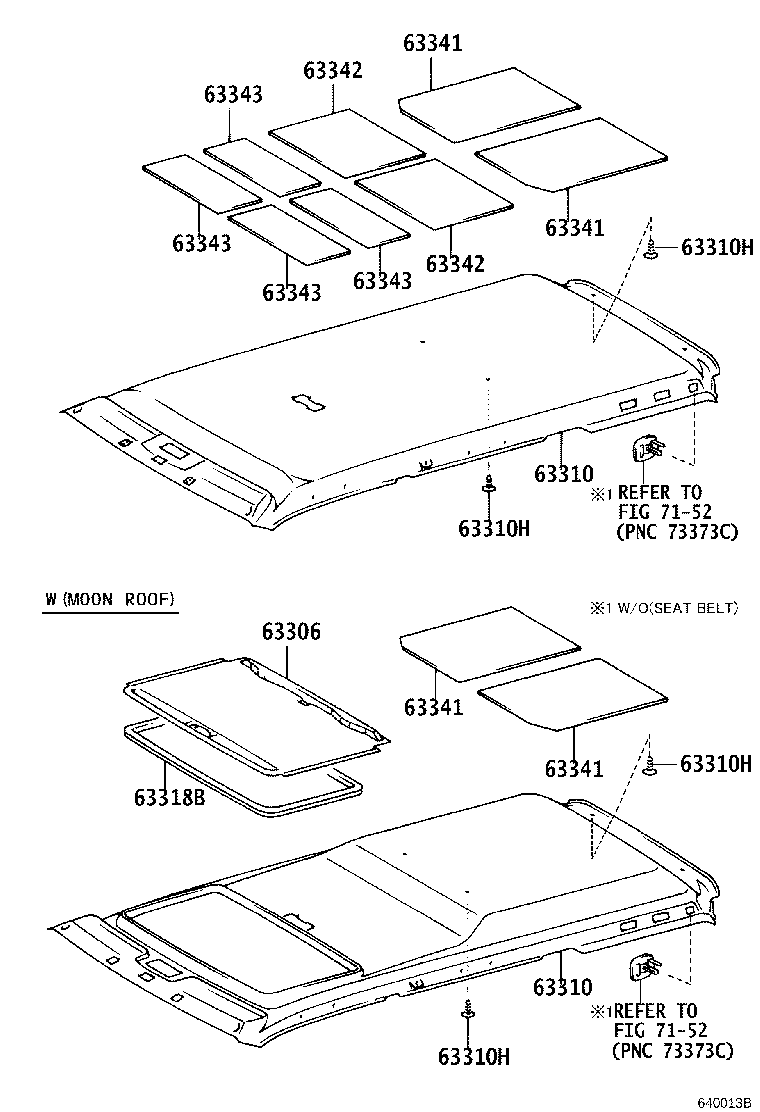

Figure 640163 640163 1996-04 → — Figure 640013B 640013B 1996-04 → —

Part groups

PNCDescription
63306 Trim Sub-assy, Sunshade
63310 Headlining Assy, Roof
63310H Clip(FOR ROOF HEADLINING)
63318B Moulding, Roof Headlining Set, NO.1
63341 Pad, Roof Silencer, NO.1
63342 Pad, Roof Silencer, NO.2
63343 Pad, Roof Silencer, NO.3
73373E Cover, Rear Seat Shoulder Belt Hole, RH
73375C Cover, Rear Seat Shoulder Belt Hole, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
