Toyota Land Cruiser 90
1996-04 → 2002-09 · chassis KDJ9#,KZJ9#,VZJ9# · catalogue 781540 · Europe
Discontinued model
Data version 2003-02

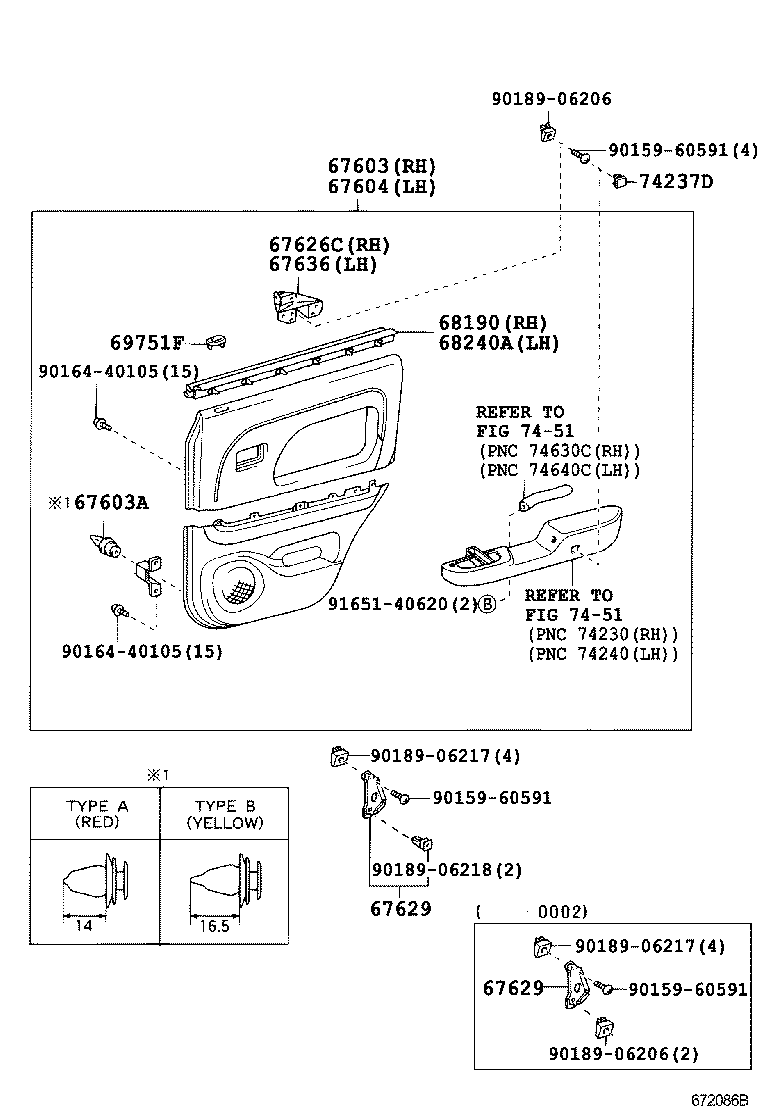

Rear Door Panel & Glass
34 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 62331B | Weatherstrip, Rear Door Opening Trim, RH |
| 62332B | Weatherstrip, Rear Door Opening Trim, LH |
| 67003 | Panel Sub-assy, Rear Door, RH |
| 67004 | Panel Sub-assy, Rear Door, LH |
| 67113 | Panel, Rear Door, Outer RH |
| 67114 | Panel, Rear Door, Outer LH |
| 67407E | Bar Sub-assy, Rear Door Window Division, RH |
| 67408E | Bar Sub-assy, Rear Door Window Division, LH |
| 67603 | Board Sub-assy, Rear Door Trim, RH |
| 67603A | Retainer(FOR REAR DOOR TRIM BOARD) |
| 67604 | Board Sub-assy, Rear Door Trim, LH |
| 67626C | Bracket, Rear Door Trim, NO.2 |
| 67629 | Bracket, Rear Door Trim Board |
| 67636 | Bracket, Door Trim, NO.2 LH |
| 67841E | Cover, Rear Door Service Hole, RH |
| 67842E | Cover, Rear Door Service Hole, LH |
| 67867D | Retainer, Rear Door Weatherstrip, RH |
| 67868D | Retainer, Rear Door Weatherstrip, LH |
| 67871 | Weatherstrip, Rear Door, RH |
| 67872 | Weatherstrip, Rear Door, LH |
| 68103 | Glass Sub-assy, Rear Door, RH |
| 68104 | Glass Sub-assy, Rear Door, LH |
| 68123 | Glass, Rear Door Window, RH |
| 68124 | Glass, Rear Door Window, LH |
| 68142C | Run, Rear Door Glass, RH |
| 68152C | Run, Rear Door Glass, LH |
| 68188 | Weatherstrip, Rear Door Quarter Window, RH |
| 68189 | Weatherstrip, Rear Door Quarter Window, LH |
| 68190 | Weatherstrip Assy, Rear Door Glass, Inner |
| 68240A | Weatherstrip Assy, Rear Door Glass, Inner LH |
| 68630D | Check Assy, Rear Door, RH |
| 68640A | Check Assy, Rear Door, LH |
| 69751F | Holder, Rear Door Lock Control Knob |
| 74237D | Cap, Rear Door Armrest Base |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
