Toyota Land Cruiser 90

1996-04 → 2002-09 · chassis KDJ9#,KZJ9#,VZJ9# · catalogue 781540 · Europe

Discontinued model Data version 2003-02
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Back Door Panel & Glass

17 part groups · 2 illustrations

Illustrations

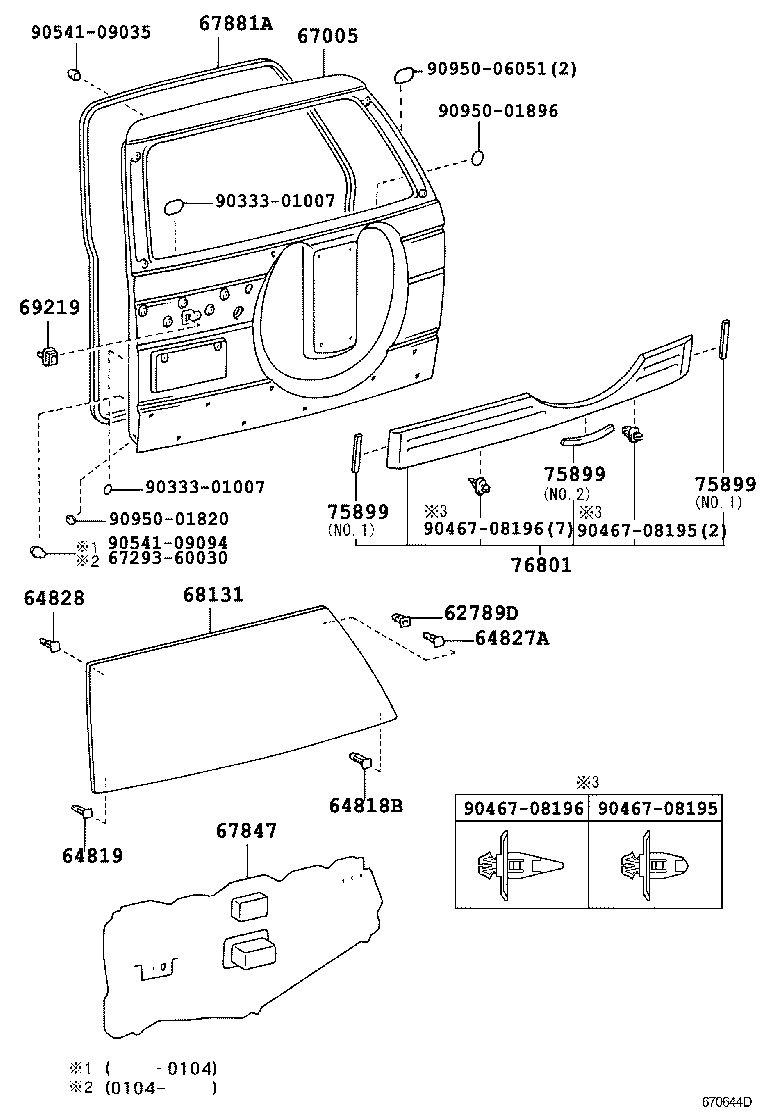

Figure 670004B 670004B 1996-04 → — Figure 670644D 670644D 1996-04 → —

Part groups

PNCDescription
62789D Clip, Back Door Window Weatherstrip
64739D Cover, Back Door Trim Rear Washer
64780A Panel Assy, Back Door Trim
64818B Spacer, Back Door Glass, NO.1
64819 Spacer, Back Window Glass, NO.2
64827A Clip, Back Window Glass, RH
64828 Clip, Back Window Glass, LH
67005 Panel Sub-assy, Back Door
67847 Cover, Back Door Service Hole, RH
67881A Weatherstrip, Back Door
67935B Garnish, Back Door
67937A Garnish, Back Door Side
67938A Garnish, Back Door Side, LH
68131 Glass, Back Door
69219 Seal, Back Door Outside Handle
75899 Tape, Moulding, NO.5
76801 Garnish Sub-assy, Back Door, Outside
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
