Toyota Land Cruiser 90

1996-04 → 2002-09 · chassis KDJ9#,KZJ9#,VZJ9# · catalogue 781540 · Europe

Discontinued model Data version 2003-02
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Armrest & Visor

23 part groups · 3 illustrations

Illustrations

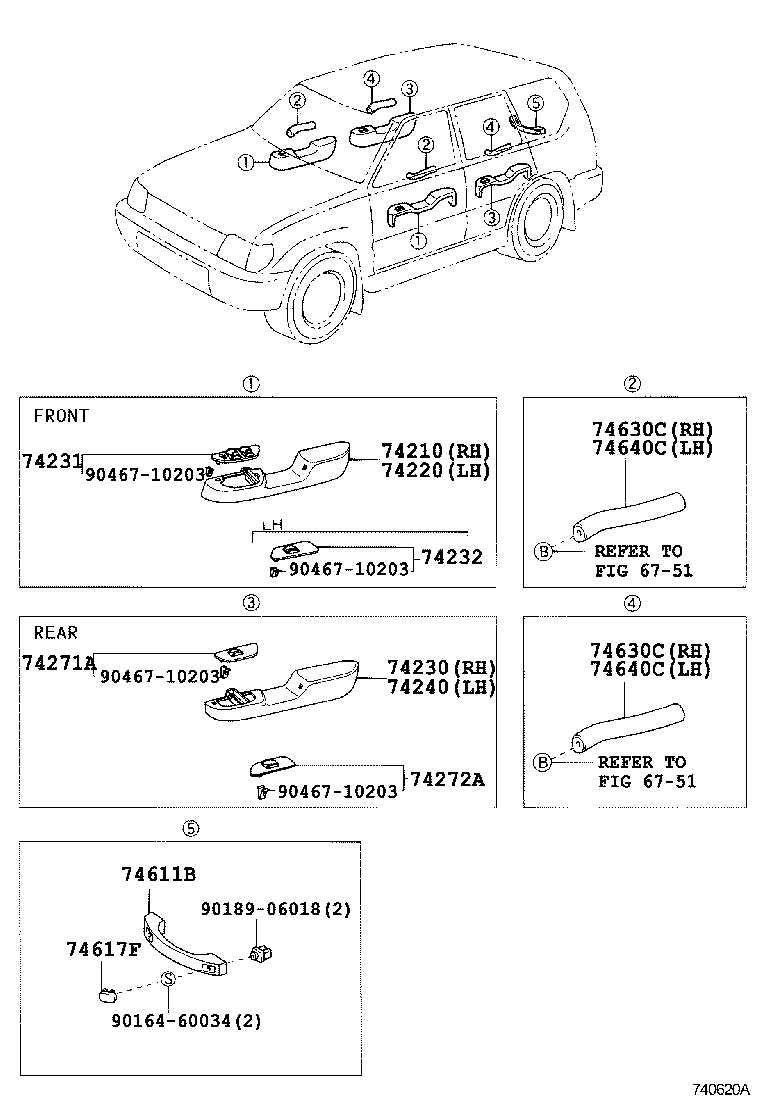

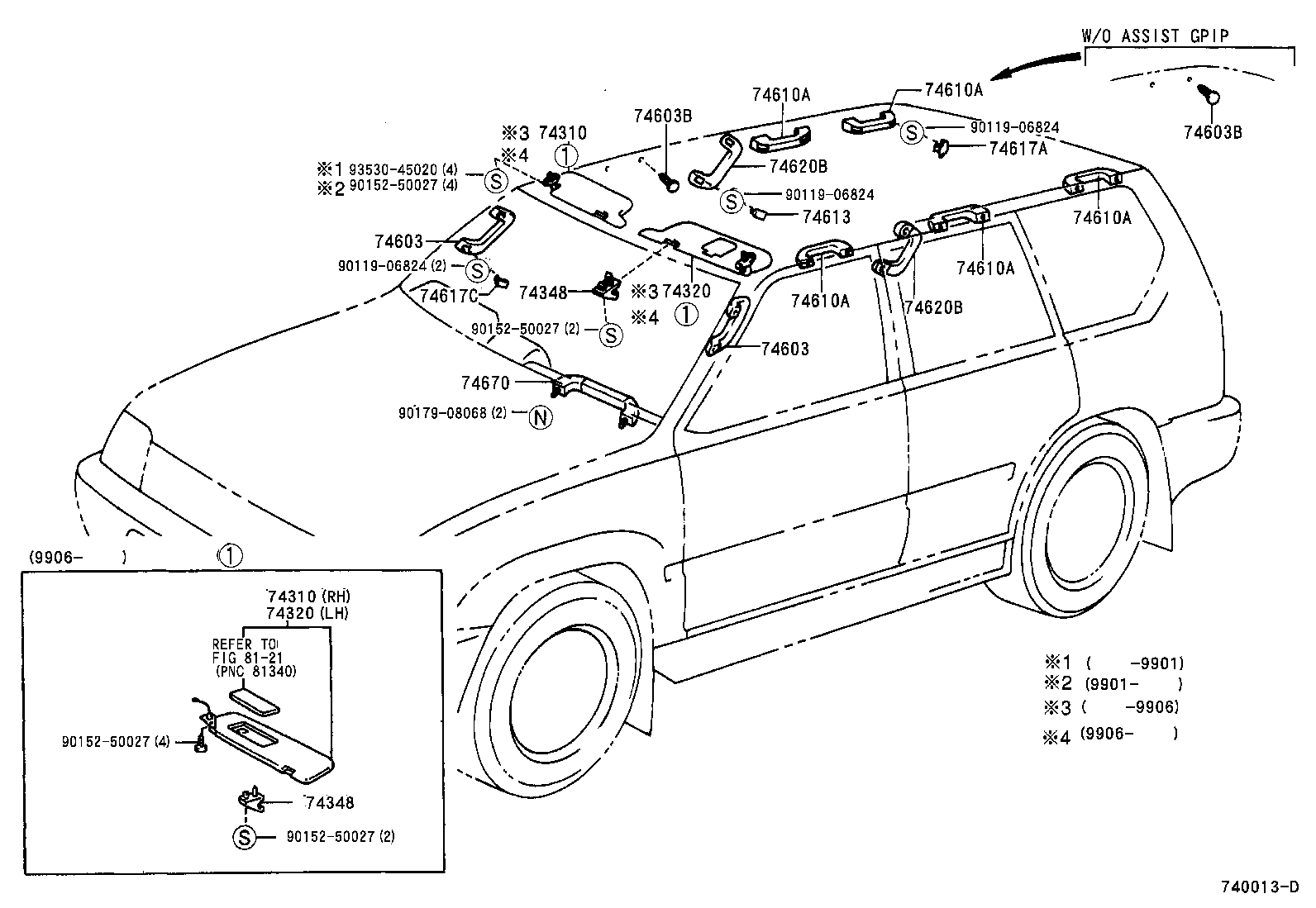

Figure 740011B 740011B 1996-04 → 2002-09 Figure 740620A 740620A 1999-06 → — Figure 740013D 740013D 1996-04 → —

Part groups

PNCDescription
74210 Armrest Assy, Front, RH
74220 Armrest Assy, Front, LH
74230 Armrest Assy, Rear, RH
74231 Panel, Front Armrest Base, Upper RH
74232 Panel, Front Armrest Base, Upper LH
74240 Armrest Assy, Rear, LH
74271A Panel, Rear Door Armrest Base, Upper RH
74272A Panel, Rear Door Armrest Base, Upper LH
74310 Visor Assy, RH
74320 Visor Assy, LH
74348 Holder, Visor
74603 Grip Sub-assy, Assist, Front
74603B Clip (FOR ASSIST GRIP)
74610A Grip Sub-assy, Assist
74611B Grip, Assist
74613 Plug, Assist Grip
74617A Plug, Assist Grip
74617C Plug, Assist Grip
74617F Plug, Assist Grip
74620B Grip Assy, Assist, Rear
74630C Grip Assy, Door Assist, RH
74640C Grip Assy, Door Assist, LH
74670 Grip Assy, Instrument Assist
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
