Toyota Land Cruiser 90

1996-04 → 2002-09 · chassis KDJ9#,KZJ9#,VZJ9# · catalogue 781540 · Europe

Discontinued model Data version 2003-02
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Accelerator Link

12 part groups · 9 illustrations

Illustrations

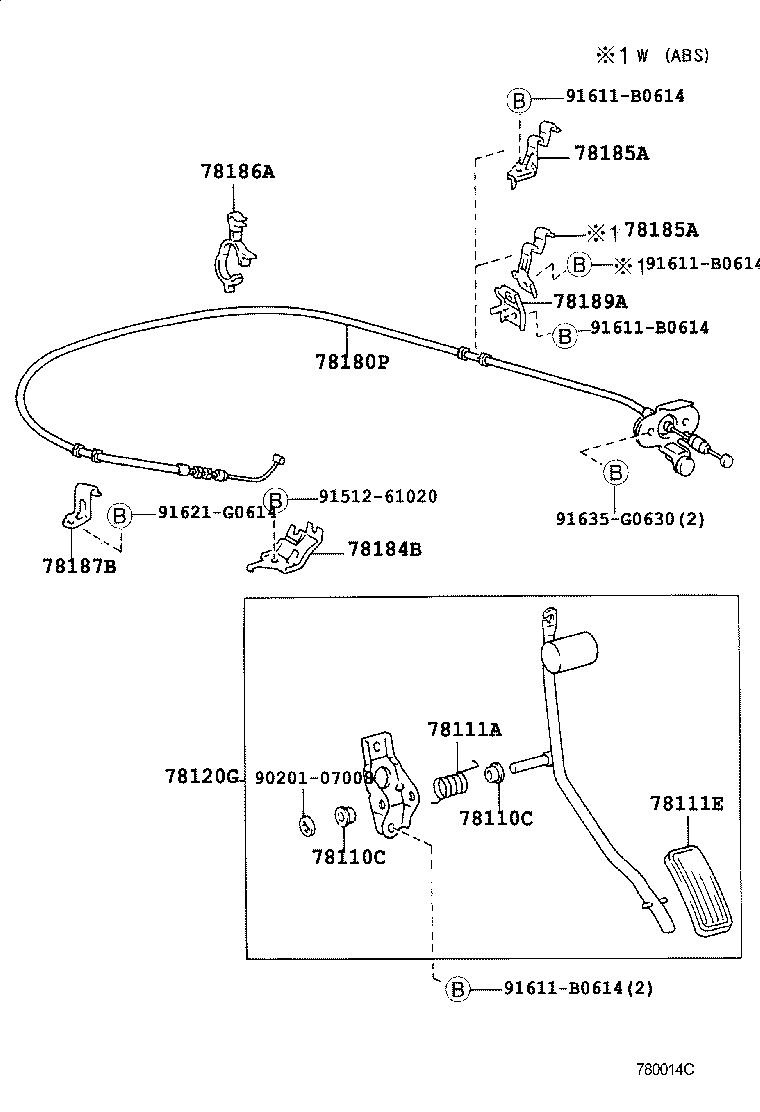

Figure 780012B 780012B 1996-04 → 2000-08 Figure 780541A 780541A 2000-08 → — Figure 780013D 780013D 1996-04 → 1999-06 Figure 780404A 780404A 1999-06 → 2000-08 Figure 780509B 780509B 2000-08 → — Figure 780014C 780014C 1996-04 → — Figure 780015B 780015B 1996-04 → — Figure 780523B 780523B 2000-08 → — Figure 780524C 780524C 2000-08 → —

Part groups

PNCDescription
78024 Bracket Sub-assy, Accelerator Control Cable
78110C Bush (FOR ACCELERATOR PEDAL ROD)
78111A Spring (FOR ACCELERATOR PEDAL)
78111E Pad, Accelerator Pedal
78120G Rod Assy, Accelerator Pedal
78180P Cable Assy, Accelerator Control
78183B Clamp, Accelerator Control Cable
78184B Bracket, Accelerator Control Cable
78185A Clamp, Accelerator Control Cable, NO.2
78186A Clamp, Accelerator Control Cable, NO.3
78187B Bracket, Accelerator Pull Back Spring
78189A Support, Accelerator Control Cable, NO.2
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
