Toyota Land Cruiser 90

1996-04 → 2002-09 · chassis KDJ9#,KZJ9#,VZJ9# · catalogue 781540 · Europe

Discontinued model Data version 2003-02
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Rear Combination Lamp

20 part groups · 8 illustrations

Illustrations

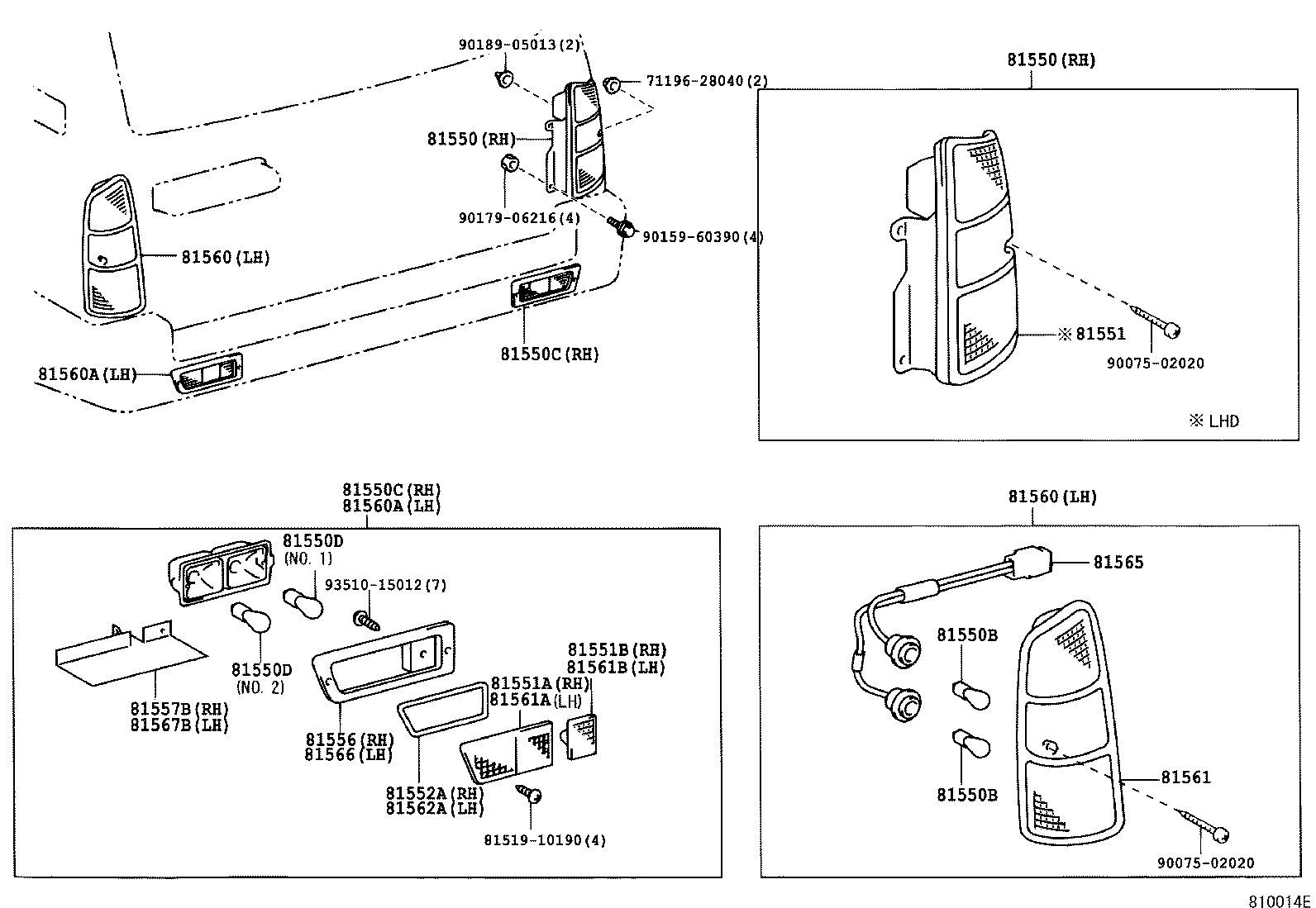

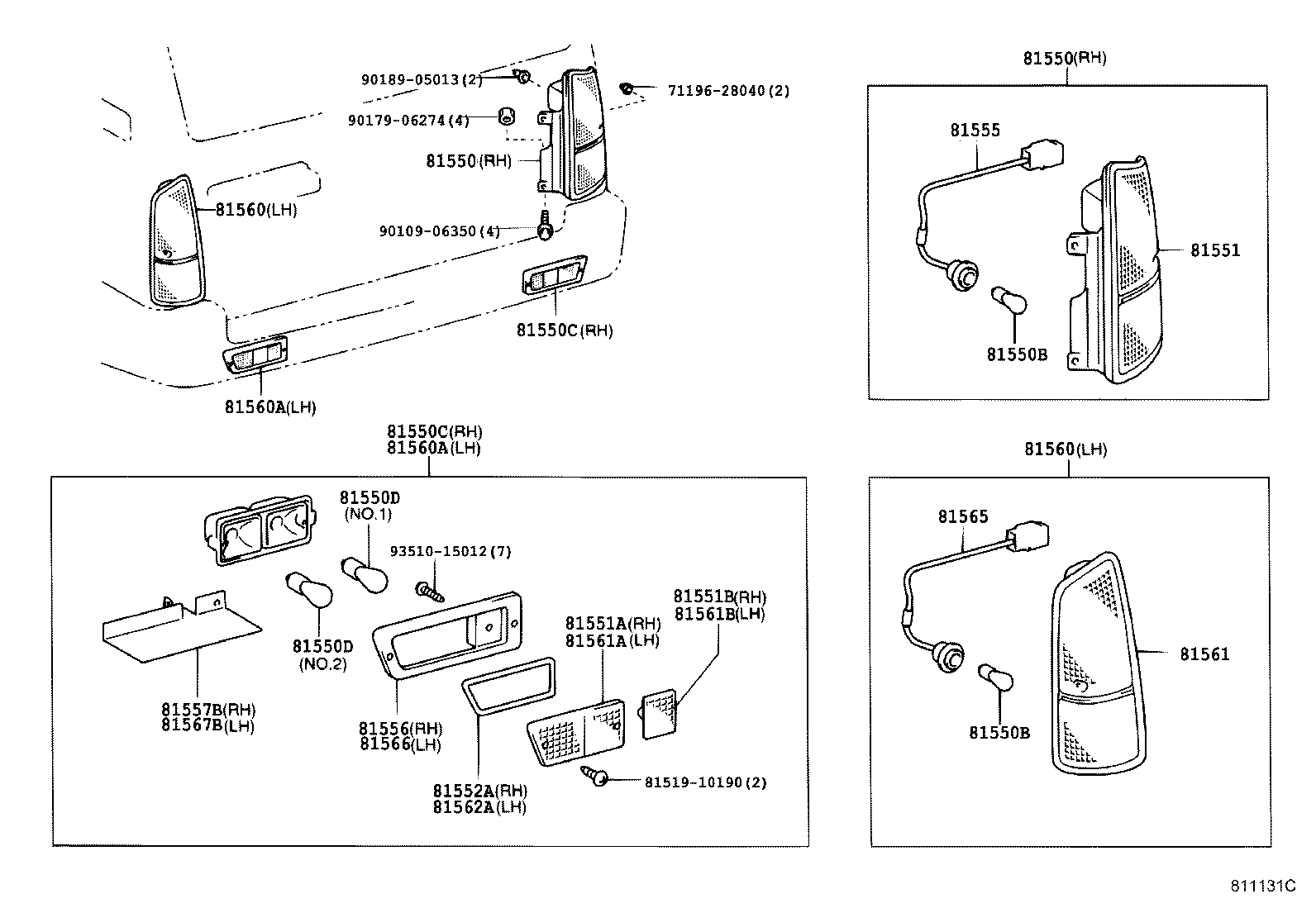

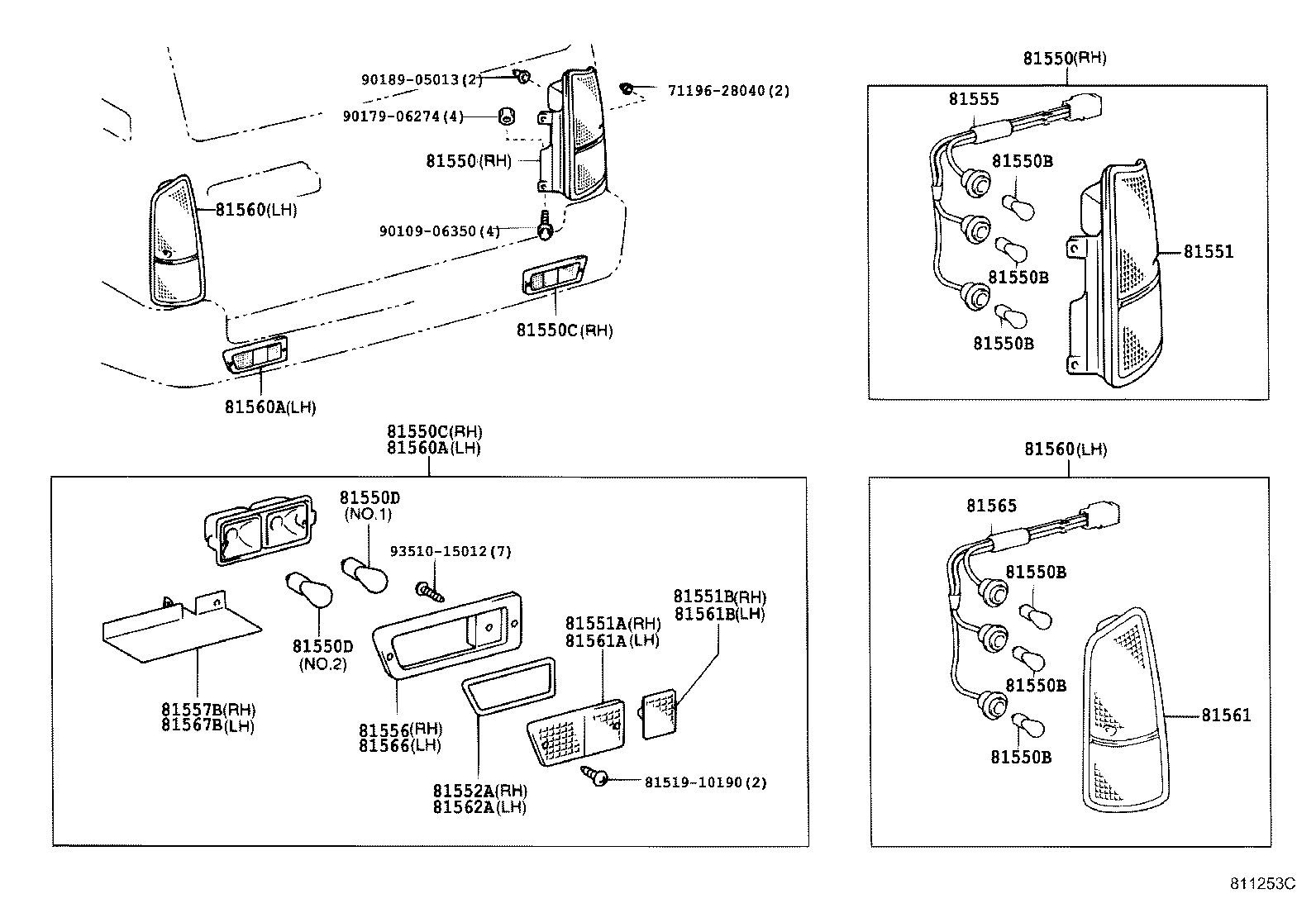

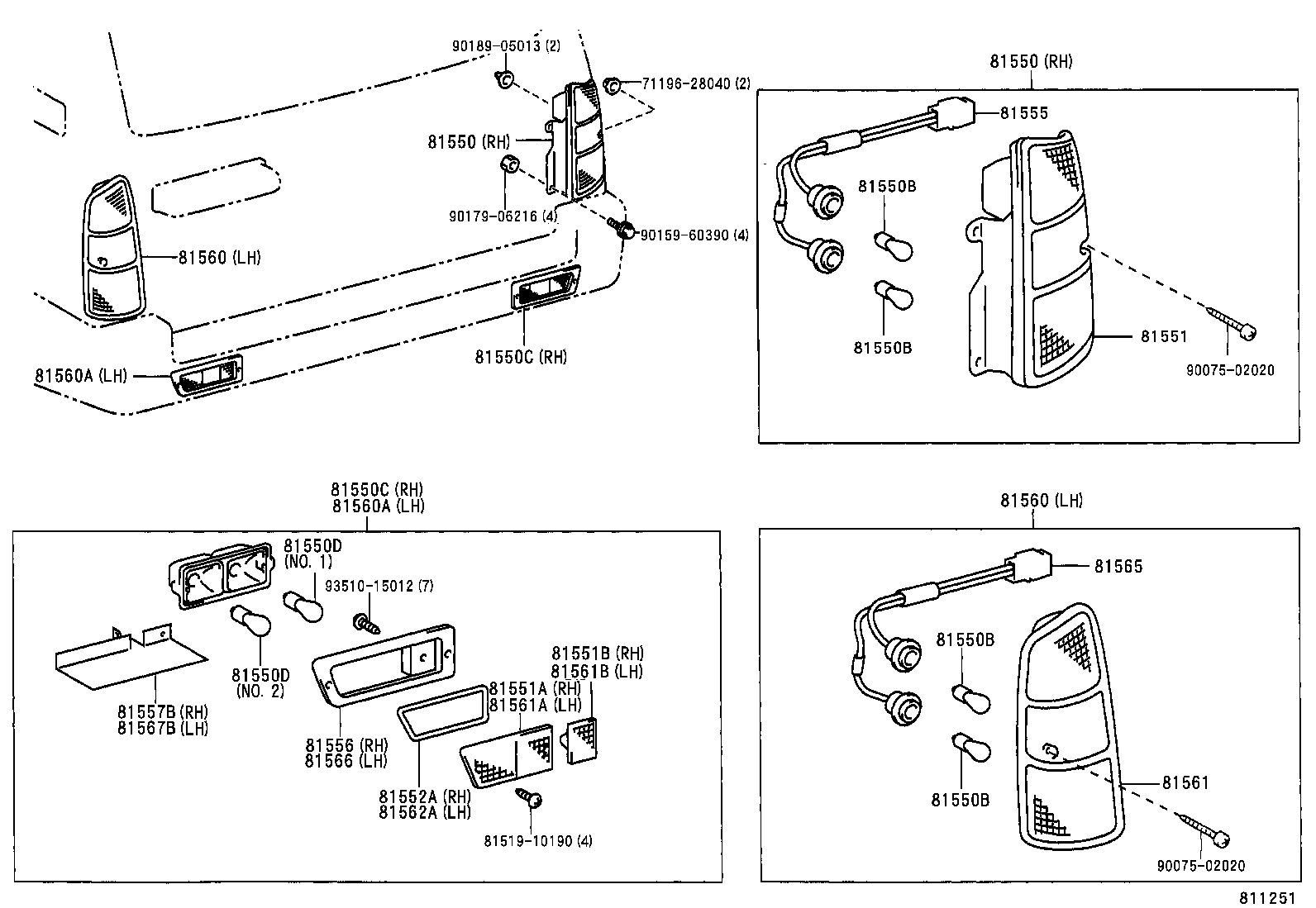

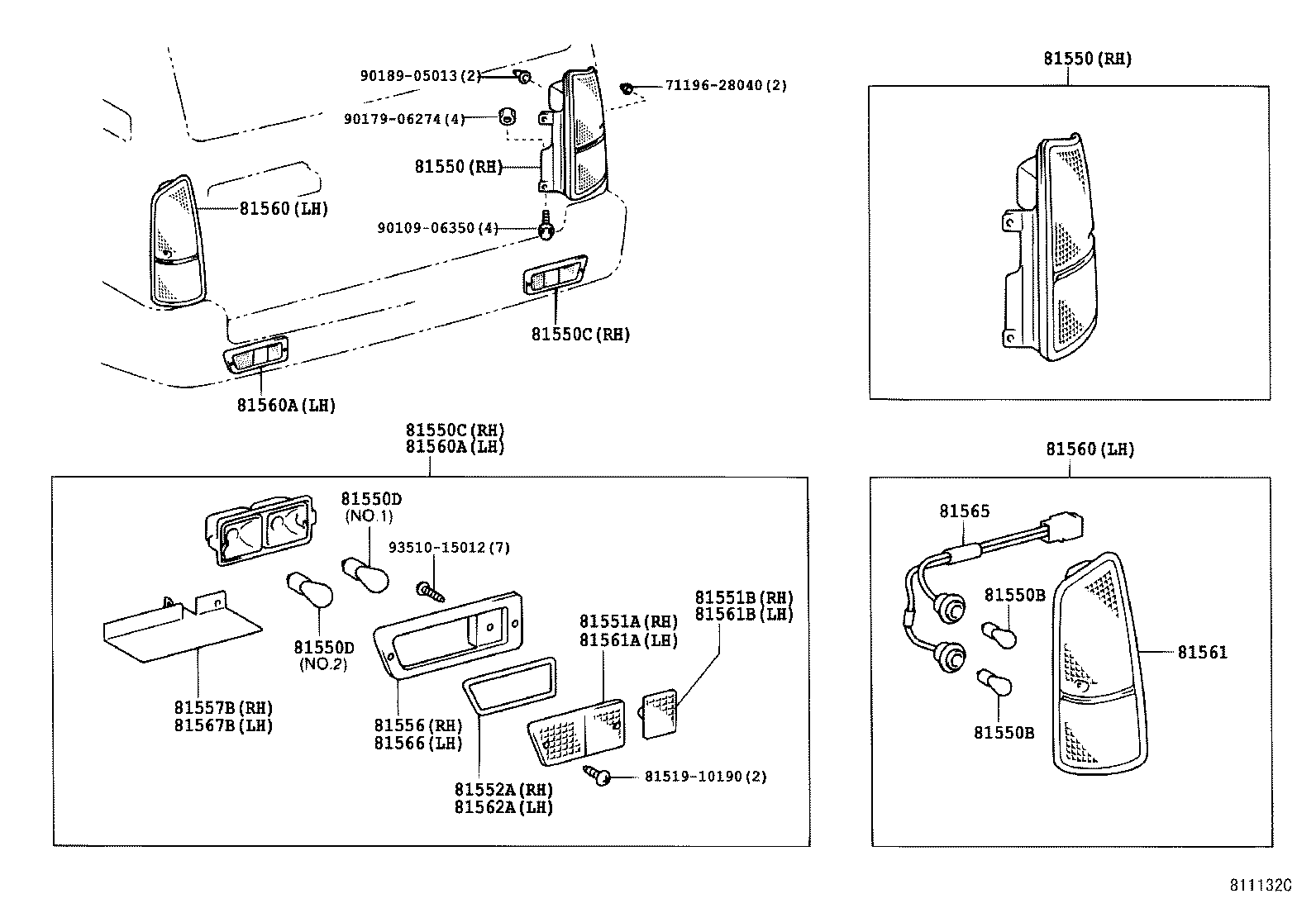

Figure 810013F 810013F 1996-04 → 1999-06 Figure 810014E 810014E 1996-04 → 1999-06 Figure 811250 811250 1998-01 → 1999-06 Figure 811251 811251 1998-01 → 1999-06 Figure 811131C 811131C 1999-06 → — Figure 811252 811252 1999-06 → — Figure 811132C 811132C 1999-06 → — Figure 811253C 811253C 1999-06 → —

Part groups

PNCDescription
81550 Lamp Assy, Rear Combination, RH
81550B Bulb(FOR REAR COMBINATION LAMP)
81550C Lamp Assy, Rear Combination, RH
81550D Bulb(FOR REAR COMBINATION LAMP)
81551 Lens, Rear Combination Lamp, RH
81551A Lens, Rear Combination Lamp, RH
81551B Lens, Rear Combination Lamp, RH
81552A Gasket, Rear Combination Lamp, RH
81555 Socket & Wire Sub-assy, Rear Combination Lamp, RH
81556 Rim, Rear Combination Lamp, RH
81557B Protector, Rear Combination Lamp, RH
81560 Lamp Assy, Rear Combination, LH
81560A Lamp Assy, Rear Combination, LH
81561 Lens, Rear Combination Lamp, LH
81561A Lens, Rear Combination Lamp, LH
81561B Lens, Rear Combination Lamp, LH
81562A Gasket, Rear Combination Lamp, LH
81565 Socket & Wire Sub-assy, Rear Combination Lamp, LH
81566 Rim, Rear Combination Lamp, LH
81567B Protector, Rear Combination Lamp, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
