Toyota Land Cruiser 90

1996-04 → 2002-09 · chassis KDJ9#,KZJ9#,VZJ9# · catalogue 781540 · Europe

Discontinued model Data version 2003-02
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Overdrive & Electronic Controlled Transmission

12 part groups · 4 illustrations

Illustrations

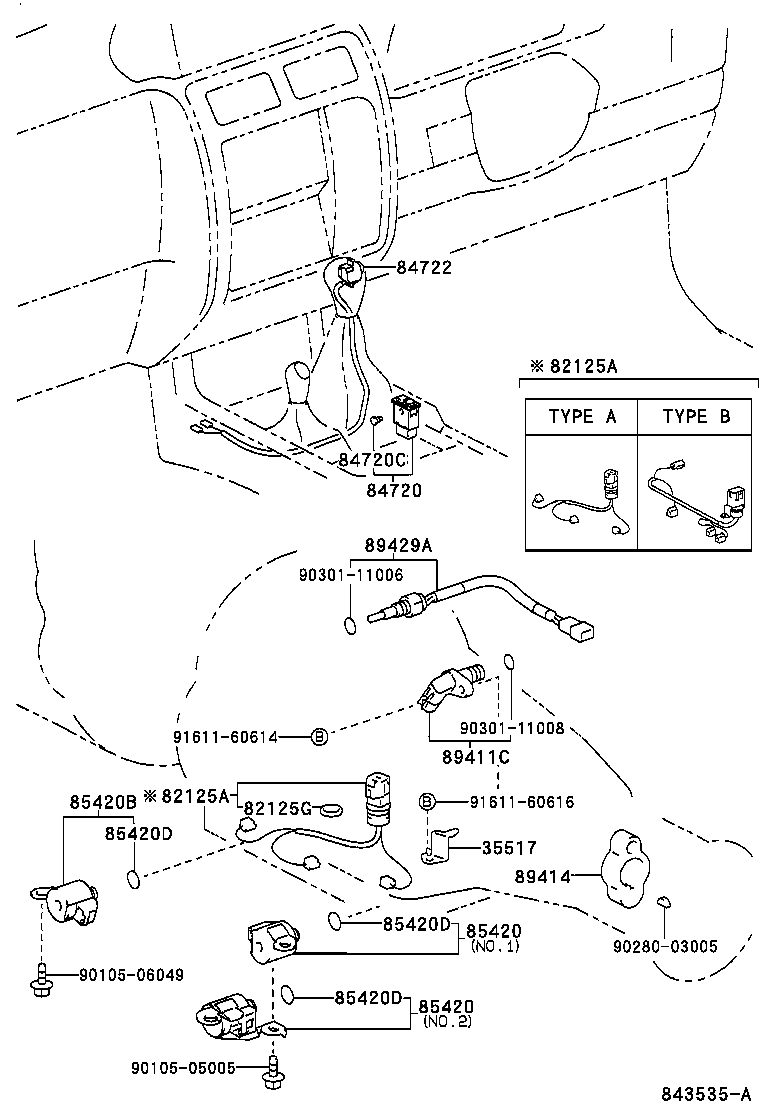

Figure 840012E 840012E 1996-04 → 1999-06 Figure 840012E 840012E 1999-06 → 2000-08 Figure 843535A 843535A 1999-06 → — Figure 843535A 843535A 2000-08 → —

Part groups

PNCDescription
35517 Plate, Transmission Wire Lock
82125A Wire, Transmission
82125G Ring, O(FOR TRANSMISSION WIRE)
84720 Switch Assy, Pattern Select
84720C Bulb(FOR PATTERN SELECT SWITCH)
84722 Switch, Transmission Control
85420 Solenoid Assy, Transmission
85420B Solenoid Assy, Transmission
85420D Ring, O (FOR TRANSMISSION SOLENOID)
89411C Sensor, Speed
89414 Rotor, Sensor
89429A Sensor, Temperature
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
