Toyota Land Cruiser 90
1996-04 → 2002-09 · chassis KDJ9#,KZJ9#,VZJ9# · catalogue 781540 · Europe
Discontinued model
Data version 2003-02
Abs & Vsc

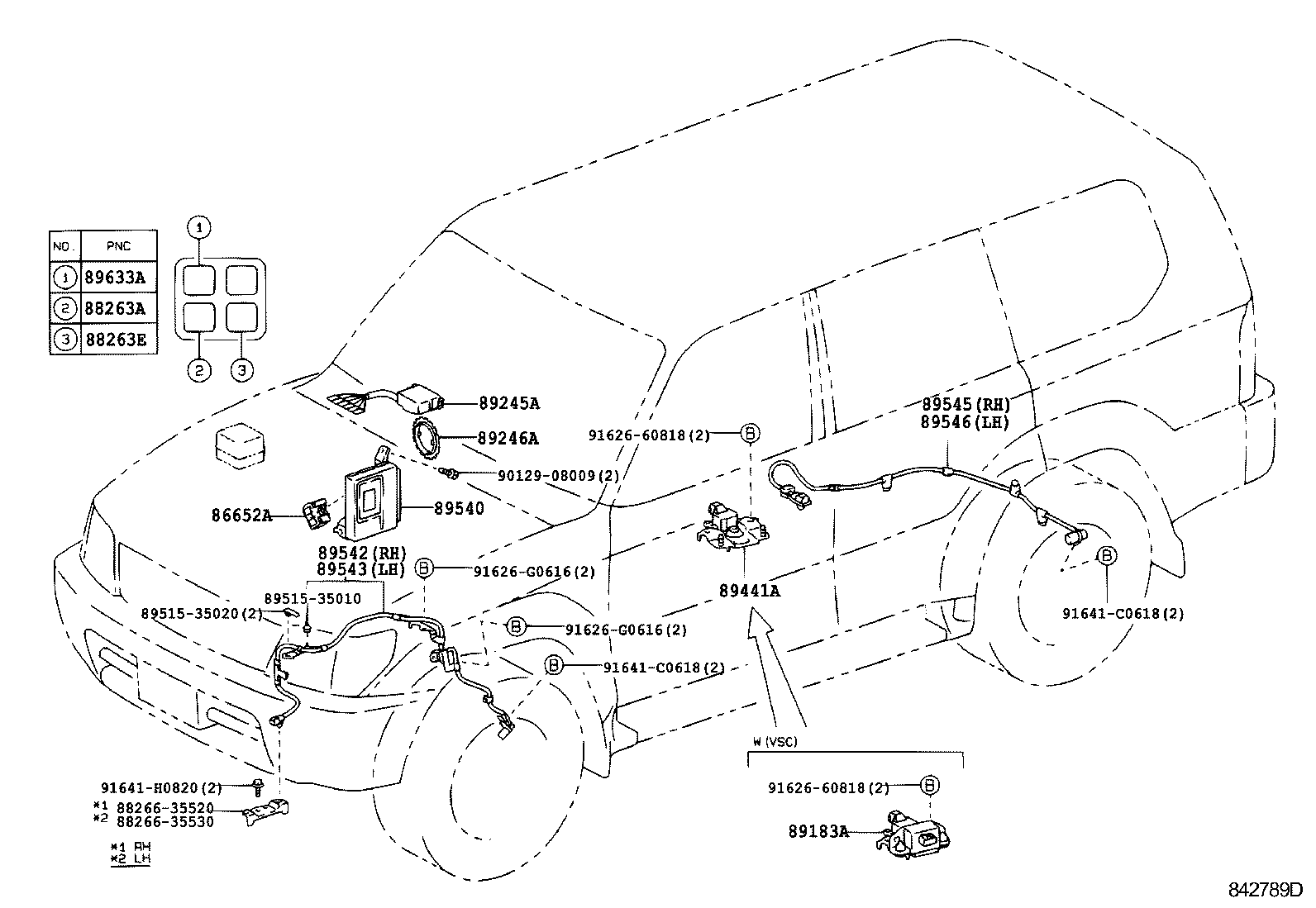

14 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 85999M | Bracket, Relay |
| 86652A | Buzzer Assy, Skid Control |
| 88263A | Relay, Skid Control |
| 88263E | Relay, Skid Control NO.2 |
| 89183A | Sensor, Yawrate |
| 89245A | Sensor, Steering |
| 89246A | Disc, Sensor Steering |
| 89441A | Sensor, Deceleration |
| 89540 | Computer Assy, Skid Control |
| 89542 | Sensor, Speed, Front RH |
| 89543 | Sensor, Speed, Front LH |
| 89545 | Sensor, Speed, Rear RH |
| 89546 | Sensor, Speed, Rear LH |
| 89633A | Relay, Traction Control OR Vsc |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
