Toyota Land Cruiser 90

1996-04 → 2002-09 · chassis KDJ9#,KZJ9#,VZJ9# · catalogue 781540 · Europe

Discontinued model Data version 2003-02
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Control & Air Duct

35 part groups · 6 illustrations

Illustrations

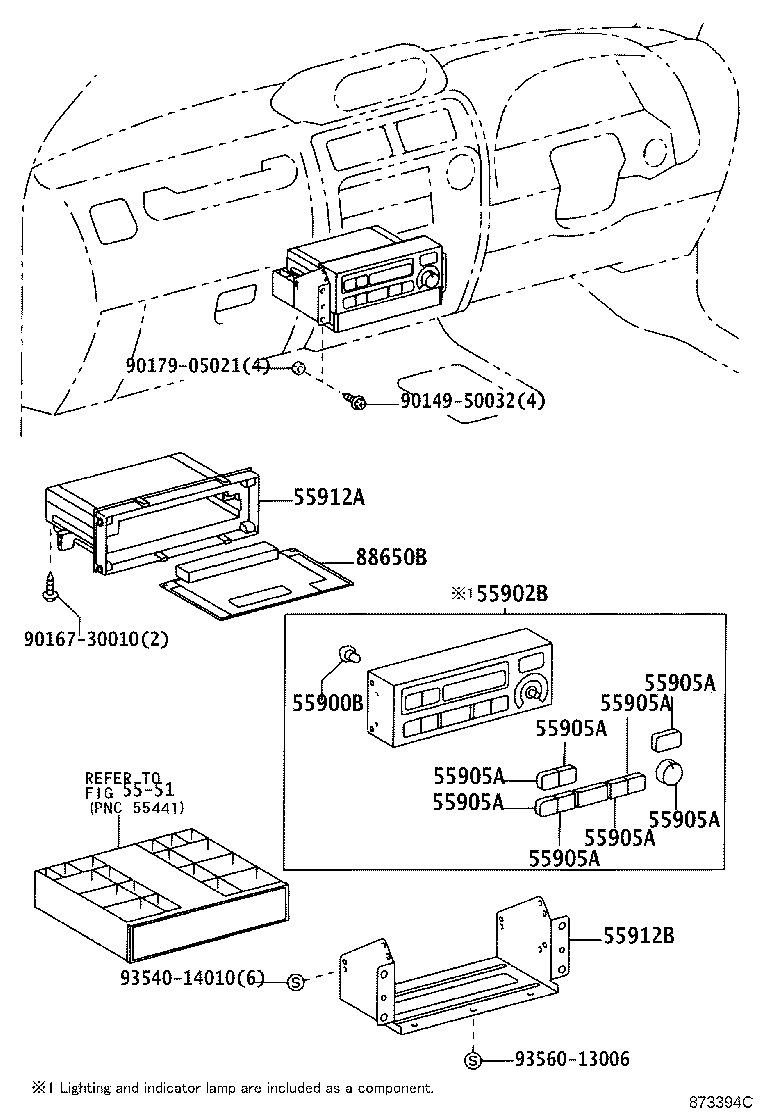

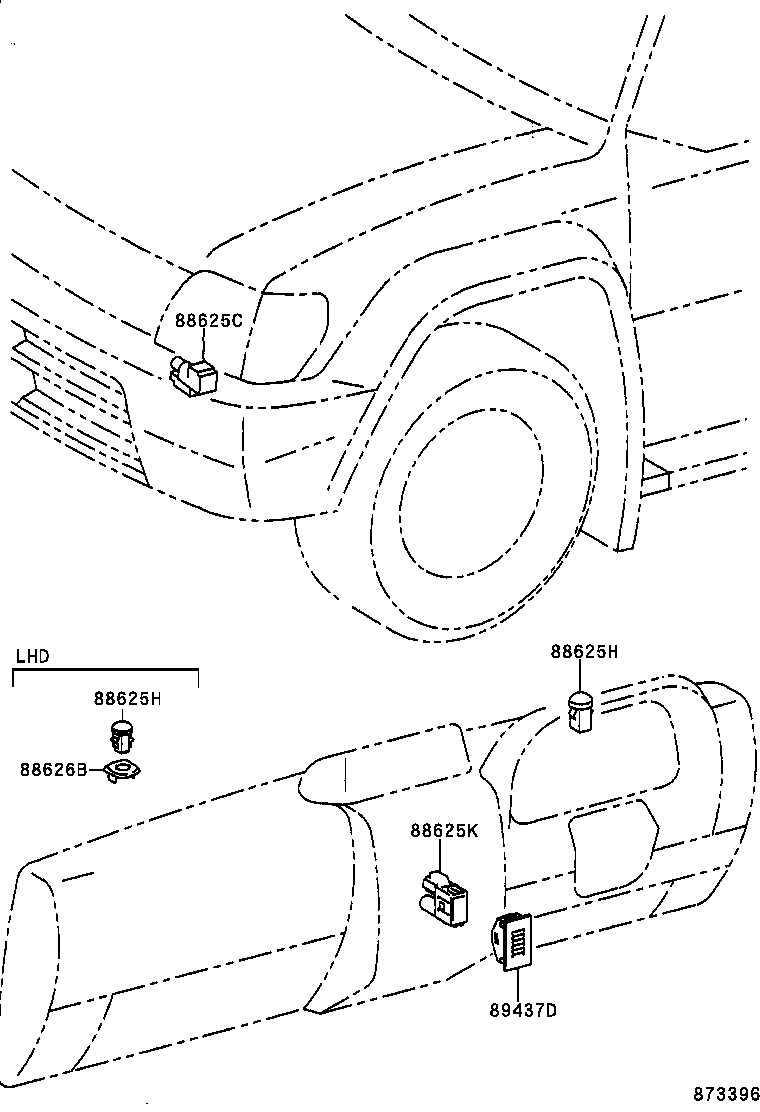

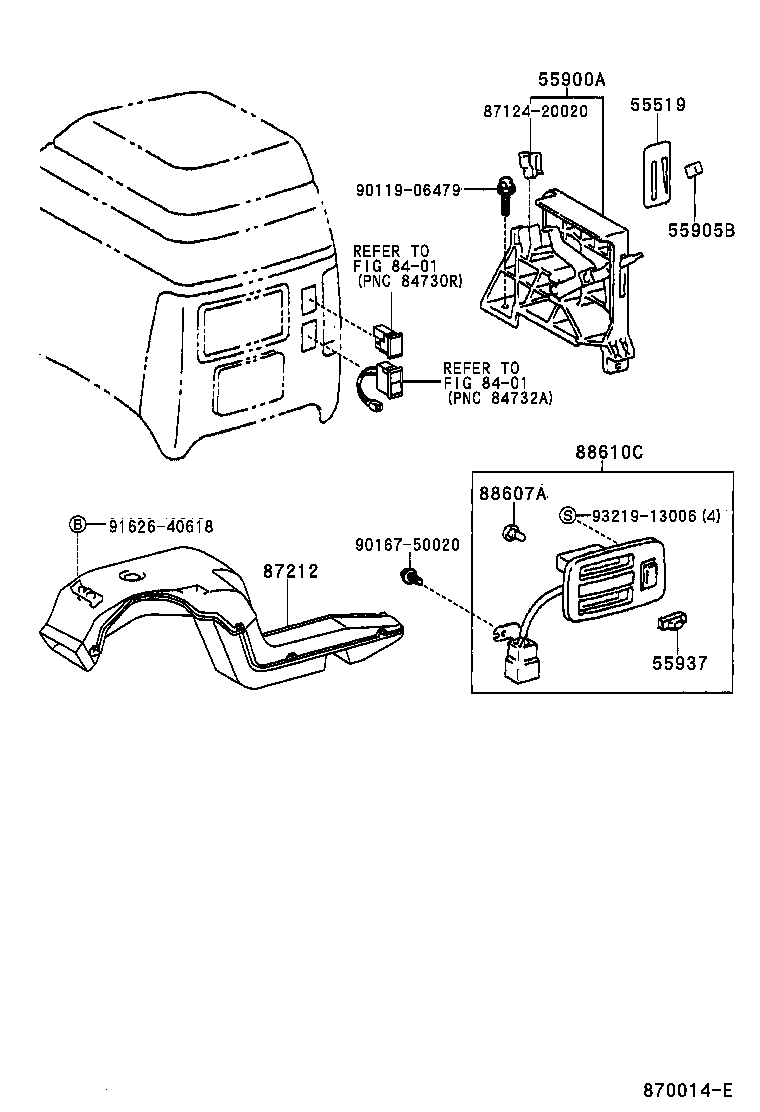

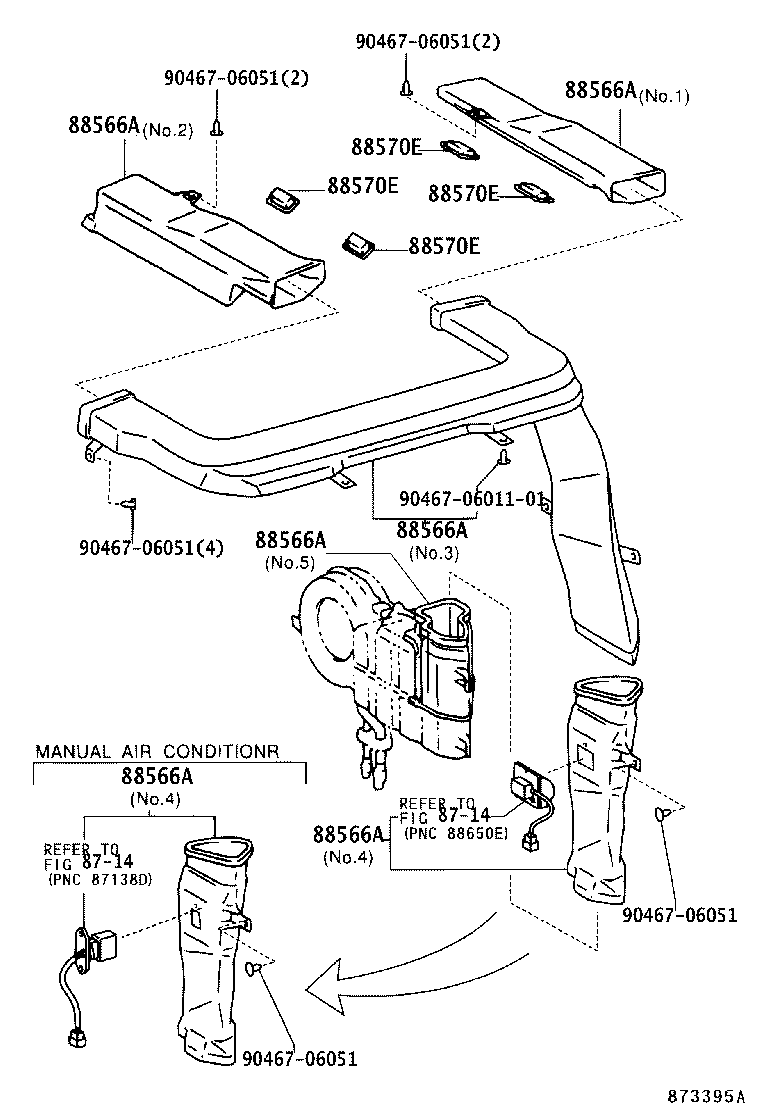

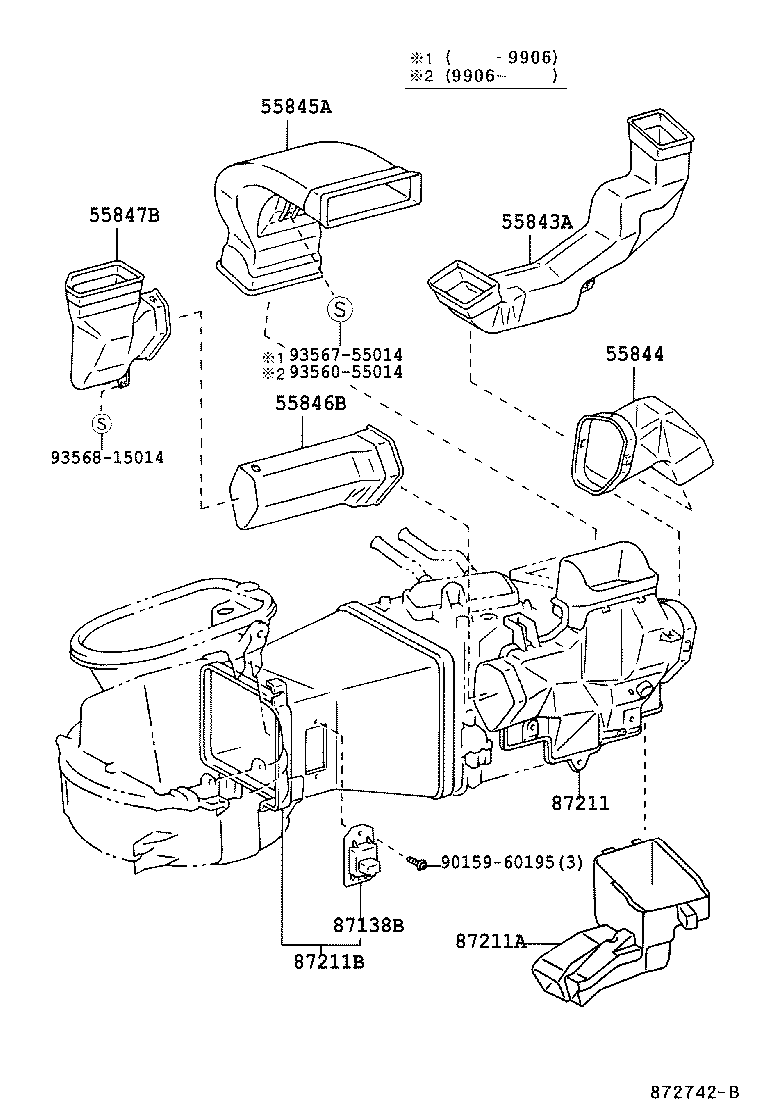

Figure 870084D 870084D 1996-04 → — Figure 873394C 873394C 1999-06 → — Figure 872742C 872742C 1996-04 → — Figure 870014E 870014E 1996-04 → — Figure 873395A 873395A 1996-04 → — Figure 873396 873396 1999-06 → —

Part groups

PNCDescription
55519 Plate, Heater Control Name
55843A Duct, Heater TO Register, NO.1
55844 Duct, Heater TO Register, NO.2
55845A Duct, Heater TO Register, NO.3
55846B Duct, Heater TO Register, NO.4
55847B Duct, Heater TO Register, NO.5
55900A Control & Accessory Assy, Heater
55900B Bulb, Air Conditioner Control
55902B Control Sub-assy, Heater
55905A Knob, Heater Control
55905B Knob, Heater Control, NO.2
55906 Cable Sub-assy, Heater Control
55907A Cable Sub-assy, Water Valve Control
55908A Cable Sub-assy, Air Inlet Damper Control
55909A Cable Sub-assy, Airmix Damper Control
55910 Control Assy, Heater OR Boost Ventilator
55912A Housing, Heater Control
55912B Bracket, Heater Control Base, RH
55937 Knob, Heater Control Lever
81942A Sheet, Heater Control Name, NO.1
87138B Resistor, Heater Blower
87211 Duct, Air, NO.1
87211A Duct, Air, NO.2
87211B Duct, Air, NO.3
87212 Duct, Air, Rear NO.1
88566A Duct, Cooler Air, NO.1
88570E Grille Assy, Air Outlet
88607A Lamp Sub-assy, Indicator
88610C Switch Assy, Cooler Control
88625C Thermistor, Cooler
88625H Thermistor, Cooler (SOLAR SENSOR)
88625K Thermistor, Cooler
88626B Holder, Thermistor
88650B Amplifier Assy, Airconditioner
89437D Cover, Sensor
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
