Toyota Land Cruiser 90

1996-04 → 2002-09 · chassis KDJ9#,KZJ9#,VZJ9# · catalogue 781540 · Europe

Discontinued model Data version 2003-02
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Water Piping

21 part groups · 16 illustrations

Illustrations

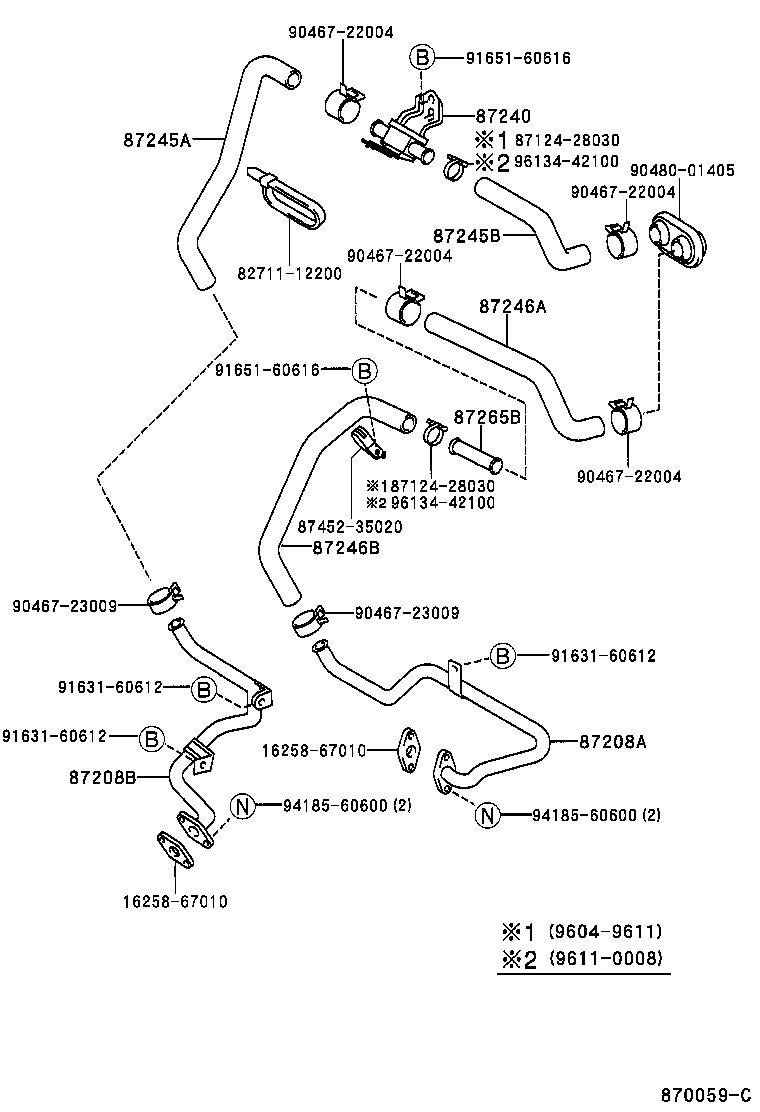

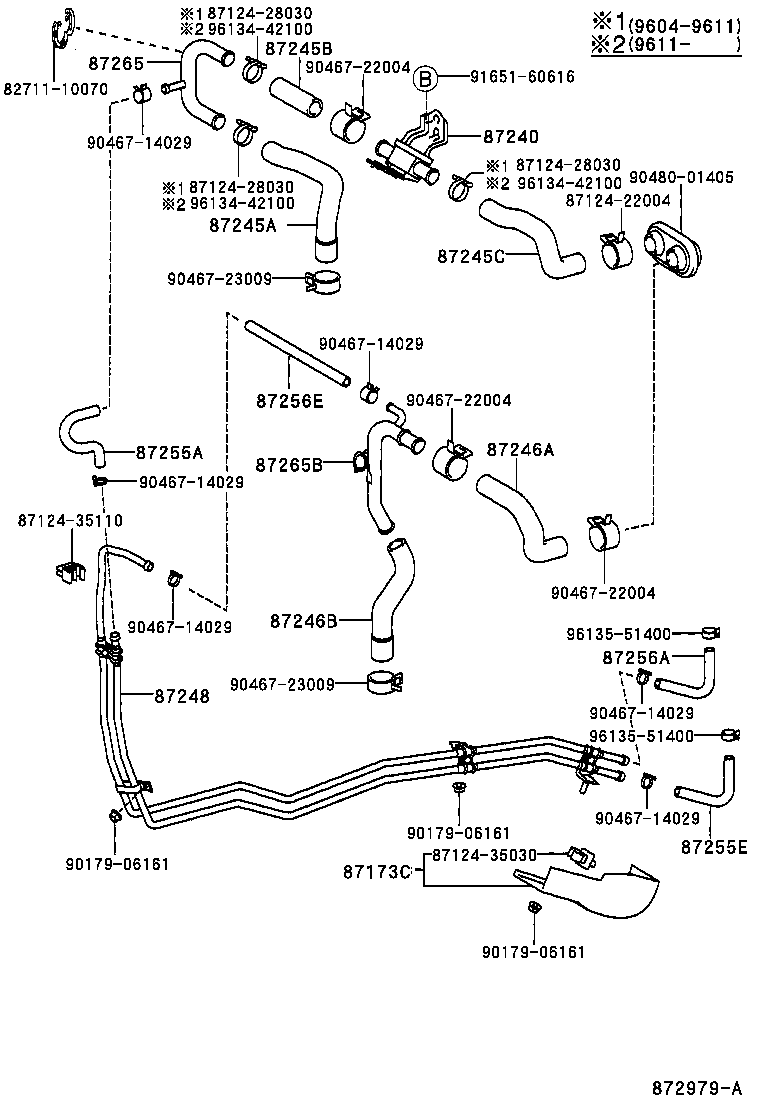

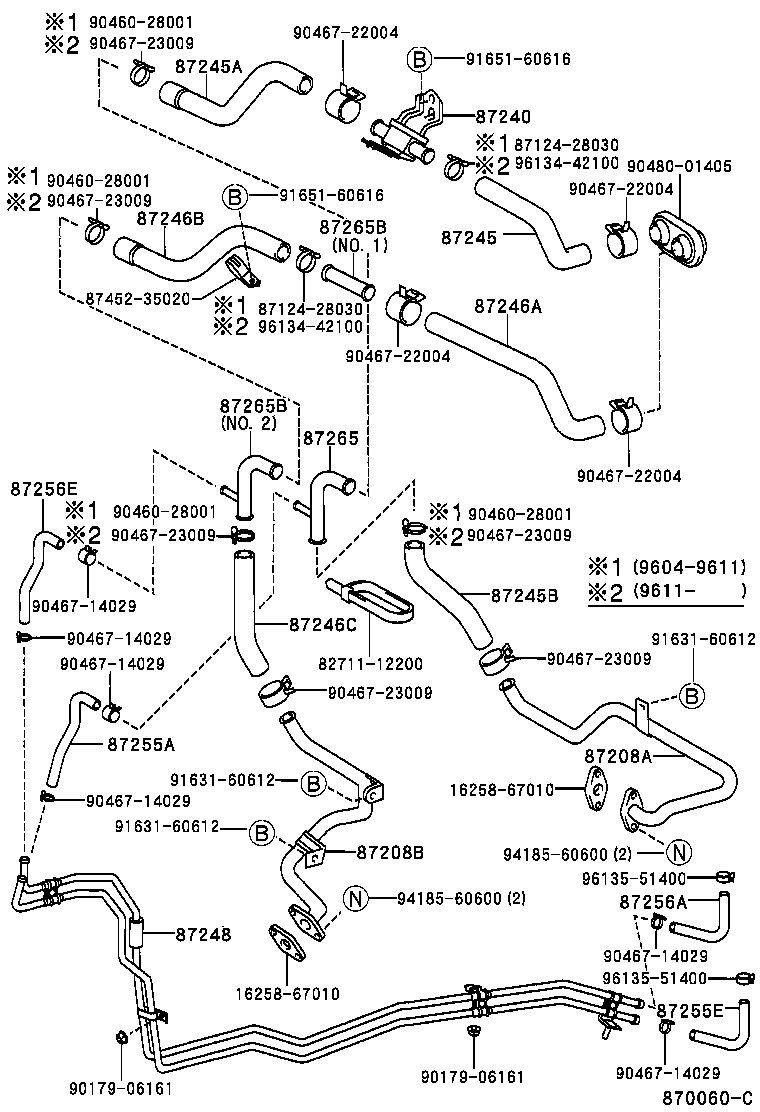

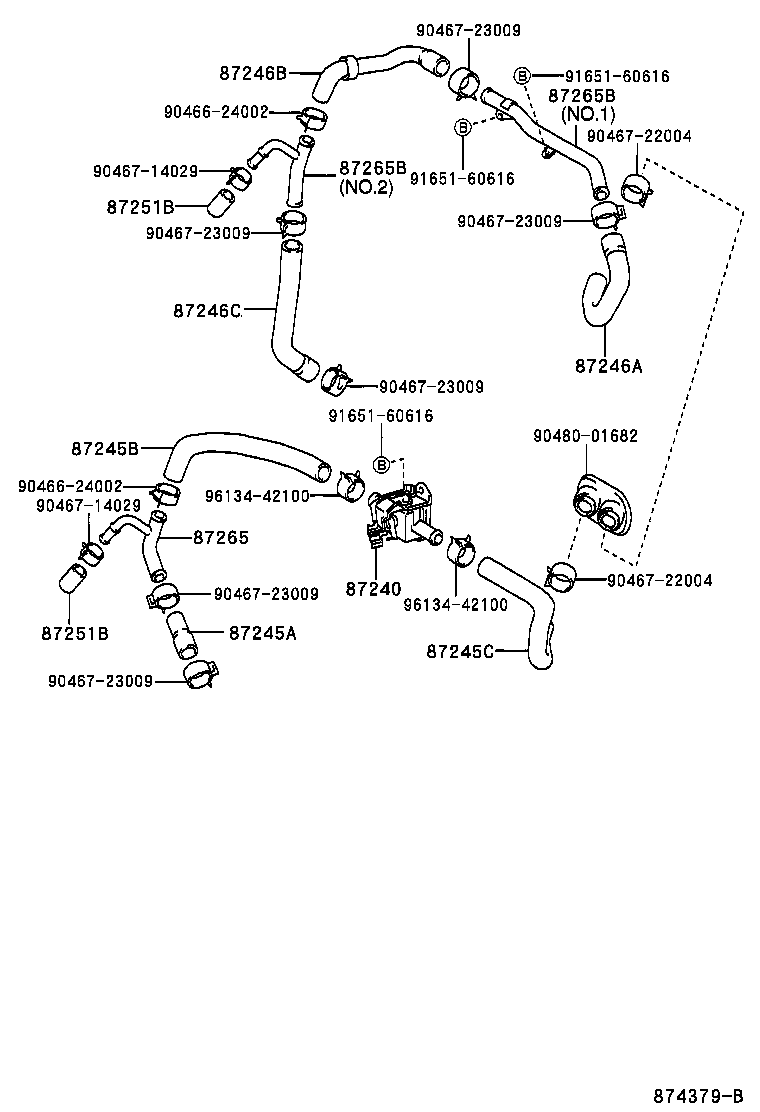

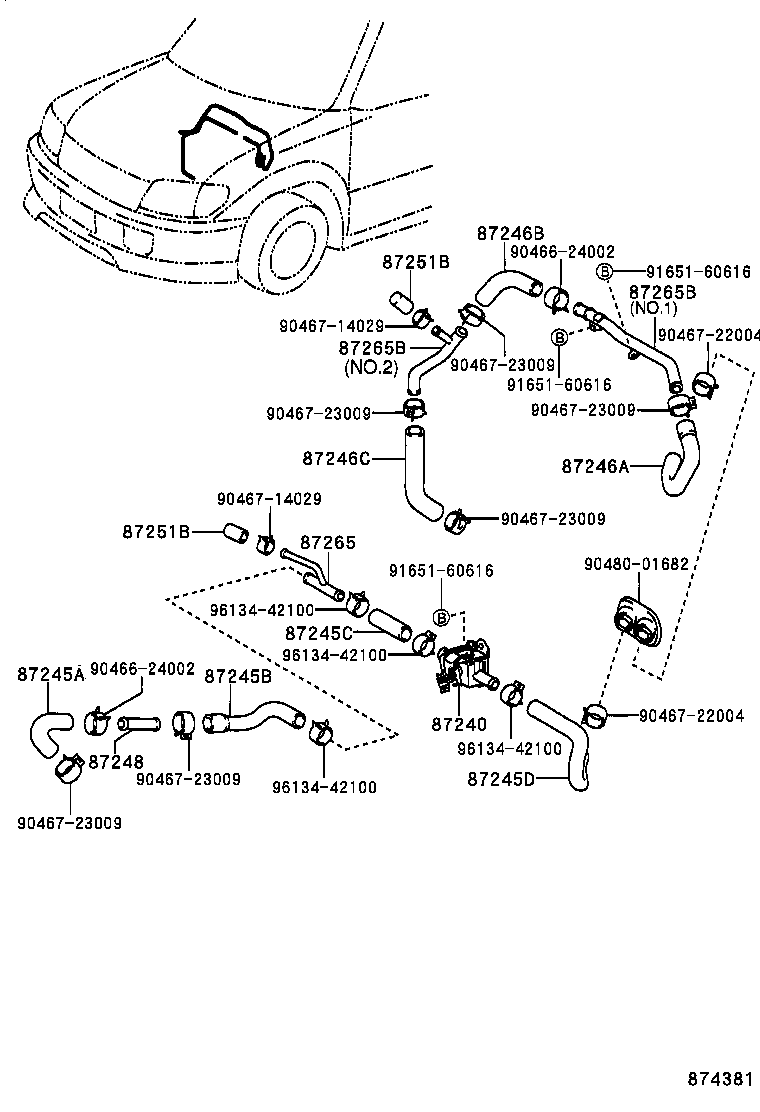

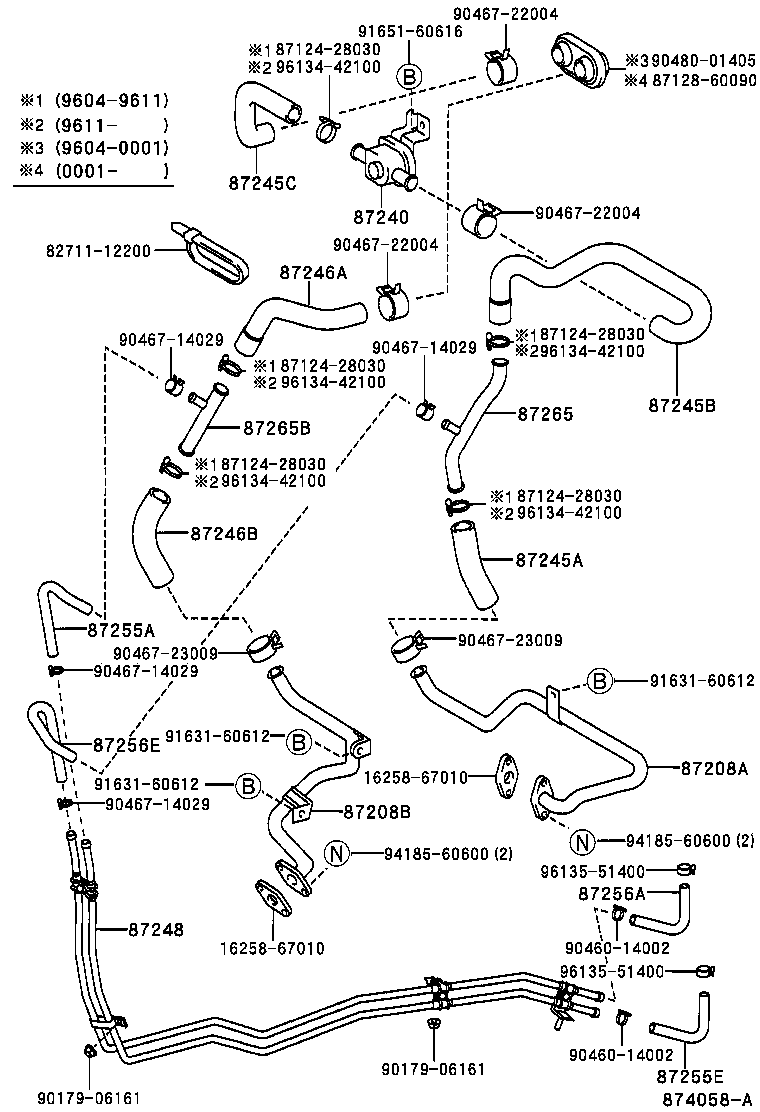

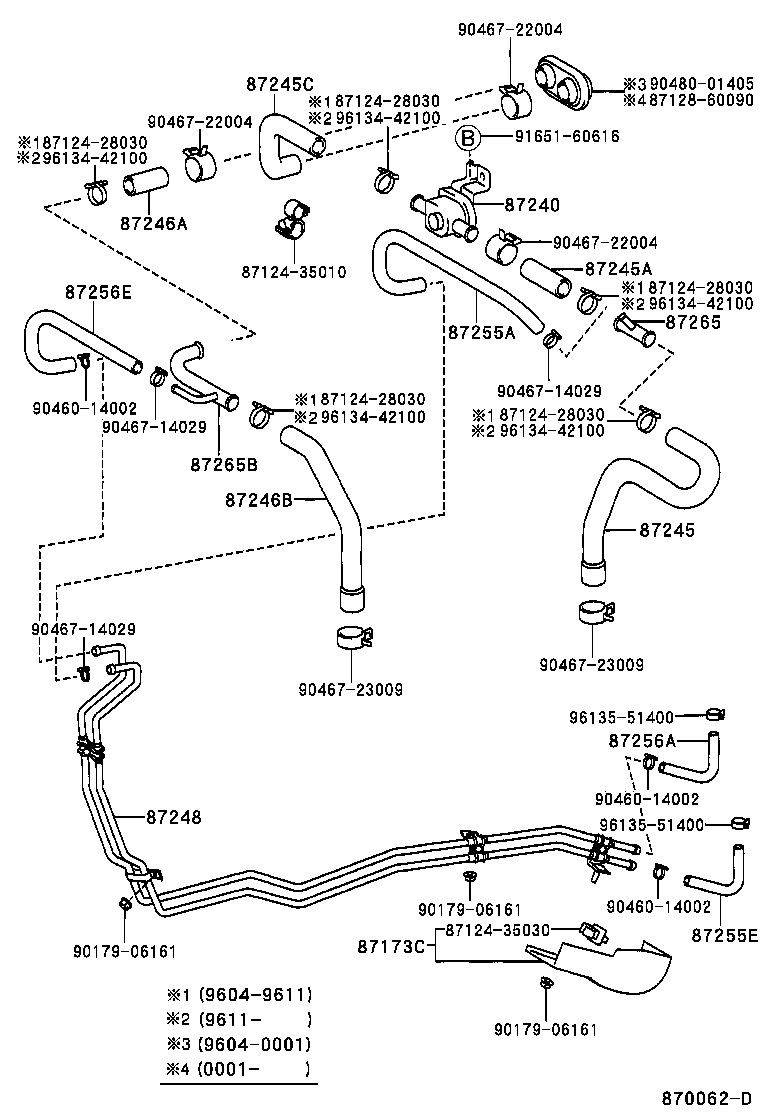

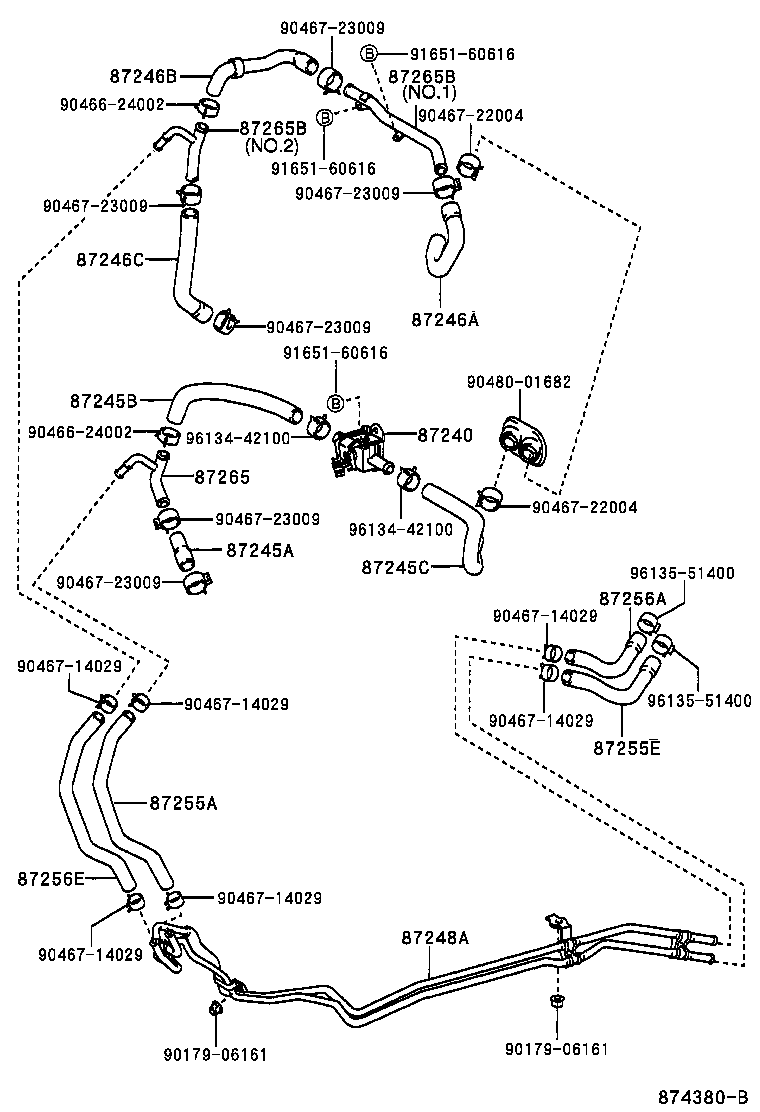

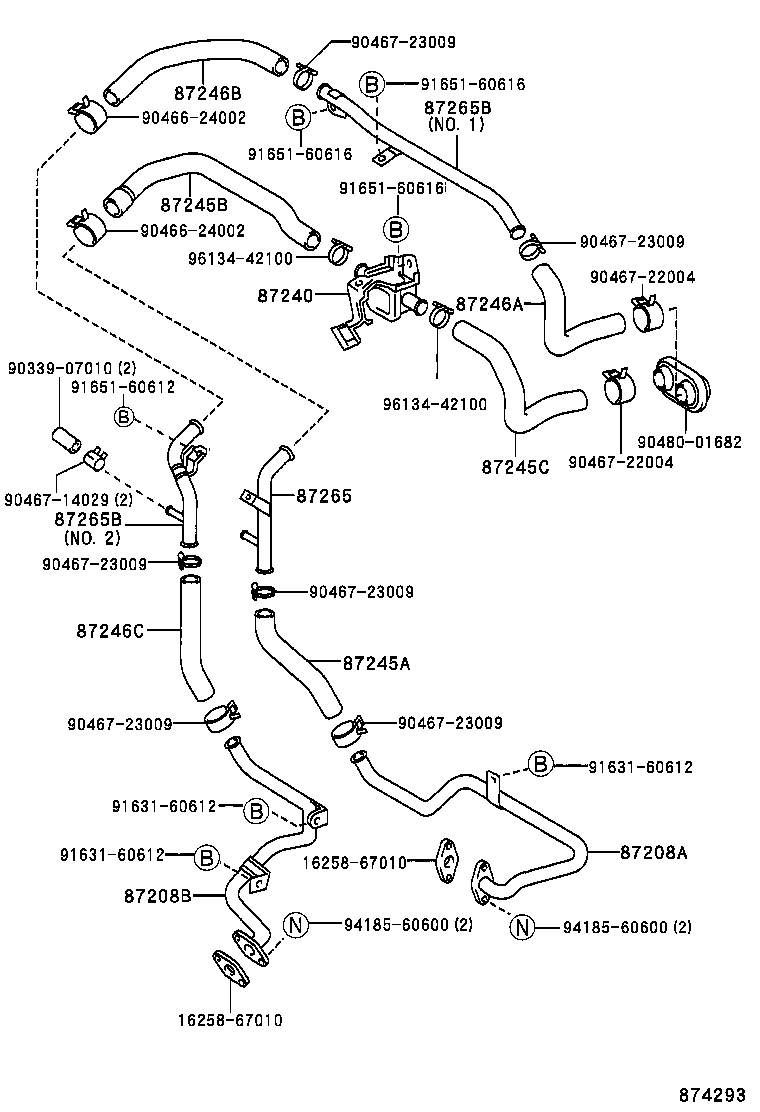

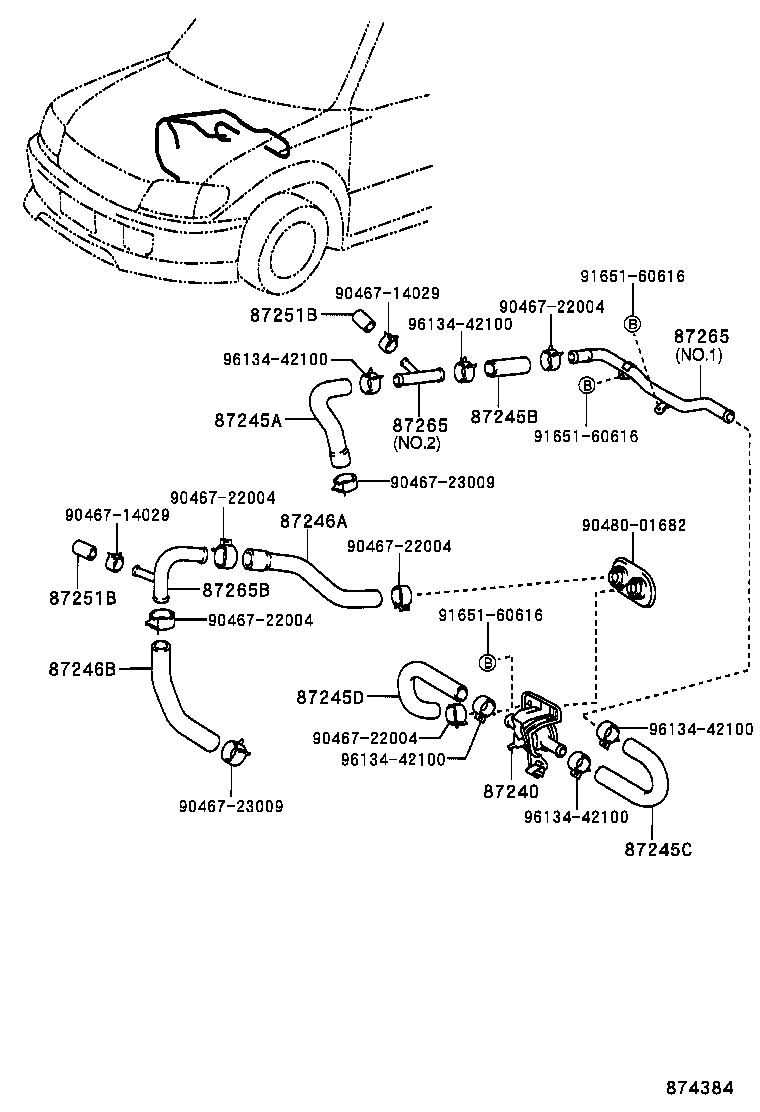

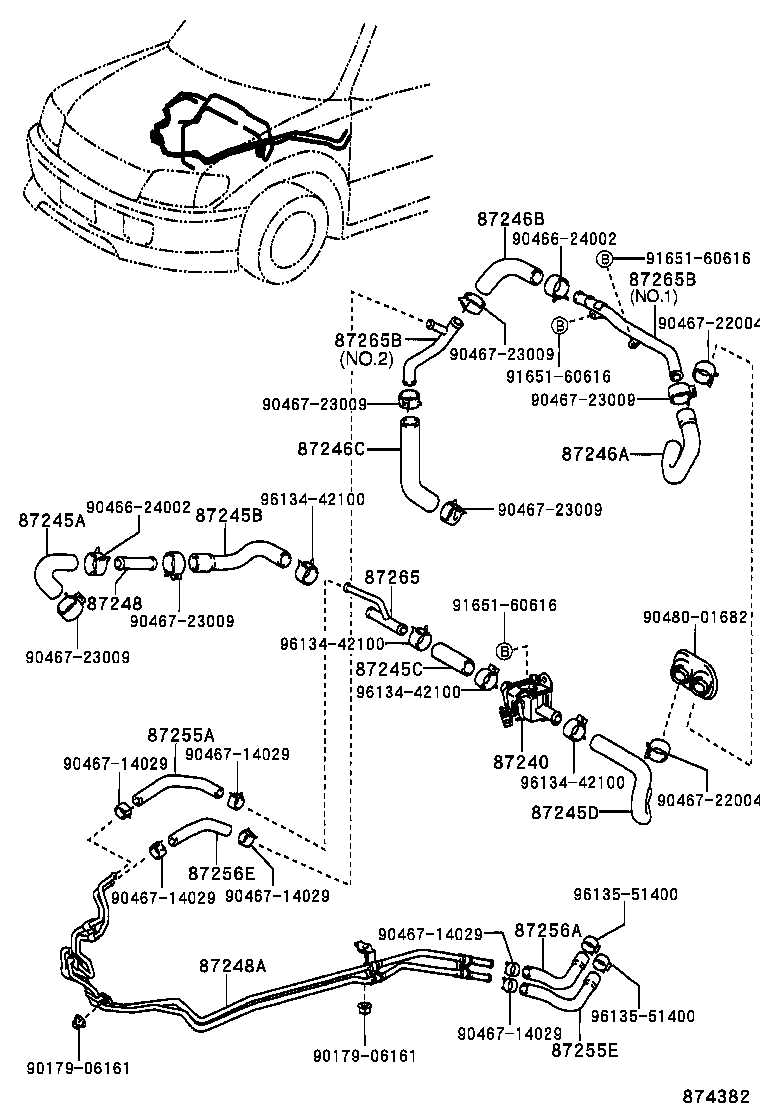

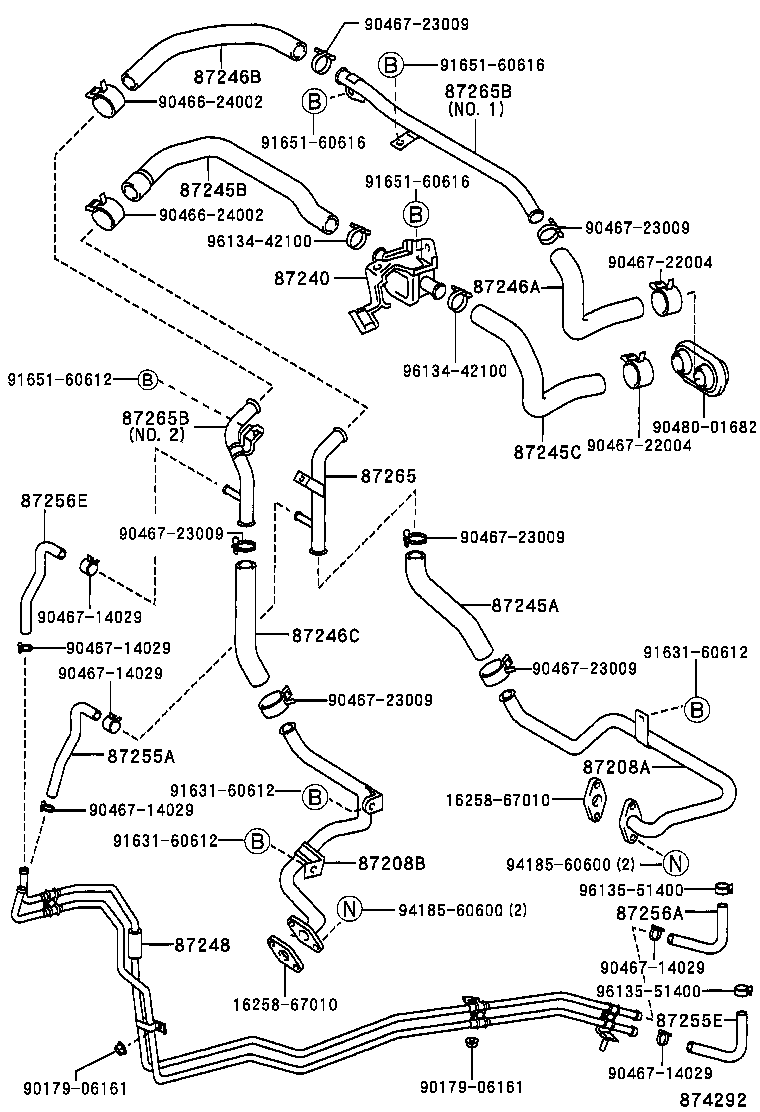

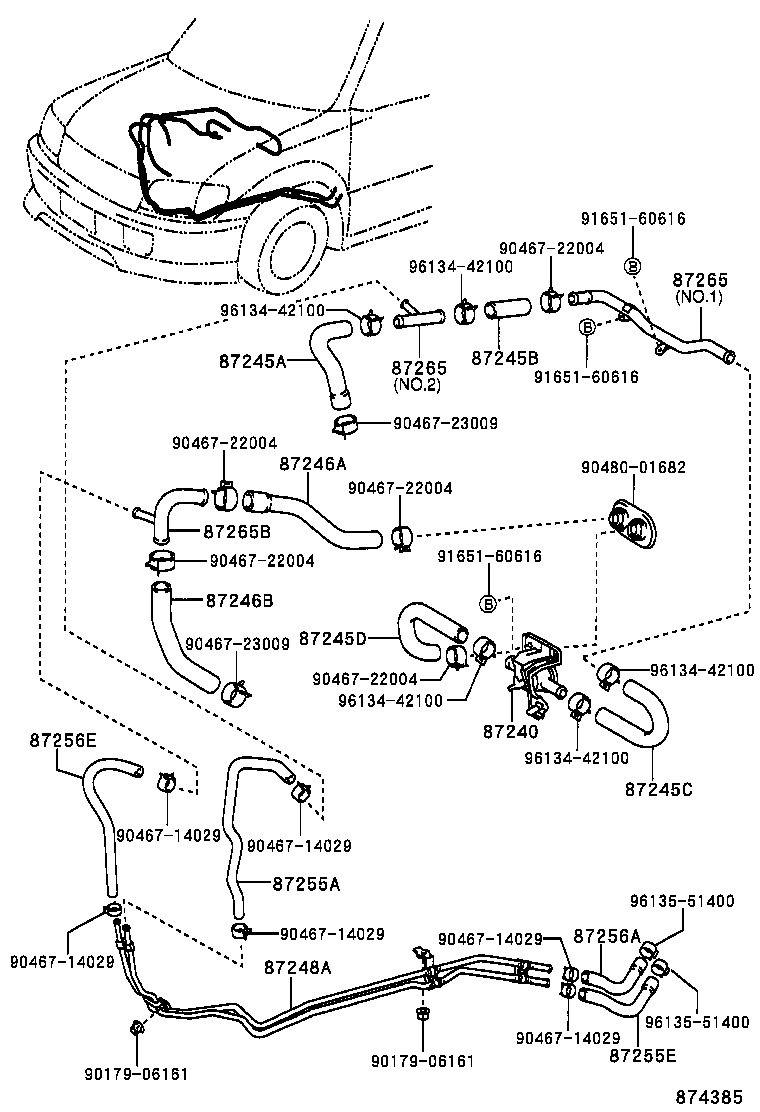

Figure 870058C 870058C 1996-04 → — Figure 874058A 874058A 1996-04 → — Figure 870059C 870059C 1996-04 → 2000-08 Figure 870060C 870060C 1996-04 → 2000-08 Figure 874293 874293 2000-08 → — Figure 874292 874292 2000-08 → — Figure 870061C 870061C 1996-04 → — Figure 870062D 870062D 1996-04 → — Figure 870046C 870046C 1996-04 → — Figure 872979A 872979A 1996-04 → — Figure 874379B 874379B 2000-08 → — Figure 874380B 874380B 2000-08 → — Figure 874381 874381 2000-08 → — Figure 874382 874382 2000-08 → — Figure 874384 874384 2000-08 → — Figure 874385 874385 2000-08 → —

Part groups

PNCDescription
87173C Protector, Heater
87208A Pipe Sub-assy, Heater Water, A
87208B Pipe Sub-assy, Heater Water, B
87240 Valve Assy, Heater Water
87245 Hose, Heater Water, Inlet
87245A Hose, Heater Water, Inlet A
87245B Hose, Heater Water, Inlet B
87245C Hose, Heater Water ,Inlet C
87245D Hose, Heater Water, Inlet D
87246A Hose, Heater Water, Outlet A
87246B Hose, Heater Water, Outlet B
87246C Hose, Heater Water, Outlet C
87248 Pipe Sub-assy, Water
87248A Pipe, Heater Water Inlet, A
87251B Plug, Heater Water
87255A Hose, Rear Heater Water Inlet, A(FROM ENGINE)
87255E Hose, Rear Heater Water Inlet, E(TO HEATER UNIT)
87256A Hose, Rear Heater Water Outlet, A (FROM HEATER UNIT)
87256E Hose, Rear Heater Water Outlet, E (TO ENGINE)
87265 Connector, Heater Water Hose
87265B Connector, Heater Water Hose, NO.2
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
