Toyota Land Cruiser 90

1996-04 → 2002-09 · chassis KDJ9#,KZJ9#,VZJ9# · catalogue 781540 · Europe

Discontinued model Data version 2003-02
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Cooler Piping

34 part groups · 18 illustrations

Illustrations

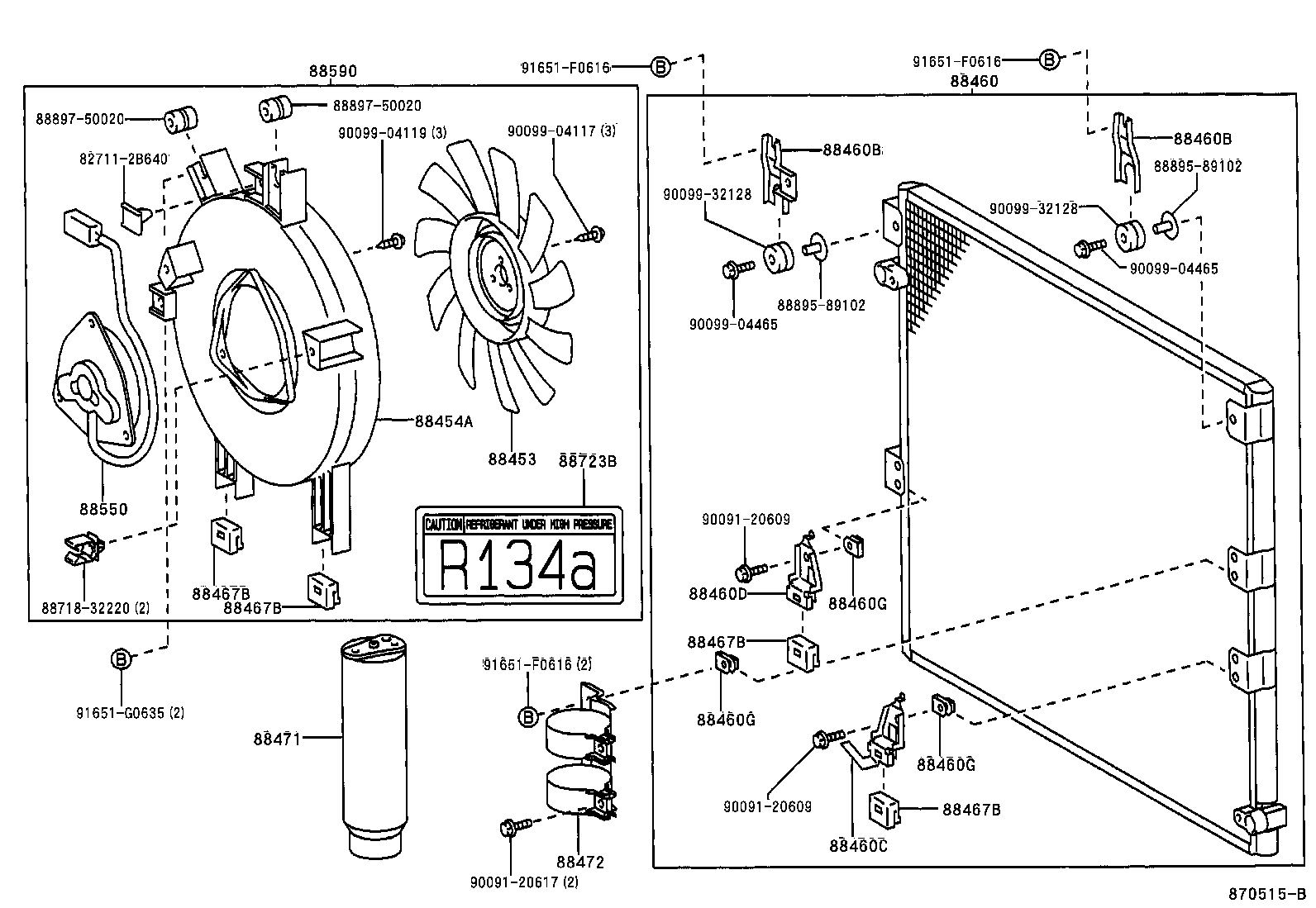

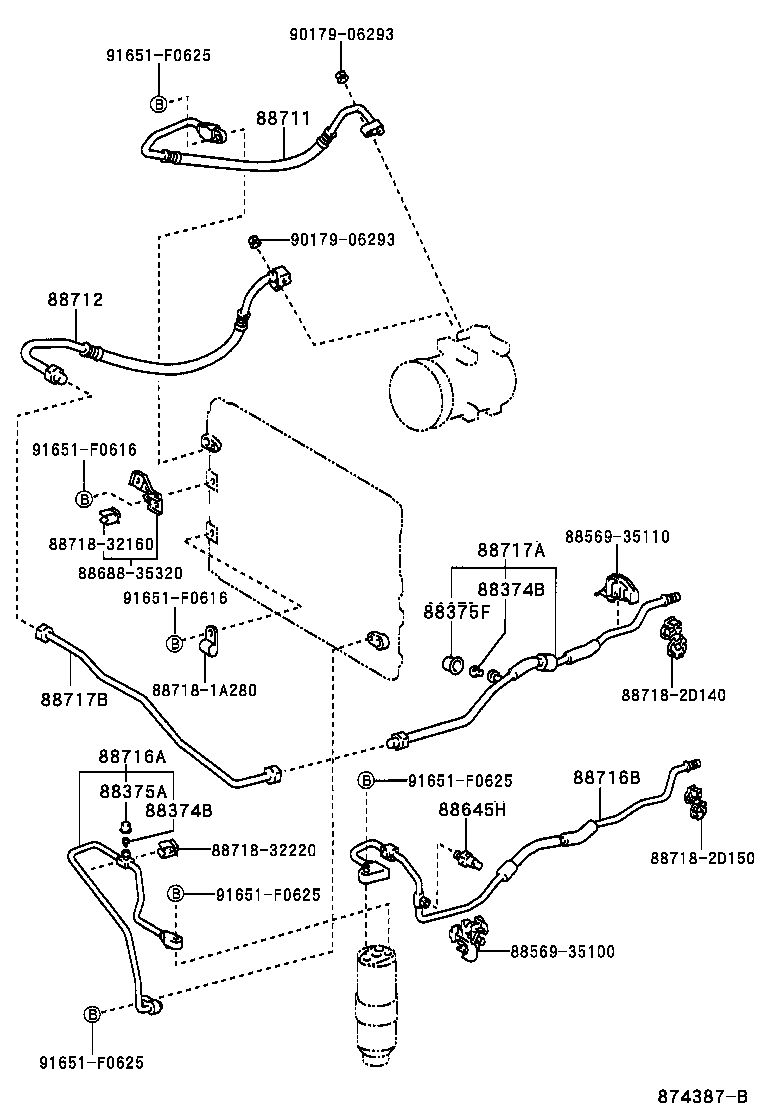

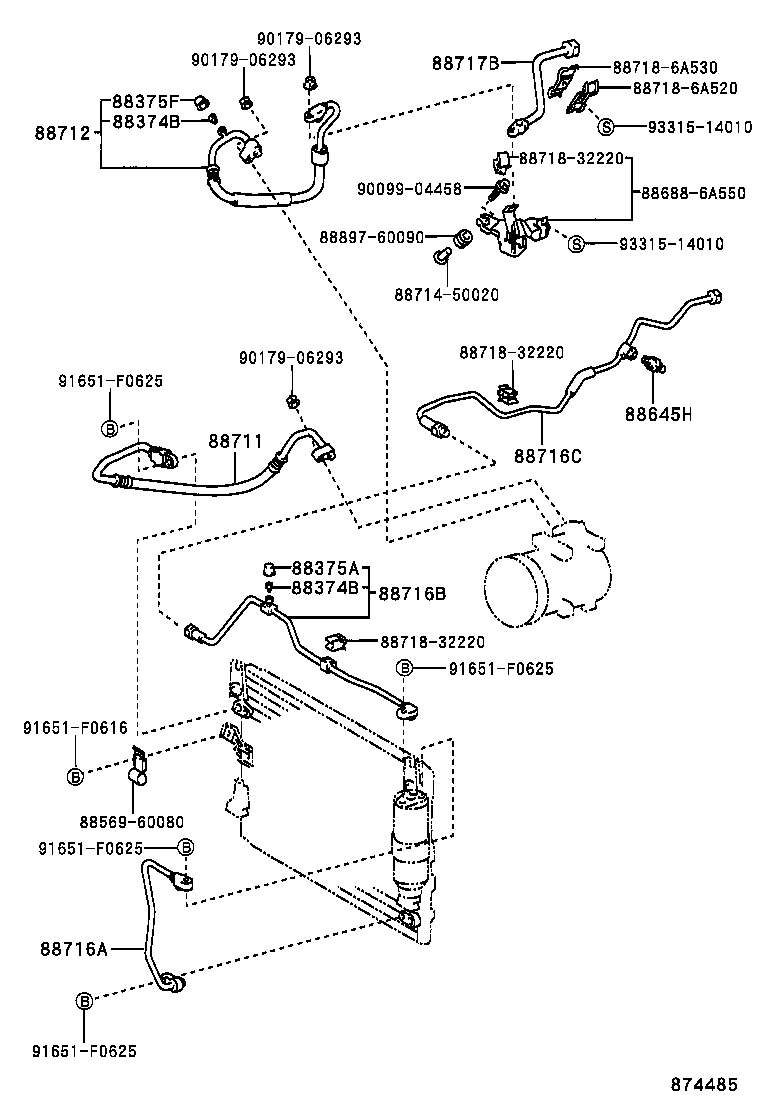

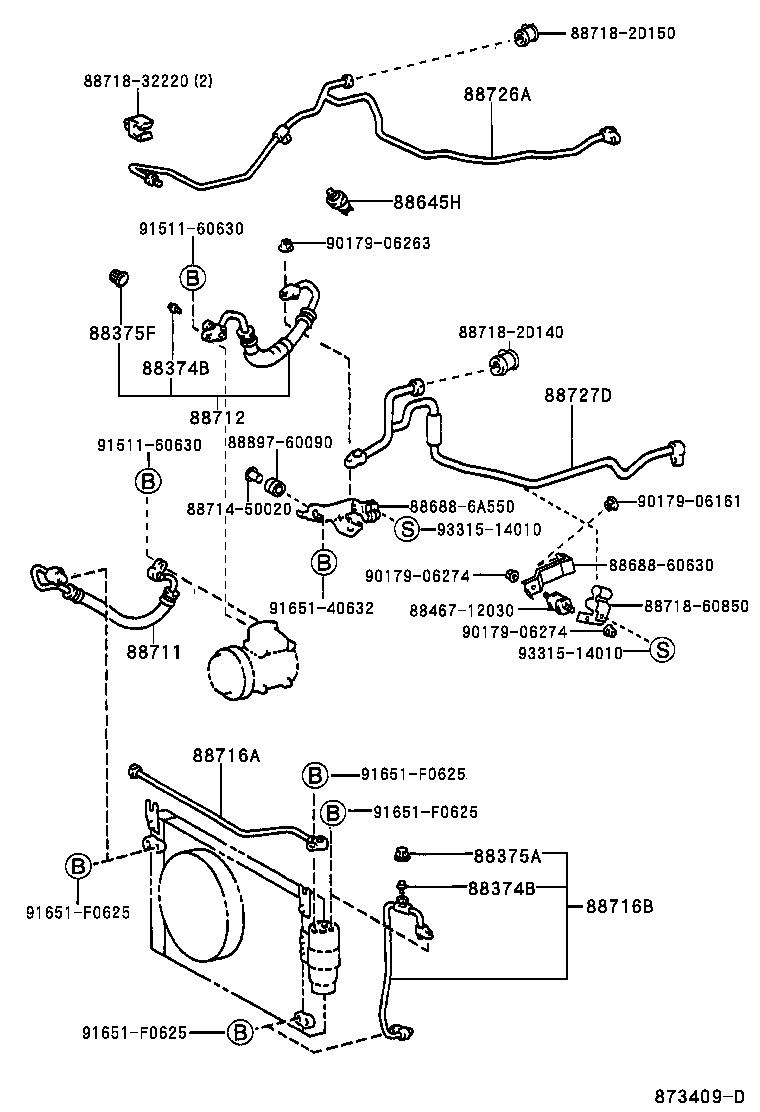

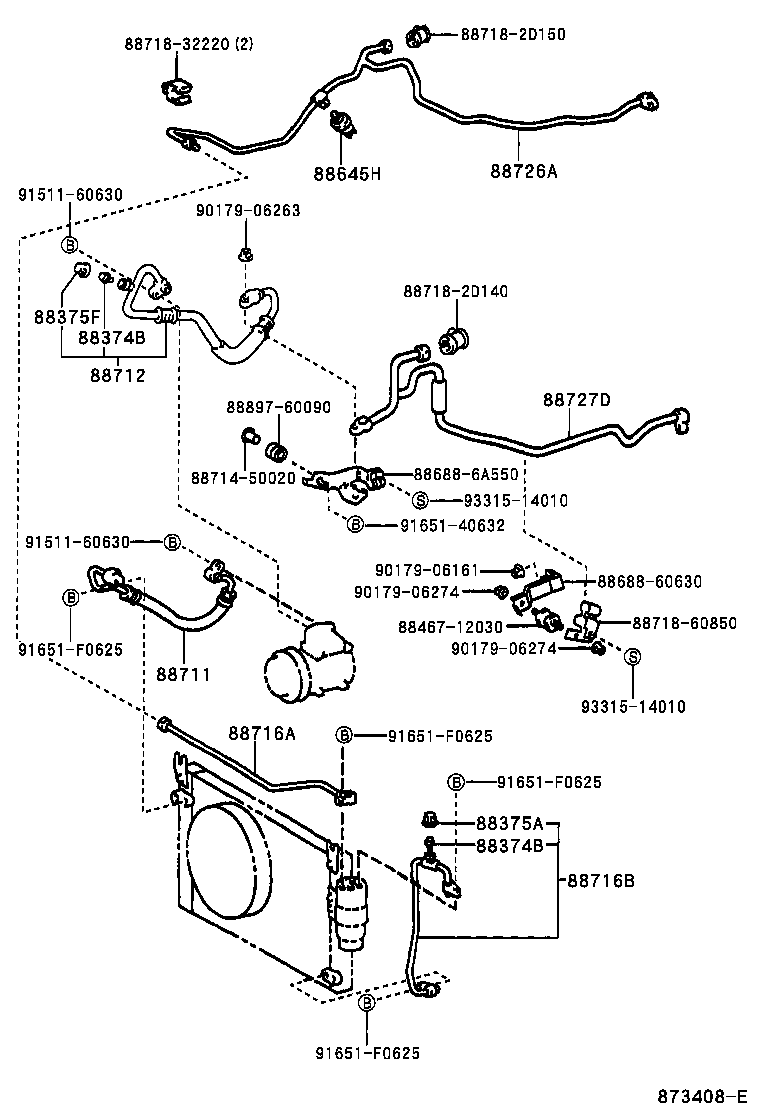

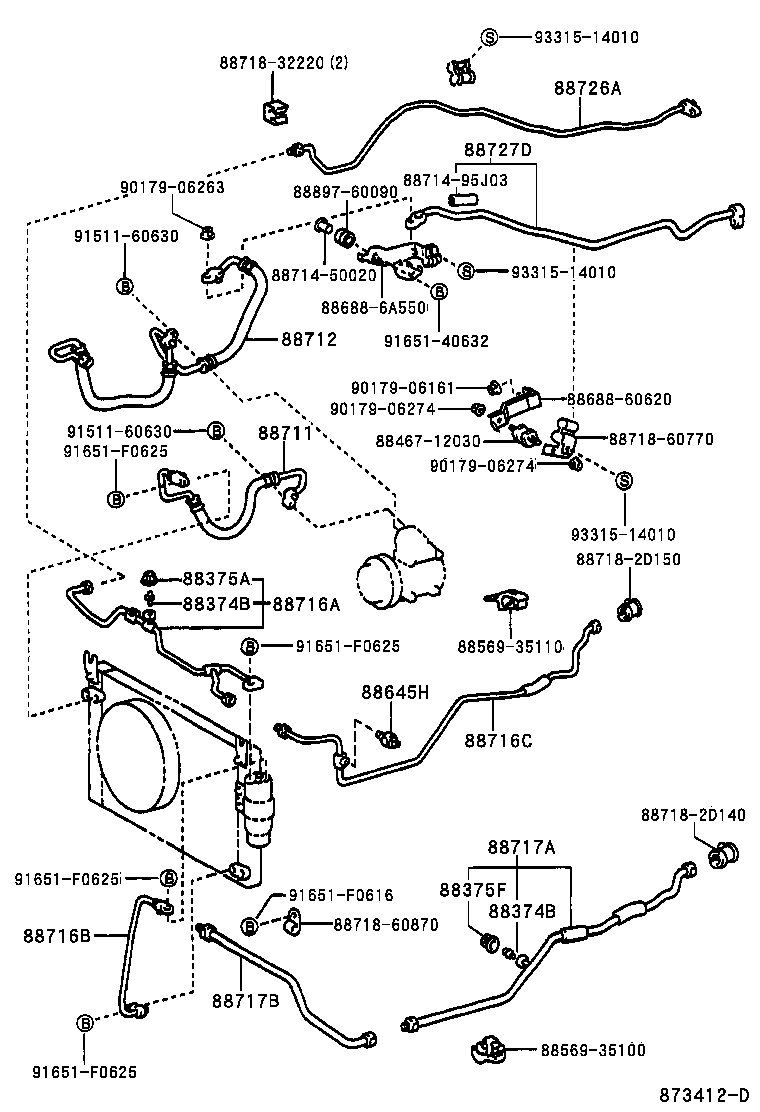

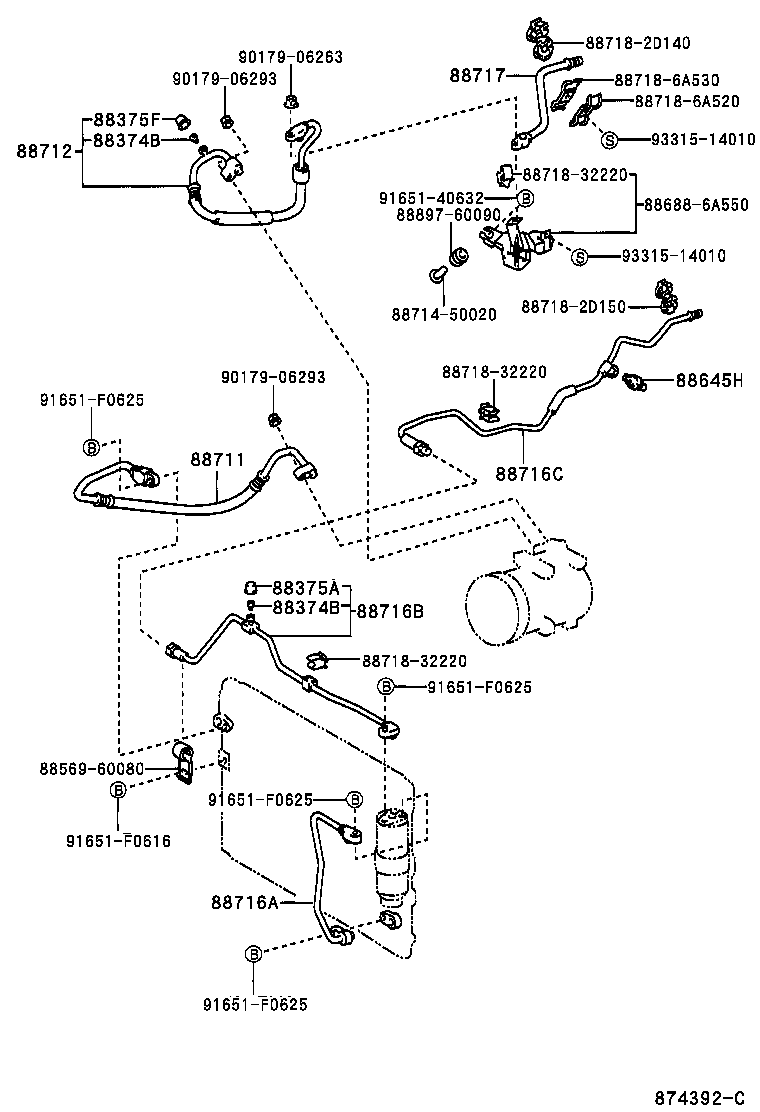

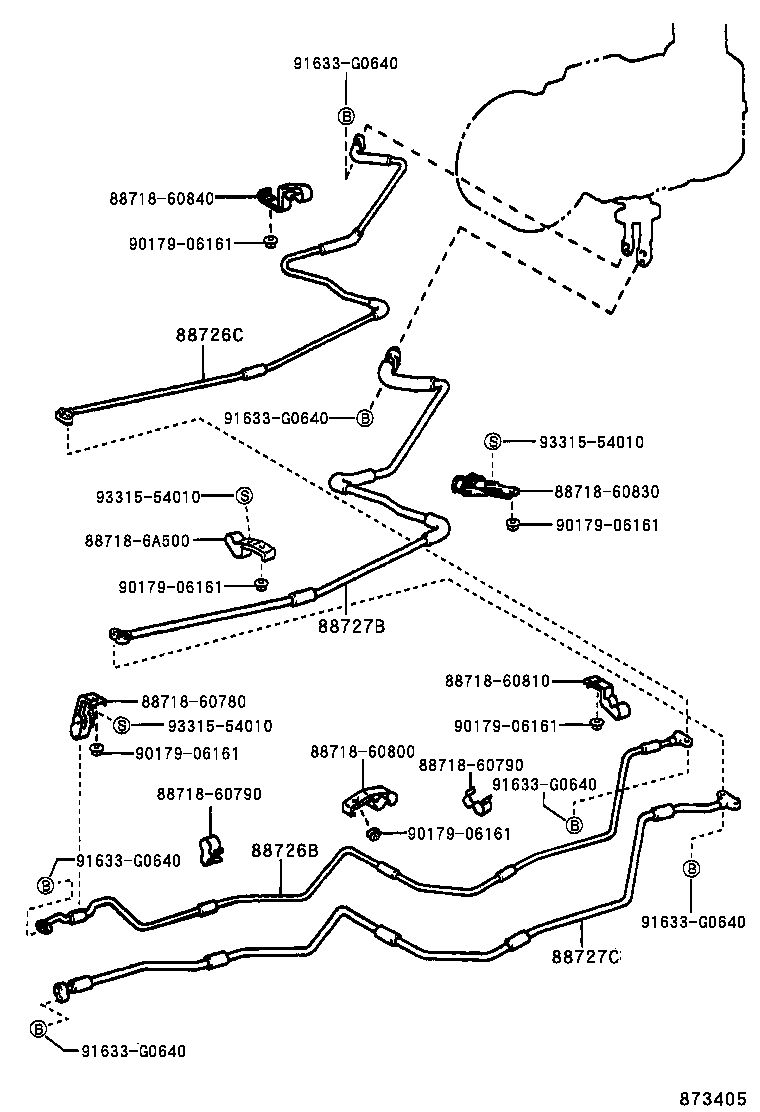

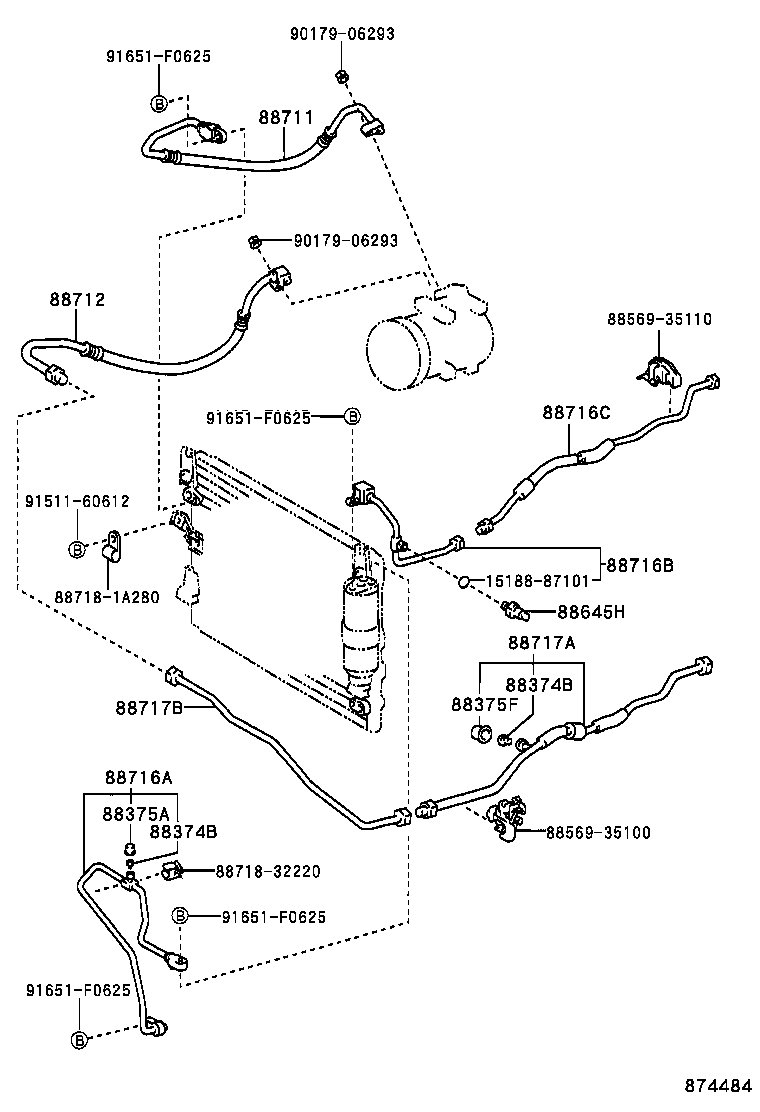

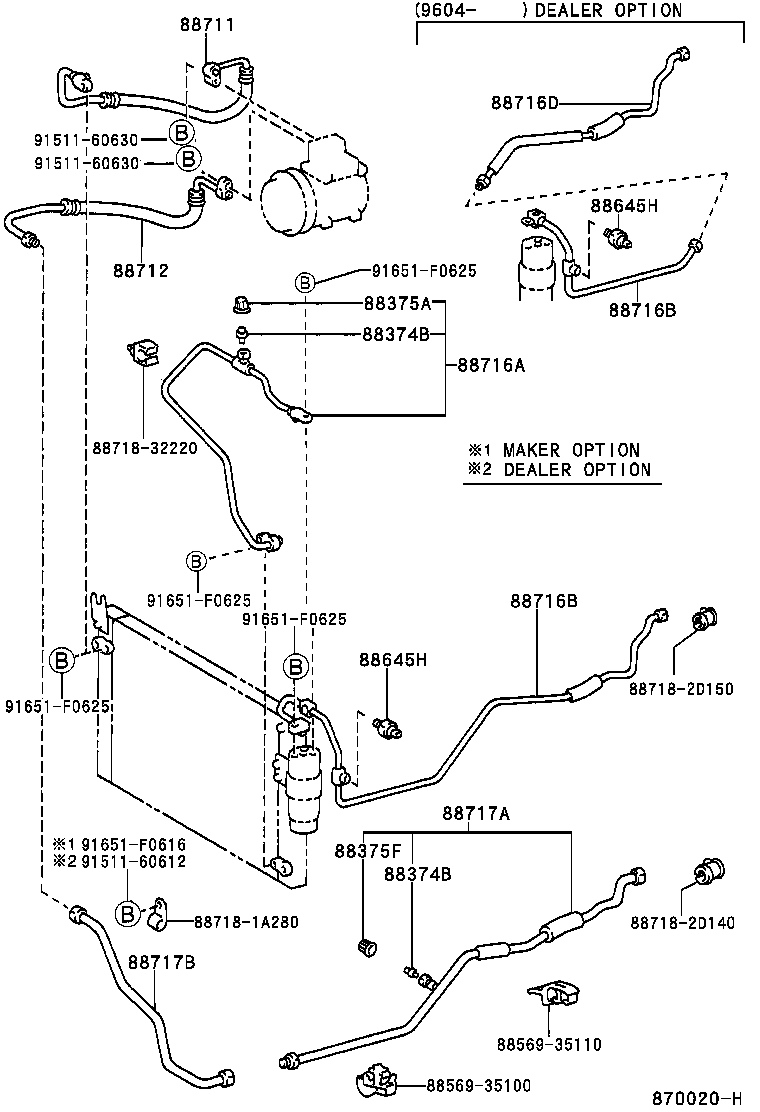

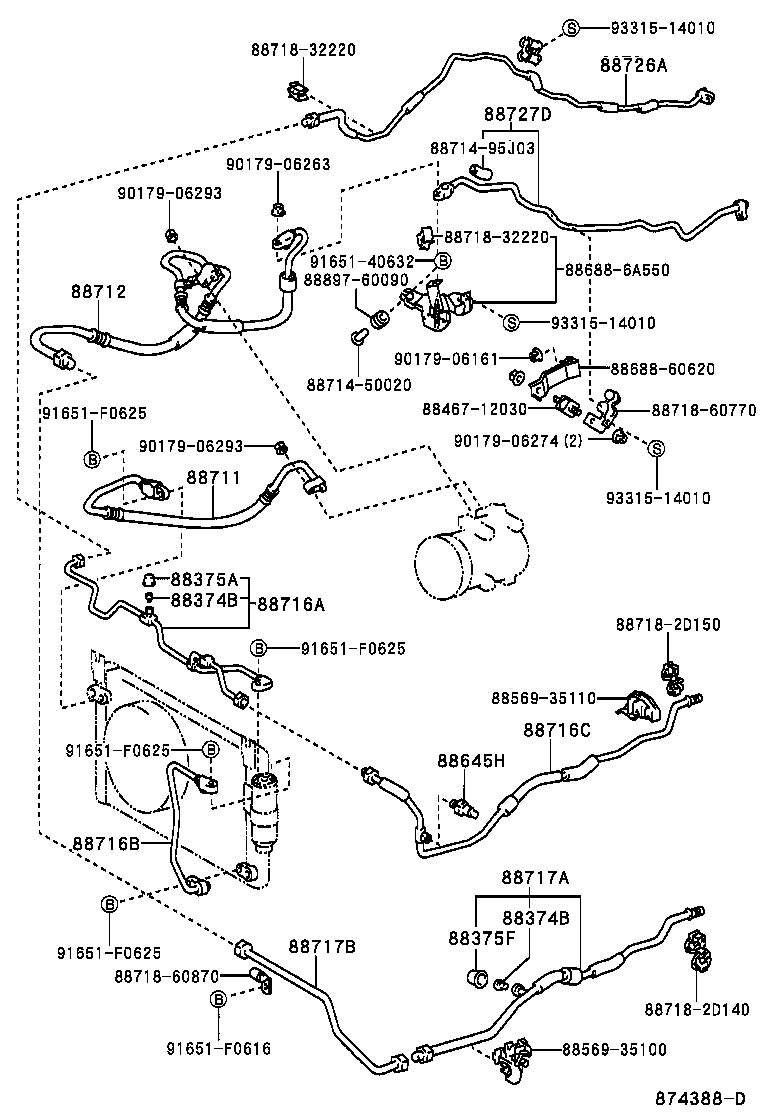

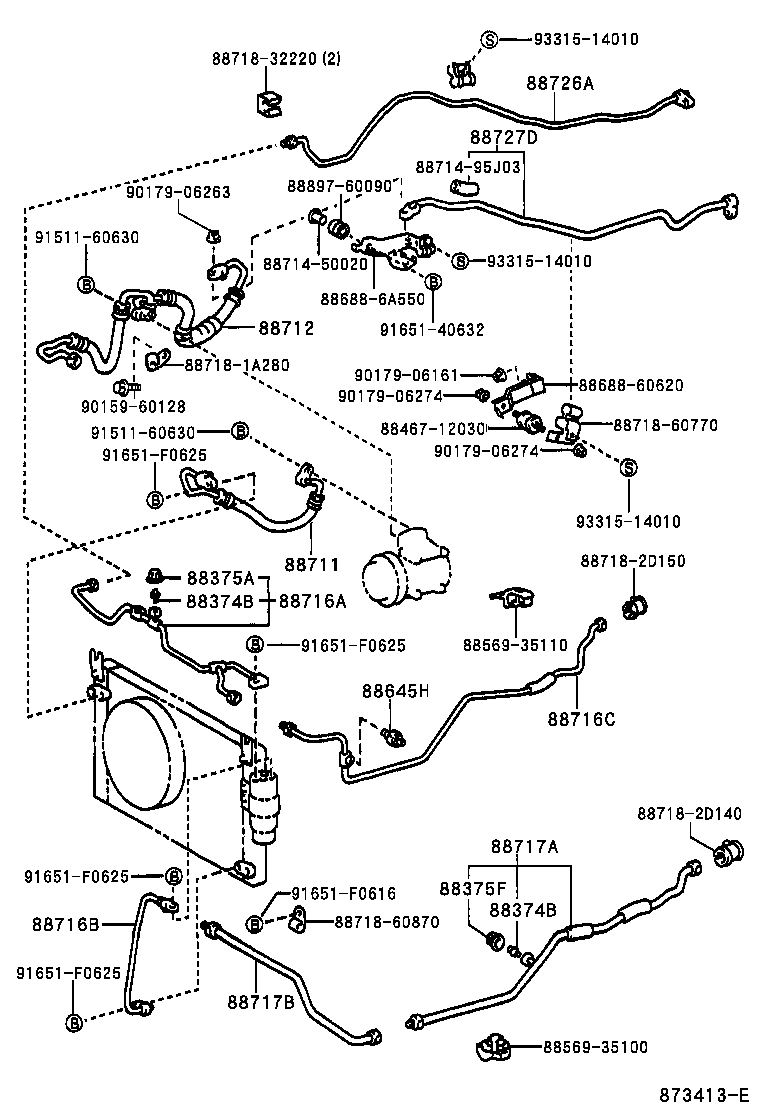

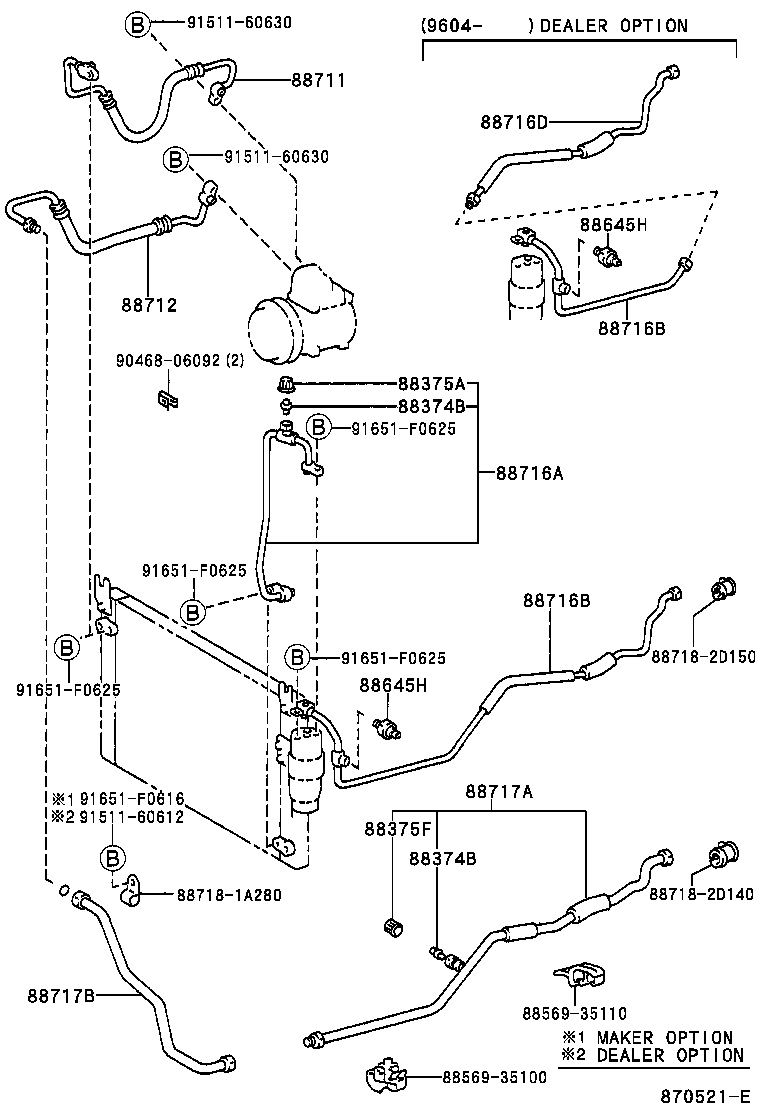

Figure 873265B 873265B 1996-04 → — Figure 870515B 870515B 1999-06 → — Figure 870020H 870020H 1996-04 → — Figure 870027D 870027D 1996-04 → — Figure 870521E 870521E 1996-04 → — Figure 870039B 870039B 1996-04 → — Figure 874387B 874387B 2000-08 → — Figure 874392C 874392C 2000-08 → — Figure 874484 874484 2000-08 → — Figure 874485 874485 2000-08 → — Figure 873413E 873413E 1999-06 → — Figure 873408E 873408E 1999-06 → — Figure 873412D 873412D 1999-06 → — Figure 873409D 873409D 1999-06 → — Figure 874388D 874388D 2000-08 → — Figure 874393D 874393D 2000-08 → — Figure 873405 873405 1999-06 → — Figure 876380 876380 1996-04 → —

Part groups

PNCDescription
88374B Valve, Service, NO.1
88375A Cap, Service Valve (FOR COOLER PIPE)
88375F Cap, Service Valve, NO.3
88453 Fan, Cooling (FOR CONDENSER)
88454A Shroud, Fan
88460 Condenser Assy, Cooler
88460B Bracket, Cooler Condenser, NO.1
88460C Bracket, Cooler Condenser, NO.2
88460D Bracket, Cooler Condenser, NO.3
88460F Bracket, Cooler Condenser, NO.4
88460G Bracket, Cooler Condenser, NO.5
88461A Core, Cooler Condenser
88467B Insulator, Cooler Condenser Mounting
88471 Tank, Receiver Air Conditioner
88472 Bracket, Receiver Tank, NO.1
88550 Motor Assy, Blower (FOR CONDENSER)
88590 Blower Assy, W/Shroud
88645H Switch, Pressure NO.1
88711 Hose, Cooler Refrigerant Discharge, NO.1
88712 Hose, Cooler Refrigerant Suction, NO.1
88716A Pipe, Cooler Refrigerant Liquid, A
88716B Pipe, Cooler Refrigerant Liquid, B
88716C Pipe, Cooler Refrigerant Liquid, C
88716D Pipe, Cooler Refrigerant Liquid, D
88717 Pipe, Cooler Refrigerant Suction, NO.1
88717A Pipe, Cooler Refrigerant Suction, A
88717B Pipe, Cooler Refrigerant Suction, B
88723B Label, Cooler Service Caution
88726A Pipe, Cooler Refrigerant Liquid, A
88726B Pipe, Cooler Refrigerant Liquid, B
88726C Pipe, Cooler Refrigerant Liquid, C
88727B Pipe, Cooler Refrigerant Suction, B
88727C Pipe, Cooler Refrigerant Suction, C
88727D Pipe, Cooler Refrigerant Suction, D
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
