Toyota Land Cruiser Prado
2002-09 → 2009-08 · chassis GRJ12#,KDJ12# · catalogue 781550 · Europe
Supported model
Data version 2010-01

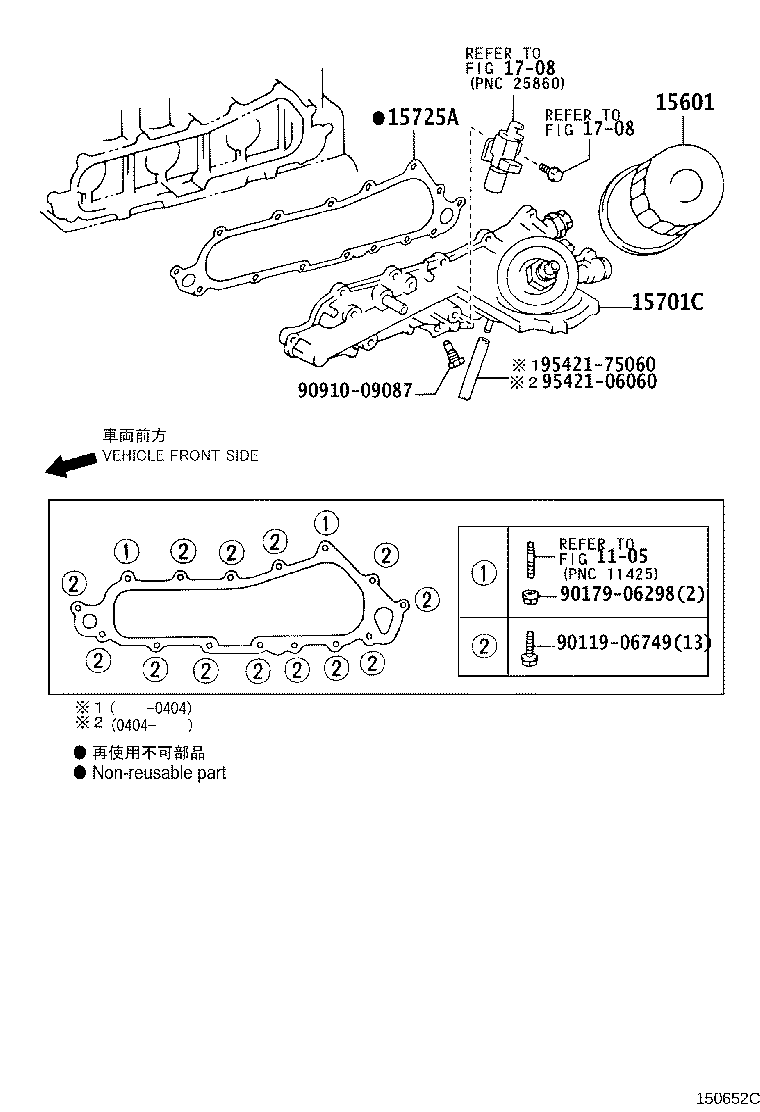

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 15601 — Filter Sub-assy, Oil | ||||
| 90915-20003 |
Filter Sub-assy, Oil
2006-08 → —
|
1KDFTV KDJ12# | — | |
| 90915-20004 |
Filter Sub-assy, Oil
2003-01 → —
|
1GRFE GRJ12# | — | |
| 90915-30002 |
Filter Sub-assy, Oil
2002-09 → 2006-08
ended
|
1KDFTV KDJ12# | — | |
| 15701C — Cover Sub-assy, Oil Cooler | ||||
| 15701-30050 |
Cover Sub-assy, Oil Cooler
2002-09 → 2004-08
ended
|
1KDFTV KDJ12# | — | |
| 15701-30051 |
Cover Sub-assy, Oil Cooler
2004-08 → 2006-08
ended
|
1KDFTV KDJ12# | — | |
| 15701-30090 |
Cover Sub-assy, Oil Cooler
2006-08 → —
|
1KDFTV KDJ12# | — | |
| 15725A — Gasket, Oil Cooler Cover | ||||
| 15725-67010 |
Gasket, Oil Cooler Cover
2002-09 → —
|
1KDFTV KDJ12# | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
