Toyota Land Cruiser Prado
2002-09 → 2009-08 · chassis GRJ12#,KDJ12# · catalogue 781550 · Europe
Supported model
Data version 2010-01

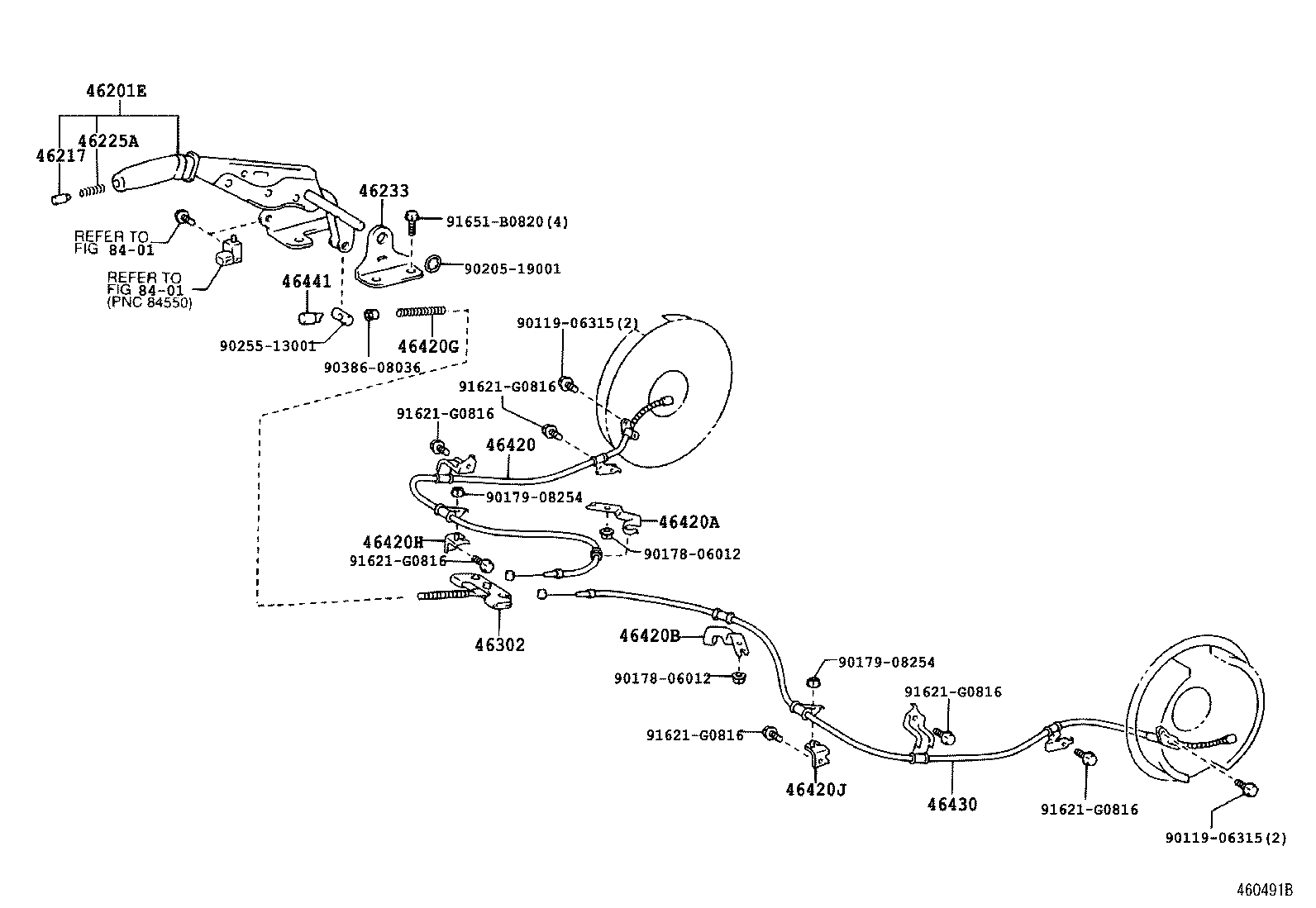

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 46201E — Lever Sub-assy, Parking Brake | ||||
| 46201-60030-C0 note |
Lever Sub-assy, Parking Brake
2002-09 → 2009-08
ended
|
GRJ120,KDJ12# RHD | — | |
| 46201-60040-C0 note |
Lever Sub-assy, Parking Brake
2002-09 → 2009-08
ended
|
GRJ12#,KDJ12# LHD | — | |
| 46201-60050-C0 note |
Lever Sub-assy, Parking Brake
2002-09 → 2009-08
ended
|
GRJ120,KDJ12# RHD | — | |
| 46201-60050-C0 note |
Lever Sub-assy, Parking Brake
2002-09 → 2009-08
ended
|
GRJ120,KDJ12# RHD | — | |
| 46201-60050-C0 note |
Lever Sub-assy, Parking Brake
2007-07 → 2009-08
ended
|
GRJ120,KDJ12# RHD | — | |
| 46201-60060-C0 note |
Lever Sub-assy, Parking Brake
2002-09 → 2009-08
ended
|
GRJ12#,KDJ12# LHD | — | |
| 46201-60060-C0 note |
Lever Sub-assy, Parking Brake
2002-09 → 2009-08
ended
|
GRJ12#,KDJ12# LHD | — | |
| 46201-60060-C0 note |
Lever Sub-assy, Parking Brake
2007-07 → 2009-08
ended
|
GRJ12#,KDJ12# LHD | — | |
| 46217 — Knob, Parking Brake Release Rod | ||||
| 46217-17010-C0 note |
Knob, Parking Brake Release Rod
2002-09 → 2009-08
ended
|
GRJ12#,KDJ12# | — | |
| 46217-53010 note |
Knob, Parking Brake Release Rod
2002-09 → 2009-08
ended
|
GRJ12#,KDJ12# | — | |
| 46217-53010 note |
Knob, Parking Brake Release Rod
2002-09 → 2009-08
ended
|
GRJ12#,KDJ12# | — | |
| 46217-53010 note |
Knob, Parking Brake Release Rod
2007-07 → 2009-08
ended
|
GRJ12#,KDJ12# | — | |
| 46225A — Spring, Compression(FOR PARKING BRAKE PAWL ROD) | ||||
| 90504-12005 |
Spring, Compression(FOR PARKING BRAKE PAWL ROD)
2002-09 → —
|
GRJ12#,KDJ12# | — | |
| 46233 — Support, Parking Brake Center | ||||
| 46233-60020 |
Support, Parking Brake Center
2002-09 → 2009-07
ended
|
GRJ12#,KDJ12# | — | |
| 46302 — Rod Sub-assy, Parking Brake Pull, NO.1 | ||||
| 46302-60010 |
Rod Sub-assy, Parking Brake Pull, NO.1
2002-09 → —
|
GRJ12#,KDJ12# | — | |
| 46420 — Cable Assy, Parking Brake, NO.2 | ||||
| 46420-60070 |
Cable Assy, Parking Brake, NO.2
2002-09 → 2009-08
ended
|
GRJ120,KDJ120 | — | |
| 46420-60080 |
Cable Assy, Parking Brake, NO.2
2002-09 → 2009-08
ended
|
GRJ125,KDJ125 | — | |
| 46420A — Clamp, NO.1(FOR PARKING BRAKE CABLE) | ||||
| 46421-35020 |
Clamp, NO.1(FOR PARKING BRAKE CABLE)
2002-09 → —
|
GRJ120,KDJ120 | — | |
| 46421-60010 |
Clamp, NO.1(FOR PARKING BRAKE CABLE)
2002-09 → —
|
GRJ125,KDJ125 | — | |
| 46420B — Clamp, NO.2(FOR PARKING BRAKE CABLE) | ||||
| 46431-35020 |
Clamp, NO.2(FOR PARKING BRAKE CABLE)
2002-09 → —
|
GRJ120,KDJ120 | — | |
| 46431-60010 |
Clamp, NO.2(FOR PARKING BRAKE CABLE)
2002-09 → —
|
GRJ125,KDJ125 | — | |
| 46420G — Spring(FOR PARKING CABLE INNER WIRE SET) | ||||
| 90501-10239 |
Spring(FOR PARKING CABLE INNER WIRE SET)
2002-09 → —
|
GRJ12#,KDJ12# | — | |
| 46420H — Clip, NO.2(FOR PARKING BRAKE) | ||||
| 46421-60040 |
Clip, NO.2(FOR PARKING BRAKE)
2002-09 → 2004-08
ended
|
GRJ125,KDJ125 | — | |
| 46421-60040 |
Clip, NO.2(FOR PARKING BRAKE)
2004-08 → —
|
GRJ125,KDJ125 | — | |
| 46420J — Clamp, NO.3(FOR PARKING BRAKE CABLE) | ||||
| 46431-60040 |
Clamp, NO.3(FOR PARKING BRAKE CABLE)
2002-09 → 2004-08
ended
|
GRJ125,KDJ125 | — | |
| 46431-60040 |
Clamp, NO.3(FOR PARKING BRAKE CABLE)
2004-08 → —
|
GRJ125,KDJ125 | — | |
| 46430 — Cable Assy, Parking Brake, NO.3 | ||||
| 46430-60010 |
Cable Assy, Parking Brake, NO.3
2002-09 → 2009-08
ended
|
GRJ120,KDJ120 | — | |
| 46430-60020 |
Cable Assy, Parking Brake, NO.3
2002-09 → 2009-08
ended
|
GRJ125,KDJ125 | — | |
| 46441 — Nut, Wire Adjusting, NO.1 | ||||
| 46441-60010 |
Nut, Wire Adjusting, NO.1
2002-09 → —
|
GRJ12#,KDJ12# | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
