Toyota Land Cruiser Prado

2002-09 → 2009-08 · chassis GRJ12#,KDJ12# · catalogue 781550 · Europe

Supported model Data version 2010-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

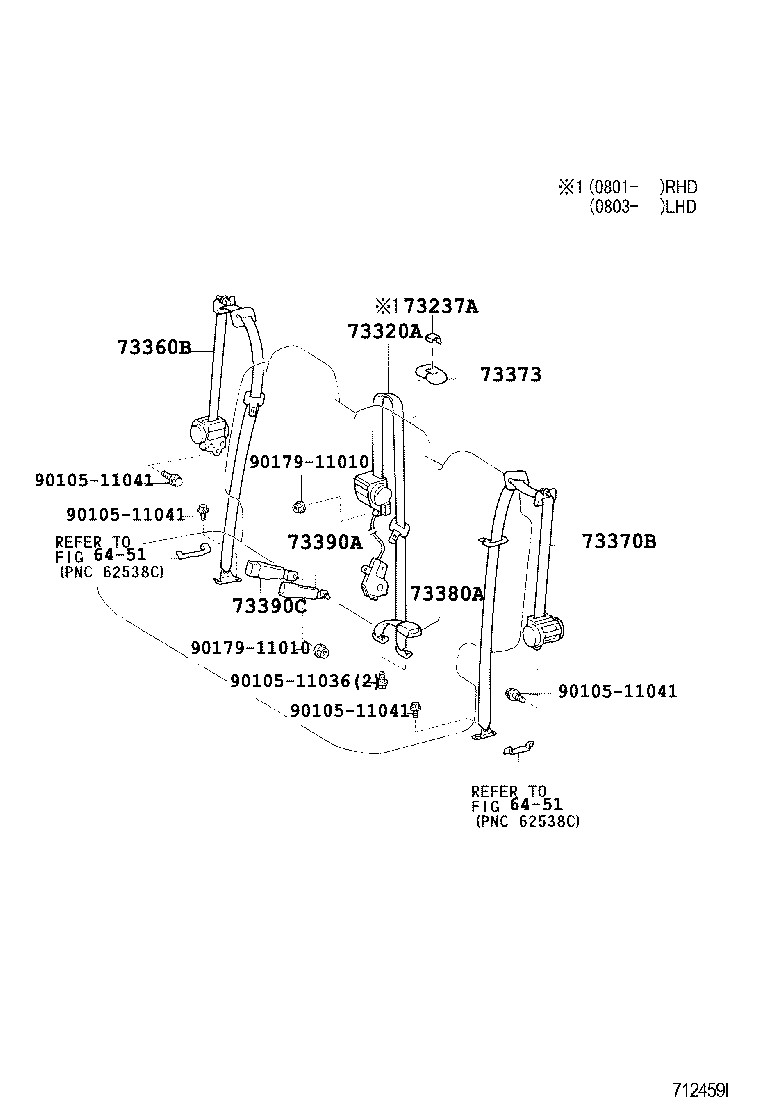

Exploded illustration 712459I 73360B — BELT ASSY, REAR SEAT, OUTER (12 parts) 9010511041 — not listed in this catalogue 9010511041 — not listed in this catalogue 6451 — not listed in this catalogue 9010511041 — not listed in this catalogue 9010511041 — not listed in this catalogue 73380A — BELT ASSY, REAR SEAT, INNER (2 parts) 6451 — not listed in this catalogue 73370B — BELT ASSY, REAR SEAT, OUTER (12 parts) 73373 — COVER, REAR SEAT SHOULDER BELT (8 parts) 73320A — BELT ASSY, NO.1 SEAT 3 POINT TYPE, LH (8 parts) 73390A — BELT ASSY, REAR SEAT, INNER (2 parts) 9017911010 — not listed in this catalogue 9017911010 — not listed in this catalogue 73390C — BELT ASSY, REAR NO.1 SEAT, INNER LH (2 parts) 9010511036 — not listed in this catalogue 73237A — COVER, SHOULDER BELT ANCHOR (4 parts)
712459I · 8 callouts, 9 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
50 parts on this figure
Part number Description Fitment Price
73237A — Cover, Shoulder Belt Anchor
73237-28020-A1 note Cover, Shoulder Belt Anchor
2008-03 → 2009-08 ended
KDJ125;GRJ12#,KDJ120 LHD —
73237-28020-B1 note Cover, Shoulder Belt Anchor
2008-03 → 2009-08 ended
KDJ125;GRJ12#,KDJ120 LHD —
73237-60040-A0 note Cover, Shoulder Belt Anchor
2008-01 → 2009-08 ended
GRJ120,KDJ120 RHD —
73237-60040-B0 note Cover, Shoulder Belt Anchor
2008-01 → 2009-08 ended
GRJ120,KDJ120 RHD —
73320A — Belt Assy, NO.1 Seat 3 Point Type, LH
73320-60050-A0 note Belt Assy, NO.1 Seat 3 Point Type, LH
2002-09 → 2003-03 ended
KDJ125;GRJ12#,KDJ120 LHD —
73320-60050-A0 note Belt Assy, NO.1 Seat 3 Point Type, LH
2003-03 → 2003-04 ended
KDJ125;GRJ12#,KDJ120 LHD —
73320-60050-A0 note Belt Assy, NO.1 Seat 3 Point Type, LH
2002-09 → 2009-08 ended
GRJ125,KDJ125 5FC,6F;GRJ120,KDJ120 LHD (5FC,6F) —
73320-60050-A0 note Belt Assy, NO.1 Seat 3 Point Type, LH
2003-04 → 2009-08 ended
GRJ125,KDJ125 4FC,5F;GRJ120,KDJ120 LHD (4FC,5F) —
73320-60050-B0 note Belt Assy, NO.1 Seat 3 Point Type, LH
2002-09 → 2009-08 ended
GRJ125,KDJ125 5FC,6F;GRJ120,KDJ120 LHD (5FC,6F) —
73320-60050-B0 note Belt Assy, NO.1 Seat 3 Point Type, LH
2003-04 → 2009-08 ended
GRJ125,KDJ125 4FC,5F;GRJ120,KDJ120 LHD (4FC,5F) —
73320-60050-B0 note Belt Assy, NO.1 Seat 3 Point Type, LH
2003-03 → 2003-04 ended
KDJ125;GRJ12#,KDJ120 LHD —
73320-60050-B0 note Belt Assy, NO.1 Seat 3 Point Type, LH
2002-09 → 2003-03 ended
KDJ125;GRJ12#,KDJ120 LHD —
73360B — Belt Assy, Rear Seat, Outer
73360-60390-A0 note Belt Assy, Rear Seat, Outer
2002-09 → 2003-03 ended
GRJ120,KDJ120 —
73360-60390-A0 note Belt Assy, Rear Seat, Outer
2003-03 → 2003-04 ended
GRJ120,KDJ120 —
73360-60390-A0 note Belt Assy, Rear Seat, Outer
2002-09 → 2009-08 ended
GRJ120,KDJ120 5FC,6F —
73360-60390-A0 note Belt Assy, Rear Seat, Outer
2003-04 → 2009-08 ended
GRJ120,KDJ120 4FC,5F —
73360-60390-B0 note Belt Assy, Rear Seat, Outer
2003-03 → 2003-04 ended
GRJ120,KDJ120 —
73360-60390-B0 note Belt Assy, Rear Seat, Outer
2003-04 → 2009-08 ended
GRJ120,KDJ120 4FC,5F —
73360-60390-B0 note Belt Assy, Rear Seat, Outer
2002-09 → 2009-08 ended
GRJ120,KDJ120 5FC,6F —
73360-60390-B0 note Belt Assy, Rear Seat, Outer
2002-09 → 2003-03 ended
GRJ120,KDJ120 —
73360-60410-A0 note Belt Assy, Rear Seat, Outer
2002-09 → 2009-08 ended
GRJ125,KDJ125 —
73360-60410-B0 note Belt Assy, Rear Seat, Outer
2002-09 → 2009-08 ended
GRJ125,KDJ125 —
73360-60420-A0 note Belt Assy, Rear Seat, Outer
2002-09 → 2009-08 ended
GRJ125,KDJ125 —
73360-60420-B0 note Belt Assy, Rear Seat, Outer
2002-09 → 2009-08 ended
GRJ125,KDJ125 —
73370B — Belt Assy, Rear Seat, Outer
73370-60250-A0 note Belt Assy, Rear Seat, Outer
2002-09 → 2003-03 ended
GRJ120,KDJ120 —
73370-60250-A0 note Belt Assy, Rear Seat, Outer
2003-03 → 2003-04 ended
GRJ120,KDJ120 —
73370-60250-A0 note Belt Assy, Rear Seat, Outer
2002-09 → 2009-08 ended
GRJ120,KDJ120 5FC,6F —
73370-60250-A0 note Belt Assy, Rear Seat, Outer
2003-04 → 2009-08 ended
GRJ120,KDJ120 4FC,5F —
73370-60250-B0 note Belt Assy, Rear Seat, Outer
2002-09 → 2003-03 ended
GRJ120,KDJ120 —
73370-60250-B0 note Belt Assy, Rear Seat, Outer
2003-04 → 2009-08 ended
GRJ120,KDJ120 4FC,5F —
73370-60250-B0 note Belt Assy, Rear Seat, Outer
2002-09 → 2009-08 ended
GRJ120,KDJ120 5FC,6F —
73370-60250-B0 note Belt Assy, Rear Seat, Outer
2003-03 → 2003-04 ended
GRJ120,KDJ120 —
73370-60270-A0 note Belt Assy, Rear Seat, Outer
2002-09 → 2009-08 ended
GRJ125,KDJ125 —
73370-60270-B0 note Belt Assy, Rear Seat, Outer
2002-09 → 2009-08 ended
GRJ125,KDJ125 —
73370-60280-A0 note Belt Assy, Rear Seat, Outer
2002-09 → 2009-08 ended
GRJ125,KDJ125 —
73370-60280-B0 note Belt Assy, Rear Seat, Outer
2002-09 → 2009-08 ended
GRJ125,KDJ125 —
73373 — Cover, Rear Seat Shoulder Belt
73373-60050-A0 note Cover, Rear Seat Shoulder Belt
2002-09 → 2007-12 ended
GRJ120,KDJ120 RHD —
73373-60050-B1 note Cover, Rear Seat Shoulder Belt
2002-09 → 2007-12 ended
GRJ120,KDJ120 RHD —
73373-60090-A0 note Cover, Rear Seat Shoulder Belt
2008-01 → 2009-08 ended
GRJ120,KDJ120 RHD —
73373-60090-B0 note Cover, Rear Seat Shoulder Belt
2008-01 → 2009-08 ended
GRJ120,KDJ120 RHD —
73375-28020-A1 note Cover, Rear Seat Shoulder Belt
2008-03 → 2009-08 ended
KDJ125;GRJ12#,KDJ120 LHD —
73375-28020-B1 note Cover, Rear Seat Shoulder Belt
2008-03 → 2009-08 ended
KDJ125;GRJ12#,KDJ120 LHD —
73375-60040-A0 note Cover, Rear Seat Shoulder Belt
2003-04 → 2008-02 ended
KDJ125;GRJ12#,KDJ120 LHD —
73375-60040-B1 note Cover, Rear Seat Shoulder Belt
2003-04 → 2008-02 ended
KDJ125;GRJ12#,KDJ120 LHD —
73380A — Belt Assy, Rear Seat, Inner
73380-60200-A0 note Belt Assy, Rear Seat, Inner
2002-09 → 2009-08 ended
GRJ12#,KDJ12# —
73380-60200-B0 note Belt Assy, Rear Seat, Inner
2002-09 → 2009-08 ended
GRJ12#,KDJ12# —
73390A — Belt Assy, Rear Seat, Inner
73306-60150-A0 note Belt Assy, Rear Seat, Inner
2002-09 → 2009-08 ended
GRJ12#,KDJ12# —
73306-60150-B0 note Belt Assy, Rear Seat, Inner
2002-09 → 2009-08 ended
GRJ12#,KDJ12# —
73390C — Belt Assy, Rear NO.1 Seat, Inner LH
73390-60010-A0 note Belt Assy, Rear NO.1 Seat, Inner LH
2002-09 → 2009-08 ended
GRJ12#,KDJ12# —
73390-60010-B0 note Belt Assy, Rear NO.1 Seat, Inner LH
2002-09 → 2009-08 ended
GRJ12#,KDJ12# —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
