Toyota Land Cruiser Prado

2002-09 → 2009-08 · chassis GRJ12#,KDJ12# · catalogue 781550 · Europe

Supported model Data version 2010-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

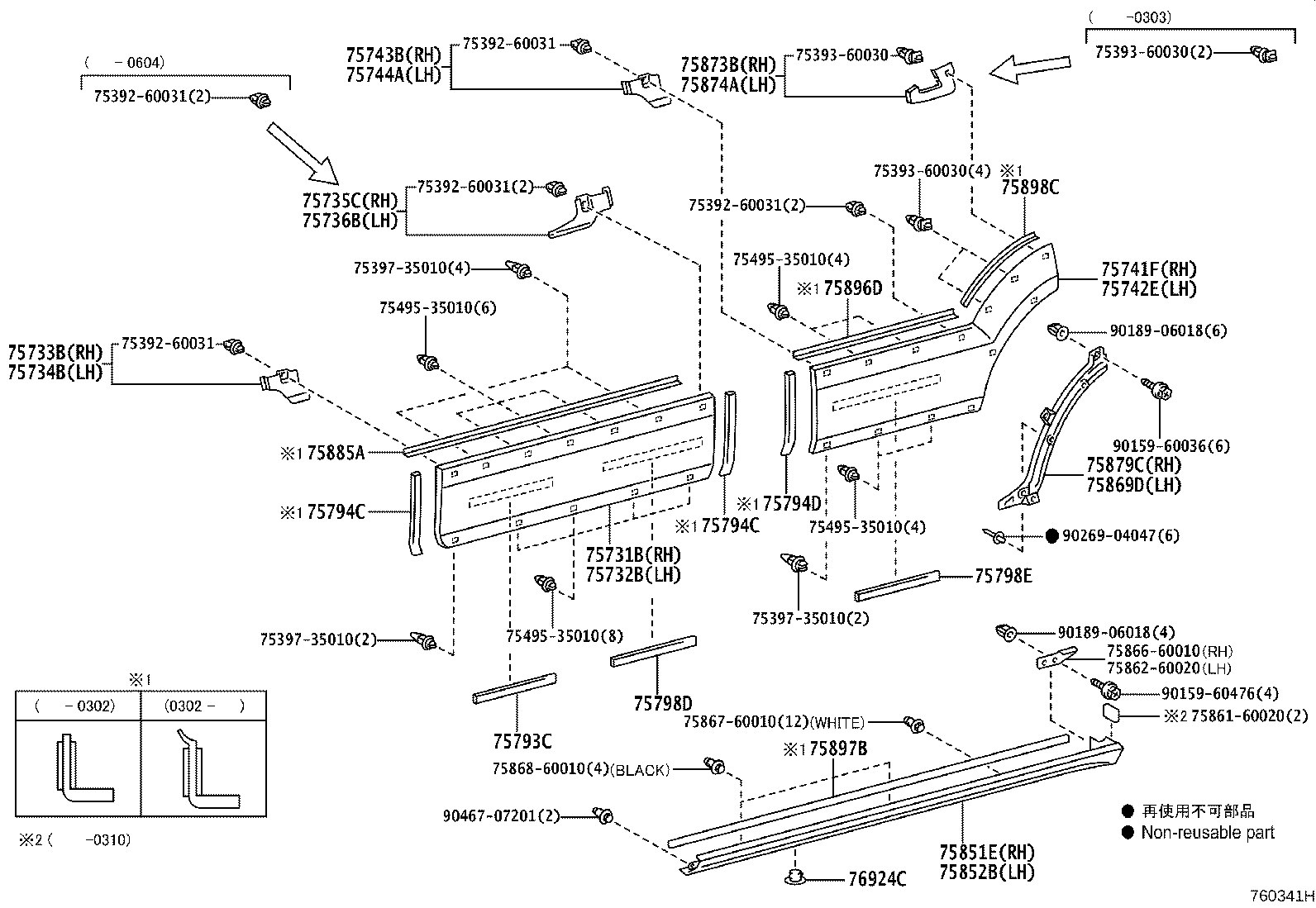

Exploded illustration 760341H 75733B — MOULDING, FRONT DOOR, OUTSIDE UPPER REAR RH (3 parts) 75734B — MOULDING, FRONT DOOR, OUTSIDE UPPER REAR LH (3 parts) 75741F — MOULDING, REAR DOOR, OUTSIDE RH (26 parts) 75742E — MOULDING, REAR DOOR, OUTSIDE LH (26 parts) 75873B — MOULDING, QUARTER WHEEL OPENING, RH (2 parts) 75874A — MOULDING, QUARTER WHEEL OPENING, LH (2 parts) 75879C — RETAINER, QUARTER OPENING, RH (2 parts) 75869D — RETAINER, QUARTER OPENING, LH (2 parts) 75851E — MOULDING, BODY ROCKER PANEL, RH (4 parts) 75852B — MOULDING, BODY ROCKER PANEL, LH (4 parts) 75735C — MOULDING, FRONT DOOR OUTSIDE, LOWER RH (2 parts) 75736B — MOULDING, FRONT DOOR, OUTSIDE LOWER LH (2 parts) 75743B — MOULDING, REAR DOOR OUTSIDE, UPPER REAR RH (3 parts) 75744A — MOULDING, REAR DOOR OUTSIDE, UPPER REAR LH (3 parts) 75731B — MOULDING, FRONT DOOR, OUTSIDE RH (26 parts) 75732B — MOULDING, FRONT DOOR, OUTSIDE LH (26 parts) 7539260031 — not listed in this catalogue 7539260031 — not listed in this catalogue 7539735010 — not listed in this catalogue 75793C — PAD, FRONT DOOR OUTSIDE MOULDING, UPPER (2 parts) 9046707201 — not listed in this catalogue 76924C — RETAINER, SIDE MUDGUARD, NO.2 (4 parts) 75897B — TAPE, MOULDING, NO.3 (6 parts) 75798D — PAD, FRONT DOOR OUTSIDE MOULDING, REAR (2 parts) 7549535010 — not listed in this catalogue 7539735010 — not listed in this catalogue 75798E — PAD, REAR DOOR OUTSIDE MOULDING, RR (2 parts) 7586760010 — not listed in this catalogue 7586860010 — not listed in this catalogue 7539260031 — not listed in this catalogue 7539260031 — not listed in this catalogue 7549535010 — not listed in this catalogue 7586160020 — not listed in this catalogue 9015960476 — not listed in this catalogue 9015960036 — not listed in this catalogue 7586660010 — not listed in this catalogue 7586260020 — not listed in this catalogue 9018906018 — not listed in this catalogue 9018906018 — not listed in this catalogue 9026904047 — not listed in this catalogue 7549535010 — not listed in this catalogue 75885A — TAPE, MOULDING, NO.6 (3 parts) 75794C — PAD, FRONT DOOR OUTSIDE MOULDING, REAR (3 parts) 75794C — PAD, FRONT DOOR OUTSIDE MOULDING, REAR (3 parts) 75794D — PAD, REAR DOOR OUTSIDE MOULDING, RR (3 parts) 75896D — TAPE, MOULDING, NO.2 (3 parts) 7549535010 — not listed in this catalogue 7539735010 — not listed in this catalogue 7539360030 — not listed in this catalogue 7539360030 — not listed in this catalogue 75898C — TAPE, MOULDING, NO.4 (3 parts) 7539260031 — not listed in this catalogue 7539360030 — not listed in this catalogue
760341H · 27 callouts, 26 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
167 parts on this figure
Part number Description Fitment Price
75731B — Moulding, Front Door, Outside RH
75731-60160-A0 note Moulding, Front Door, Outside RH
2002-09 → 2006-04 ended
GRJ12#,KDJ12# —
75731-60160-B0 note Moulding, Front Door, Outside RH
2002-09 → 2006-04 ended
GRJ12#,KDJ12# —
75731-60160-B1 note Moulding, Front Door, Outside RH
2002-09 → 2006-04 ended
GRJ12#,KDJ12# —
75731-60160-C0 note Moulding, Front Door, Outside RH
2002-09 → 2006-04 ended
GRJ12#,KDJ12# —
75731-60160-D0 note Moulding, Front Door, Outside RH
2002-09 → 2006-04 ended
GRJ12#,KDJ12# —
75731-60160-E0 note Moulding, Front Door, Outside RH
2005-08 → 2006-04 ended
GRJ12#,KDJ12# —
75731-60160-F0 note Moulding, Front Door, Outside RH
2002-09 → 2005-08 ended
GRJ12#,KDJ12# —
75731-60160-G0 note Moulding, Front Door, Outside RH
2002-09 → 2006-04 ended
GRJ12#,KDJ12# —
75731-60160-J0 note Moulding, Front Door, Outside RH
2002-09 → 2005-08 ended
GRJ12#,KDJ12# —
75731-60160-J2 note Moulding, Front Door, Outside RH
2005-08 → 2006-04 ended
GRJ12#,KDJ12# —
75731-60161-A0 note Moulding, Front Door, Outside RH
2006-04 → 2009-08 ended
GRJ12#,KDJ12# —
75731-60161-A0 note Moulding, Front Door, Outside RH
2007-07 → 2009-08 ended
GRJ12#,KDJ12# —
75731-60161-B0 note Moulding, Front Door, Outside RH
2006-04 → 2009-08 ended
GRJ12#,KDJ12# —
75731-60161-B0 note Moulding, Front Door, Outside RH
2007-07 → 2009-08 ended
GRJ12#,KDJ12# —
75731-60161-B1 note Moulding, Front Door, Outside RH
2006-04 → 2009-08 ended
GRJ12#,KDJ12# —
75731-60161-B1 note Moulding, Front Door, Outside RH
2007-07 → 2009-08 ended
GRJ12#,KDJ12# —
75731-60161-C0 note Moulding, Front Door, Outside RH
2007-07 → 2009-08 ended
GRJ12#,KDJ12# —
75731-60161-C0 note Moulding, Front Door, Outside RH
2006-04 → 2009-08 ended
GRJ12#,KDJ12# —
75731-60161-D0 note Moulding, Front Door, Outside RH
2006-04 → 2009-08 ended
GRJ12#,KDJ12# —
75731-60161-D0 note Moulding, Front Door, Outside RH
2007-07 → 2009-08 ended
GRJ12#,KDJ12# —
75731-60161-E0 note Moulding, Front Door, Outside RH
2006-04 → 2009-08 ended
GRJ12#,KDJ12# —
75731-60161-E0 note Moulding, Front Door, Outside RH
2007-07 → 2009-08 ended
GRJ12#,KDJ12# —
75731-60161-G0 note Moulding, Front Door, Outside RH
2006-04 → 2009-08 ended
GRJ12#,KDJ12# —
75731-60161-G0 note Moulding, Front Door, Outside RH
2007-07 → 2009-08 ended
GRJ12#,KDJ12# —
75731-60161-J2 note Moulding, Front Door, Outside RH
2007-07 → 2009-08 ended
GRJ12#,KDJ12# —
75731-60161-J2 note Moulding, Front Door, Outside RH
2006-04 → 2009-08 ended
GRJ12#,KDJ12# —
75732B — Moulding, Front Door, Outside LH
75732-60160-A0 note Moulding, Front Door, Outside LH
2002-09 → 2006-04 ended
GRJ12#,KDJ12# —
75732-60160-B0 note Moulding, Front Door, Outside LH
2002-09 → 2006-04 ended
GRJ12#,KDJ12# —
75732-60160-B1 note Moulding, Front Door, Outside LH
2002-09 → 2006-04 ended
GRJ12#,KDJ12# —
75732-60160-C0 note Moulding, Front Door, Outside LH
2002-09 → 2006-04 ended
GRJ12#,KDJ12# —
75732-60160-D0 note Moulding, Front Door, Outside LH
2002-09 → 2006-04 ended
GRJ12#,KDJ12# —
75732-60160-E0 note Moulding, Front Door, Outside LH
2005-08 → 2006-04 ended
GRJ12#,KDJ12# —
75732-60160-F0 note Moulding, Front Door, Outside LH
2002-09 → 2005-08 ended
GRJ12#,KDJ12# —
75732-60160-G0 note Moulding, Front Door, Outside LH
2002-09 → 2006-04 ended
GRJ12#,KDJ12# —
75732-60160-J0 note Moulding, Front Door, Outside LH
2002-09 → 2005-08 ended
GRJ12#,KDJ12# —
75732-60160-J2 note Moulding, Front Door, Outside LH
2005-08 → 2006-04 ended
GRJ12#,KDJ12# —
75732-60161-A0 note Moulding, Front Door, Outside LH
2006-04 → 2009-08 ended
GRJ12#,KDJ12# —
75732-60161-A0 note Moulding, Front Door, Outside LH
2007-07 → 2009-08 ended
GRJ12#,KDJ12# —
75732-60161-B0 note Moulding, Front Door, Outside LH
2006-04 → 2009-08 ended
GRJ12#,KDJ12# —
75732-60161-B0 note Moulding, Front Door, Outside LH
2007-07 → 2009-08 ended
GRJ12#,KDJ12# —
75732-60161-B1 note Moulding, Front Door, Outside LH
2006-04 → 2009-08 ended
GRJ12#,KDJ12# —
75732-60161-B1 note Moulding, Front Door, Outside LH
2007-07 → 2009-08 ended
GRJ12#,KDJ12# —
75732-60161-C0 note Moulding, Front Door, Outside LH
2006-04 → 2009-08 ended
GRJ12#,KDJ12# —
75732-60161-C0 note Moulding, Front Door, Outside LH
2007-07 → 2009-08 ended
GRJ12#,KDJ12# —
75732-60161-D0 note Moulding, Front Door, Outside LH
2006-04 → 2009-08 ended
GRJ12#,KDJ12# —
75732-60161-D0 note Moulding, Front Door, Outside LH
2007-07 → 2009-08 ended
GRJ12#,KDJ12# —
75732-60161-E0 note Moulding, Front Door, Outside LH
2006-04 → 2009-08 ended
GRJ12#,KDJ12# —
75732-60161-E0 note Moulding, Front Door, Outside LH
2007-07 → 2009-08 ended
GRJ12#,KDJ12# —
75732-60161-G0 note Moulding, Front Door, Outside LH
2007-07 → 2009-08 ended
GRJ12#,KDJ12# —
75732-60161-G0 note Moulding, Front Door, Outside LH
2006-04 → 2009-08 ended
GRJ12#,KDJ12# —
75732-60161-J2 note Moulding, Front Door, Outside LH
2007-07 → 2009-08 ended
GRJ12#,KDJ12# —
75732-60161-J2 note Moulding, Front Door, Outside LH
2006-04 → 2009-08 ended
GRJ12#,KDJ12# —
75733B — Moulding, Front Door, Outside Upper Rear RH
75073-60040 note Moulding, Front Door, Outside Upper Rear RH
2002-09 → 2003-10 ended
GRJ12#,KDJ12# —
75073-60041 note Moulding, Front Door, Outside Upper Rear RH
2003-10 → —
GRJ12#,KDJ12# —
75073-60041 note Moulding, Front Door, Outside Upper Rear RH
2007-07 → —
GRJ12#,KDJ12# —
75734B — Moulding, Front Door, Outside Upper Rear LH
75074-60040 note Moulding, Front Door, Outside Upper Rear LH
2002-09 → 2003-10 ended
GRJ12#,KDJ12# —
75074-60041 note Moulding, Front Door, Outside Upper Rear LH
2003-10 → —
GRJ12#,KDJ12# —
75074-60041 note Moulding, Front Door, Outside Upper Rear LH
2007-07 → —
GRJ12#,KDJ12# —
75735C — Moulding, Front Door Outside, Lower RH
75073-60050 note Moulding, Front Door Outside, Lower RH
2007-07 → 2009-08 ended
GRJ12#,KDJ12# —
75073-60050 note Moulding, Front Door Outside, Lower RH
2006-04 → 2009-08 ended
GRJ12#,KDJ12# —
75736B — Moulding, Front Door, Outside Lower LH
75074-60050 note Moulding, Front Door, Outside Lower LH
2006-04 → 2009-08 ended
GRJ12#,KDJ12# —
75074-60050 note Moulding, Front Door, Outside Lower LH
2007-07 → 2009-08 ended
GRJ12#,KDJ12# —
75741F — Moulding, Rear Door, Outside RH
75741-60200-A0 note Moulding, Rear Door, Outside RH
2002-09 → 2003-03 ended
GRJ120,KDJ120 —
75741-60200-B0 note Moulding, Rear Door, Outside RH
2002-09 → 2003-03 ended
GRJ120,KDJ120 —
75741-60200-B1 note Moulding, Rear Door, Outside RH
2002-09 → 2003-03 ended
GRJ120,KDJ120 —
75741-60200-C0 note Moulding, Rear Door, Outside RH
2002-09 → 2003-03 ended
GRJ120,KDJ120 —
75741-60200-D0 note Moulding, Rear Door, Outside RH
2002-09 → 2003-03 ended
GRJ120,KDJ120 —
75741-60200-F0 note Moulding, Rear Door, Outside RH
2002-09 → 2003-03 ended
GRJ120,KDJ120 —
75741-60200-G0 note Moulding, Rear Door, Outside RH
2002-09 → 2003-03 ended
GRJ120,KDJ120 —
75741-60200-J0 note Moulding, Rear Door, Outside RH
2002-09 → 2003-03 ended
GRJ120,KDJ120 —
75741-60201-A0 note Moulding, Rear Door, Outside RH
2003-03 → 2009-08 ended
GRJ120,KDJ120 —
75741-60201-A0 note Moulding, Rear Door, Outside RH
2007-07 → 2009-08 ended
GRJ120,KDJ120 —
75741-60201-B0 note Moulding, Rear Door, Outside RH
2003-03 → 2009-08 ended
GRJ120,KDJ120 —
75741-60201-B0 note Moulding, Rear Door, Outside RH
2007-07 → 2009-08 ended
GRJ120,KDJ120 —
75741-60201-B1 note Moulding, Rear Door, Outside RH
2007-07 → 2009-08 ended
GRJ120,KDJ120 —
75741-60201-B1 note Moulding, Rear Door, Outside RH
2003-03 → 2009-08 ended
GRJ120,KDJ120 —
75741-60201-C0 note Moulding, Rear Door, Outside RH
2007-07 → 2009-08 ended
GRJ120,KDJ120 —
75741-60201-C0 note Moulding, Rear Door, Outside RH
2003-03 → 2009-08 ended
GRJ120,KDJ120 —
75741-60201-D0 note Moulding, Rear Door, Outside RH
2003-03 → 2009-08 ended
GRJ120,KDJ120 —
75741-60201-D0 note Moulding, Rear Door, Outside RH
2007-07 → 2009-08 ended
GRJ120,KDJ120 —
75741-60201-E0 note Moulding, Rear Door, Outside RH
2005-08 → 2009-08 ended
GRJ120,KDJ120 —
75741-60201-E0 note Moulding, Rear Door, Outside RH
2007-07 → 2009-08 ended
GRJ120,KDJ120 —
75741-60201-F0 note Moulding, Rear Door, Outside RH
2003-03 → 2005-08 ended
GRJ120,KDJ120 —
75741-60201-G0 note Moulding, Rear Door, Outside RH
2003-03 → 2009-08 ended
GRJ120,KDJ120 —
75741-60201-G0 note Moulding, Rear Door, Outside RH
2007-07 → 2009-08 ended
GRJ120,KDJ120 —
75741-60201-J0 note Moulding, Rear Door, Outside RH
2003-03 → 2005-08 ended
GRJ120,KDJ120 —
75741-60201-J2 note Moulding, Rear Door, Outside RH
2005-08 → 2009-08 ended
GRJ120,KDJ120 —
75741-60201-J2 note Moulding, Rear Door, Outside RH
2007-07 → 2009-08 ended
GRJ120,KDJ120 —
75742E — Moulding, Rear Door, Outside LH
75742-60200-A0 note Moulding, Rear Door, Outside LH
2002-09 → 2003-03 ended
GRJ120,KDJ120 —
75742-60200-B0 note Moulding, Rear Door, Outside LH
2002-09 → 2003-03 ended
GRJ120,KDJ120 —
75742-60200-B1 note Moulding, Rear Door, Outside LH
2002-09 → 2003-03 ended
GRJ120,KDJ120 —
75742-60200-C0 note Moulding, Rear Door, Outside LH
2002-09 → 2003-03 ended
GRJ120,KDJ120 —
75742-60200-D0 note Moulding, Rear Door, Outside LH
2002-09 → 2003-03 ended
GRJ120,KDJ120 —
75742-60200-F0 note Moulding, Rear Door, Outside LH
2002-09 → 2003-03 ended
GRJ120,KDJ120 —
75742-60200-G0 note Moulding, Rear Door, Outside LH
2002-09 → 2003-03 ended
GRJ120,KDJ120 —
75742-60200-J0 note Moulding, Rear Door, Outside LH
2002-09 → 2003-03 ended
GRJ120,KDJ120 —
75742-60201-A0 note Moulding, Rear Door, Outside LH
2007-07 → 2009-08 ended
GRJ120,KDJ120 —
75742-60201-A0 note Moulding, Rear Door, Outside LH
2003-03 → 2009-08 ended
GRJ120,KDJ120 —
75742-60201-B0 note Moulding, Rear Door, Outside LH
2007-07 → 2009-08 ended
GRJ120,KDJ120 —
75742-60201-B0 note Moulding, Rear Door, Outside LH
2003-03 → 2009-08 ended
GRJ120,KDJ120 —
75742-60201-B1 note Moulding, Rear Door, Outside LH
2003-03 → 2009-08 ended
GRJ120,KDJ120 —
75742-60201-B1 note Moulding, Rear Door, Outside LH
2007-07 → 2009-08 ended
GRJ120,KDJ120 —
75742-60201-C0 note Moulding, Rear Door, Outside LH
2003-03 → 2009-08 ended
GRJ120,KDJ120 —
75742-60201-C0 note Moulding, Rear Door, Outside LH
2007-07 → 2009-08 ended
GRJ120,KDJ120 —
75742-60201-D0 note Moulding, Rear Door, Outside LH
2003-03 → 2009-08 ended
GRJ120,KDJ120 —
75742-60201-D0 note Moulding, Rear Door, Outside LH
2007-07 → 2009-08 ended
GRJ120,KDJ120 —
75742-60201-E0 note Moulding, Rear Door, Outside LH
2007-07 → 2009-08 ended
GRJ120,KDJ120 —
75742-60201-E0 note Moulding, Rear Door, Outside LH
2005-08 → 2009-08 ended
GRJ120,KDJ120 —
75742-60201-F0 note Moulding, Rear Door, Outside LH
2003-03 → 2005-08 ended
GRJ120,KDJ120 —
75742-60201-G0 note Moulding, Rear Door, Outside LH
2003-03 → 2009-08 ended
GRJ120,KDJ120 —
75742-60201-G0 note Moulding, Rear Door, Outside LH
2007-07 → 2009-08 ended
GRJ120,KDJ120 —
75742-60201-J0 note Moulding, Rear Door, Outside LH
2003-03 → 2005-08 ended
GRJ120,KDJ120 —
75742-60201-J2 note Moulding, Rear Door, Outside LH
2005-08 → 2009-08 ended
GRJ120,KDJ120 —
75742-60201-J2 note Moulding, Rear Door, Outside LH
2007-07 → 2009-08 ended
GRJ120,KDJ120 —
75743B — Moulding, Rear Door Outside, Upper Rear RH
75077-60040 note Moulding, Rear Door Outside, Upper Rear RH
2002-09 → 2003-10 ended
GRJ120,KDJ120 —
75077-60041 note Moulding, Rear Door Outside, Upper Rear RH
2003-10 → —
GRJ120,KDJ120 —
75077-60041 note Moulding, Rear Door Outside, Upper Rear RH
2007-07 → —
GRJ120,KDJ120 —
75744A — Moulding, Rear Door Outside, Upper Rear LH
75078-60040 note Moulding, Rear Door Outside, Upper Rear LH
2002-09 → 2003-10 ended
GRJ120,KDJ120 —
75078-60041 note Moulding, Rear Door Outside, Upper Rear LH
2003-10 → —
GRJ120,KDJ120 —
75078-60041 note Moulding, Rear Door Outside, Upper Rear LH
2007-07 → —
GRJ120,KDJ120 —
75793C — Pad, Front Door Outside Moulding, Upper
75793-60020 note Pad, Front Door Outside Moulding, Upper
2002-09 → —
GRJ12#,KDJ12# —
75793-60020 note Pad, Front Door Outside Moulding, Upper
2007-07 → —
GRJ12#,KDJ12# —
75794C — Pad, Front Door Outside Moulding, Rear
75794-60010 note Pad, Front Door Outside Moulding, Rear
2002-09 → 2003-02 ended
GRJ12#,KDJ12# —
75794-60011 note Pad, Front Door Outside Moulding, Rear
2007-07 → —
GRJ12#,KDJ12# —
75794-60011 note Pad, Front Door Outside Moulding, Rear
2003-02 → —
GRJ12#,KDJ12# —
75794D — Pad, Rear Door Outside Moulding, RR
75794-60010 note Pad, Rear Door Outside Moulding, RR
2002-09 → 2003-02 ended
GRJ120,KDJ120 —
75794-60011 note Pad, Rear Door Outside Moulding, RR
2003-02 → —
GRJ120,KDJ120 —
75794-60011 note Pad, Rear Door Outside Moulding, RR
2007-07 → —
GRJ120,KDJ120 —
75798D — Pad, Front Door Outside Moulding, Rear
75798-60020 note Pad, Front Door Outside Moulding, Rear
2002-09 → —
GRJ12#,KDJ12# —
75798-60020 note Pad, Front Door Outside Moulding, Rear
2007-07 → —
GRJ12#,KDJ12# —
75798E — Pad, Rear Door Outside Moulding, RR
75793-60020 note Pad, Rear Door Outside Moulding, RR
2002-09 → —
GRJ120,KDJ120 —
75793-60020 note Pad, Rear Door Outside Moulding, RR
2007-07 → —
GRJ120,KDJ120 —
75851E — Moulding, Body Rocker Panel, RH
75851-60050 note Moulding, Body Rocker Panel, RH
2002-09 → 2009-08 ended
GRJ120,KDJ120 —
75851-60050 note Moulding, Body Rocker Panel, RH
2007-07 → 2009-08 ended
GRJ120,KDJ120 —
75851-60060 note Moulding, Body Rocker Panel, RH
2007-07 → 2009-08 ended
GRJ125,KDJ125 —
75851-60060 note Moulding, Body Rocker Panel, RH
2002-09 → 2009-08 ended
GRJ125,KDJ125 —
75852B — Moulding, Body Rocker Panel, LH
75852-60050 note Moulding, Body Rocker Panel, LH
2002-09 → 2009-08 ended
GRJ120,KDJ120 —
75852-60050 note Moulding, Body Rocker Panel, LH
2007-07 → 2009-08 ended
GRJ120,KDJ120 —
75852-60060 note Moulding, Body Rocker Panel, LH
2002-09 → 2009-08 ended
GRJ125,KDJ125 —
75852-60060 note Moulding, Body Rocker Panel, LH
2007-07 → 2009-08 ended
GRJ125,KDJ125 —
75869D — Retainer, Quarter Opening, LH
75869-60020 note Retainer, Quarter Opening, LH
2002-09 → —
GRJ120,KDJ120 —
75869-60020 note Retainer, Quarter Opening, LH
2007-07 → —
GRJ120,KDJ120 —
75873B — Moulding, Quarter Wheel Opening, RH
75077-60050 note Moulding, Quarter Wheel Opening, RH
2003-03 → —
GRJ120,KDJ120 —
75077-60050 note Moulding, Quarter Wheel Opening, RH
2007-07 → —
GRJ120,KDJ120 —
75874A — Moulding, Quarter Wheel Opening, LH
75078-60050 note Moulding, Quarter Wheel Opening, LH
2007-07 → —
GRJ120,KDJ120 —
75078-60050 note Moulding, Quarter Wheel Opening, LH
2003-03 → —
GRJ120,KDJ120 —
75879C — Retainer, Quarter Opening, RH
75879-60020 note Retainer, Quarter Opening, RH
2002-09 → —
GRJ120,KDJ120 —
75879-60020 note Retainer, Quarter Opening, RH
2007-07 → —
GRJ120,KDJ120 —
75885A — Tape, Moulding, NO.6
75885-60020 note Tape, Moulding, NO.6
2002-09 → 2003-02 ended
GRJ12#,KDJ12# —
75885-60021 note Tape, Moulding, NO.6
2003-02 → —
GRJ12#,KDJ12# —
75885-60021 note Tape, Moulding, NO.6
2007-07 → —
GRJ12#,KDJ12# —
75896D — Tape, Moulding, NO.2
75896-60030 note Tape, Moulding, NO.2
2002-09 → 2003-02 ended
GRJ120,KDJ120 —
75896-60031 note Tape, Moulding, NO.2
2003-02 → —
GRJ120,KDJ120 —
75896-60031 note Tape, Moulding, NO.2
2007-07 → —
GRJ120,KDJ120 —
75897B — Tape, Moulding, NO.3
75897-60050 note Tape, Moulding, NO.3
2002-09 → 2003-02 ended
GRJ120,KDJ120 —
75897-60051 note Tape, Moulding, NO.3
2003-02 → —
GRJ120,KDJ120 —
75897-60051 note Tape, Moulding, NO.3
2007-07 → —
GRJ120,KDJ120 —
75897-60060 note Tape, Moulding, NO.3
2002-09 → 2003-02 ended
GRJ125,KDJ125 —
75897-60061 note Tape, Moulding, NO.3
2003-02 → —
GRJ125,KDJ125 —
75897-60061 note Tape, Moulding, NO.3
2007-07 → —
GRJ125,KDJ125 —
75898C — Tape, Moulding, NO.4
75898-60030 note Tape, Moulding, NO.4
2002-09 → 2003-02 ended
GRJ120,KDJ120 —
75898-60031 note Tape, Moulding, NO.4
2003-02 → —
GRJ120,KDJ120 —
75898-60031 note Tape, Moulding, NO.4
2007-07 → —
GRJ120,KDJ120 —
76924C — Retainer, Side Mudguard, NO.2
76924-13020 note Retainer, Side Mudguard, NO.2
2002-09 → —
GRJ125,KDJ125 —
76924-13020 note Retainer, Side Mudguard, NO.2
2002-09 → —
GRJ120,KDJ120 —
76924-13020 note Retainer, Side Mudguard, NO.2
2007-07 → —
GRJ125,KDJ125 —
76924-13020 note Retainer, Side Mudguard, NO.2
2007-07 → —
GRJ120,KDJ120 —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
