Toyota Land Cruiser Prado

2002-09 → 2009-08 · chassis GRJ12#,KDJ12# · catalogue 781550 · Europe

Supported model Data version 2010-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

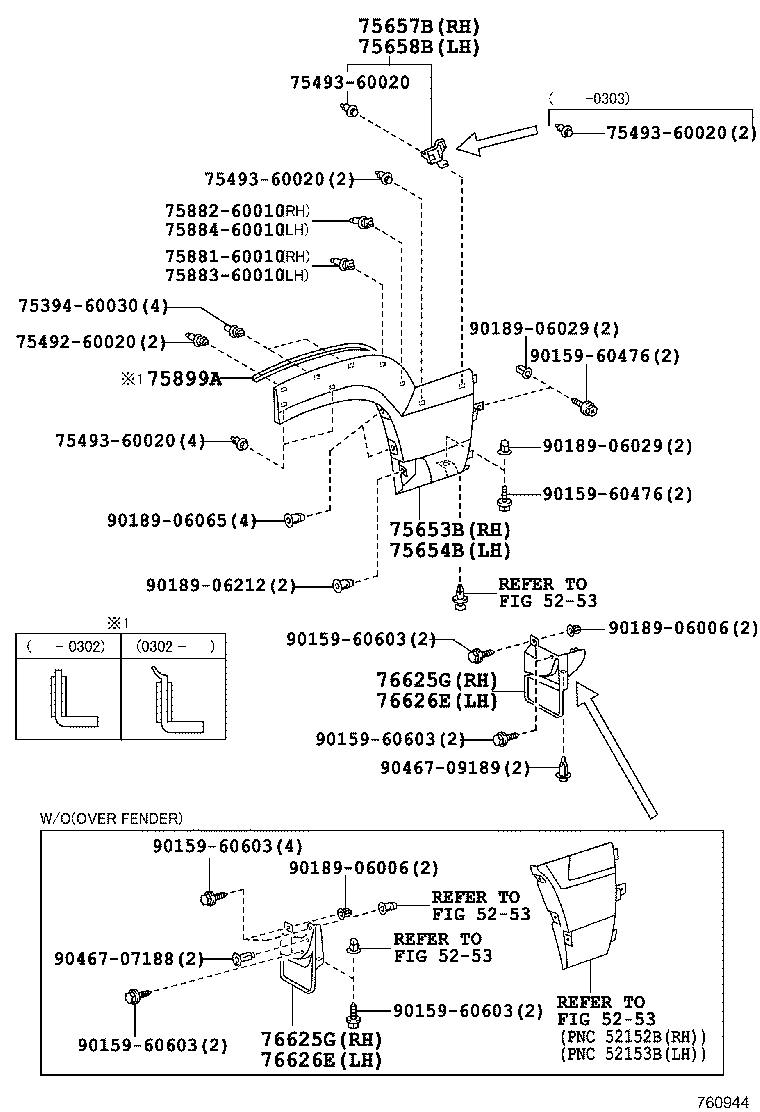

Exploded illustration 760944 5253 — not listed in this catalogue 75653B — MOULDING, QUARTER OUTSIDE, RH NO.3 (52 parts) 75654B — MOULDING, QUARTER, OUTSIDE NO.4 (52 parts) 75657B — MOULDING, QUARTER PANEL, LOWER REAR RH (4 parts) 75658B — MOULDING, QUARTER PANEL, LOWER REAR LH (4 parts) 76625G — MUDGUARD, QUARTER PANEL, REAR RH (7 parts) 76626E — MUDGUARD, QUARTER PANEL, REAR LH (7 parts) 9046709189 — not listed in this catalogue 9015960603 — not listed in this catalogue 9015960603 — not listed in this catalogue 9018906006 — not listed in this catalogue 9015960476 — not listed in this catalogue 9018906212 — not listed in this catalogue 9018906065 — not listed in this catalogue 9018906029 — not listed in this catalogue 9015960476 — not listed in this catalogue 9018906029 — not listed in this catalogue 7549360020 — not listed in this catalogue 7549260020 — not listed in this catalogue 7539460030 — not listed in this catalogue 7588160010 — not listed in this catalogue 7588360010 — not listed in this catalogue 7588260010 — not listed in this catalogue 7588460010 — not listed in this catalogue 7549360020 — not listed in this catalogue 75899A — TAPE, MOULDING, NO.5 (3 parts) 7549360020 — not listed in this catalogue 7549360020 — not listed in this catalogue 76625G — MUDGUARD, QUARTER PANEL, REAR RH (7 parts) 76626E — MUDGUARD, QUARTER PANEL, REAR LH (7 parts) 5253 — not listed in this catalogue 5253 — not listed in this catalogue 5253 — not listed in this catalogue 9015960603 — not listed in this catalogue 9015960603 — not listed in this catalogue 9018906006 — not listed in this catalogue 9015960603 — not listed in this catalogue 9046707188 — not listed in this catalogue
760944 · 9 callouts, 29 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
129 parts on this figure
Part number Description Fitment Price
75653B — Moulding, Quarter Outside, RH NO.3
75653-60020-A0 note Moulding, Quarter Outside, RH NO.3
2002-09 → 2003-03 ended
GRJ120,KDJ120 —
75653-60020-B0 note Moulding, Quarter Outside, RH NO.3
2002-09 → 2003-03 ended
GRJ120,KDJ120 —
75653-60020-B1 note Moulding, Quarter Outside, RH NO.3
2002-09 → 2003-03 ended
GRJ120,KDJ120 —
75653-60020-C0 note Moulding, Quarter Outside, RH NO.3
2002-09 → 2003-03 ended
GRJ120,KDJ120 —
75653-60020-D0 note Moulding, Quarter Outside, RH NO.3
2002-09 → 2003-03 ended
GRJ120,KDJ120 —
75653-60020-F0 note Moulding, Quarter Outside, RH NO.3
2002-09 → 2003-03 ended
GRJ120,KDJ120 —
75653-60020-G0 note Moulding, Quarter Outside, RH NO.3
2002-09 → 2003-03 ended
GRJ120,KDJ120 —
75653-60020-J0 note Moulding, Quarter Outside, RH NO.3
2002-09 → 2003-03 ended
GRJ120,KDJ120 —
75653-60021-A0 note Moulding, Quarter Outside, RH NO.3
2003-03 → 2009-08 ended
GRJ120,KDJ120 —
75653-60021-A0 note Moulding, Quarter Outside, RH NO.3
2007-07 → 2009-08 ended
GRJ120,KDJ120 —
75653-60021-B0 note Moulding, Quarter Outside, RH NO.3
2007-07 → 2009-08 ended
GRJ120,KDJ120 —
75653-60021-B0 note Moulding, Quarter Outside, RH NO.3
2003-03 → 2009-08 ended
GRJ120,KDJ120 —
75653-60021-B1 note Moulding, Quarter Outside, RH NO.3
2007-07 → 2009-08 ended
GRJ120,KDJ120 —
75653-60021-B1 note Moulding, Quarter Outside, RH NO.3
2003-03 → 2009-08 ended
GRJ120,KDJ120 —
75653-60021-C0 note Moulding, Quarter Outside, RH NO.3
2007-07 → 2009-08 ended
GRJ120,KDJ120 —
75653-60021-C0 note Moulding, Quarter Outside, RH NO.3
2003-03 → 2009-08 ended
GRJ120,KDJ120 —
75653-60021-D0 note Moulding, Quarter Outside, RH NO.3
2007-07 → 2009-08 ended
GRJ120,KDJ120 —
75653-60021-D0 note Moulding, Quarter Outside, RH NO.3
2003-03 → 2009-08 ended
GRJ120,KDJ120 —
75653-60021-E0 note Moulding, Quarter Outside, RH NO.3
2005-08 → 2009-08 ended
GRJ120,KDJ120 —
75653-60021-E0 note Moulding, Quarter Outside, RH NO.3
2007-07 → 2009-08 ended
GRJ120,KDJ120 —
75653-60021-F0 note Moulding, Quarter Outside, RH NO.3
2003-03 → 2005-08 ended
GRJ120,KDJ120 —
75653-60021-G0 note Moulding, Quarter Outside, RH NO.3
2003-03 → 2009-08 ended
GRJ120,KDJ120 —
75653-60021-G0 note Moulding, Quarter Outside, RH NO.3
2007-07 → 2009-08 ended
GRJ120,KDJ120 —
75653-60021-J0 note Moulding, Quarter Outside, RH NO.3
2003-03 → 2005-08 ended
GRJ120,KDJ120 —
75653-60021-J2 note Moulding, Quarter Outside, RH NO.3
2005-08 → 2009-08 ended
GRJ120,KDJ120 —
75653-60021-J2 note Moulding, Quarter Outside, RH NO.3
2007-07 → 2009-08 ended
GRJ120,KDJ120 —
75653-60030-A0 note Moulding, Quarter Outside, RH NO.3
2002-09 → 2005-05 ended
GRJ125,KDJ125 —
75653-60030-B0 note Moulding, Quarter Outside, RH NO.3
2002-09 → 2005-05 ended
GRJ125,KDJ125 —
75653-60030-B1 note Moulding, Quarter Outside, RH NO.3
2002-09 → 2005-05 ended
GRJ125,KDJ125 —
75653-60030-C0 note Moulding, Quarter Outside, RH NO.3
2002-09 → 2005-05 ended
GRJ125,KDJ125 —
75653-60030-D0 note Moulding, Quarter Outside, RH NO.3
2002-09 → 2005-05 ended
GRJ125,KDJ125 —
75653-60030-F0 note Moulding, Quarter Outside, RH NO.3
2002-09 → 2005-05 ended
GRJ125,KDJ125 —
75653-60030-G0 note Moulding, Quarter Outside, RH NO.3
2002-09 → 2005-05 ended
GRJ125,KDJ125 —
75653-60030-J0 note Moulding, Quarter Outside, RH NO.3
2002-09 → 2005-05 ended
GRJ125,KDJ125 —
75653-60031-A0 note Moulding, Quarter Outside, RH NO.3
2007-07 → 2009-08 ended
GRJ125,KDJ125 —
75653-60031-A0 note Moulding, Quarter Outside, RH NO.3
2005-05 → 2009-08 ended
GRJ125,KDJ125 —
75653-60031-B0 note Moulding, Quarter Outside, RH NO.3
2005-05 → 2009-08 ended
GRJ125,KDJ125 —
75653-60031-B0 note Moulding, Quarter Outside, RH NO.3
2007-07 → 2009-08 ended
GRJ125,KDJ125 —
75653-60031-B1 note Moulding, Quarter Outside, RH NO.3
2007-07 → 2009-08 ended
GRJ125,KDJ125 —
75653-60031-B1 note Moulding, Quarter Outside, RH NO.3
2005-05 → 2009-08 ended
GRJ125,KDJ125 —
75653-60031-C0 note Moulding, Quarter Outside, RH NO.3
2007-07 → 2009-08 ended
GRJ125,KDJ125 —
75653-60031-C0 note Moulding, Quarter Outside, RH NO.3
2005-05 → 2009-08 ended
GRJ125,KDJ125 —
75653-60031-D0 note Moulding, Quarter Outside, RH NO.3
2007-07 → 2009-08 ended
GRJ125,KDJ125 —
75653-60031-D0 note Moulding, Quarter Outside, RH NO.3
2005-05 → 2009-08 ended
GRJ125,KDJ125 —
75653-60031-E0 note Moulding, Quarter Outside, RH NO.3
2005-08 → 2009-08 ended
GRJ125,KDJ125 —
75653-60031-E0 note Moulding, Quarter Outside, RH NO.3
2007-07 → 2009-08 ended
GRJ125,KDJ125 —
75653-60031-F0 note Moulding, Quarter Outside, RH NO.3
2005-05 → 2005-08 ended
GRJ125,KDJ125 —
75653-60031-G0 note Moulding, Quarter Outside, RH NO.3
2005-05 → 2009-08 ended
GRJ125,KDJ125 —
75653-60031-G0 note Moulding, Quarter Outside, RH NO.3
2007-07 → 2009-08 ended
GRJ125,KDJ125 —
75653-60031-J0 note Moulding, Quarter Outside, RH NO.3
2005-05 → 2005-08 ended
GRJ125,KDJ125 —
75653-60031-J2 note Moulding, Quarter Outside, RH NO.3
2007-07 → 2009-08 ended
GRJ125,KDJ125 —
75653-60031-J2 note Moulding, Quarter Outside, RH NO.3
2005-08 → 2009-08 ended
GRJ125,KDJ125 —
75654B — Moulding, Quarter, Outside NO.4
75654-60020-A0 note Moulding, Quarter, Outside NO.4
2002-09 → 2003-03 ended
GRJ120,KDJ120 —
75654-60020-B0 note Moulding, Quarter, Outside NO.4
2002-09 → 2003-03 ended
GRJ120,KDJ120 —
75654-60020-B1 note Moulding, Quarter, Outside NO.4
2002-09 → 2003-03 ended
GRJ120,KDJ120 —
75654-60020-C0 note Moulding, Quarter, Outside NO.4
2002-09 → 2003-03 ended
GRJ120,KDJ120 —
75654-60020-D0 note Moulding, Quarter, Outside NO.4
2002-09 → 2003-03 ended
GRJ120,KDJ120 —
75654-60020-F0 note Moulding, Quarter, Outside NO.4
2002-09 → 2003-03 ended
GRJ120,KDJ120 —
75654-60020-G0 note Moulding, Quarter, Outside NO.4
2002-09 → 2003-03 ended
GRJ120,KDJ120 —
75654-60020-J0 note Moulding, Quarter, Outside NO.4
2002-09 → 2003-03 ended
GRJ120,KDJ120 —
75654-60021-A0 note Moulding, Quarter, Outside NO.4
2007-07 → 2009-08 ended
GRJ120,KDJ120 —
75654-60021-A0 note Moulding, Quarter, Outside NO.4
2003-03 → 2009-08 ended
GRJ120,KDJ120 —
75654-60021-B0 note Moulding, Quarter, Outside NO.4
2007-07 → 2009-08 ended
GRJ120,KDJ120 —
75654-60021-B0 note Moulding, Quarter, Outside NO.4
2003-03 → 2009-08 ended
GRJ120,KDJ120 —
75654-60021-B1 note Moulding, Quarter, Outside NO.4
2003-03 → 2009-08 ended
GRJ120,KDJ120 —
75654-60021-B1 note Moulding, Quarter, Outside NO.4
2007-07 → 2009-08 ended
GRJ120,KDJ120 —
75654-60021-C0 note Moulding, Quarter, Outside NO.4
2003-03 → 2009-08 ended
GRJ120,KDJ120 —
75654-60021-C0 note Moulding, Quarter, Outside NO.4
2007-07 → 2009-08 ended
GRJ120,KDJ120 —
75654-60021-D0 note Moulding, Quarter, Outside NO.4
2003-03 → 2009-08 ended
GRJ120,KDJ120 —
75654-60021-D0 note Moulding, Quarter, Outside NO.4
2007-07 → 2009-08 ended
GRJ120,KDJ120 —
75654-60021-E0 note Moulding, Quarter, Outside NO.4
2005-08 → 2009-08 ended
GRJ120,KDJ120 —
75654-60021-E0 note Moulding, Quarter, Outside NO.4
2007-07 → 2009-08 ended
GRJ120,KDJ120 —
75654-60021-F0 note Moulding, Quarter, Outside NO.4
2003-03 → 2005-08 ended
GRJ120,KDJ120 —
75654-60021-G0 note Moulding, Quarter, Outside NO.4
2007-07 → 2009-08 ended
GRJ120,KDJ120 —
75654-60021-G0 note Moulding, Quarter, Outside NO.4
2003-03 → 2009-08 ended
GRJ120,KDJ120 —
75654-60021-J0 note Moulding, Quarter, Outside NO.4
2003-03 → 2005-08 ended
GRJ120,KDJ120 —
75654-60021-J2 note Moulding, Quarter, Outside NO.4
2007-07 → 2009-08 ended
GRJ120,KDJ120 —
75654-60021-J2 note Moulding, Quarter, Outside NO.4
2005-08 → 2009-08 ended
GRJ120,KDJ120 —
75654-60030-A0 note Moulding, Quarter, Outside NO.4
2002-09 → 2005-05 ended
GRJ125,KDJ125 —
75654-60030-B0 note Moulding, Quarter, Outside NO.4
2002-09 → 2005-05 ended
GRJ125,KDJ125 —
75654-60030-B1 note Moulding, Quarter, Outside NO.4
2002-09 → 2005-05 ended
GRJ125,KDJ125 —
75654-60030-C0 note Moulding, Quarter, Outside NO.4
2002-09 → 2005-05 ended
GRJ125,KDJ125 —
75654-60030-D0 note Moulding, Quarter, Outside NO.4
2002-09 → 2005-05 ended
GRJ125,KDJ125 —
75654-60030-F0 note Moulding, Quarter, Outside NO.4
2002-09 → 2005-05 ended
GRJ125,KDJ125 —
75654-60030-G0 note Moulding, Quarter, Outside NO.4
2002-09 → 2005-05 ended
GRJ125,KDJ125 —
75654-60030-J0 note Moulding, Quarter, Outside NO.4
2002-09 → 2005-05 ended
GRJ125,KDJ125 —
75654-60031-A0 note Moulding, Quarter, Outside NO.4
2005-05 → 2009-08 ended
GRJ125,KDJ125 —
75654-60031-A0 note Moulding, Quarter, Outside NO.4
2007-07 → 2009-08 ended
GRJ125,KDJ125 —
75654-60031-B0 note Moulding, Quarter, Outside NO.4
2005-05 → 2009-08 ended
GRJ125,KDJ125 —
75654-60031-B0 note Moulding, Quarter, Outside NO.4
2007-07 → 2009-08 ended
GRJ125,KDJ125 —
75654-60031-B1 note Moulding, Quarter, Outside NO.4
2007-07 → 2009-08 ended
GRJ125,KDJ125 —
75654-60031-B1 note Moulding, Quarter, Outside NO.4
2005-05 → 2009-08 ended
GRJ125,KDJ125 —
75654-60031-C0 note Moulding, Quarter, Outside NO.4
2005-05 → 2009-08 ended
GRJ125,KDJ125 —
75654-60031-C0 note Moulding, Quarter, Outside NO.4
2007-07 → 2009-08 ended
GRJ125,KDJ125 —
75654-60031-D0 note Moulding, Quarter, Outside NO.4
2005-05 → 2009-08 ended
GRJ125,KDJ125 —
75654-60031-D0 note Moulding, Quarter, Outside NO.4
2007-07 → 2009-08 ended
GRJ125,KDJ125 —
75654-60031-E0 note Moulding, Quarter, Outside NO.4
2005-08 → 2009-08 ended
GRJ125,KDJ125 —
75654-60031-E0 note Moulding, Quarter, Outside NO.4
2007-07 → 2009-08 ended
GRJ125,KDJ125 —
75654-60031-F0 note Moulding, Quarter, Outside NO.4
2005-05 → 2005-08 ended
GRJ125,KDJ125 —
75654-60031-G0 note Moulding, Quarter, Outside NO.4
2007-07 → 2009-08 ended
GRJ125,KDJ125 —
75654-60031-G0 note Moulding, Quarter, Outside NO.4
2005-05 → 2009-08 ended
GRJ125,KDJ125 —
75654-60031-J0 note Moulding, Quarter, Outside NO.4
2005-05 → 2005-08 ended
GRJ125,KDJ125 —
75654-60031-J2 note Moulding, Quarter, Outside NO.4
2005-08 → 2009-08 ended
GRJ125,KDJ125 —
75654-60031-J2 note Moulding, Quarter, Outside NO.4
2007-07 → 2009-08 ended
GRJ125,KDJ125 —
75657B — Moulding, Quarter Panel, Lower Rear RH
75087-60040 note Moulding, Quarter Panel, Lower Rear RH
2007-07 → —
GRJ120,KDJ120 —
75087-60040 note Moulding, Quarter Panel, Lower Rear RH
2003-03 → —
GRJ120,KDJ120 —
75087-60050 note Moulding, Quarter Panel, Lower Rear RH
2007-07 → —
GRJ125,KDJ125 —
75087-60050 note Moulding, Quarter Panel, Lower Rear RH
2005-05 → —
GRJ125,KDJ125 —
75658B — Moulding, Quarter Panel, Lower Rear LH
75088-60040 note Moulding, Quarter Panel, Lower Rear LH
2003-03 → —
GRJ120,KDJ120 —
75088-60040 note Moulding, Quarter Panel, Lower Rear LH
2007-07 → —
GRJ120,KDJ120 —
75088-60050 note Moulding, Quarter Panel, Lower Rear LH
2005-05 → —
GRJ125,KDJ125 —
75088-60050 note Moulding, Quarter Panel, Lower Rear LH
2007-07 → —
GRJ125,KDJ125 —
75899A — Tape, Moulding, NO.5
75899-60040 note Tape, Moulding, NO.5
2002-09 → 2003-02 ended
GRJ120,KDJ120 —
75899-60041 note Tape, Moulding, NO.5
2003-02 → —
GRJ120,KDJ120 —
75899-60041 note Tape, Moulding, NO.5
2007-07 → —
GRJ120,KDJ120 —
76625G — Mudguard, Quarter Panel, Rear RH
76625-60160 Mudguard, Quarter Panel, Rear RH
2002-09 → 2009-08 ended
GRJ12#,KDJ12# —
76625-60170-F0 note Mudguard, Quarter Panel, Rear RH
2002-09 → 2004-08 ended
GRJ120,KDJ120 —
76625-60170-F0 note Mudguard, Quarter Panel, Rear RH
2004-08 → 2009-08 ended
GRJ120,KDJ120 —
76625-60170-F0 note Mudguard, Quarter Panel, Rear RH
2007-07 → 2009-08 ended
GRJ120,KDJ120 —
76625-60180-F0 note Mudguard, Quarter Panel, Rear RH
2002-09 → 2004-08 ended
GRJ125,KDJ125 —
76625-60180-F0 note Mudguard, Quarter Panel, Rear RH
2004-08 → 2009-08 ended
GRJ125,KDJ125 —
76625-60180-F0 note Mudguard, Quarter Panel, Rear RH
2007-07 → 2009-08 ended
GRJ125,KDJ125 —
76626E — Mudguard, Quarter Panel, Rear LH
76626-60160 Mudguard, Quarter Panel, Rear LH
2002-09 → 2009-08 ended
GRJ12#,KDJ12# —
76626-60170-F0 note Mudguard, Quarter Panel, Rear LH
2002-09 → 2004-08 ended
GRJ120,KDJ120 —
76626-60170-F0 note Mudguard, Quarter Panel, Rear LH
2004-08 → 2009-08 ended
GRJ120,KDJ120 —
76626-60170-F0 note Mudguard, Quarter Panel, Rear LH
2007-07 → 2009-08 ended
GRJ120,KDJ120 —
76626-60180-F0 note Mudguard, Quarter Panel, Rear LH
2002-09 → 2004-08 ended
GRJ125,KDJ125 —
76626-60180-F0 note Mudguard, Quarter Panel, Rear LH
2004-08 → 2009-08 ended
GRJ125,KDJ125 —
76626-60180-F0 note Mudguard, Quarter Panel, Rear LH
2007-07 → 2009-08 ended
GRJ125,KDJ125 —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
