Toyota Land Cruiser Prado

2002-09 → 2009-08 · chassis GRJ12#,KDJ12# · catalogue 781550 · Europe

Supported model Data version 2010-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

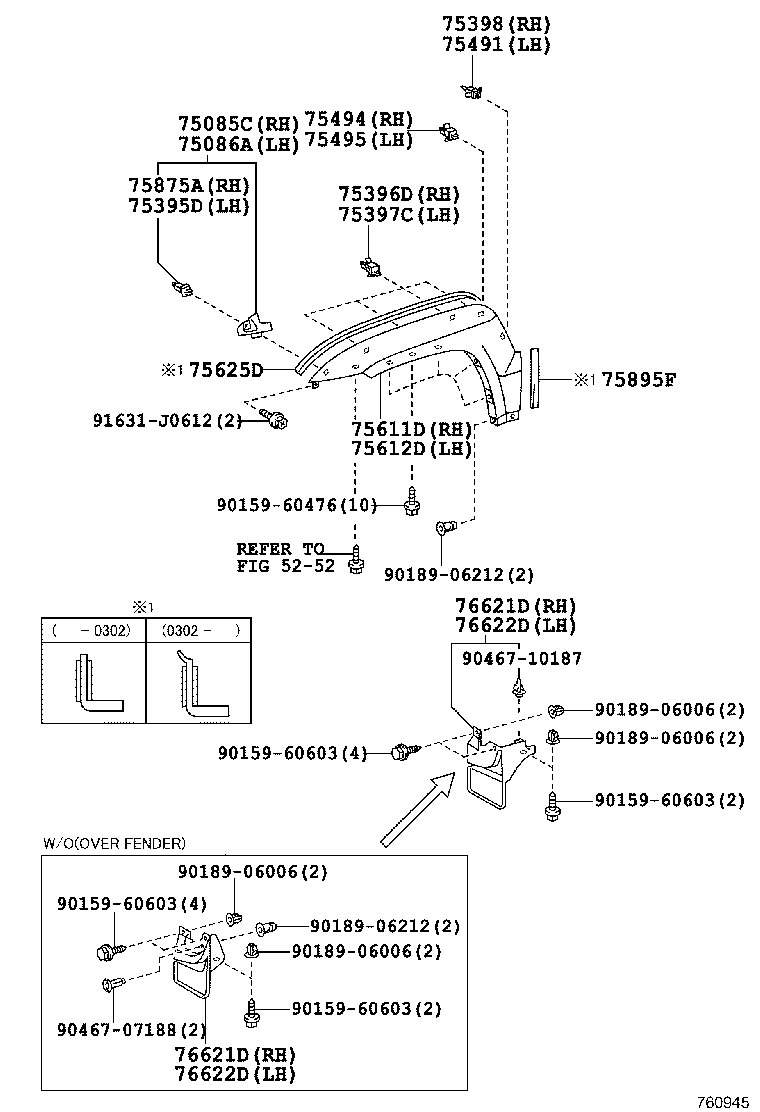

Exploded illustration 760945 5252 — not listed in this catalogue 75875A — CLIP, FRONT FENDER WHEEL OPENING MOULDING (3 parts) 75395D — CLIP, OUTSIDE MOULDING, NO.1 (3 parts) 75085C — MOULDING SUB-ASSY, FRONT FENDER WHEEL OPENING, RH (3 parts) 75086A — MOULDING SUB-ASSY, FRONT FENDER WHEEL OPENING, LH (3 parts) 75396D — CLIP, OUTSIDE MOULDING, NO.2 (3 parts) 75397C — CLIP, OUTSIDE MOULDING, NO.3 (3 parts) 75494 — CLIP, OUTSIDE MOULDING, NO.3 (3 parts) 75495 — CLIP, OUTSIDE MOULDING, NO.4 (3 parts) 75398 — CLIP, OUTSIDE MOULDING, NO.5 (3 parts) 75491 — CLIP, OUTSIDE MOULDING, NO.6 (3 parts) 75611D — MOULDING, FRONT FENDER, OUTSIDE FRONT RH (26 parts) 75612D — MOULDING, FRONT FENDER, OUTSIDE FRONT LH (26 parts) 76621D — MUDGUARD, FRONT FENDER, RH (4 parts) 76622D — MUDGUARD, FRONT FENDER, LH (4 parts) 76621D — MUDGUARD, FRONT FENDER, RH (4 parts) 76622D — MUDGUARD, FRONT FENDER, LH (4 parts) 75895F — TAPE, MOULDING, NO.1 (3 parts) 75625D — PAD, FRONT FENDER OUTSIDE MOULDING, UPPRER (3 parts) 9015960476 — not listed in this catalogue 9018906006 — not listed in this catalogue 9018906006 — not listed in this catalogue 9018906006 — not listed in this catalogue 9015960603 — not listed in this catalogue 9015960603 — not listed in this catalogue 9018906006 — not listed in this catalogue 9015960603 — not listed in this catalogue 9015960603 — not listed in this catalogue 9018906212 — not listed in this catalogue 9018906212 — not listed in this catalogue 9046707188 — not listed in this catalogue 9046710187 — not listed in this catalogue 91631J0612 — not listed in this catalogue
760945 · 18 callouts, 15 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
96 parts on this figure
Part number Description Fitment Price
75085C — Moulding Sub-assy, Front Fender Wheel Opening, RH
75085-60060 note Moulding Sub-assy, Front Fender Wheel Opening, RH
2002-09 → 2003-06 ended
GRJ12#,KDJ12# —
75085-60061 note Moulding Sub-assy, Front Fender Wheel Opening, RH
2003-06 → —
GRJ12#,KDJ12# —
75085-60061 note Moulding Sub-assy, Front Fender Wheel Opening, RH
2007-07 → —
GRJ12#,KDJ12# —
75086A — Moulding Sub-assy, Front Fender Wheel Opening, LH
75086-60060 note Moulding Sub-assy, Front Fender Wheel Opening, LH
2002-09 → 2003-06 ended
GRJ12#,KDJ12# —
75086-60061 note Moulding Sub-assy, Front Fender Wheel Opening, LH
2003-06 → —
GRJ12#,KDJ12# —
75086-60061 note Moulding Sub-assy, Front Fender Wheel Opening, LH
2007-07 → —
GRJ12#,KDJ12# —
75395D — Clip, Outside Moulding, NO.1
75395-60040 note Clip, Outside Moulding, NO.1
2002-09 → 2003-06 ended
GRJ12#,KDJ12# —
75397-35010 note Clip, Outside Moulding, NO.1
2003-06 → 2009-08 ended
GRJ12#,KDJ12# —
75397-35010 note Clip, Outside Moulding, NO.1
2007-07 → 2009-08 ended
GRJ12#,KDJ12# —
75396D — Clip, Outside Moulding, NO.2
75396-60030 note Clip, Outside Moulding, NO.2
2002-09 → 2004-01 ended
GRJ12#,KDJ12# —
75396-60031 note Clip, Outside Moulding, NO.2
2004-01 → —
GRJ12#,KDJ12# —
75396-60031 note Clip, Outside Moulding, NO.2
2007-07 → —
GRJ12#,KDJ12# —
75397C — Clip, Outside Moulding, NO.3
75397-60030 note Clip, Outside Moulding, NO.3
2002-09 → 2004-01 ended
GRJ12#,KDJ12# —
75397-60031 note Clip, Outside Moulding, NO.3
2004-01 → —
GRJ12#,KDJ12# —
75397-60031 note Clip, Outside Moulding, NO.3
2007-07 → —
GRJ12#,KDJ12# —
75398 — Clip, Outside Moulding, NO.5
75398-60020 note Clip, Outside Moulding, NO.5
2002-09 → 2004-01 ended
GRJ12#,KDJ12# —
75398-60021 note Clip, Outside Moulding, NO.5
2004-01 → —
GRJ12#,KDJ12# —
75398-60021 note Clip, Outside Moulding, NO.5
2007-07 → —
GRJ12#,KDJ12# —
75491 — Clip, Outside Moulding, NO.6
75491-60010 note Clip, Outside Moulding, NO.6
2002-09 → 2004-01 ended
GRJ12#,KDJ12# —
75491-60011 note Clip, Outside Moulding, NO.6
2004-01 → —
GRJ12#,KDJ12# —
75491-60011 note Clip, Outside Moulding, NO.6
2007-07 → —
GRJ12#,KDJ12# —
75494 — Clip, Outside Moulding, NO.3
75494-60010 note Clip, Outside Moulding, NO.3
2002-09 → 2004-01 ended
GRJ12#,KDJ12# —
75494-60011 note Clip, Outside Moulding, NO.3
2007-07 → —
GRJ12#,KDJ12# —
75494-60011 note Clip, Outside Moulding, NO.3
2004-01 → —
GRJ12#,KDJ12# —
75495 — Clip, Outside Moulding, NO.4
75495-60010 note Clip, Outside Moulding, NO.4
2002-09 → 2004-01 ended
GRJ12#,KDJ12# —
75495-60011 note Clip, Outside Moulding, NO.4
2004-01 → —
GRJ12#,KDJ12# —
75495-60011 note Clip, Outside Moulding, NO.4
2007-07 → —
GRJ12#,KDJ12# —
75611D — Moulding, Front Fender, Outside Front RH
75611-60110-A0 note Moulding, Front Fender, Outside Front RH
2002-09 → 2004-01 ended
GRJ12#,KDJ12# —
75611-60110-B0 note Moulding, Front Fender, Outside Front RH
2002-09 → 2004-01 ended
GRJ12#,KDJ12# —
75611-60110-B1 note Moulding, Front Fender, Outside Front RH
2002-09 → 2004-01 ended
GRJ12#,KDJ12# —
75611-60110-C0 note Moulding, Front Fender, Outside Front RH
2002-09 → 2004-01 ended
GRJ12#,KDJ12# —
75611-60110-D0 note Moulding, Front Fender, Outside Front RH
2002-09 → 2004-01 ended
GRJ12#,KDJ12# —
75611-60110-F0 note Moulding, Front Fender, Outside Front RH
2002-09 → 2004-01 ended
GRJ12#,KDJ12# —
75611-60110-G0 note Moulding, Front Fender, Outside Front RH
2002-09 → 2004-01 ended
GRJ12#,KDJ12# —
75611-60110-J0 note Moulding, Front Fender, Outside Front RH
2002-09 → 2004-01 ended
GRJ12#,KDJ12# —
75611-60111-A0 note Moulding, Front Fender, Outside Front RH
2004-01 → 2009-08 ended
GRJ12#,KDJ12# —
75611-60111-A0 note Moulding, Front Fender, Outside Front RH
2007-07 → 2009-08 ended
GRJ12#,KDJ12# —
75611-60111-B0 note Moulding, Front Fender, Outside Front RH
2004-01 → 2009-08 ended
GRJ12#,KDJ12# —
75611-60111-B0 note Moulding, Front Fender, Outside Front RH
2007-07 → 2009-08 ended
GRJ12#,KDJ12# —
75611-60111-B1 note Moulding, Front Fender, Outside Front RH
2007-07 → 2009-08 ended
GRJ12#,KDJ12# —
75611-60111-B1 note Moulding, Front Fender, Outside Front RH
2004-01 → 2009-08 ended
GRJ12#,KDJ12# —
75611-60111-C0 note Moulding, Front Fender, Outside Front RH
2007-07 → 2009-08 ended
GRJ12#,KDJ12# —
75611-60111-C0 note Moulding, Front Fender, Outside Front RH
2004-01 → 2009-08 ended
GRJ12#,KDJ12# —
75611-60111-D0 note Moulding, Front Fender, Outside Front RH
2004-01 → 2009-08 ended
GRJ12#,KDJ12# —
75611-60111-D0 note Moulding, Front Fender, Outside Front RH
2007-07 → 2009-08 ended
GRJ12#,KDJ12# —
75611-60111-E0 note Moulding, Front Fender, Outside Front RH
2005-08 → 2009-08 ended
GRJ12#,KDJ12# —
75611-60111-E0 note Moulding, Front Fender, Outside Front RH
2007-07 → 2009-08 ended
GRJ12#,KDJ12# —
75611-60111-F0 note Moulding, Front Fender, Outside Front RH
2004-01 → 2005-08 ended
GRJ12#,KDJ12# —
75611-60111-G0 note Moulding, Front Fender, Outside Front RH
2007-07 → 2009-08 ended
GRJ12#,KDJ12# —
75611-60111-G0 note Moulding, Front Fender, Outside Front RH
2004-01 → 2009-08 ended
GRJ12#,KDJ12# —
75611-60111-J0 note Moulding, Front Fender, Outside Front RH
2004-01 → 2005-08 ended
GRJ12#,KDJ12# —
75611-60111-J2 note Moulding, Front Fender, Outside Front RH
2005-08 → 2009-08 ended
GRJ12#,KDJ12# —
75611-60111-J2 note Moulding, Front Fender, Outside Front RH
2007-07 → 2009-08 ended
GRJ12#,KDJ12# —
75612D — Moulding, Front Fender, Outside Front LH
75612-60110-A0 note Moulding, Front Fender, Outside Front LH
2002-09 → 2004-01 ended
GRJ12#,KDJ12# —
75612-60110-B0 note Moulding, Front Fender, Outside Front LH
2002-09 → 2004-01 ended
GRJ12#,KDJ12# —
75612-60110-B1 note Moulding, Front Fender, Outside Front LH
2002-09 → 2004-01 ended
GRJ12#,KDJ12# —
75612-60110-C0 note Moulding, Front Fender, Outside Front LH
2002-09 → 2004-01 ended
GRJ12#,KDJ12# —
75612-60110-D0 note Moulding, Front Fender, Outside Front LH
2002-09 → 2004-01 ended
GRJ12#,KDJ12# —
75612-60110-F0 note Moulding, Front Fender, Outside Front LH
2002-09 → 2004-01 ended
GRJ12#,KDJ12# —
75612-60110-G0 note Moulding, Front Fender, Outside Front LH
2002-09 → 2004-01 ended
GRJ12#,KDJ12# —
75612-60110-J0 note Moulding, Front Fender, Outside Front LH
2002-09 → 2004-01 ended
GRJ12#,KDJ12# —
75612-60111-A0 note Moulding, Front Fender, Outside Front LH
2004-01 → 2009-08 ended
GRJ12#,KDJ12# —
75612-60111-A0 note Moulding, Front Fender, Outside Front LH
2007-07 → 2009-08 ended
GRJ12#,KDJ12# —
75612-60111-B0 note Moulding, Front Fender, Outside Front LH
2004-01 → 2009-08 ended
GRJ12#,KDJ12# —
75612-60111-B0 note Moulding, Front Fender, Outside Front LH
2007-07 → 2009-08 ended
GRJ12#,KDJ12# —
75612-60111-B1 note Moulding, Front Fender, Outside Front LH
2004-01 → 2009-08 ended
GRJ12#,KDJ12# —
75612-60111-B1 note Moulding, Front Fender, Outside Front LH
2007-07 → 2009-08 ended
GRJ12#,KDJ12# —
75612-60111-C0 note Moulding, Front Fender, Outside Front LH
2004-01 → 2009-08 ended
GRJ12#,KDJ12# —
75612-60111-C0 note Moulding, Front Fender, Outside Front LH
2007-07 → 2009-08 ended
GRJ12#,KDJ12# —
75612-60111-D0 note Moulding, Front Fender, Outside Front LH
2007-07 → 2009-08 ended
GRJ12#,KDJ12# —
75612-60111-D0 note Moulding, Front Fender, Outside Front LH
2004-01 → 2009-08 ended
GRJ12#,KDJ12# —
75612-60111-E0 note Moulding, Front Fender, Outside Front LH
2007-07 → 2009-08 ended
GRJ12#,KDJ12# —
75612-60111-E0 note Moulding, Front Fender, Outside Front LH
2005-08 → 2009-08 ended
GRJ12#,KDJ12# —
75612-60111-F0 note Moulding, Front Fender, Outside Front LH
2004-01 → 2005-08 ended
GRJ12#,KDJ12# —
75612-60111-G0 note Moulding, Front Fender, Outside Front LH
2004-01 → 2009-08 ended
GRJ12#,KDJ12# —
75612-60111-G0 note Moulding, Front Fender, Outside Front LH
2007-07 → 2009-08 ended
GRJ12#,KDJ12# —
75612-60111-J0 note Moulding, Front Fender, Outside Front LH
2004-01 → 2005-08 ended
GRJ12#,KDJ12# —
75612-60111-J2 note Moulding, Front Fender, Outside Front LH
2007-07 → 2009-08 ended
GRJ12#,KDJ12# —
75612-60111-J2 note Moulding, Front Fender, Outside Front LH
2005-08 → 2009-08 ended
GRJ12#,KDJ12# —
75625D — Pad, Front Fender Outside Moulding, Upprer
75898-60040 note Pad, Front Fender Outside Moulding, Upprer
2002-09 → 2003-02 ended
GRJ12#,KDJ12# —
75898-60041 note Pad, Front Fender Outside Moulding, Upprer
2003-02 → —
GRJ12#,KDJ12# —
75898-60041 note Pad, Front Fender Outside Moulding, Upprer
2007-07 → —
GRJ12#,KDJ12# —
75875A — Clip, Front Fender Wheel Opening Moulding
75397-35010 note Clip, Front Fender Wheel Opening Moulding
2007-07 → 2009-08 ended
GRJ12#,KDJ12# —
75397-35010 note Clip, Front Fender Wheel Opening Moulding
2003-06 → 2009-08 ended
GRJ12#,KDJ12# —
75875-60010 note Clip, Front Fender Wheel Opening Moulding
2002-09 → 2003-06 ended
GRJ12#,KDJ12# —
75895F — Tape, Moulding, NO.1
75895-60050 note Tape, Moulding, NO.1
2002-09 → 2003-02 ended
GRJ12#,KDJ12# —
75895-60051 note Tape, Moulding, NO.1
2003-02 → —
GRJ12#,KDJ12# —
75895-60051 note Tape, Moulding, NO.1
2007-07 → —
GRJ12#,KDJ12# —
76621D — Mudguard, Front Fender, RH
76603-60110-F0 note Mudguard, Front Fender, RH
2002-09 → 2004-08 ended
GRJ12#,KDJ12# —
76603-60110-F0 note Mudguard, Front Fender, RH
2004-08 → 2009-08 ended
GRJ12#,KDJ12# —
76603-60110-F0 note Mudguard, Front Fender, RH
2007-07 → 2009-08 ended
GRJ12#,KDJ12# —
76621-60100 Mudguard, Front Fender, RH
2002-09 → 2009-08 ended
GRJ12#,KDJ12# —
76622D — Mudguard, Front Fender, LH
76604-60110-F0 note Mudguard, Front Fender, LH
2002-09 → 2004-08 ended
GRJ12#,KDJ12# —
76604-60110-F0 note Mudguard, Front Fender, LH
2004-08 → 2009-08 ended
GRJ12#,KDJ12# —
76604-60110-F0 note Mudguard, Front Fender, LH
2007-07 → 2009-08 ended
GRJ12#,KDJ12# —
76622-60090 Mudguard, Front Fender, LH
2002-09 → 2009-08 ended
GRJ12#,KDJ12# —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
