Toyota Land Cruiser Prado

2002-09 → 2009-08 · chassis GRJ12#,KDJ12# · catalogue 781550 · Europe

Supported model Data version 2010-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

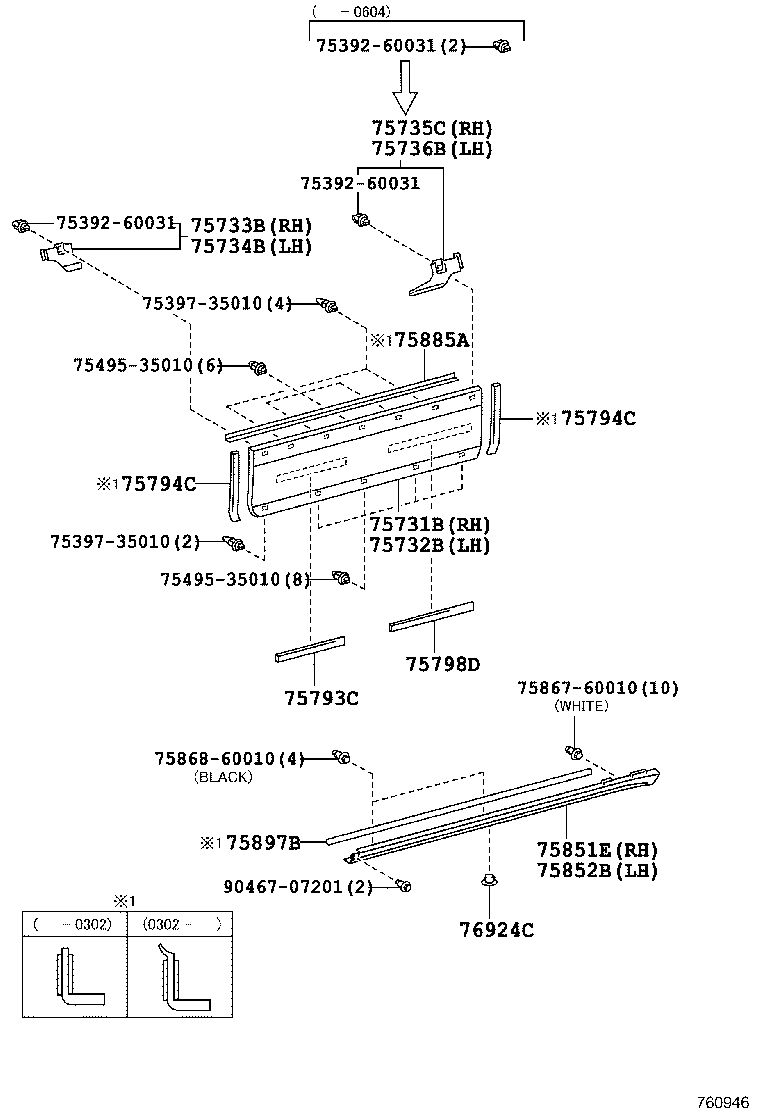

Exploded illustration 760946 75733B — MOULDING, FRONT DOOR, OUTSIDE UPPER REAR RH (3 parts) 75734B — MOULDING, FRONT DOOR, OUTSIDE UPPER REAR LH (3 parts) 75731B — MOULDING, FRONT DOOR, OUTSIDE RH (26 parts) 75732B — MOULDING, FRONT DOOR, OUTSIDE LH (26 parts) 75735C — MOULDING, FRONT DOOR OUTSIDE, LOWER RH (2 parts) 75736B — MOULDING, FRONT DOOR, OUTSIDE LOWER LH (2 parts) 75851E — MOULDING, BODY ROCKER PANEL, RH (4 parts) 75852B — MOULDING, BODY ROCKER PANEL, LH (4 parts) 75793C — PAD, FRONT DOOR OUTSIDE MOULDING, UPPER (2 parts) 75798D — PAD, FRONT DOOR OUTSIDE MOULDING, REAR (2 parts) 75897B — TAPE, MOULDING, NO.3 (6 parts) 76924C — RETAINER, SIDE MUDGUARD, NO.2 (4 parts) 75885A — TAPE, MOULDING, NO.6 (3 parts) 75794C — PAD, FRONT DOOR OUTSIDE MOULDING, REAR (3 parts) 75794C — PAD, FRONT DOOR OUTSIDE MOULDING, REAR (3 parts) 7539260031 — not listed in this catalogue 7539735010 — not listed in this catalogue 7539735010 — not listed in this catalogue 7549535010 — not listed in this catalogue 7549535010 — not listed in this catalogue 7539260031 — not listed in this catalogue 7586860010 — not listed in this catalogue 7586760010 — not listed in this catalogue 9046707201 — not listed in this catalogue 7539260031 — not listed in this catalogue
760946 · 15 callouts, 10 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
90 parts on this figure
Part number Description Fitment Price
75731B — Moulding, Front Door, Outside RH
75731-60160-A0 note Moulding, Front Door, Outside RH
2002-09 → 2006-04 ended
GRJ12#,KDJ12# —
75731-60160-B0 note Moulding, Front Door, Outside RH
2002-09 → 2006-04 ended
GRJ12#,KDJ12# —
75731-60160-B1 note Moulding, Front Door, Outside RH
2002-09 → 2006-04 ended
GRJ12#,KDJ12# —
75731-60160-C0 note Moulding, Front Door, Outside RH
2002-09 → 2006-04 ended
GRJ12#,KDJ12# —
75731-60160-D0 note Moulding, Front Door, Outside RH
2002-09 → 2006-04 ended
GRJ12#,KDJ12# —
75731-60160-E0 note Moulding, Front Door, Outside RH
2005-08 → 2006-04 ended
GRJ12#,KDJ12# —
75731-60160-F0 note Moulding, Front Door, Outside RH
2002-09 → 2005-08 ended
GRJ12#,KDJ12# —
75731-60160-G0 note Moulding, Front Door, Outside RH
2002-09 → 2006-04 ended
GRJ12#,KDJ12# —
75731-60160-J0 note Moulding, Front Door, Outside RH
2002-09 → 2005-08 ended
GRJ12#,KDJ12# —
75731-60160-J2 note Moulding, Front Door, Outside RH
2005-08 → 2006-04 ended
GRJ12#,KDJ12# —
75731-60161-A0 note Moulding, Front Door, Outside RH
2006-04 → 2009-08 ended
GRJ12#,KDJ12# —
75731-60161-A0 note Moulding, Front Door, Outside RH
2007-07 → 2009-08 ended
GRJ12#,KDJ12# —
75731-60161-B0 note Moulding, Front Door, Outside RH
2007-07 → 2009-08 ended
GRJ12#,KDJ12# —
75731-60161-B0 note Moulding, Front Door, Outside RH
2006-04 → 2009-08 ended
GRJ12#,KDJ12# —
75731-60161-B1 note Moulding, Front Door, Outside RH
2006-04 → 2009-08 ended
GRJ12#,KDJ12# —
75731-60161-B1 note Moulding, Front Door, Outside RH
2007-07 → 2009-08 ended
GRJ12#,KDJ12# —
75731-60161-C0 note Moulding, Front Door, Outside RH
2006-04 → 2009-08 ended
GRJ12#,KDJ12# —
75731-60161-C0 note Moulding, Front Door, Outside RH
2007-07 → 2009-08 ended
GRJ12#,KDJ12# —
75731-60161-D0 note Moulding, Front Door, Outside RH
2006-04 → 2009-08 ended
GRJ12#,KDJ12# —
75731-60161-D0 note Moulding, Front Door, Outside RH
2007-07 → 2009-08 ended
GRJ12#,KDJ12# —
75731-60161-E0 note Moulding, Front Door, Outside RH
2007-07 → 2009-08 ended
GRJ12#,KDJ12# —
75731-60161-E0 note Moulding, Front Door, Outside RH
2006-04 → 2009-08 ended
GRJ12#,KDJ12# —
75731-60161-G0 note Moulding, Front Door, Outside RH
2006-04 → 2009-08 ended
GRJ12#,KDJ12# —
75731-60161-G0 note Moulding, Front Door, Outside RH
2007-07 → 2009-08 ended
GRJ12#,KDJ12# —
75731-60161-J2 note Moulding, Front Door, Outside RH
2006-04 → 2009-08 ended
GRJ12#,KDJ12# —
75731-60161-J2 note Moulding, Front Door, Outside RH
2007-07 → 2009-08 ended
GRJ12#,KDJ12# —
75732B — Moulding, Front Door, Outside LH
75732-60160-A0 note Moulding, Front Door, Outside LH
2002-09 → 2006-04 ended
GRJ12#,KDJ12# —
75732-60160-B0 note Moulding, Front Door, Outside LH
2002-09 → 2006-04 ended
GRJ12#,KDJ12# —
75732-60160-B1 note Moulding, Front Door, Outside LH
2002-09 → 2006-04 ended
GRJ12#,KDJ12# —
75732-60160-C0 note Moulding, Front Door, Outside LH
2002-09 → 2006-04 ended
GRJ12#,KDJ12# —
75732-60160-D0 note Moulding, Front Door, Outside LH
2002-09 → 2006-04 ended
GRJ12#,KDJ12# —
75732-60160-E0 note Moulding, Front Door, Outside LH
2005-08 → 2006-04 ended
GRJ12#,KDJ12# —
75732-60160-F0 note Moulding, Front Door, Outside LH
2002-09 → 2005-08 ended
GRJ12#,KDJ12# —
75732-60160-G0 note Moulding, Front Door, Outside LH
2002-09 → 2006-04 ended
GRJ12#,KDJ12# —
75732-60160-J0 note Moulding, Front Door, Outside LH
2002-09 → 2005-08 ended
GRJ12#,KDJ12# —
75732-60160-J2 note Moulding, Front Door, Outside LH
2005-08 → 2006-04 ended
GRJ12#,KDJ12# —
75732-60161-A0 note Moulding, Front Door, Outside LH
2006-04 → 2009-08 ended
GRJ12#,KDJ12# —
75732-60161-A0 note Moulding, Front Door, Outside LH
2007-07 → 2009-08 ended
GRJ12#,KDJ12# —
75732-60161-B0 note Moulding, Front Door, Outside LH
2007-07 → 2009-08 ended
GRJ12#,KDJ12# —
75732-60161-B0 note Moulding, Front Door, Outside LH
2006-04 → 2009-08 ended
GRJ12#,KDJ12# —
75732-60161-B1 note Moulding, Front Door, Outside LH
2007-07 → 2009-08 ended
GRJ12#,KDJ12# —
75732-60161-B1 note Moulding, Front Door, Outside LH
2006-04 → 2009-08 ended
GRJ12#,KDJ12# —
75732-60161-C0 note Moulding, Front Door, Outside LH
2006-04 → 2009-08 ended
GRJ12#,KDJ12# —
75732-60161-C0 note Moulding, Front Door, Outside LH
2007-07 → 2009-08 ended
GRJ12#,KDJ12# —
75732-60161-D0 note Moulding, Front Door, Outside LH
2006-04 → 2009-08 ended
GRJ12#,KDJ12# —
75732-60161-D0 note Moulding, Front Door, Outside LH
2007-07 → 2009-08 ended
GRJ12#,KDJ12# —
75732-60161-E0 note Moulding, Front Door, Outside LH
2006-04 → 2009-08 ended
GRJ12#,KDJ12# —
75732-60161-E0 note Moulding, Front Door, Outside LH
2007-07 → 2009-08 ended
GRJ12#,KDJ12# —
75732-60161-G0 note Moulding, Front Door, Outside LH
2006-04 → 2009-08 ended
GRJ12#,KDJ12# —
75732-60161-G0 note Moulding, Front Door, Outside LH
2007-07 → 2009-08 ended
GRJ12#,KDJ12# —
75732-60161-J2 note Moulding, Front Door, Outside LH
2007-07 → 2009-08 ended
GRJ12#,KDJ12# —
75732-60161-J2 note Moulding, Front Door, Outside LH
2006-04 → 2009-08 ended
GRJ12#,KDJ12# —
75733B — Moulding, Front Door, Outside Upper Rear RH
75073-60040 note Moulding, Front Door, Outside Upper Rear RH
2002-09 → 2003-10 ended
GRJ12#,KDJ12# —
75073-60041 note Moulding, Front Door, Outside Upper Rear RH
2003-10 → —
GRJ12#,KDJ12# —
75073-60041 note Moulding, Front Door, Outside Upper Rear RH
2007-07 → —
GRJ12#,KDJ12# —
75734B — Moulding, Front Door, Outside Upper Rear LH
75074-60040 note Moulding, Front Door, Outside Upper Rear LH
2002-09 → 2003-10 ended
GRJ12#,KDJ12# —
75074-60041 note Moulding, Front Door, Outside Upper Rear LH
2003-10 → —
GRJ12#,KDJ12# —
75074-60041 note Moulding, Front Door, Outside Upper Rear LH
2007-07 → —
GRJ12#,KDJ12# —
75735C — Moulding, Front Door Outside, Lower RH
75073-60050 note Moulding, Front Door Outside, Lower RH
2006-04 → 2009-08 ended
GRJ12#,KDJ12# —
75073-60050 note Moulding, Front Door Outside, Lower RH
2007-07 → 2009-08 ended
GRJ12#,KDJ12# —
75736B — Moulding, Front Door, Outside Lower LH
75074-60050 note Moulding, Front Door, Outside Lower LH
2006-04 → 2009-08 ended
GRJ12#,KDJ12# —
75074-60050 note Moulding, Front Door, Outside Lower LH
2007-07 → 2009-08 ended
GRJ12#,KDJ12# —
75793C — Pad, Front Door Outside Moulding, Upper
75793-60020 note Pad, Front Door Outside Moulding, Upper
2002-09 → —
GRJ12#,KDJ12# —
75793-60020 note Pad, Front Door Outside Moulding, Upper
2007-07 → —
GRJ12#,KDJ12# —
75794C — Pad, Front Door Outside Moulding, Rear
75794-60010 note Pad, Front Door Outside Moulding, Rear
2002-09 → 2003-02 ended
GRJ12#,KDJ12# —
75794-60011 note Pad, Front Door Outside Moulding, Rear
2007-07 → —
GRJ12#,KDJ12# —
75794-60011 note Pad, Front Door Outside Moulding, Rear
2003-02 → —
GRJ12#,KDJ12# —
75798D — Pad, Front Door Outside Moulding, Rear
75798-60020 note Pad, Front Door Outside Moulding, Rear
2002-09 → —
GRJ12#,KDJ12# —
75798-60020 note Pad, Front Door Outside Moulding, Rear
2007-07 → —
GRJ12#,KDJ12# —
75851E — Moulding, Body Rocker Panel, RH
75851-60050 note Moulding, Body Rocker Panel, RH
2002-09 → 2009-08 ended
GRJ120,KDJ120 —
75851-60050 note Moulding, Body Rocker Panel, RH
2007-07 → 2009-08 ended
GRJ120,KDJ120 —
75851-60060 note Moulding, Body Rocker Panel, RH
2002-09 → 2009-08 ended
GRJ125,KDJ125 —
75851-60060 note Moulding, Body Rocker Panel, RH
2007-07 → 2009-08 ended
GRJ125,KDJ125 —
75852B — Moulding, Body Rocker Panel, LH
75852-60050 note Moulding, Body Rocker Panel, LH
2002-09 → 2009-08 ended
GRJ120,KDJ120 —
75852-60050 note Moulding, Body Rocker Panel, LH
2007-07 → 2009-08 ended
GRJ120,KDJ120 —
75852-60060 note Moulding, Body Rocker Panel, LH
2002-09 → 2009-08 ended
GRJ125,KDJ125 —
75852-60060 note Moulding, Body Rocker Panel, LH
2007-07 → 2009-08 ended
GRJ125,KDJ125 —
75885A — Tape, Moulding, NO.6
75885-60020 note Tape, Moulding, NO.6
2002-09 → 2003-02 ended
GRJ12#,KDJ12# —
75885-60021 note Tape, Moulding, NO.6
2003-02 → —
GRJ12#,KDJ12# —
75885-60021 note Tape, Moulding, NO.6
2007-07 → —
GRJ12#,KDJ12# —
75897B — Tape, Moulding, NO.3
75897-60050 note Tape, Moulding, NO.3
2002-09 → 2003-02 ended
GRJ120,KDJ120 —
75897-60051 note Tape, Moulding, NO.3
2003-02 → —
GRJ120,KDJ120 —
75897-60051 note Tape, Moulding, NO.3
2007-07 → —
GRJ120,KDJ120 —
75897-60060 note Tape, Moulding, NO.3
2002-09 → 2003-02 ended
GRJ125,KDJ125 —
75897-60061 note Tape, Moulding, NO.3
2003-02 → —
GRJ125,KDJ125 —
75897-60061 note Tape, Moulding, NO.3
2007-07 → —
GRJ125,KDJ125 —
76924C — Retainer, Side Mudguard, NO.2
76924-13020 note Retainer, Side Mudguard, NO.2
2002-09 → —
GRJ125,KDJ125 —
76924-13020 note Retainer, Side Mudguard, NO.2
2002-09 → —
GRJ120,KDJ120 —
76924-13020 note Retainer, Side Mudguard, NO.2
2007-07 → —
GRJ125,KDJ125 —
76924-13020 note Retainer, Side Mudguard, NO.2
2007-07 → —
GRJ120,KDJ120 —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
