Toyota Land Cruiser Prado

2002-09 → 2009-08 · chassis GRJ12#,KDJ12# · catalogue 781550 · Europe

Supported model Data version 2010-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Timing Gear Cover & Rear End Plate

25 part groups · 3 illustrations

Illustrations

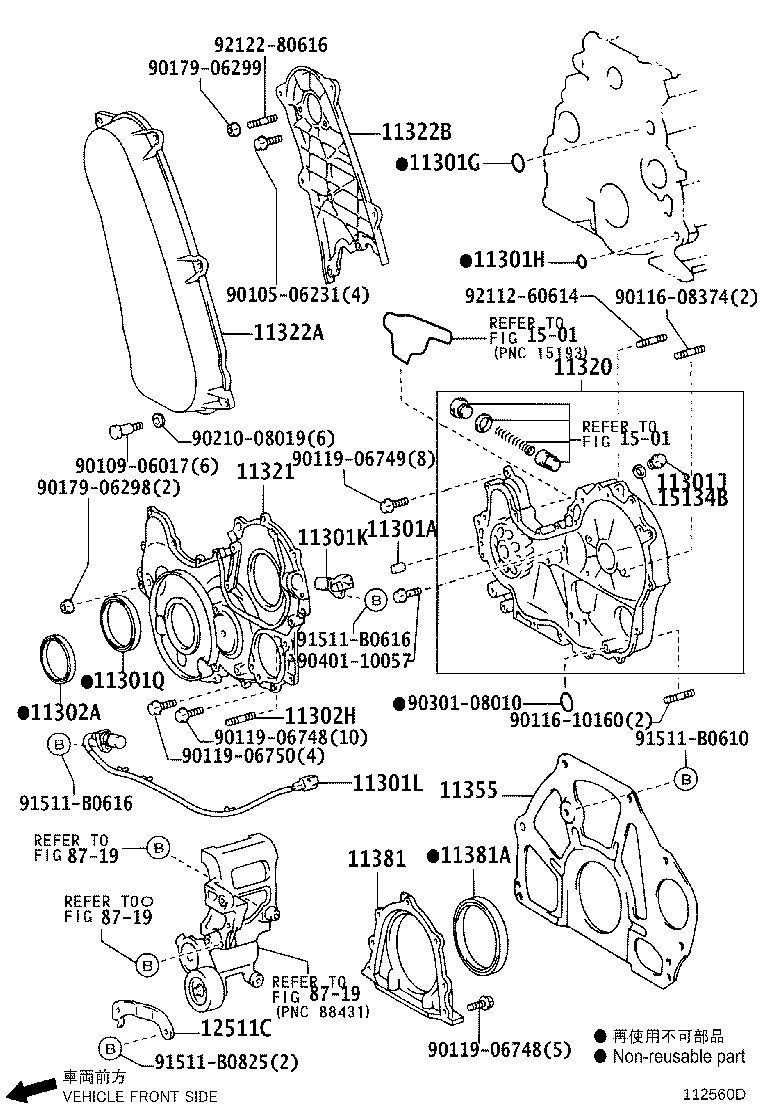

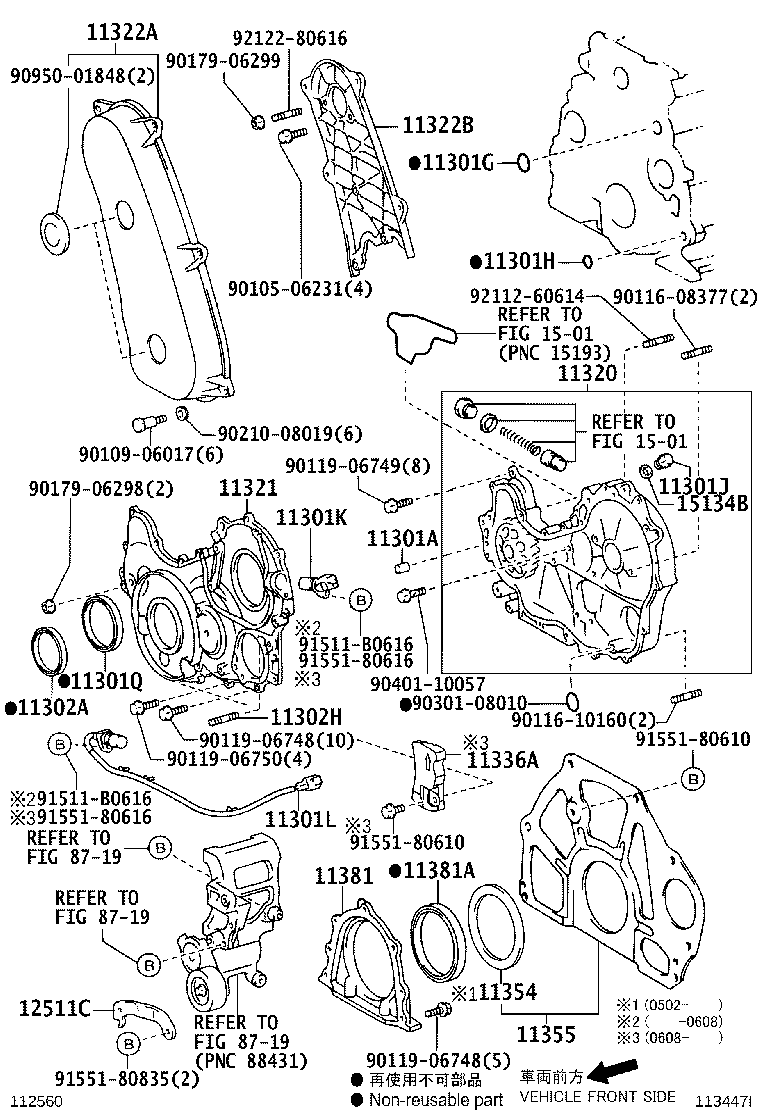

Figure 116002F 116002F 2003-01 → — Figure 112560E 112560E 2002-09 → 2004-06 Figure 113447I 113447I 2004-06 → —

Part groups

PNCDescription
11301A Pin, Straight(FOR TIMING GEAR CASE)
11301C Seal, Oil(FOR TIMING GEAR CASE OR TIMING CHAIN CASE)
11301G Ring, O(FOR TIMING GEAR CASE, UPPER)
11301H Ring, O(FOR TIMING GEAR CASE, LOWER)
11301J Plug, W/Head Straight Screw(FOR TIMING GEAR CASE)
11301K Sensor, Crank Position
11301L Sensor, Crank Position NO.2
11301M Sensor, Cam Position
11301Q Seal, Type T Oil(FOR INJECTION PUMP)
11302 Cover Sub-assy, Timing Chain OR Belt
11302A Seal, Oil(FOR TIMING CHAIN OR BELT COVER)
11302H Bolt, Stud(FOR TIMING GEAR COVER)
11320 Case Assy, Timing Gear
11321 Case, Timing Gear
11322A Cover, Timing Belt, NO.1
11322B Cover, Timing Belt, NO.2
11324 Plate, Timing Chain Cover
11328 Gasket, Timing Gear OR Chain Cover
11336A Insulator, Timing Gear Cover
11354 Seal, Flywheel Housing Dust
11355 Plate, Rear End
11381 Retainer, Engine Rear Oil Seal
11381A Seal, Engine Rear Oil
12511C Bracket, Alternator
15134B Gasket, Oil Pump Relief Valve
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
