Toyota Land Cruiser Prado

2002-09 → 2009-08 · chassis GRJ12#,KDJ12# · catalogue 781550 · Europe

Supported model Data version 2010-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Water Pump

13 part groups · 3 illustrations

Illustrations

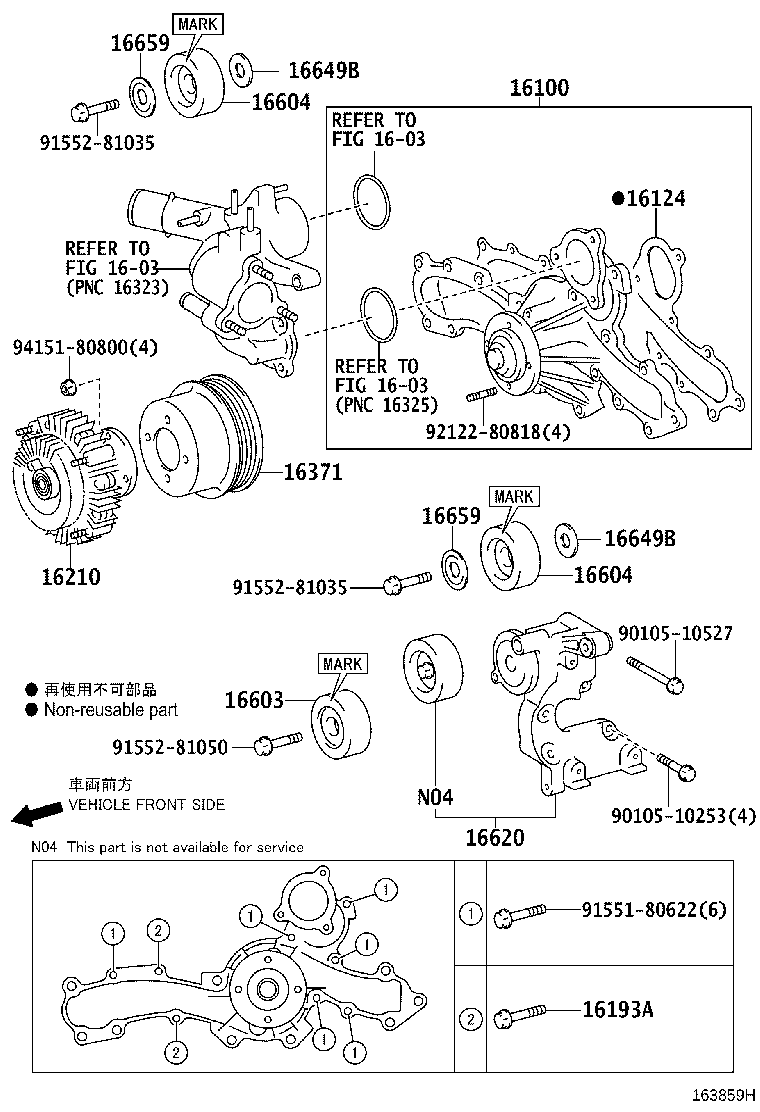

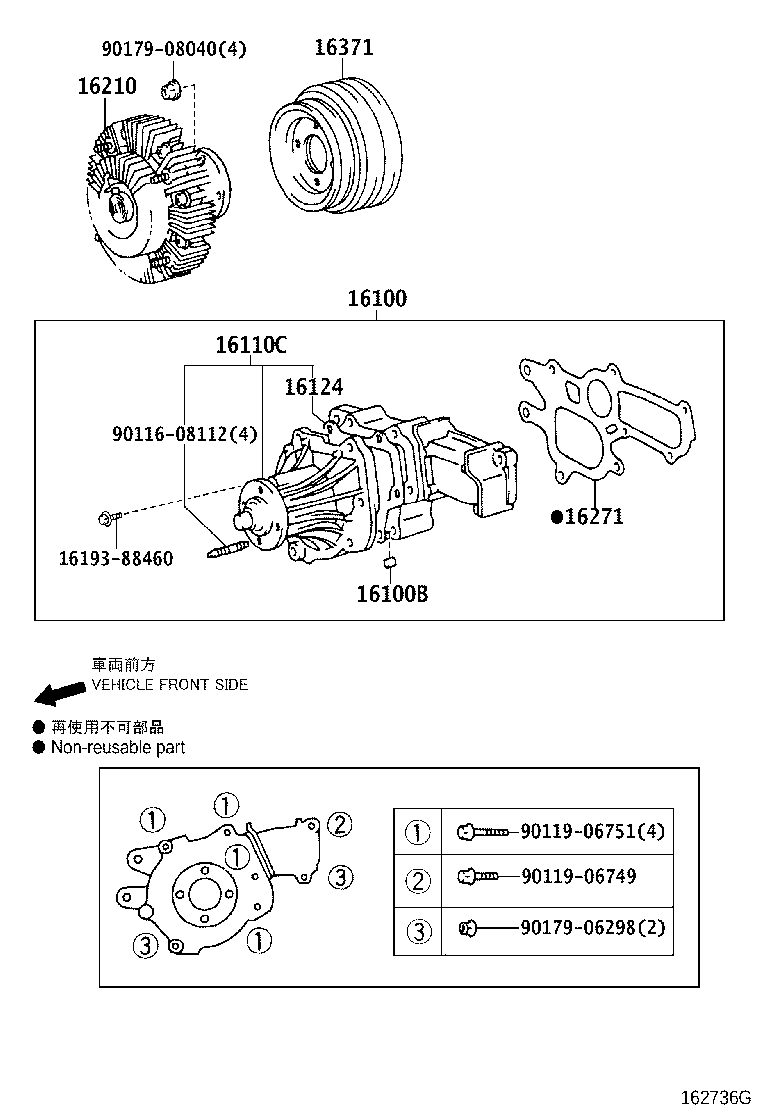

Figure 163886H 163886H 2003-01 → 2009-03 Figure 163859H 163859H 2009-03 → — Figure 162736G 162736G 2002-09 → —

Part groups

PNCDescription
16100 Pump Assy, Engine Water
16100B Pin, Ring(FOR WATER PUMP SET)
16110C Pump Assy, Water, W/O Cover
16124 Gasket, Water Pump Cover
16193A Bolt(FOR WATER PUMP COVER)
16210 Coupling Assy, Fluid
16271 Gasket, Water Pump
16371 Pulley, Fan
16603 Pulley Sub-assy, Idler, NO.1
16604 Pulley Sub-assy, Idler, NO.2
16620 Tensioner Assy, V-ribbed Belt
16649B Plate, Idler Pulley Cover
16659 Plate, Idler Pulley Cover, NO.2
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
