Toyota Land Cruiser Prado

2002-09 → 2009-08 · chassis GRJ12#,KDJ12# · catalogue 781550 · Europe

Supported model Data version 2010-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Radiator & Water Outlet

58 part groups · 7 illustrations

Illustrations

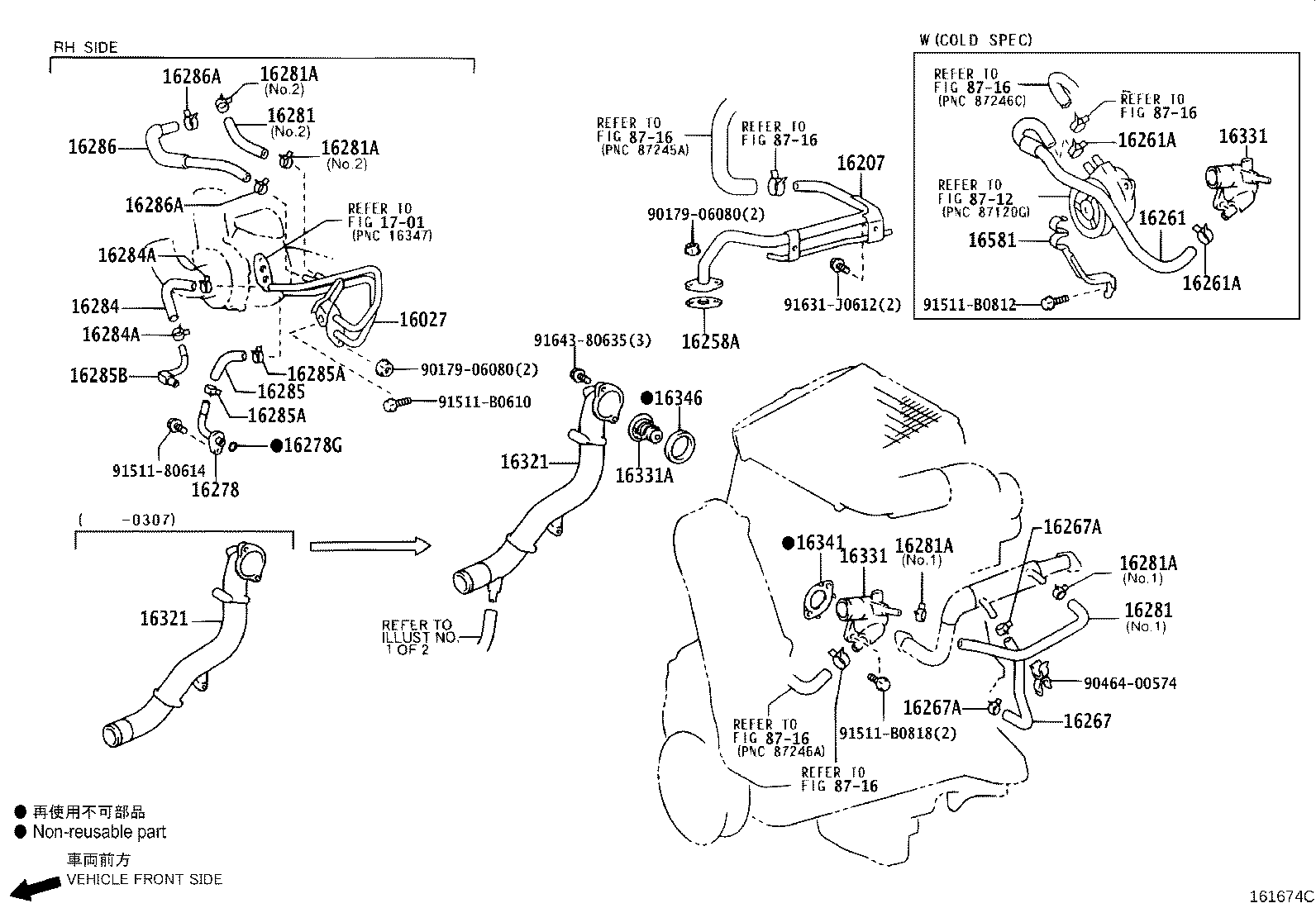

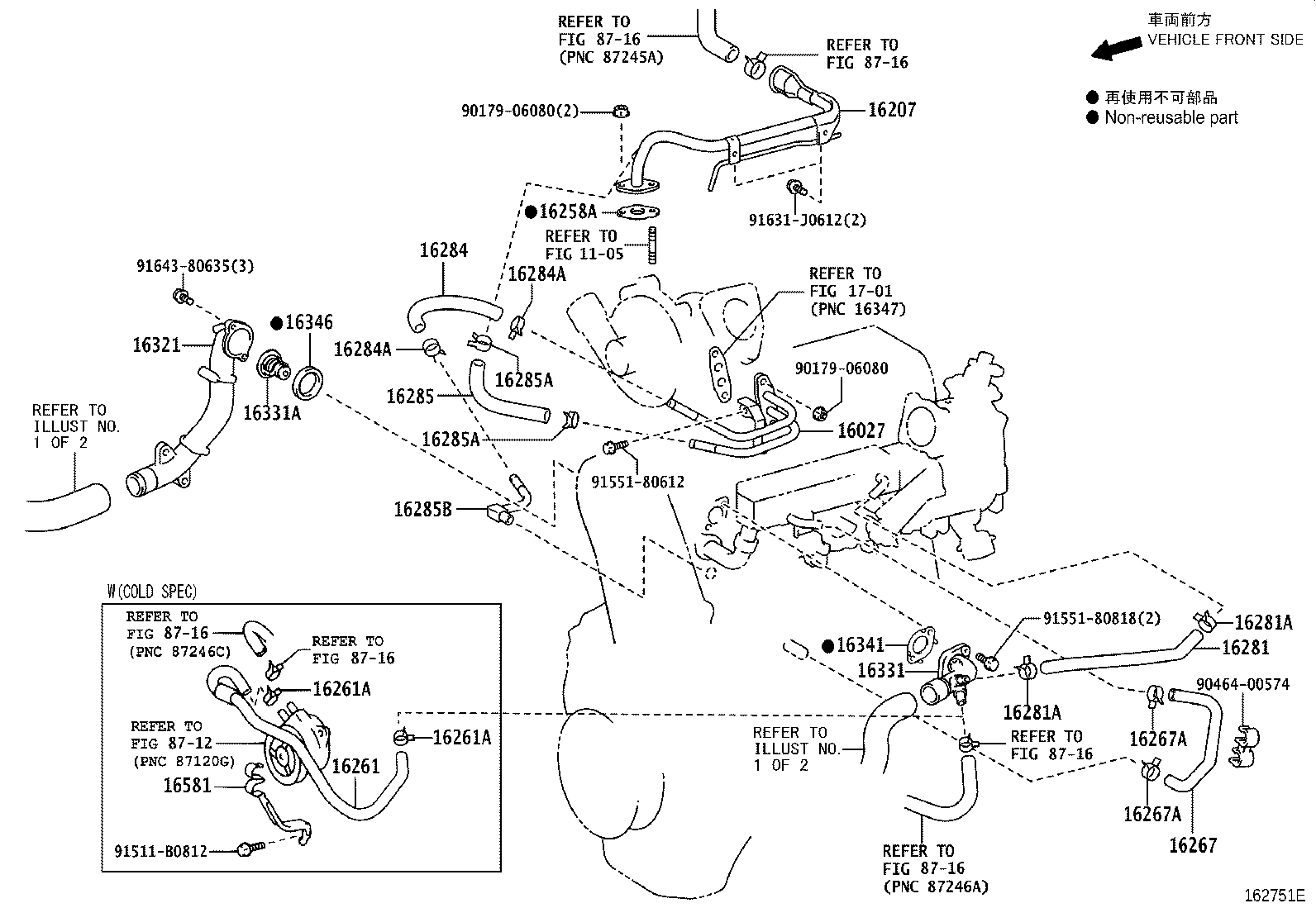

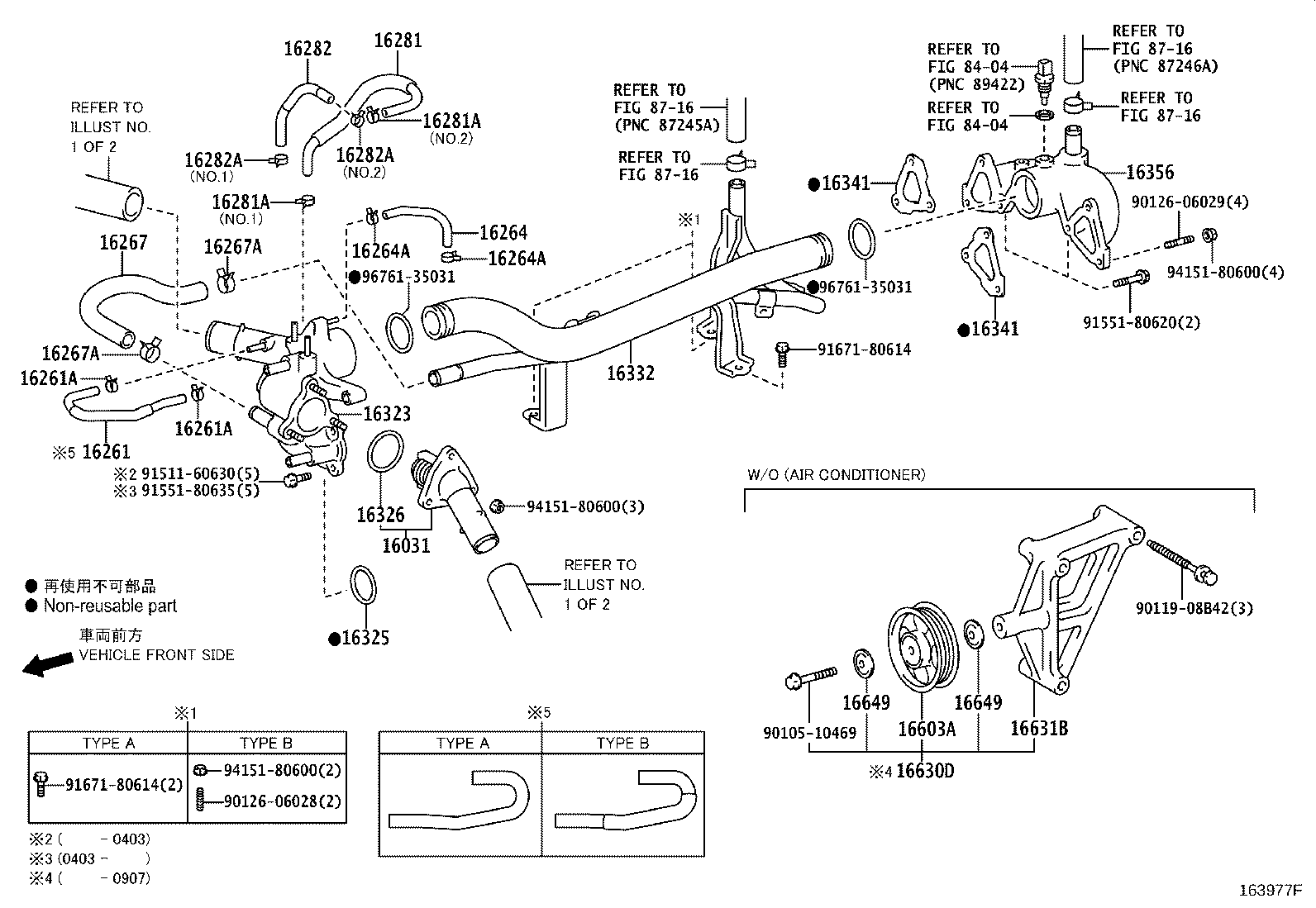

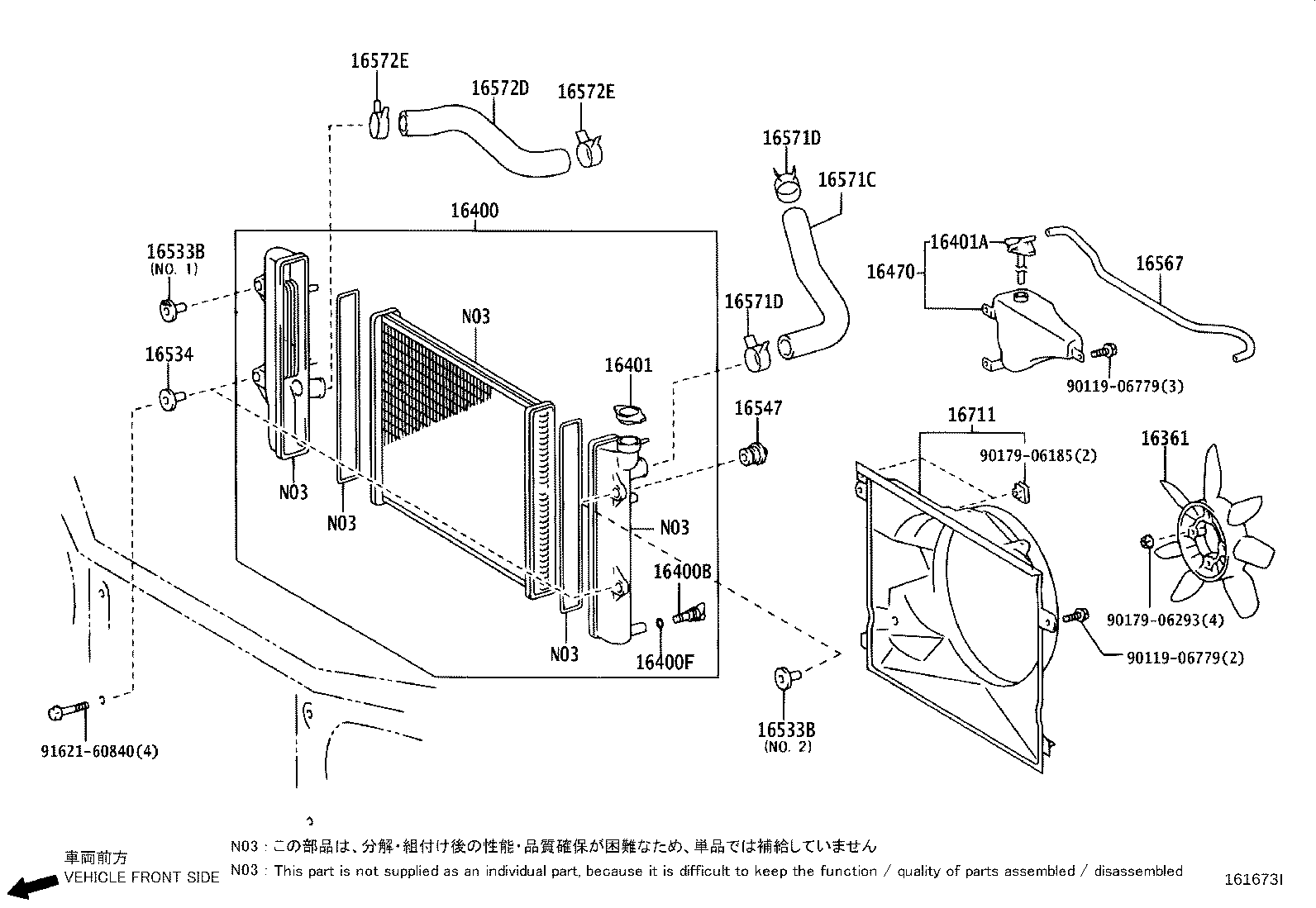

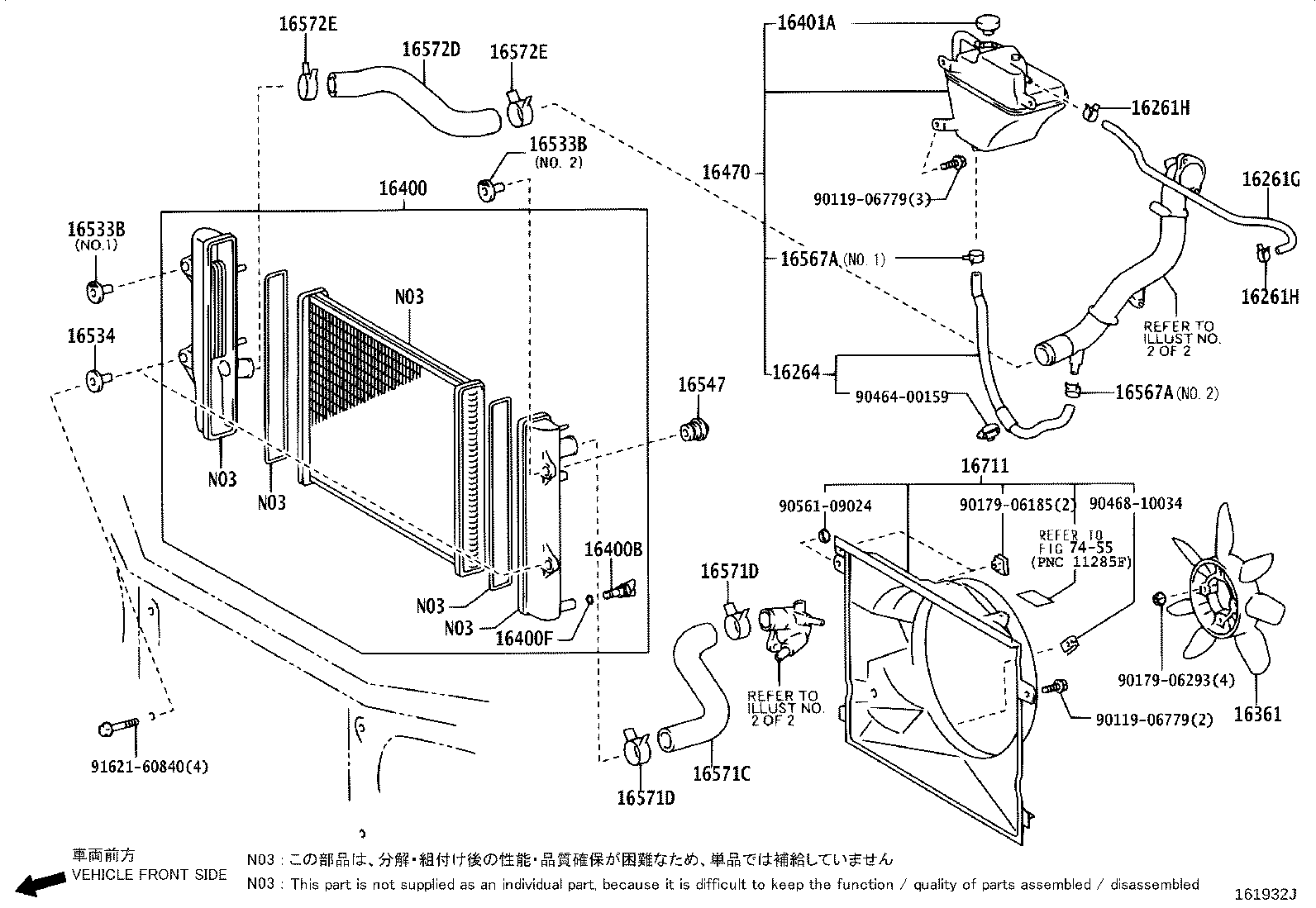

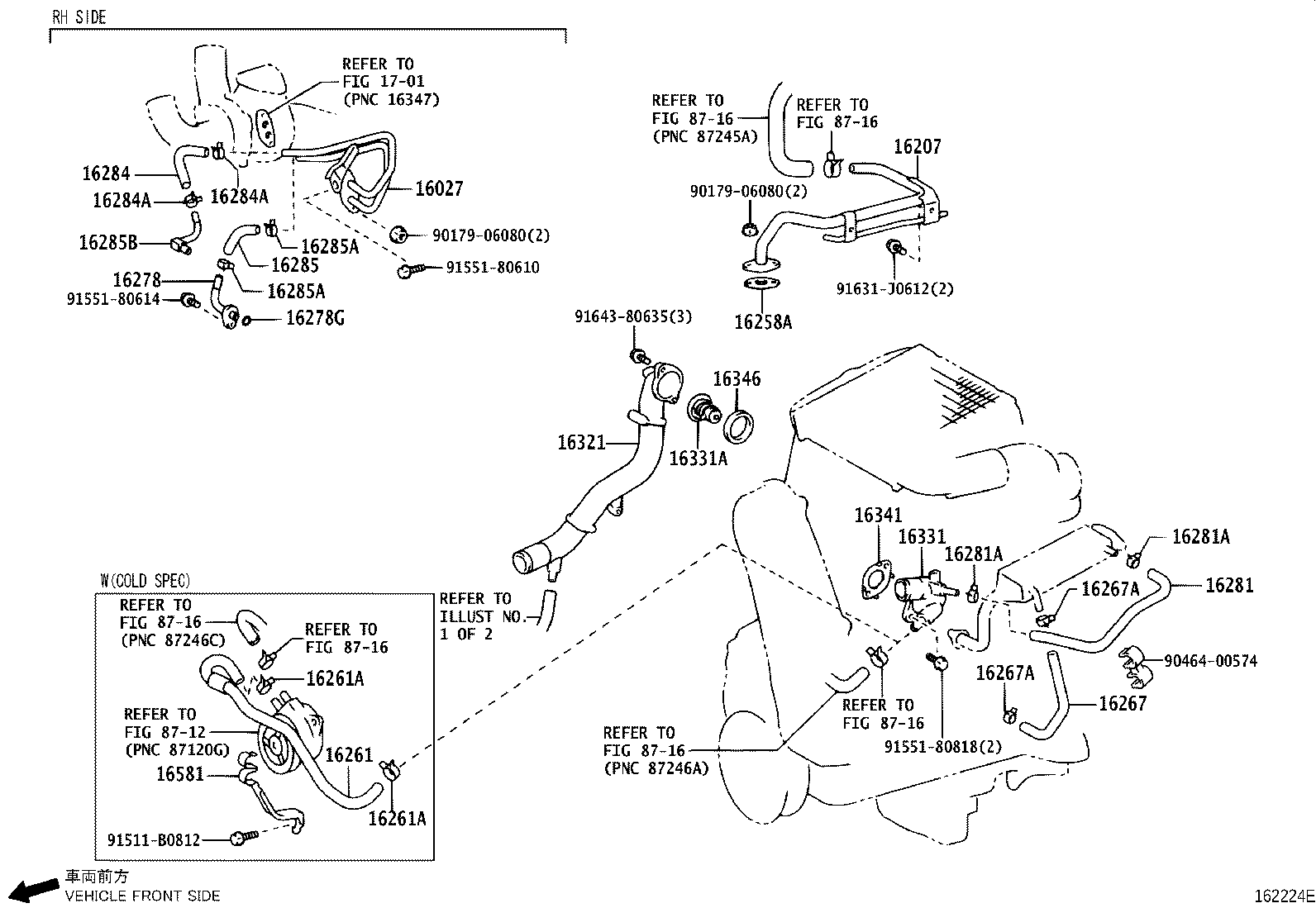

Figure 164217C 164217C 2003-01 → — Figure 163977F 163977F 2003-01 → — Figure 161673I 161673I 2002-09 → 2003-07 Figure 161932J 161932J 2003-07 → — Figure 161674C 161674C 2002-09 → 2004-08 Figure 162224E 162224E 2004-08 → 2006-08 Figure 162751E 162751E 2006-08 → —

Part groups

PNCDescription
16027 Pipe Sub-assy, Turbo Water, NO.1
16031 Water Inlet Sub-assy, W/Thermostat
16207 Pipe Sub-assy, Water By-pass, NO.2
16258A Gasket(FOR HEATER RETURN)
16261 Hose, Water By-pass
16261A Clamp OR Clip, Hose(FOR WATER BY-PASS HOSE)
16261G Hose, Water By-pass, NO.1
16261H Clip(FOR WATER BY-PASS HOSE NO.1)
16264 Hose, Water By-pass, NO.2
16264A Clamp OR Clip(FOR WATER BY-PASS HOSE NO.2)
16267 Hose, Water By-pass, NO.3
16267A Clamp OR Clip(FOR WATER BY-PASS HOSE NO.3)
16278 Pipe, Water By-pass, NO.2
16278G Ring, O(FOR WATER BY-PASS NO.2 PIPE)
16281 Hose, Water By-pass, NO.4
16281A Clamp OR Clip(FOR WATER BY-PASS HOSE NO.4)
16282 Hose, Water By-pass, NO.5
16282A Clamp OR Clip(FOR WATER BY-PASS HOSE NO.5)
16284 Hose, Turbo Water, NO.1
16284A Clip(FOR TURBO WATER HOSE NO.1)
16285 Hose, Turbo Water, NO.2
16285A Clip(FOR TURBO WATER HOSE NO.2)
16285B Union(FOR TURBO WATER HOSE NO.2)
16286 Hose, Turbo Water, NO.3
16286A Clip(FOR TURBO WATER HOSE NO.3)
16321 Inlet, Water
16323 Housing, Water Inlet
16325 Gasket, Water Inlet Housing, NO.1
16326 Gasket, Water Inlet Housing, NO.2
16331 Outlet, Water
16331A Thermostat
16332 Pipe, Water Outlet, NO.1
16341 Gasket, Water Outlet
16346 Gasket, Thermostat
16356 Joint, Water By-pass, Rear
16361 Fan
16400 Radiator Assy
16400A Cock Sub-assy, Radiator Drain
16400B Plug, Radiator Drain Cock
16400F Packing(FOR RADIATOR DRAIN COCK)
16401 Cap Sub-assy, Radiator
16401A Cap Sub-assy, Radiator Reserve Tank
16470 Tank Assy, Radiator Reserve
16533B Support, Radiator, NO.1
16534 Support, Radiator, NO.2
16547 Bush, Radiator Support, NO.1
16567 Hose(FOR RADIATOR RESERVE TANK)
16567A Clip(FOR RADIATOR RESERVE TANK HOSE)
16571C Hose, Radiator, NO.1
16571D Clip, Radiator Hose, NO.1
16572D Hose, Radiator, NO.2
16572E Clip, Radiator Hose, NO.2
16581 Clamp, Hose(FOR WATER HOSE)
16603A Pulley Sub-assy, Idler, NO.1
16630D Pulley Assy, Idler
16631B Bracket, Idler Pulley
16649 Plate, Idler Pulley Cover
16711 Shroud, Fan
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
