Toyota Land Cruiser Prado

2002-09 → 2009-08 · chassis GRJ12#,KDJ12# · catalogue 781550 · Europe

Supported model Data version 2010-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Exhaust Pipe

20 part groups · 2 illustrations

Illustrations

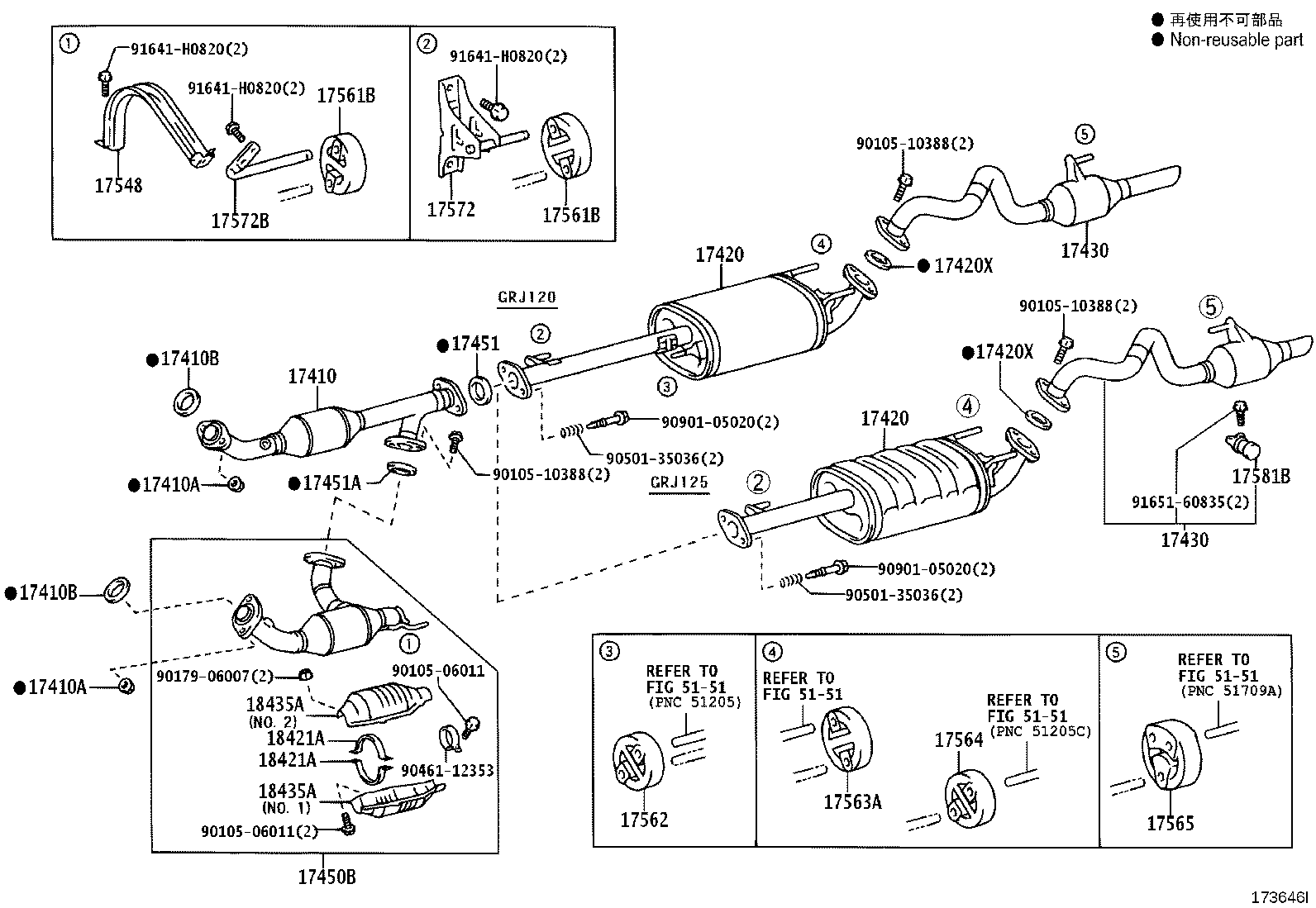

Figure 173468C 173468C 2002-09 → — Figure 173646I 173646I 2003-01 → —

Part groups

PNCDescription
17410 Pipe Assy, Exhaust, Front
17410A Nut, Exhaust Pipe Set Stud Bolt
17410B Gasket, Exhaust Pipe
17420 Pipe Assy, Exhaust, Center
17420X Gasket, Exhaust Pipe, Center
17430 Pipe Assy, Exhaust, Tail
17450B Pipe Assy, Exhaust, Front NO.2
17451 Gasket, Exhaust Pipe
17451A Gasket, Exhaust Pipe, NO.2
17548 Bracket, Exhaust Pipe Stopper
17561B Support, Exhaust Pipe, NO.1
17562 Support, Exhaust Pipe, NO.2
17563A Support, Exhaust Pipe, NO.3
17564 Support,Exhaust Pipe, NO.4
17565 Support, Exhaust Pipe, NO.5
17572 Bracket, Exhaust Pipe NO.1 Support
17572B Bracket, Exhaust Pipe Support, NO.2
17581B Damper, Exhaust Pipe, NO.2
18421A Stay, Converter Protector, LH
18435A Protector, Monolithic Converter
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
