Toyota Land Cruiser Prado

2002-09 → 2009-08 · chassis GRJ12#,KDJ12# · catalogue 781550 · Europe

Supported model Data version 2010-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Air Cleaner

24 part groups · 5 illustrations

Illustrations

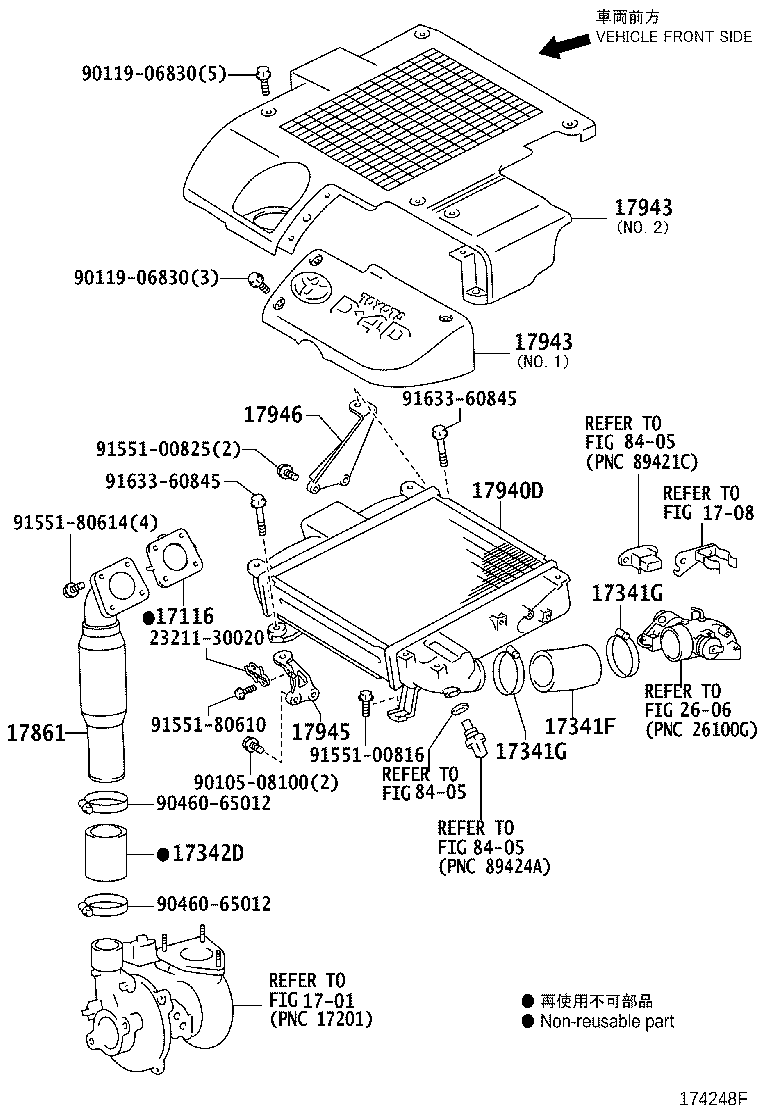

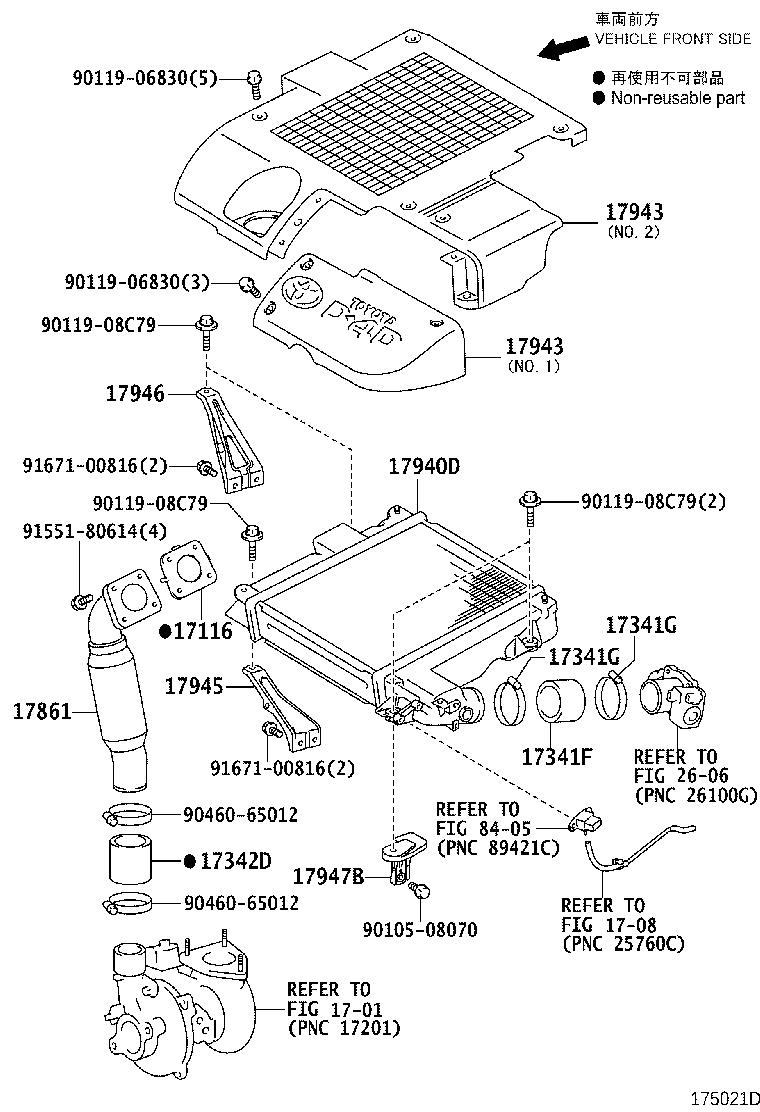

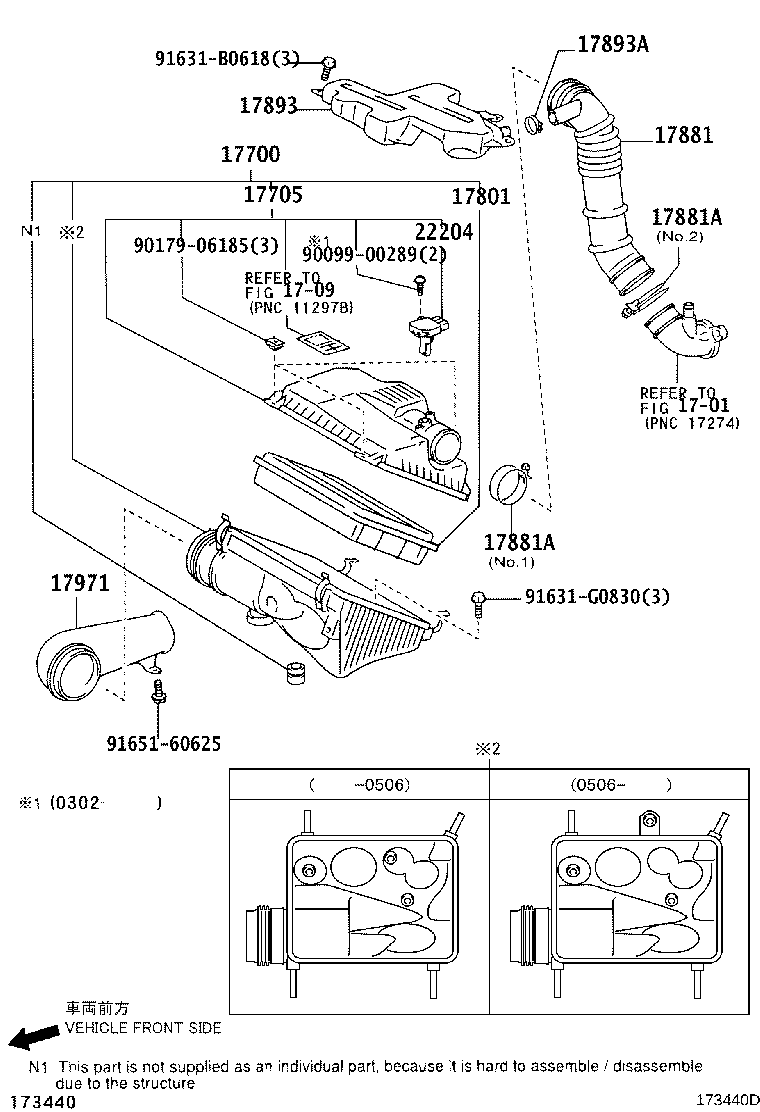

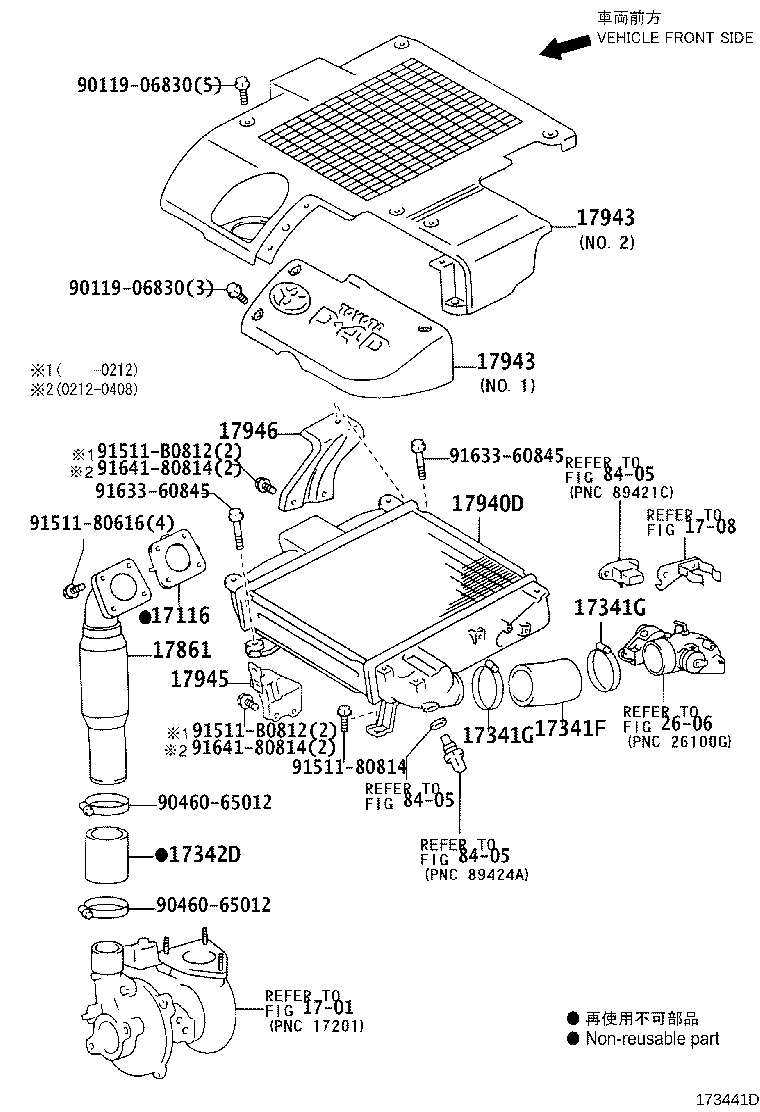

Figure 173639C 173639C 2003-01 → — Figure 173440D 173440D 2002-09 → — Figure 173441D 173441D 2002-09 → 2004-08 Figure 174248F 174248F 2004-08 → 2006-08 Figure 175021D 175021D 2006-08 → —

Part groups

PNCDescription
17116 Gasket, Intake Flange
17341F Hose, Air, NO.1
17341G Clamp OR Clip(FOR AIR HOSE, NO.1)
17342D Hose, Air, NO.2
17700 Cleaner Assy, Air
17705 Cap Sub-assy, Air Cleaner
17730 Precleaner Assy, Air W/Hose
17743 Valve, Dust Relief
17801 Element Sub-assy, Air Cleaner Filter
17861 Connector, Intake Air
17881 Hose, Air Cleaner, NO.1
17881A Clamp(FOR AIR CLEANER HOSE, NO.1)
17882 Hose, Air Cleaner, NO.2
17882A Clamp(FOR AIR CLEANER HOSE, NO.2)
17893 Resonator, Intake Air
17893A Clamp, Hose
17940D Intercooler Assy
17943 Protector, Intercooler
17945 Bracket, Intercooler Support
17946 Bracket, Intercooler Support, NO.2
17947B Bracket, Intercooler Support, NO.3
17971 Inlet, Cool Air, NO.1
22204 Meter Sub-assy, Intake Air Flow
22204A Ring, O(FOR INTAKE AIR FLOW METER)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
