Toyota Land Cruiser Prado

2002-09 → 2009-08 · chassis GRJ12#,KDJ12# · catalogue 781550 · Europe

Supported model Data version 2010-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Vacuum Piping

23 part groups · 5 illustrations

Illustrations

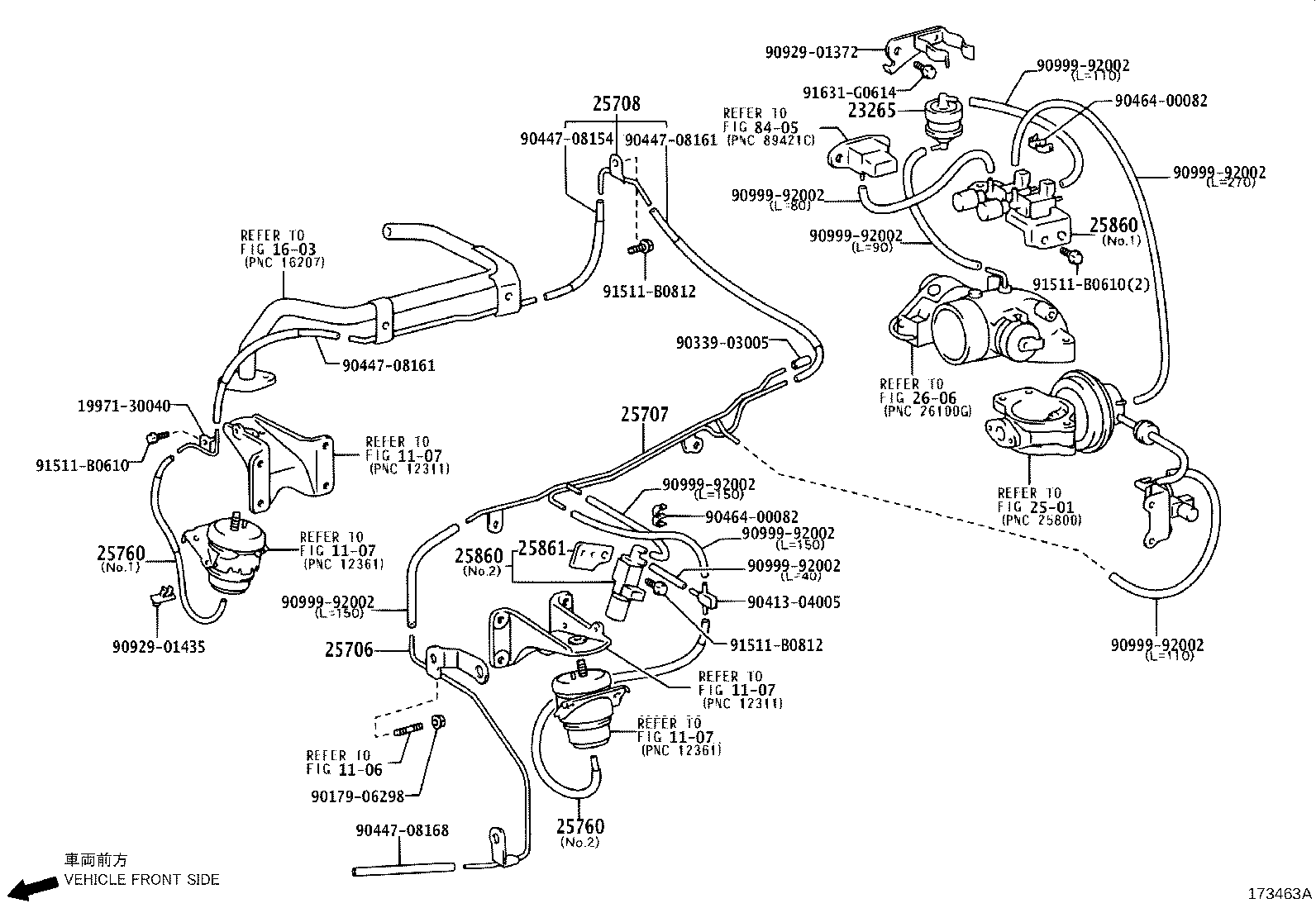

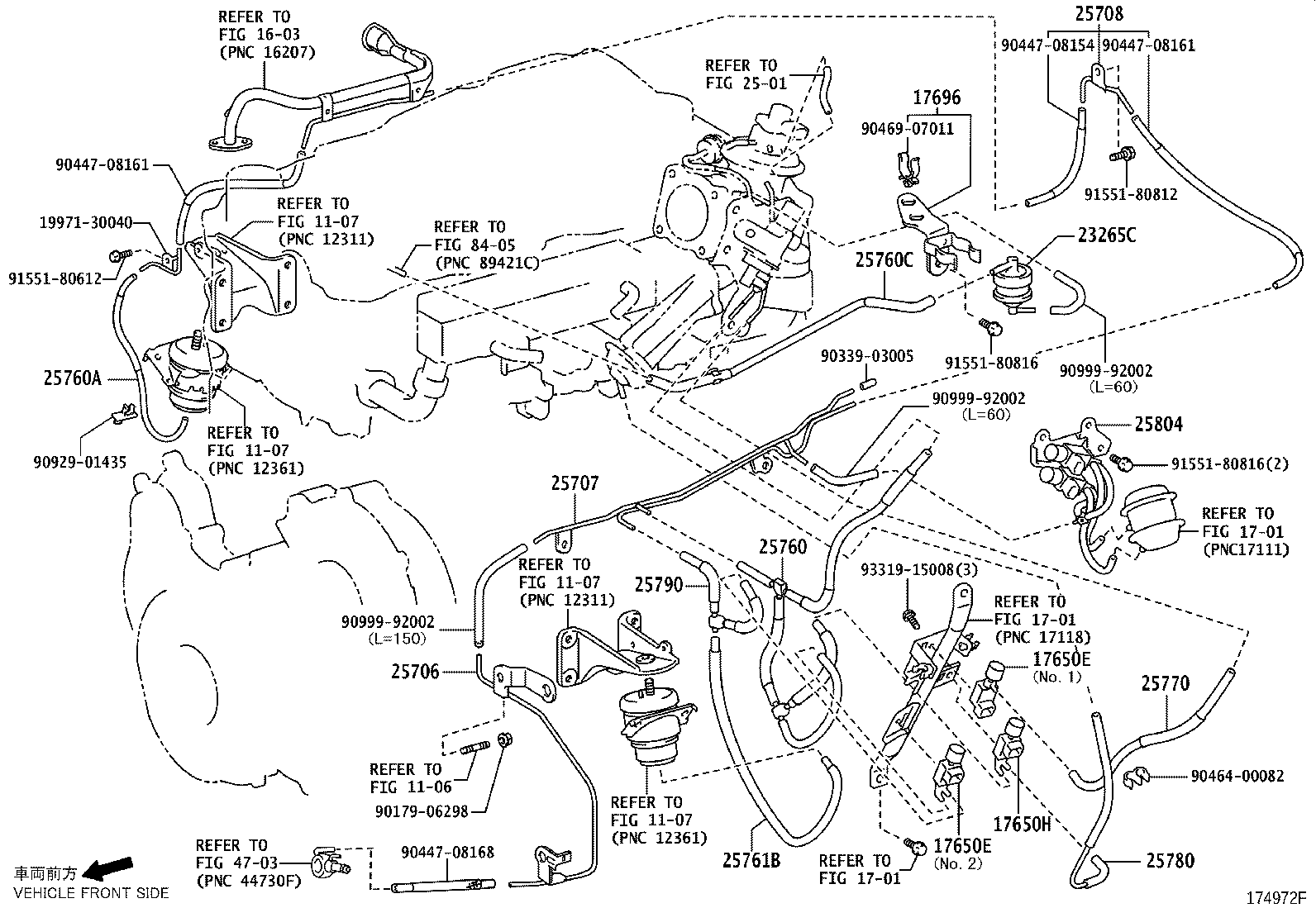

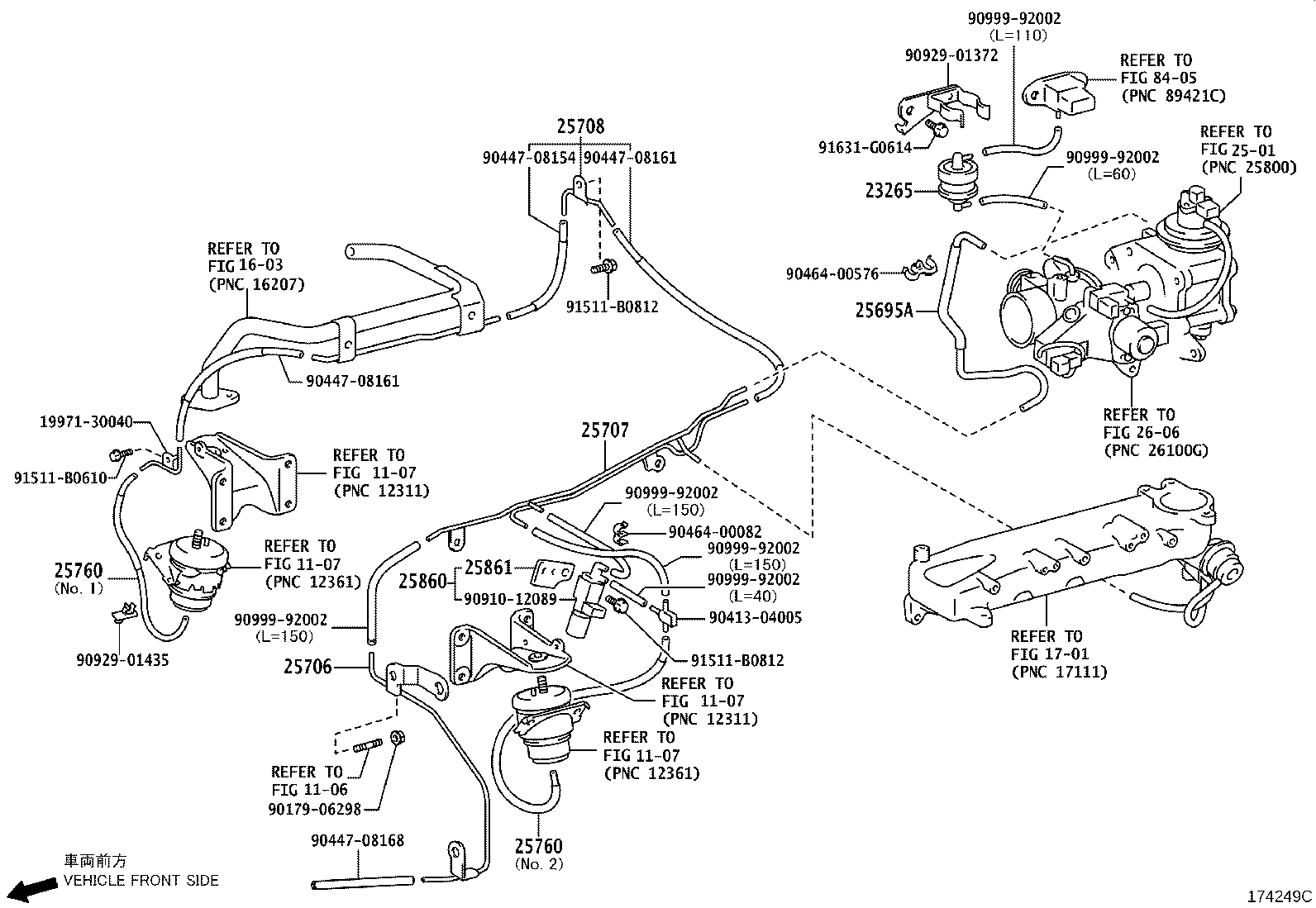

Figure 173614E 173614E 2003-01 → — Figure 170021 170021 2003-01 → — Figure 173463A 173463A 2002-09 → 2004-08 Figure 174249C 174249C 2004-08 → 2006-08 Figure 174972F 174972F 2006-08 → —

Part groups

PNCDescription
17650E Valve, Vacuum Switching
17650G Valve, Duty Vacuum Switching
17650H Valve, Vacuum Switching
17696 Bracket, Gas Filter
23265 Filter, Gas, NO.1
23265C Filter, Gas
23820 Hose Assy, Fuel Vapor Feed
23826 Hose, Fuel Vapor Feed, NO.1
25695A Hose, Egr Vacuum Modulator
25706 Pipe Sub-assy, Vacuum Transmitting, NO.1
25707 Pipe Sub-assy, Vacuum Transmitting, NO.2
25708 Pipe Sub-assy, Vacuum Transmitting, NO.3
25719 Tank, Vacuum Surge
25760 Hose Assy, Vacuum Transmitting
25760A Hose Assy, Vacuum Transmitting
25760C Hose Assy, Vacuum Transmitting, NO.3
25761B Hose, Vaccum Transmitting, NO.1
25770 Hose Assy, Vacuum Transmitting, NO.2
25780 Hose Assy, Vacuum Transmitting, NO.3
25790 Hose Assy, Vacuum Transmitting, NO.4
25804 Valve Set, Vacuum Control
25860 Valve Assy, Vacuum Switching, NO.1
25861 Bracket, Vacuum Switching Valve
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
