Toyota Land Cruiser Prado

2002-09 → 2009-08 · chassis GRJ12#,KDJ12# · catalogue 781550 · Europe

Supported model Data version 2010-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Starter

17 part groups · 5 illustrations

Illustrations

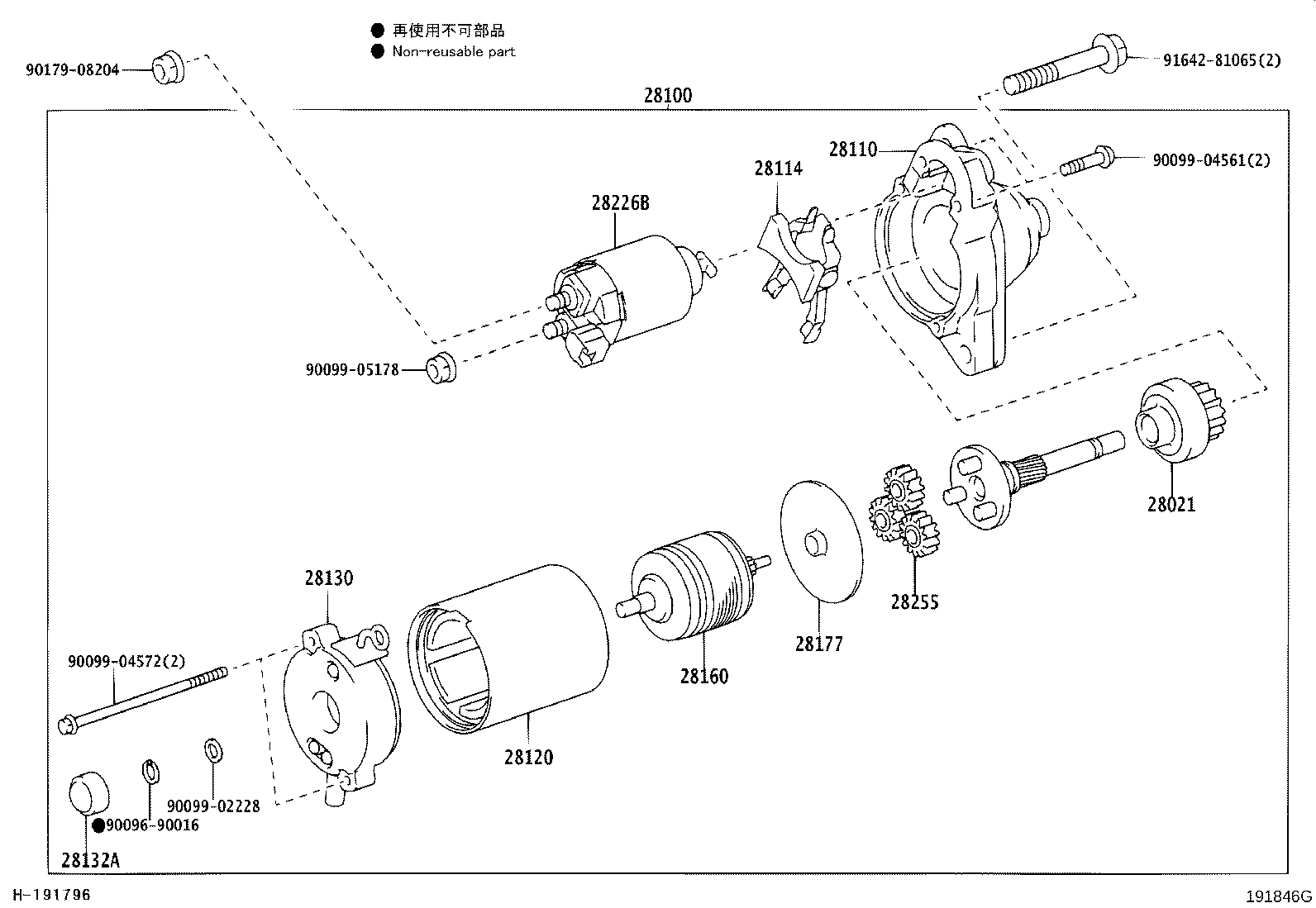

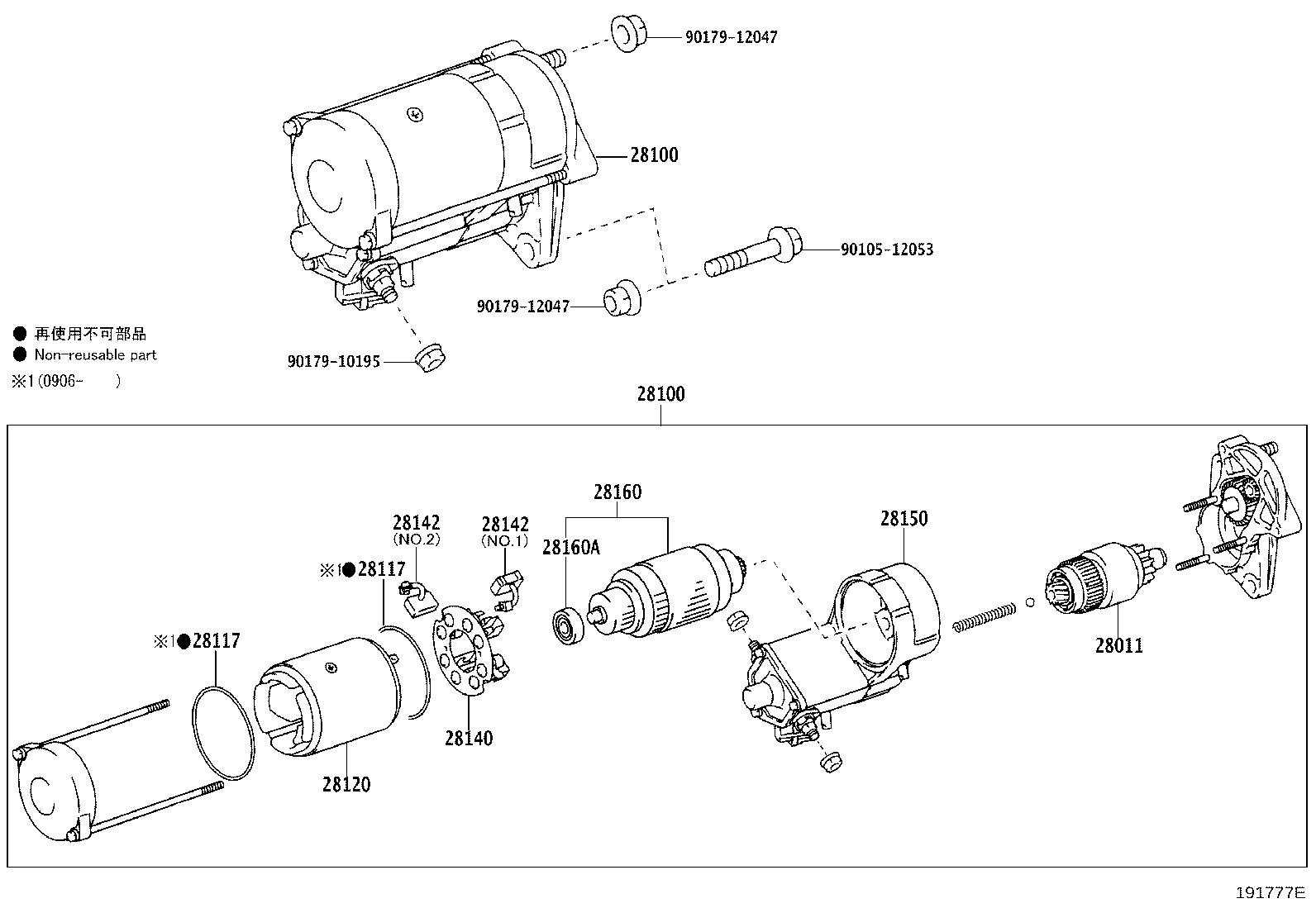

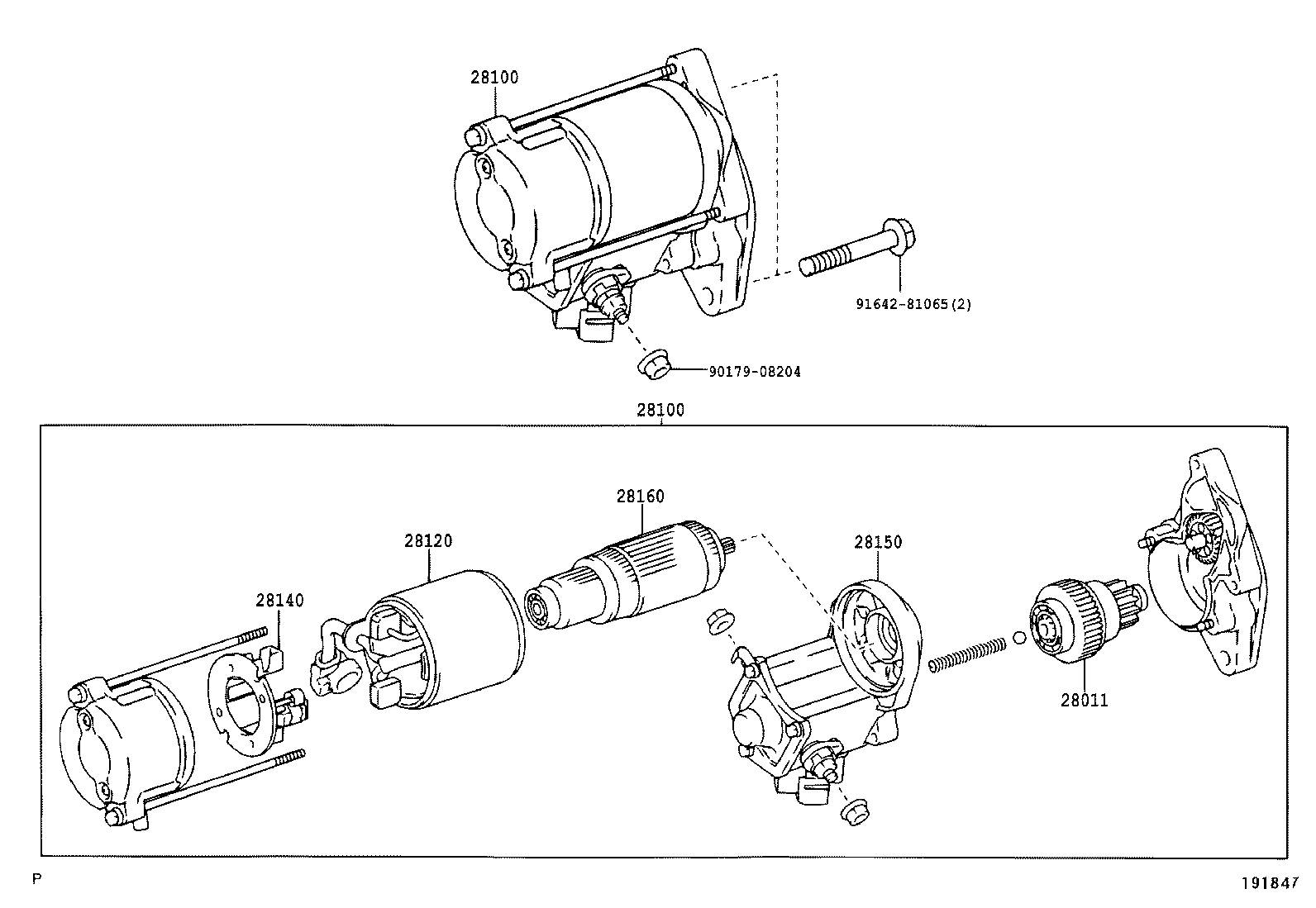

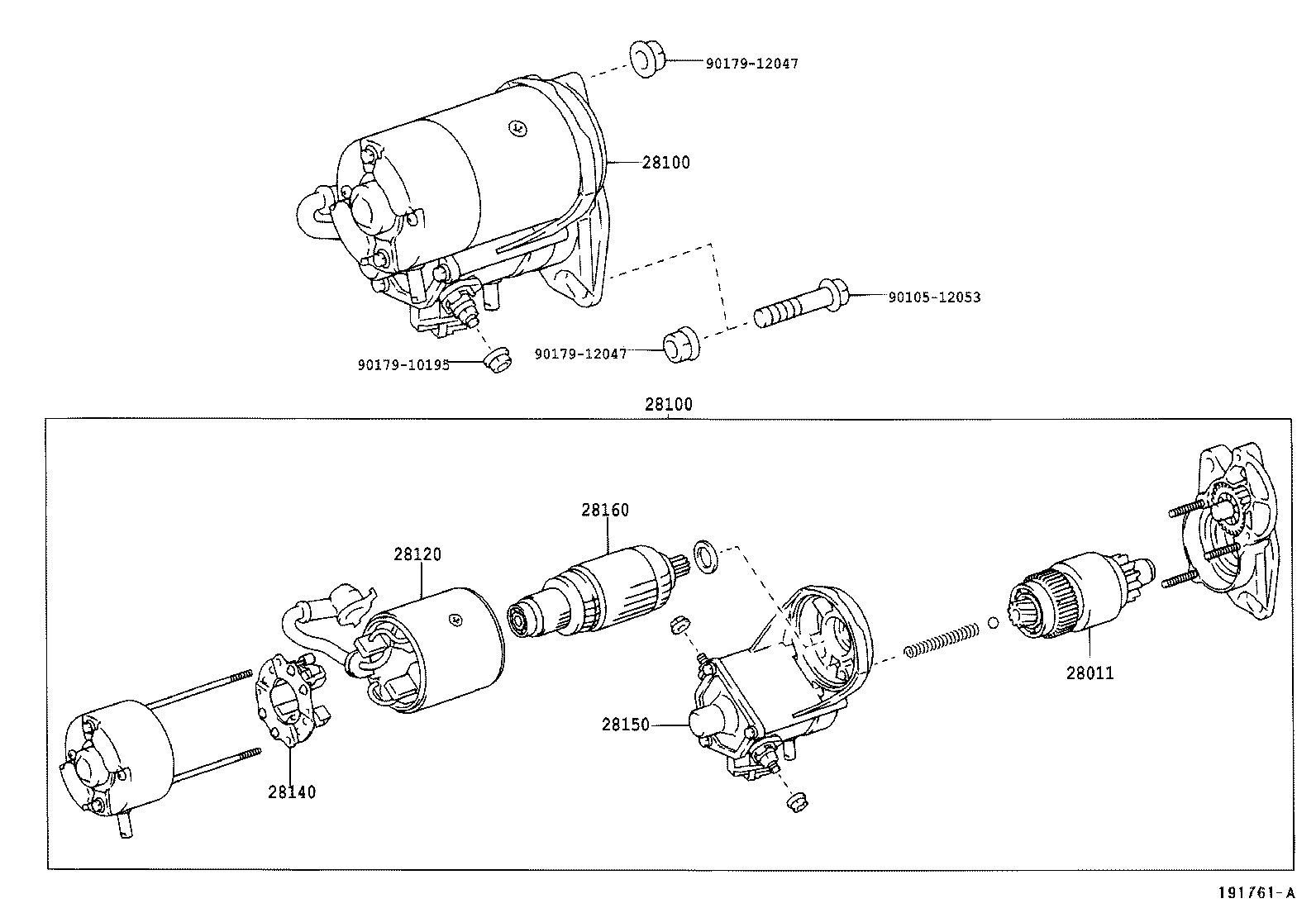

Figure 191760F 191760F 2002-09 → — Figure 191761A 191761A 2002-09 → — Figure 191777E 191777E 2002-09 → — Figure 191846G 191846G 2003-01 → — Figure 191847 191847 2003-01 → —

Part groups

PNCDescription
28011 Clutch Sub-assy, Starter
28021 Clutch Sub-assy, Starter Center Bearing
28100 Starter Assy
28110 Housing Assy, Starter Drive
28114 Pin, Starter Drive Lever Set
28117 Rubber(FOR STARTER YOKE)
28120 Yoke Assy, Starter
28130 Frame Assy, Starter Commutator End
28132A Cover, Starter Commutator End Frame
28140 Holder Assy, Starter Brush
28142 Brush, Starter
28150 Switch Assy, Magnet Starter
28160 Armature Assy, Starter
28160A Bearing, Starter Armature
28177 Plate(FOR STARTER ARMATURE)
28226B Starter Kit, Repair Service
28255 Gear, Planet
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
