Toyota Land Cruiser Prado

2002-09 → 2009-08 · chassis GRJ12#,KDJ12# · catalogue 781550 · Europe

Supported model Data version 2010-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Injection Nozzle

12 part groups · 3 illustrations

Illustrations

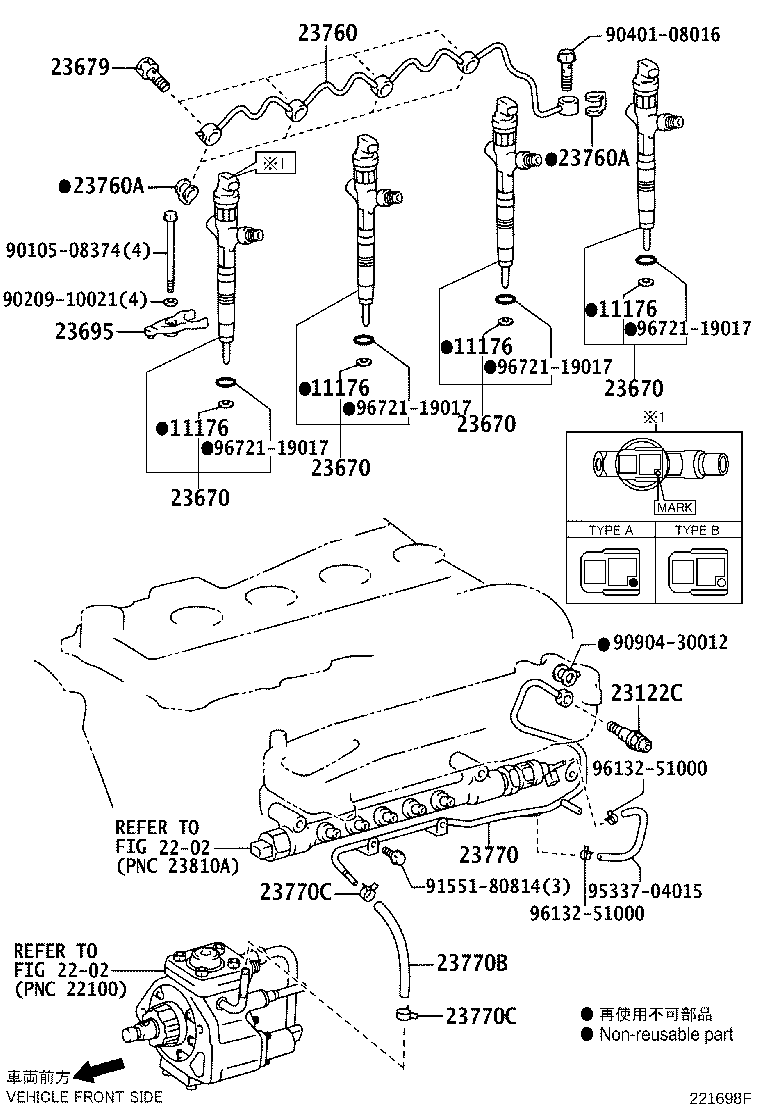

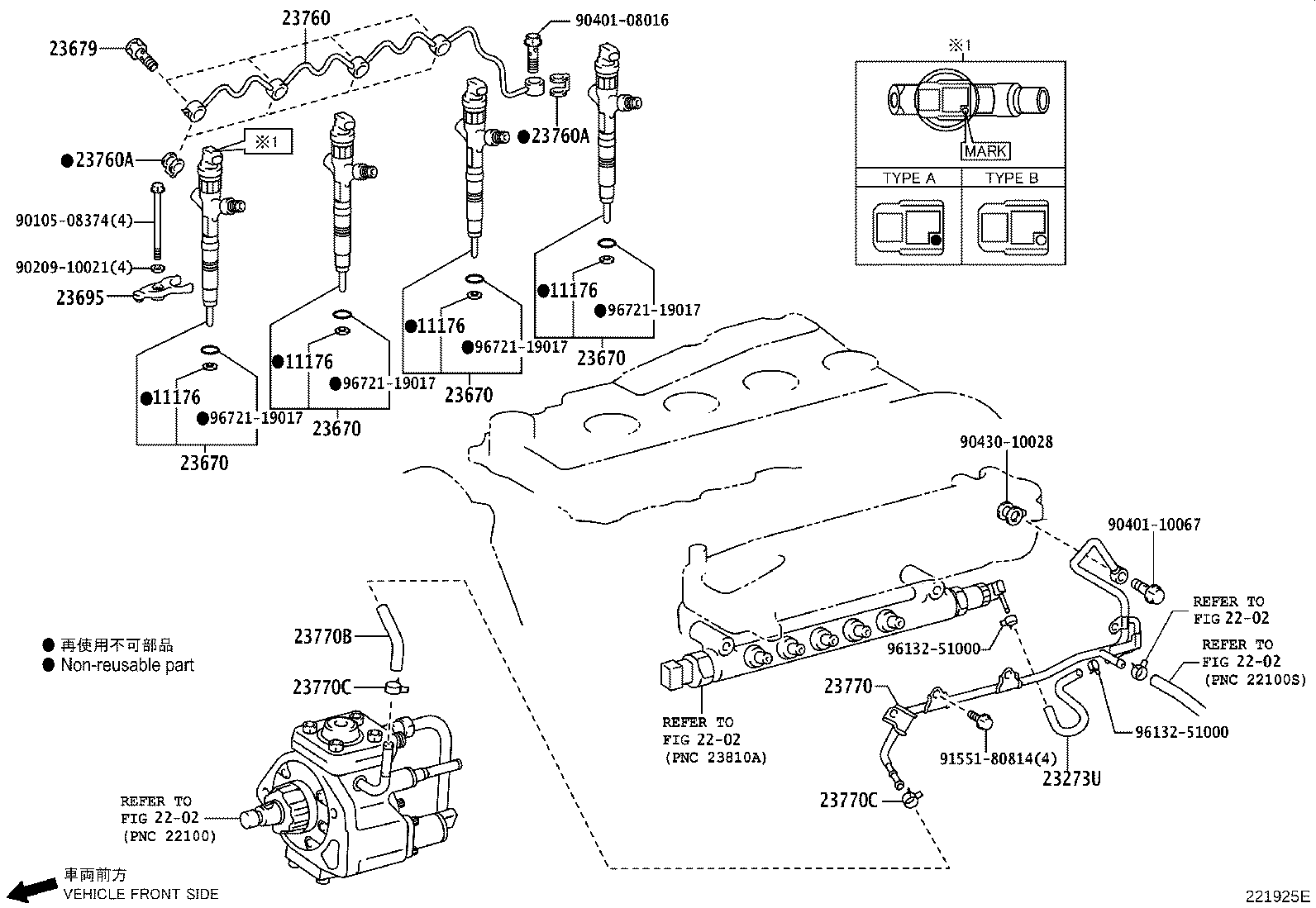

Figure 221366B 221366B 2002-09 → 2004-08 Figure 221698F 221698F 2004-08 → 2006-08 Figure 221925E 221925E 2006-08 → —

Part groups

PNCDescription
11176 Seat, Injection Nozzle
23122C Valve, Check
23256B Ring, Fuel Injector Back-up, NO.1
23273U Hose, Fuel, NO.2
23670 Injector Assy
23679 Screw, Injector Follow
23695 Clamp, Nozzle Holder, NO.1
23760 Pipe Assy, Nozzle Leakage
23760A Gasket
23770 Pipe Assy, Nozzle Leakage, NO.2
23770B Hose, Fuel
23770C Clamp OR Clip(FOR FUEL HOSE SET)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
