Toyota Land Cruiser Prado

2002-09 → 2009-08 · chassis GRJ12#,KDJ12# · catalogue 781550 · Europe

Supported model Data version 2010-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Injection Pump Assembly

17 part groups · 3 illustrations

Illustrations

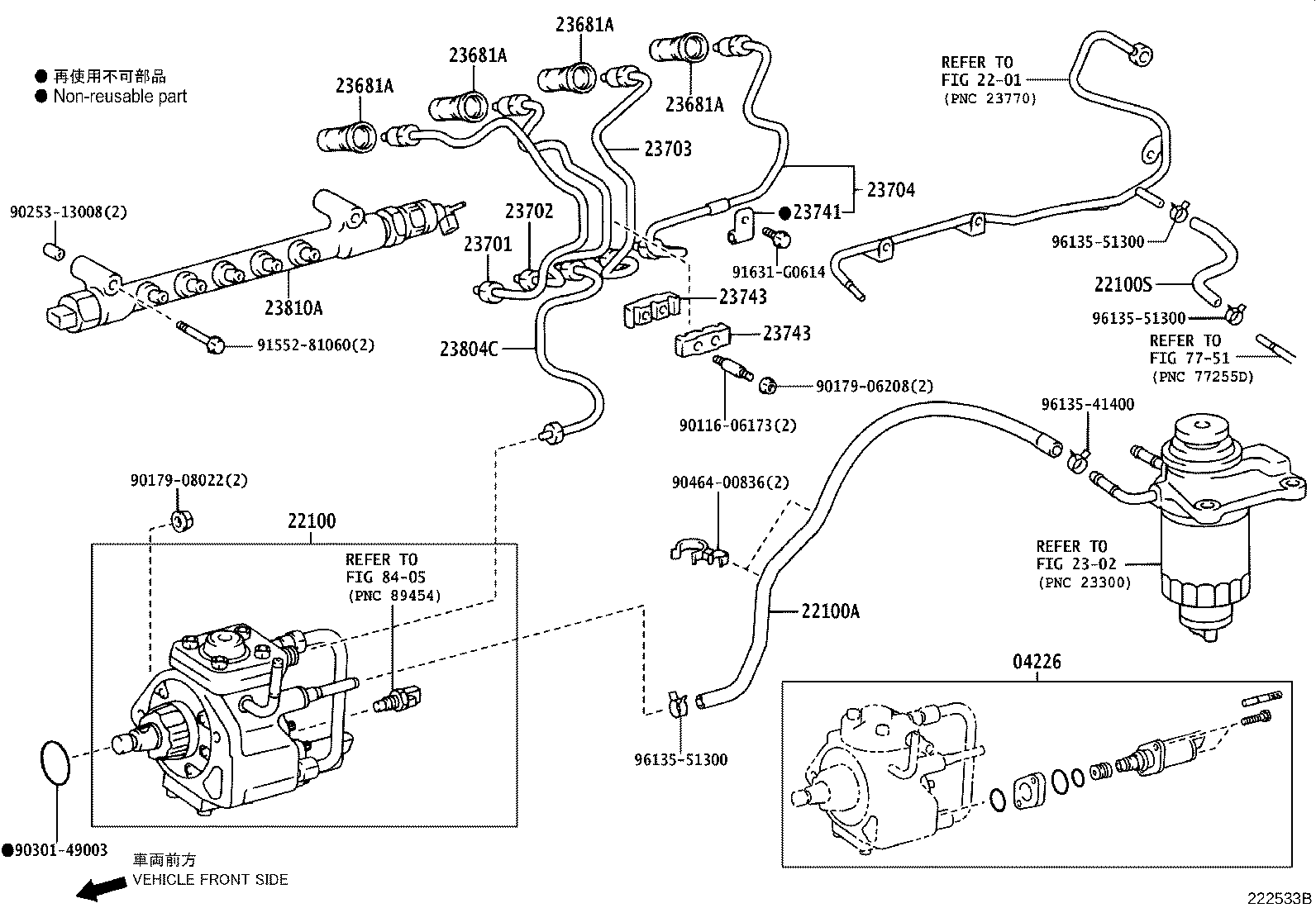

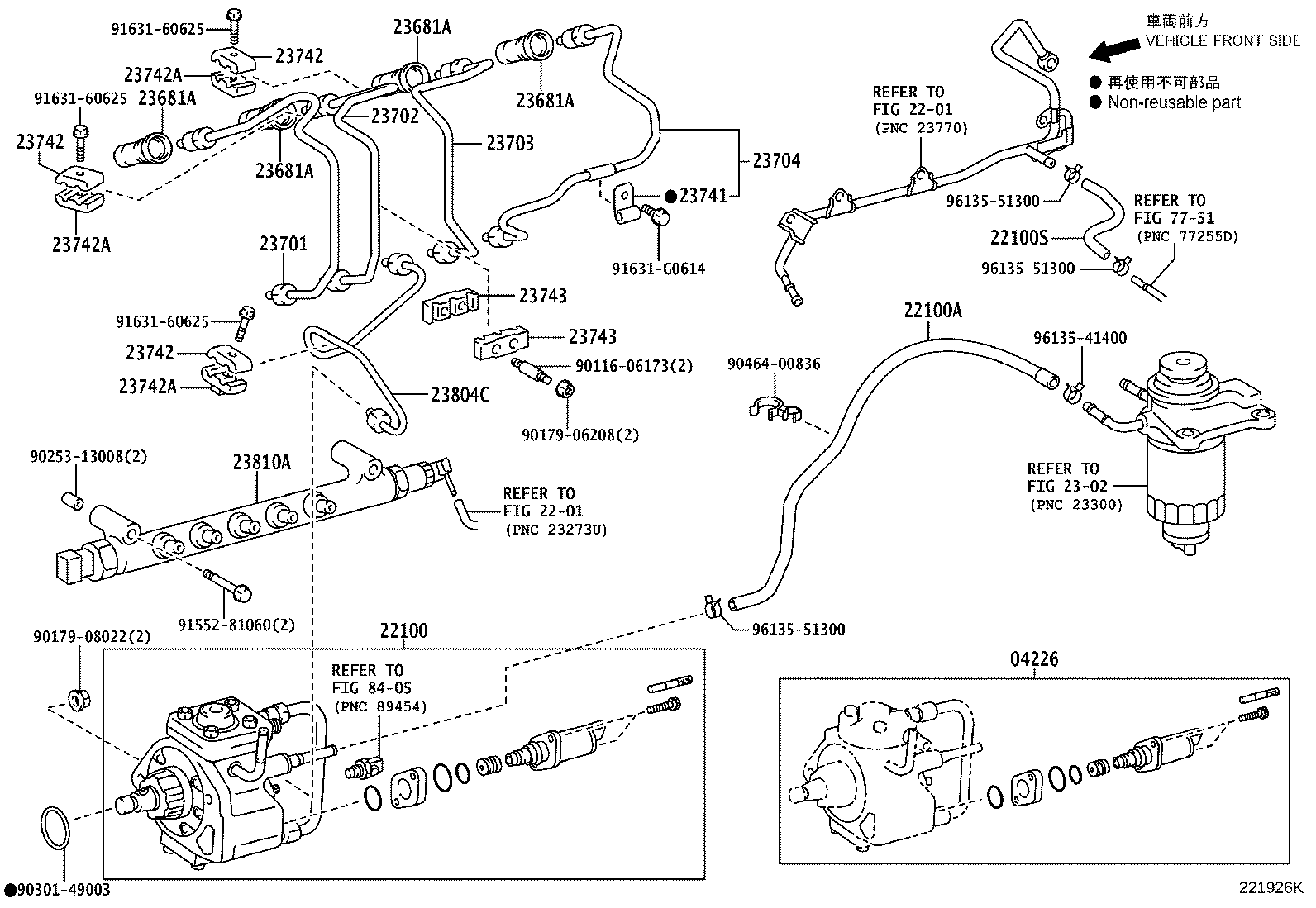

Figure 221367D 221367D 2002-09 → 2004-08 Figure 222533B 222533B 2004-08 → 2006-08 Figure 221926K 221926K 2006-08 → —

Part groups

PNCDescription
04226 Valve Kit, Suction Control
22100 Pump Assy, Injection OR Supply
22100A Hose OR Pipe, Fuel(FOR INJECTION PUMP TO FUEL FILTER)
22100S Hose, Fuel(FOR INJECTION PUMP TO FUEL PIPE)
22811 Stay, Injection Pump, NO.1
23681A Seal, Nozzle Holder
23701 Pipe Sub-assy, Injection, NO.1
23702 Pipe Sub-assy, Injection, NO.2
23703 Pipe Sub-assy, Injection, NO.3
23704 Pipe Sub-assy, Injection, NO.4
23741 Clamp, Injection Pipe, NO.1
23742 Clamp, Injection Pipe, NO.2
23742A Clamp, Injection Pipe, NO.3
23743 Clamp, Injection Pipe, NO.3
23744 Clamp, Injection Pipe, NO.4
23804C Pipe Sub-assy, Fuel Inlet
23810A Rail Assy, Common
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
