Toyota Land Cruiser Prado
2002-09 → 2009-08 · chassis GRJ12#,KDJ12# · catalogue 781550 · Europe
Supported model
Data version 2010-01

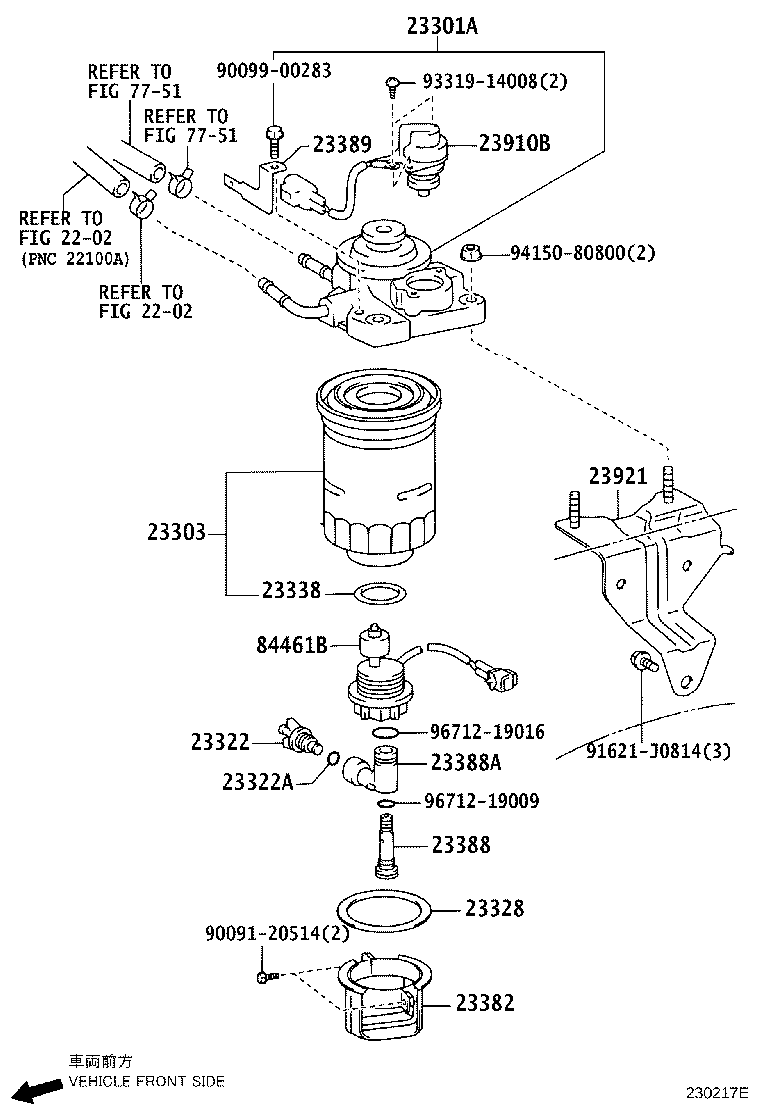

Fuel Filter
14 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 23300 | Filter Assy, Fuel |
| 23301A | Cap Assy, Fuel Filter |
| 23303 | Element Sub-assy, Fuel Filter |
| 23322 | Plug, Drain(FOR FUEL FILTER) |
| 23322A | Ring, O(FOR DRAIN PLUG) |
| 23328 | Gasket(FOR FUEL FILTER) |
| 23338 | Gasket(FOR WARNING SWITCH) |
| 23382 | Case, Fuel Filter |
| 23388 | Plug, Fuel Filter Drain |
| 23388A | Plug, Fuel Filter Drain |
| 23389 | Clamp, Fuel Filter |
| 23910B | Heater Assy, Fuel |
| 23921 | Support, Fuel Filter |
| 84461B | Switch, Level Warning |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
