Toyota Land Cruiser Prado

2002-09 → 2009-08 · chassis GRJ12#,KDJ12# · catalogue 781550 · Europe

Supported model Data version 2010-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Exhaust Gas Recirculation System

11 part groups · 3 illustrations

Illustrations

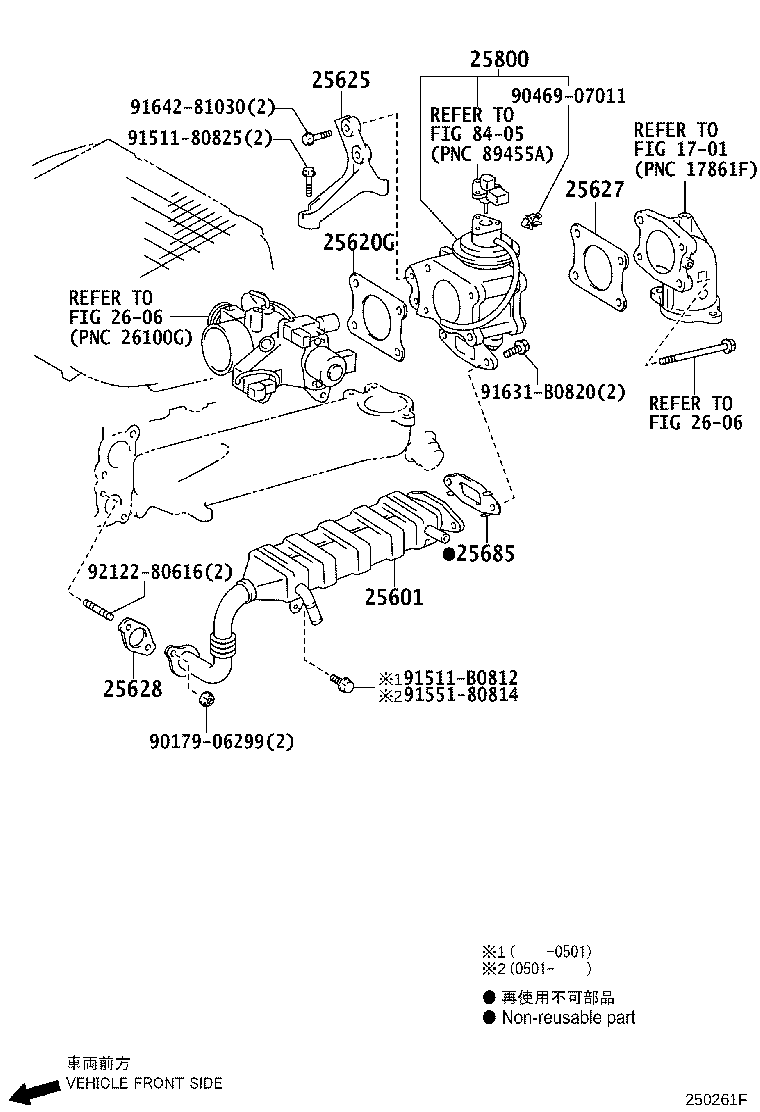

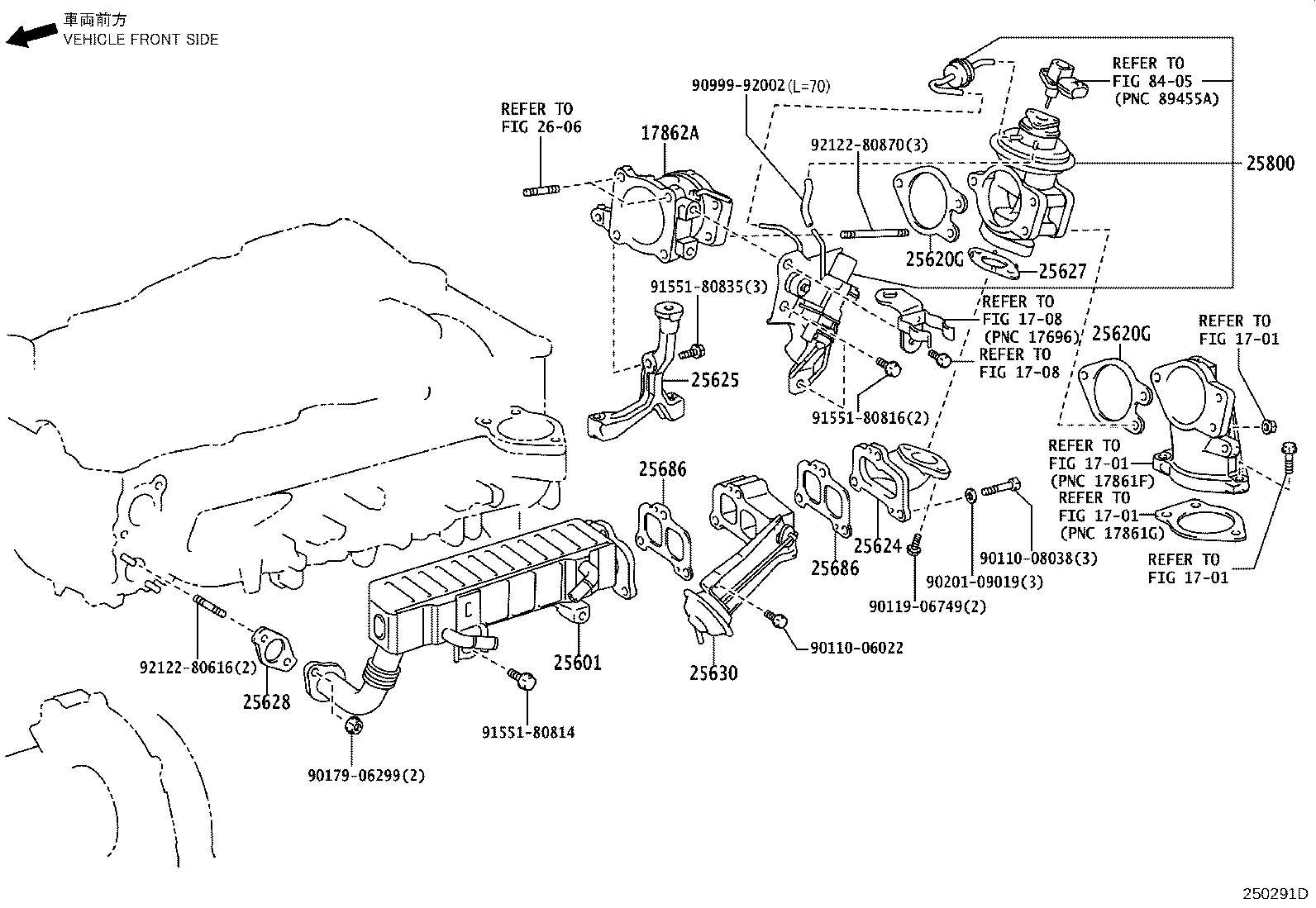

Figure 250120B 250120B 2002-09 → 2004-08 Figure 250261F 250261F 2004-08 → 2006-08 Figure 250291D 250291D 2006-08 → —

Part groups

PNCDescription
17862A Connector, Intake Air, NO.2
25601 Pipe Sub-assy, Egr, NO.1
25620G Gasket, Diesel Throttle
25624 Adapter, Egr Valve
25625 Bracket, Egr Valve
25627 Gasket, Egr Valve
25628 Gasket, Egr Inlet
25630 Valve Assy, Egr, NO.2
25685 Gasket, Egr Cooler, NO.1
25686 Gasket, Egr Cooler, NO.2
25800 Valve Assy, Electric Egr Control
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
