Toyota Land Cruiser Prado

2002-09 → 2009-08 · chassis GRJ12#,KDJ12# · catalogue 781550 · Europe

Supported model Data version 2010-01

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Venturi

3 part groups · 3 illustrations

Illustrations

Figure 260131B

260131B 2002-09 → 2004-08

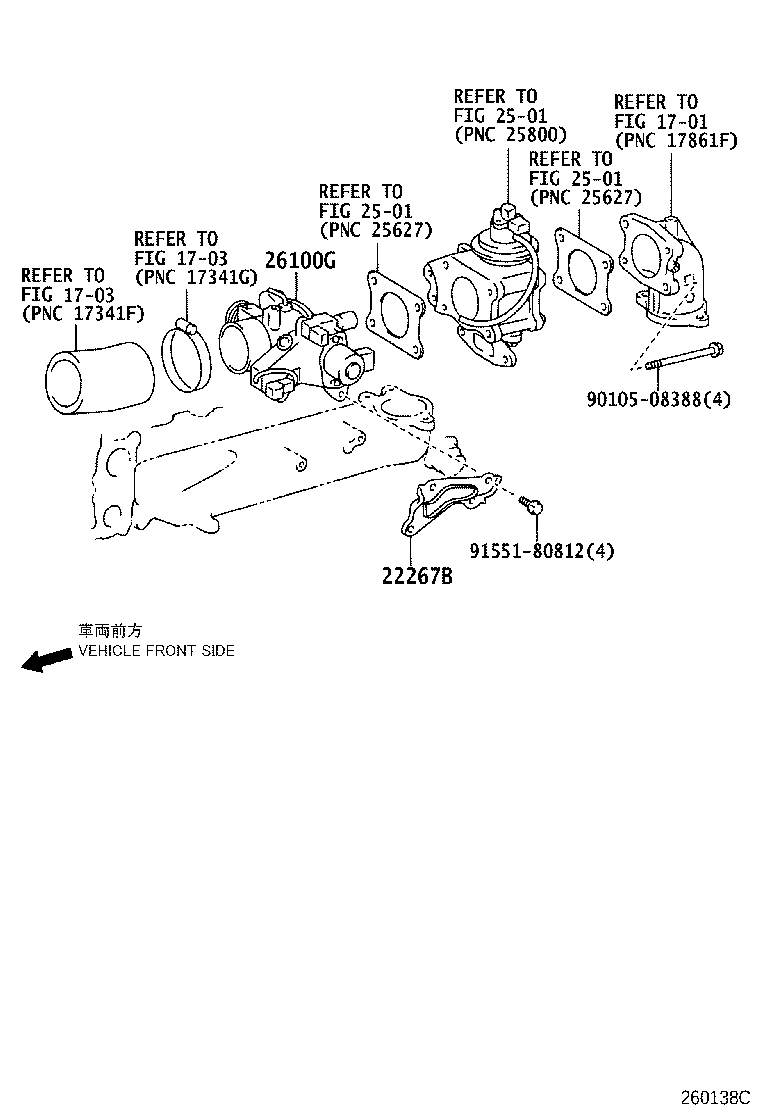

Figure 260138C

260138C 2004-08 → 2006-08

Figure 260289B

260289B 2006-08 → —

Part groups

PNC	Description
22267B	Bracket, Throttle Body
26100G	Body Assy, Diesel Throttle
26171	Gasket, Venturi

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
