Toyota Land Cruiser Prado
2002-09 → 2009-08 · chassis GRJ12#,KDJ12# · catalogue 781550 · Europe
Supported model
Data version 2010-01

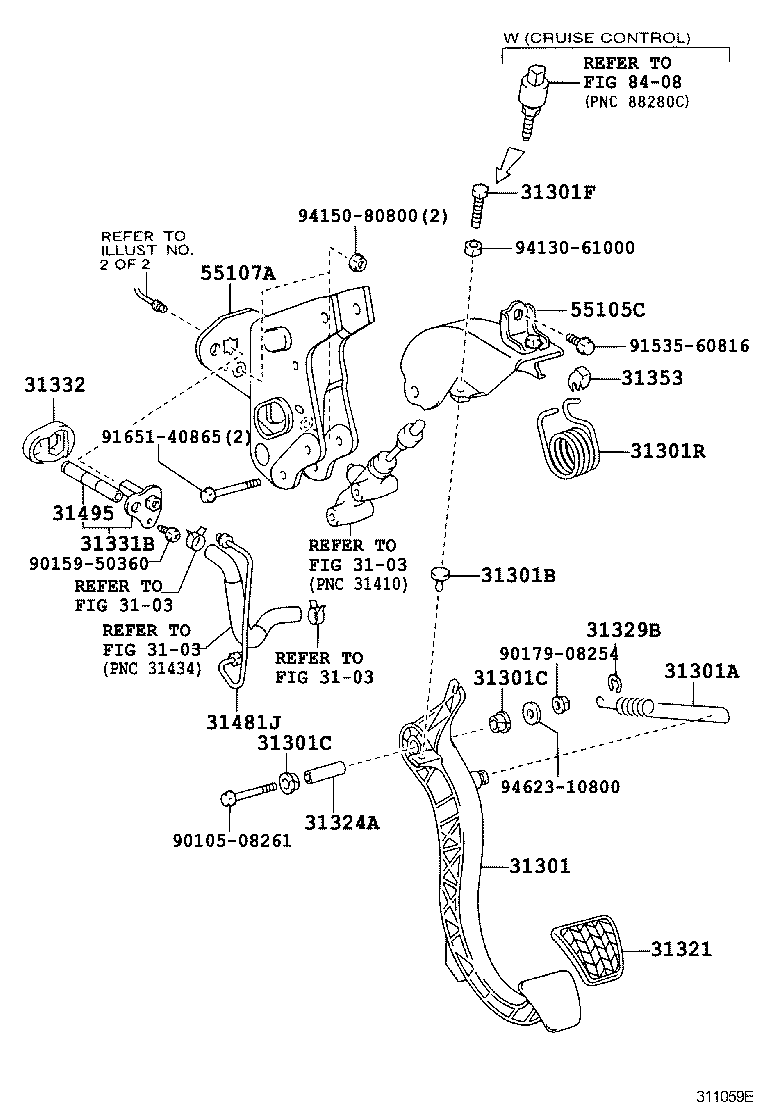

Clutch Pedal & Flexible Hose
22 part groups · 6 illustrations
Part groups
| PNC | Description |
|---|---|
| 31301 | Pedal Sub-assy, Clutch |
| 31301A | Spring(FOR CLUTCH PEDAL) |
| 31301B | Cushion, NO.1(FOR CLUTCH PEDAL) |
| 31301C | Bush(FOR CLUTCH PEDAL) |
| 31301F | Bolt(FOR CLUTCH PEDAL STOPPER) |
| 31301R | Spring, Compression(FOR TURNOVER SPRING SEAT) |
| 31321 | Pad, Clutch Pedal |
| 31324A | Collar, Clutch Pedal Shaft |
| 31329B | Ring, E(FOR CLUTCH PEDAL PAWL) |
| 31331B | Way, Clutch Pedal Support |
| 31332 | Grommet, Clutch Pedal Support |
| 31353 | Holder, Clutch Pedal Spring |
| 31418 | Hose, Clutch |
| 31481 | Tube, Clutch Master Cylinder TO Flexible Hose |
| 31481J | Tube, Clutch Master Cylinder TO 2 Way |
| 31482 | Tube, Clutch Release Cylinder TO Flexible Hose |
| 31483B | Tube, Accumulator TO Flexible Hose |
| 31484 | Bracket, Flexible Hose(FOR CLUTCH) |
| 31490 | Accumulator Assy, Clutch |
| 31495 | Way, Clutch Tube |
| 55105C | Support, Pedal Bracket Clutch Wire |
| 55107A | Support Sub-assy, Clutch Pedal |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
