Toyota Land Cruiser Prado

2002-09 → 2009-08 · chassis GRJ12#,KDJ12# · catalogue 781550 · Europe

Supported model Data version 2010-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Oil Cooler & Tube (ATM)

24 part groups · 5 illustrations

Illustrations

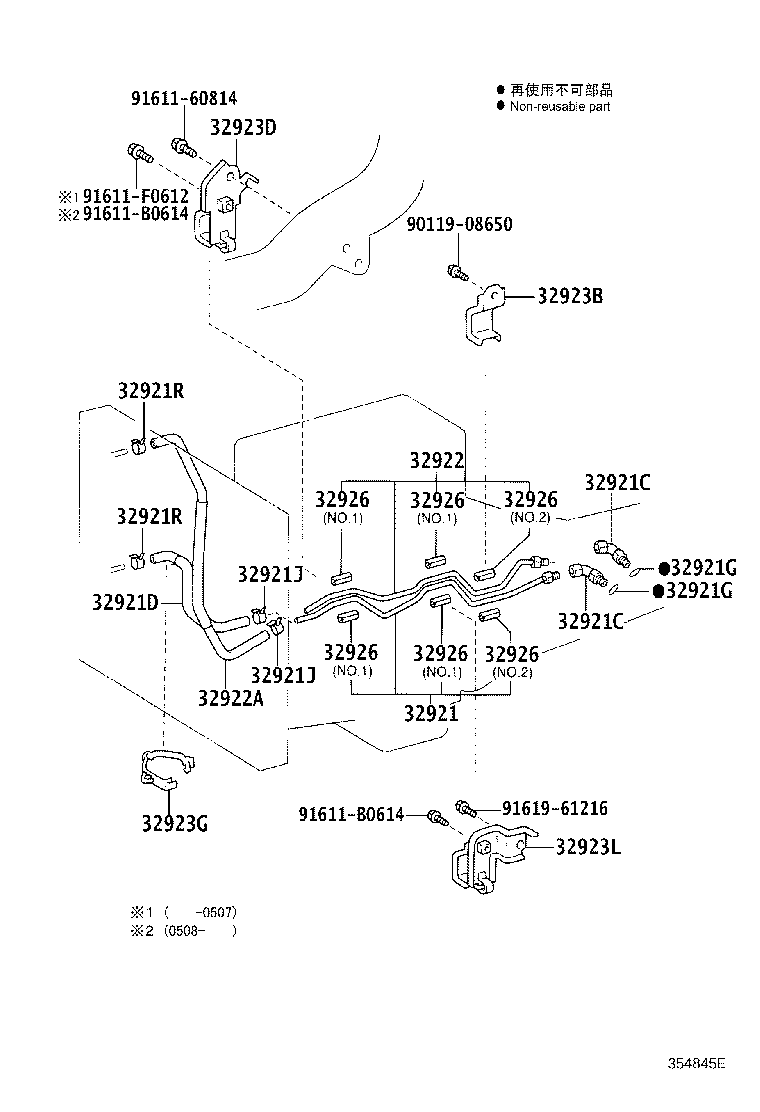

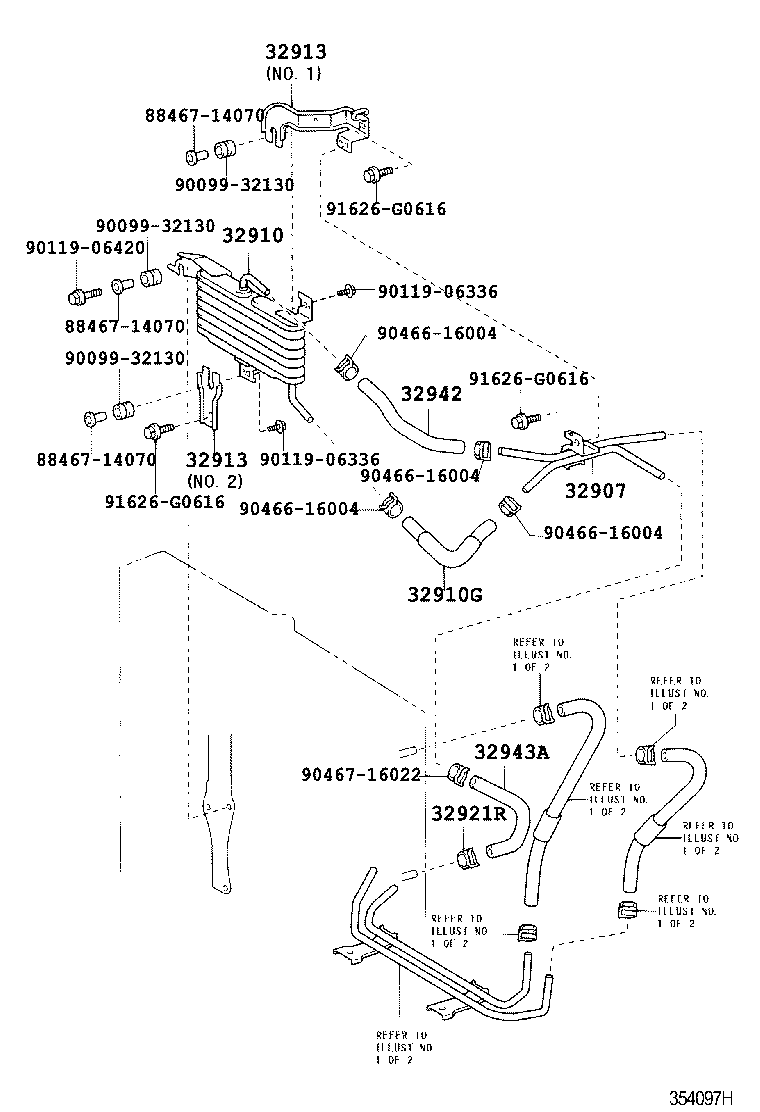

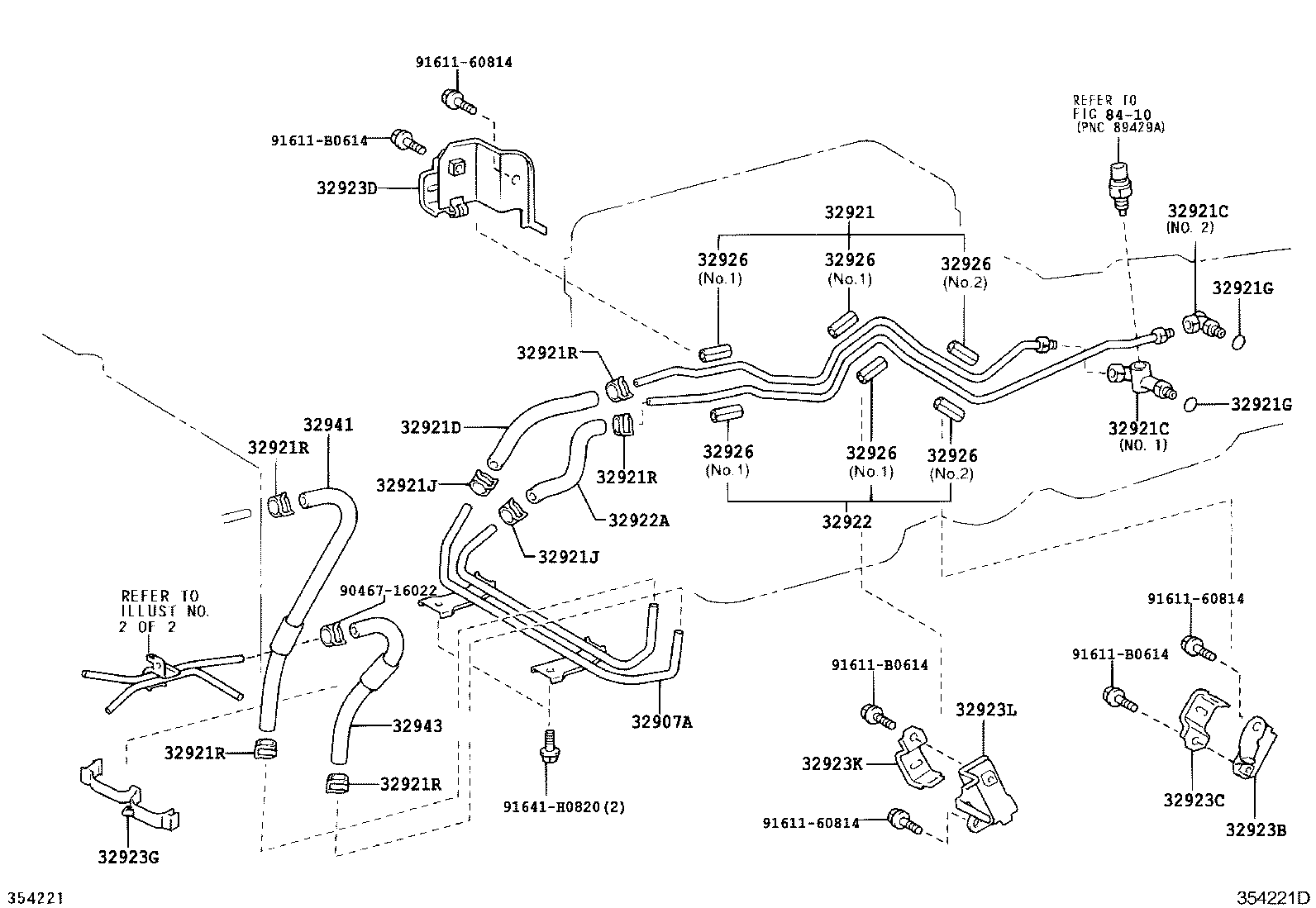

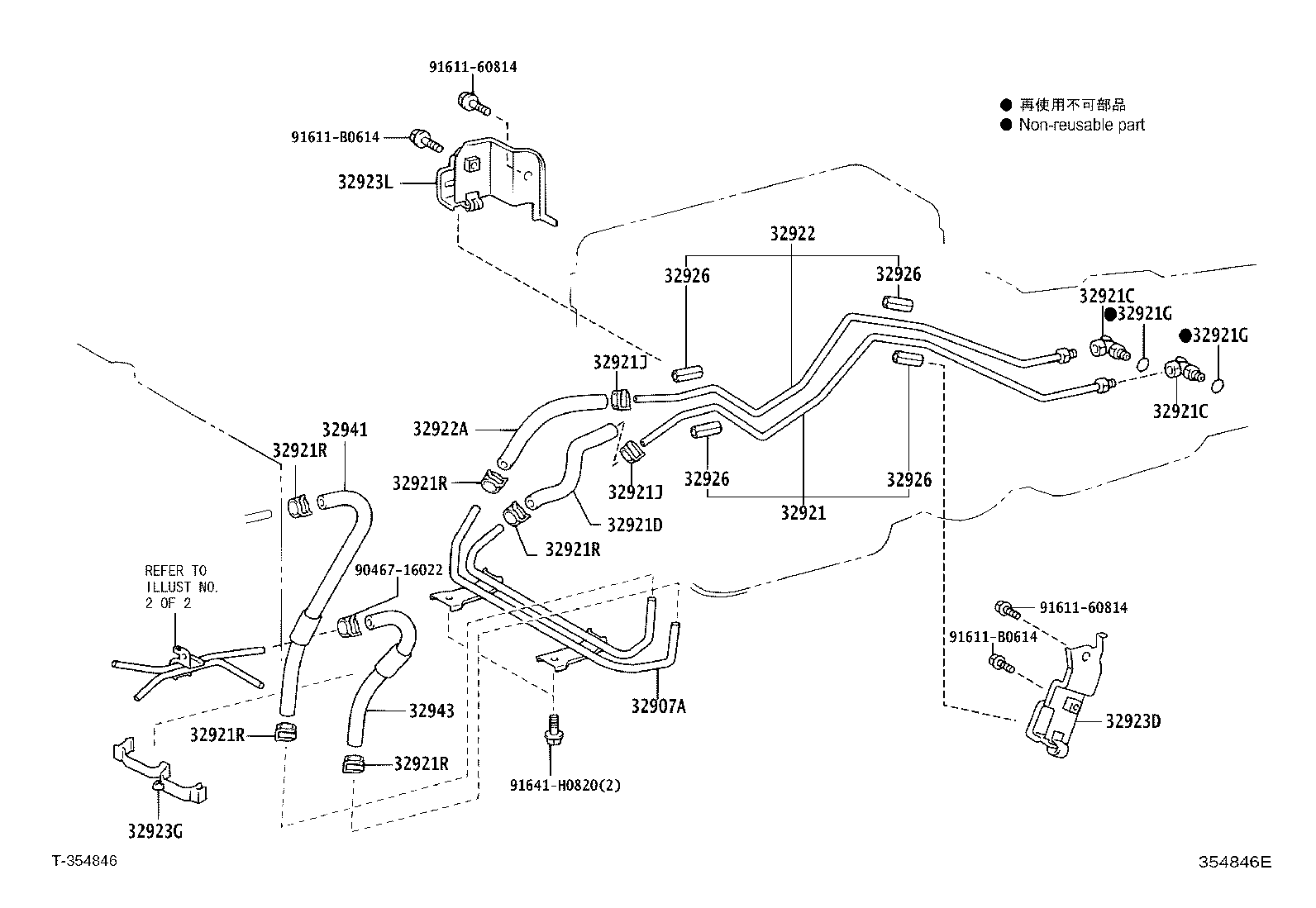

Figure 354131B 354131B 2002-09 → 2004-08 Figure 354221D 354221D 2003-01 → 2004-08 Figure 354846E 354846E 2004-08 → — Figure 354097H 354097H 2003-01 → — Figure 354845E 354845E 2004-08 → —

Part groups

PNCDescription
32907 Tube Sub-assy, Oil Cooler Outlet, NO.2
32907A Tube, Oil Cooler
32910 Cooler Assy, Oil
32910G Hose, Oil Cooler Outlet
32913 Bracket, Oil Cooler
32921 Tube, Oil Cooler Inlet, NO.1
32921C Union(FOR OIL COOLER TUBE)
32921D Hose(FOR OIL COOLER INLET)
32921G Ring, O(FOR OIL COOLER TUBE UNION)
32921J Clip(FOR OIL COOLER HOSE)
32921R Clip, NO.2(FOR OIL COOLER HOSE)
32922 Tube, Oil Cooler Outlet, NO.1
32922A Hose(FOR OIL COOLER OUTLET)
32923B Clamp, Automatic Transmission Oil Cooler Tube, NO.1
32923C Clamp, Automatic Transmission Oil Cooler Tube, NO.4
32923D Clamp, Automatic Transmission Oil Cooler Tube, NO.5
32923G Clamp, Automatic Transmission Oil Cooler Tube, NO.8
32923K Clamp, Automatic Transmission Oil Cooler Tube, NO.2
32923L Clamp, Automatic Transmission Oil Cooler Tube, NO.3
32926 Cushion, Oil Cooler Tube(ATM)
32941 Hose, Oil Cooler Inlet, NO.1
32942 Hose, Oil Cooler Outlet, NO.1
32943 Hose, Transmission Oil Cooler, NO.1
32943A Hose, Transmission Oil Cooler, NO.2
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
