Toyota Land Cruiser Prado

2002-09 → 2009-08 · chassis GRJ12#,KDJ12# · catalogue 781550 · Europe

Supported model Data version 2010-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Transfer Case & Extension Housing

44 part groups · 10 illustrations

Illustrations

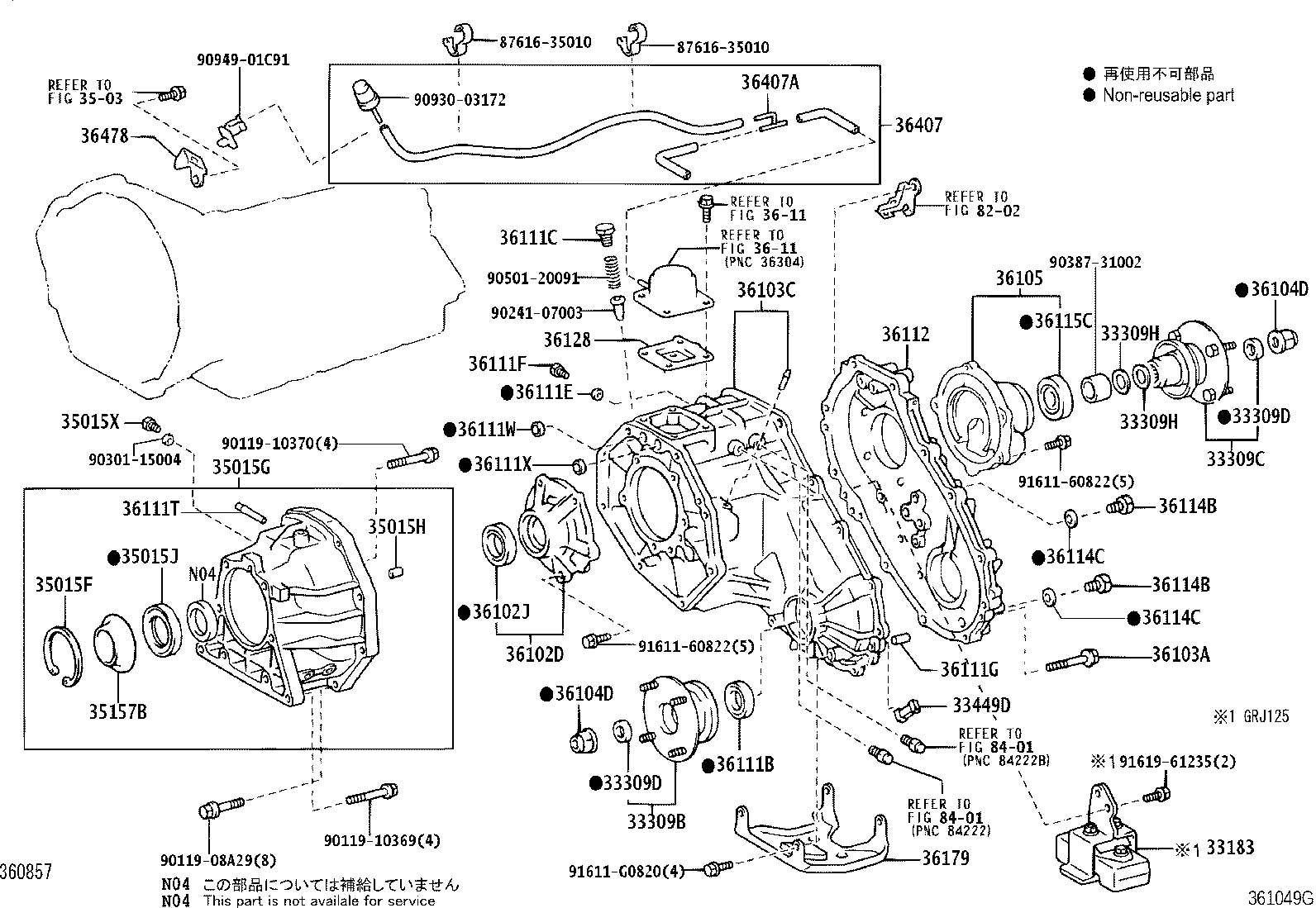

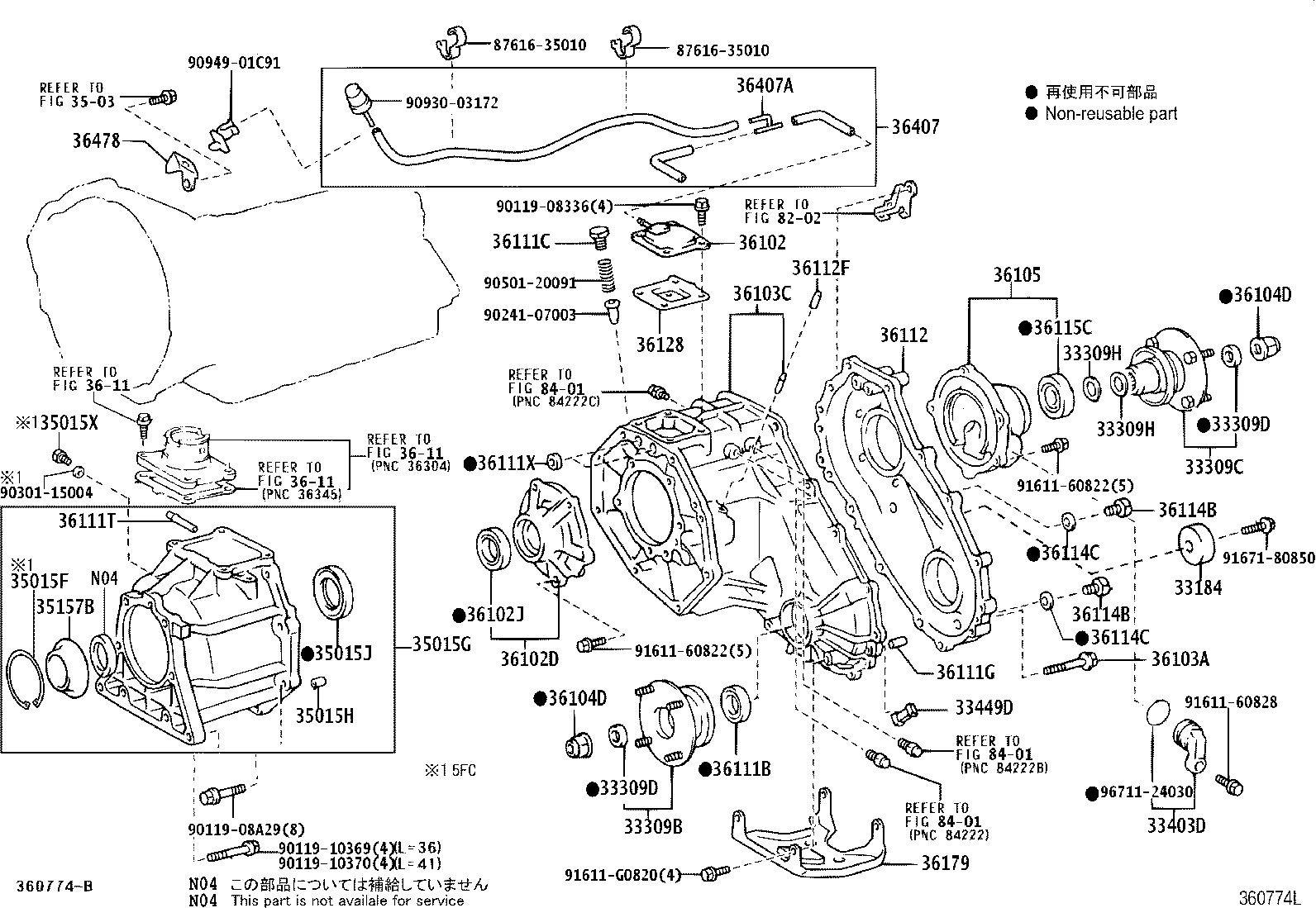

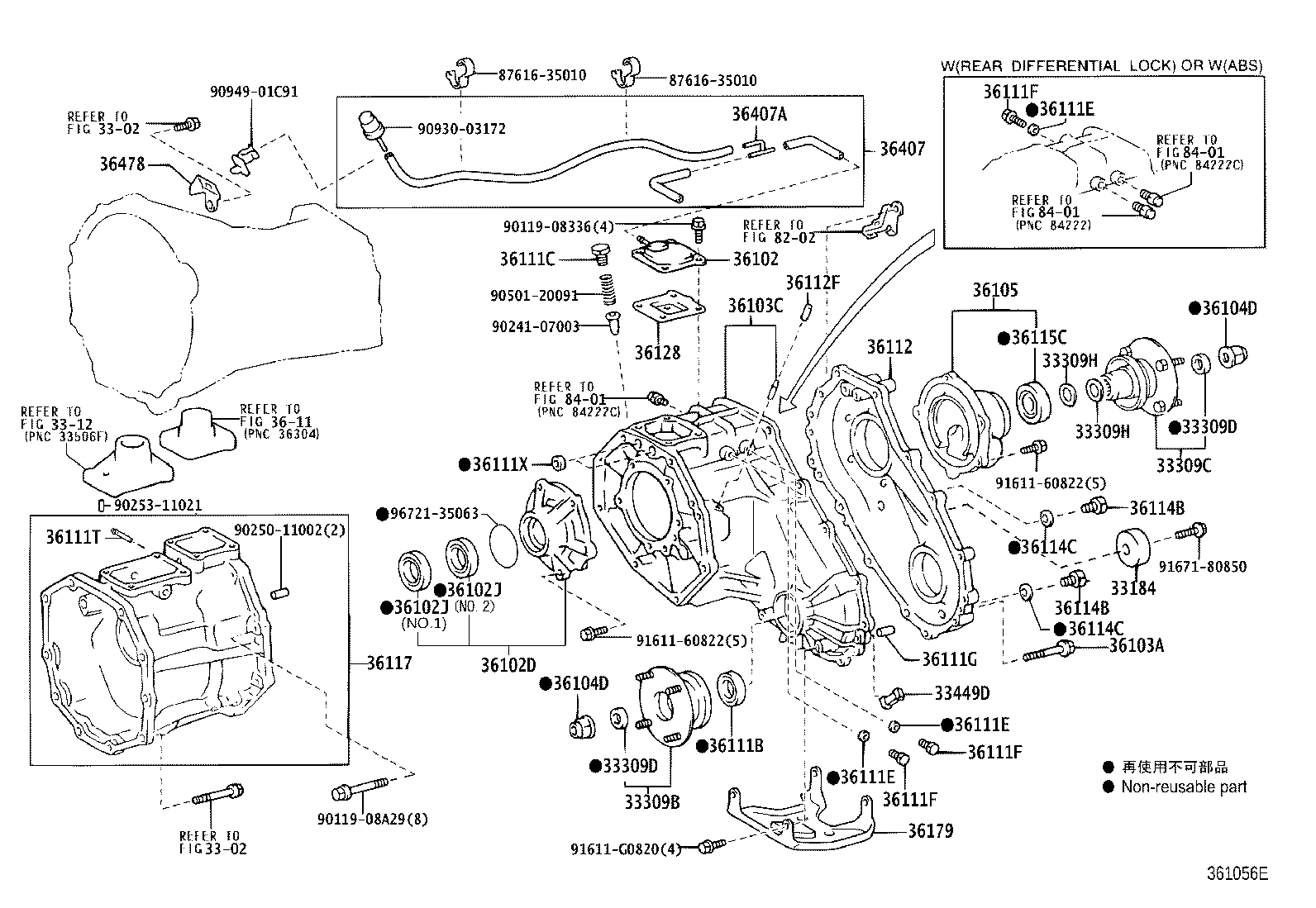

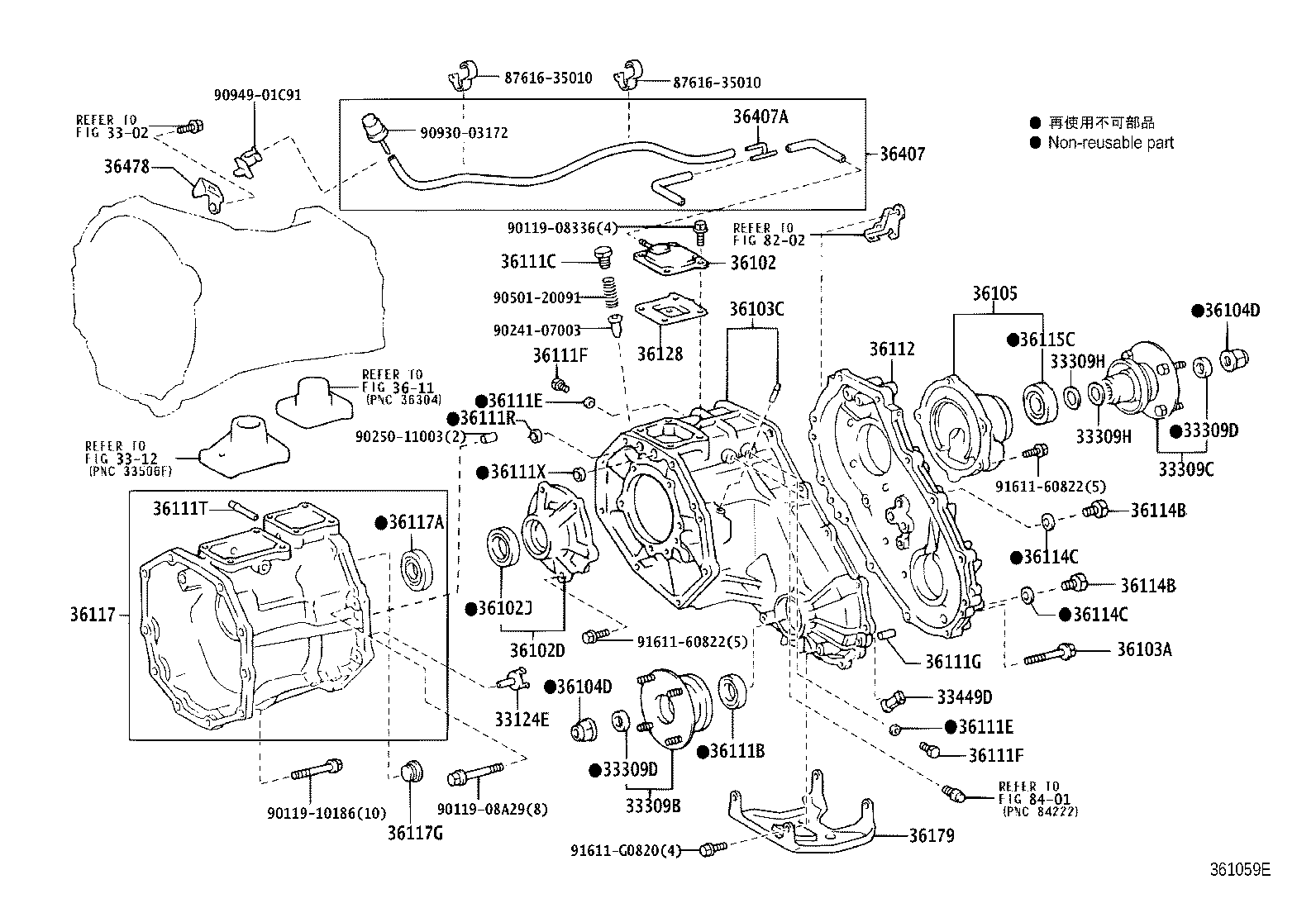

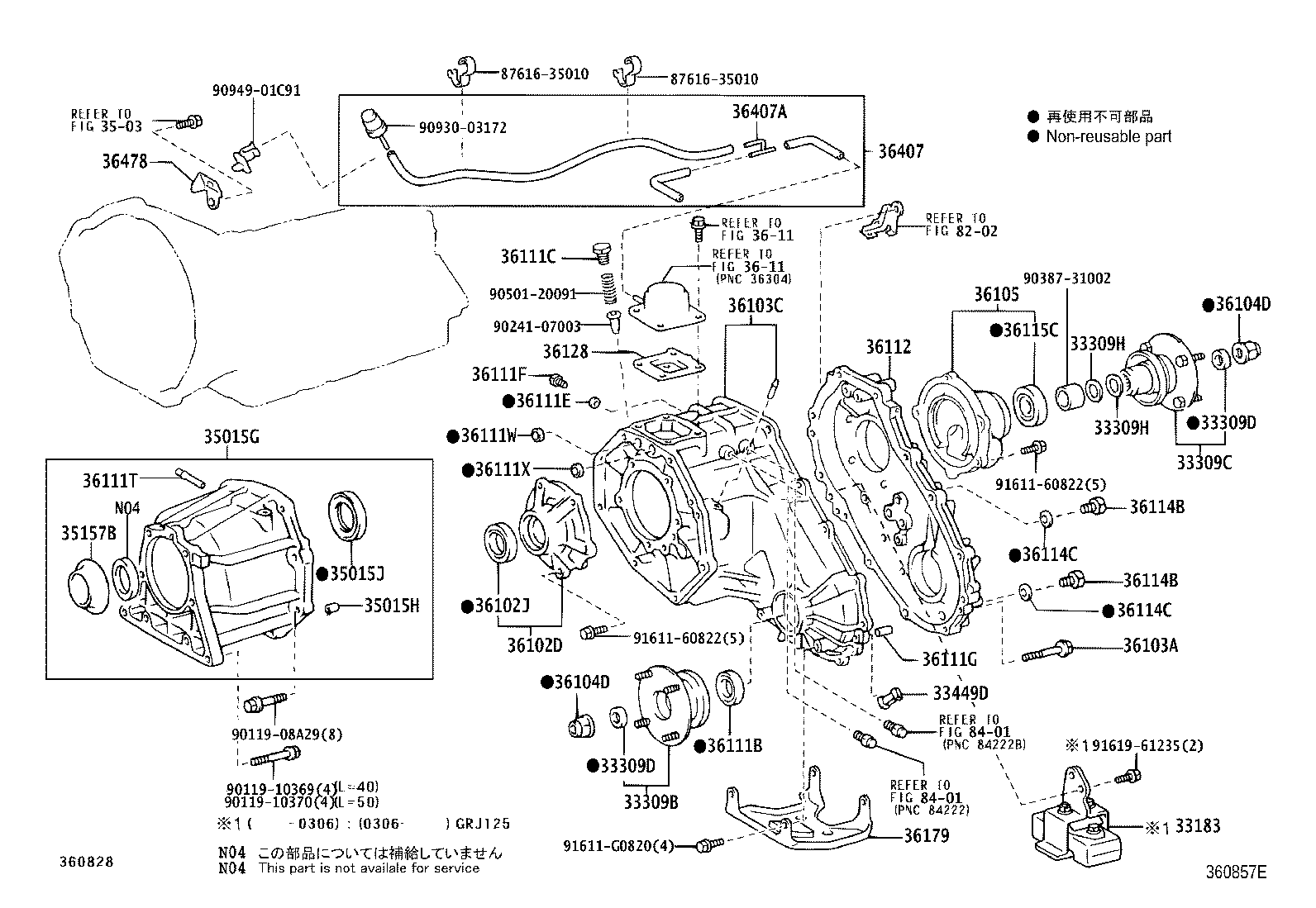

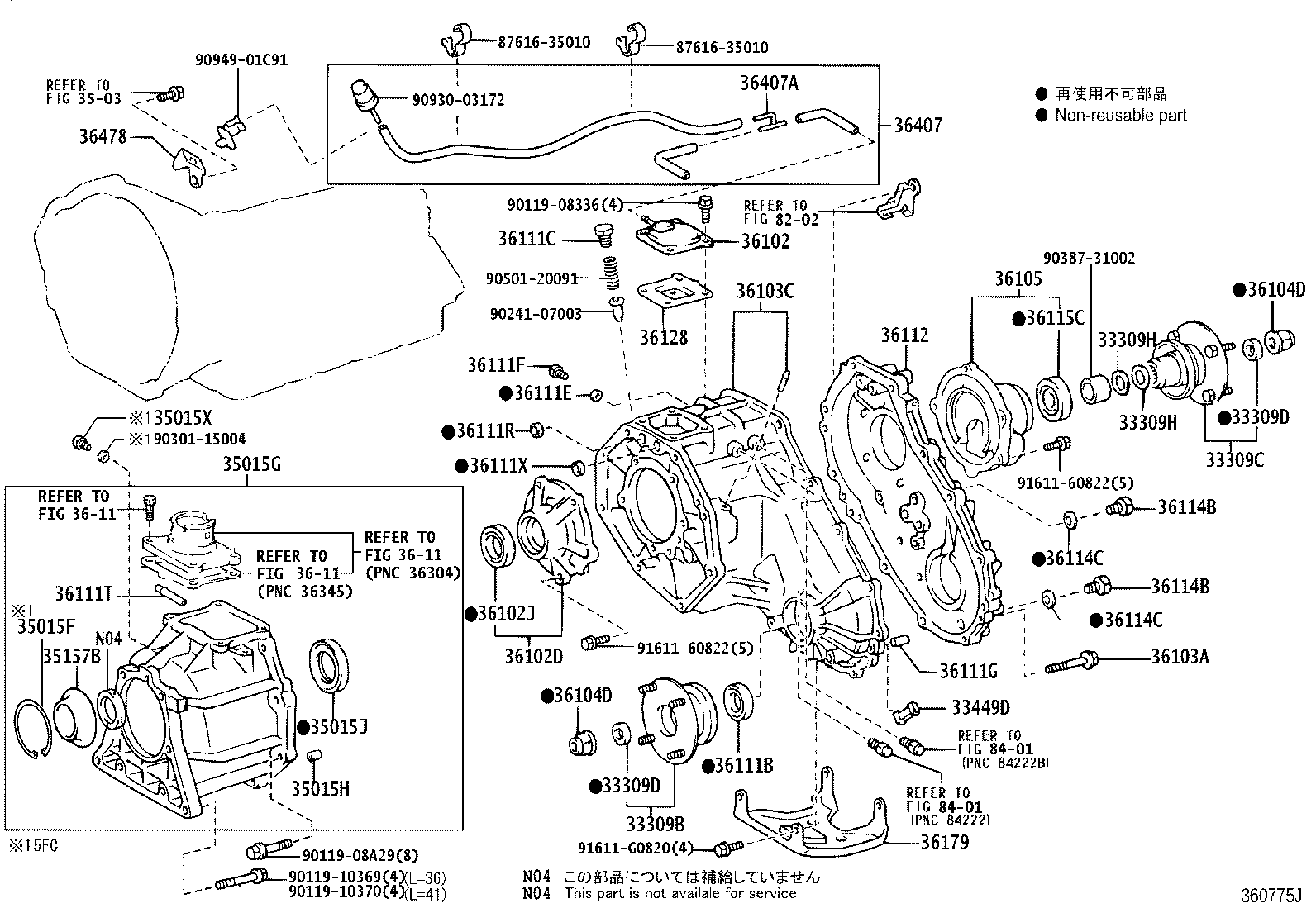

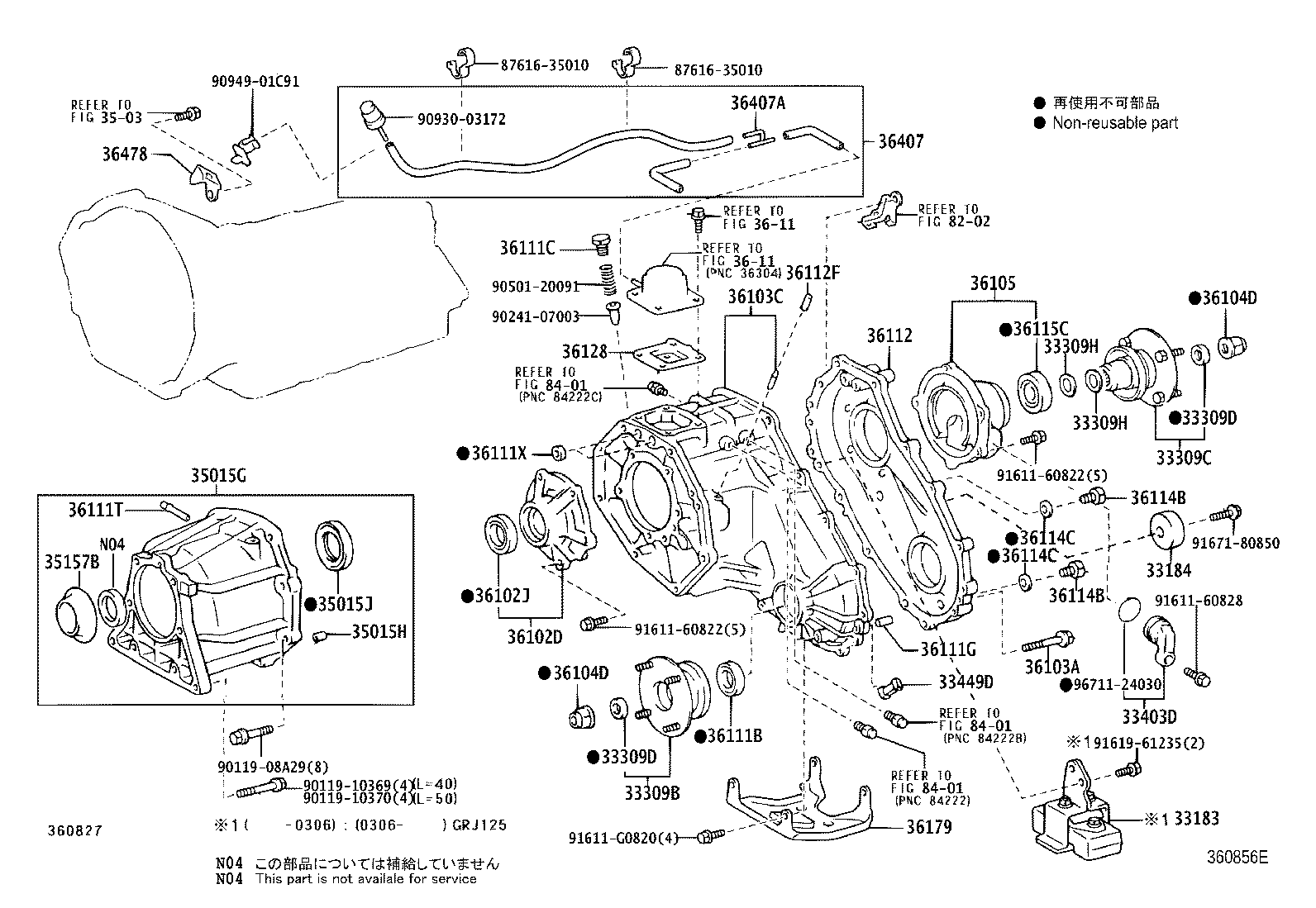

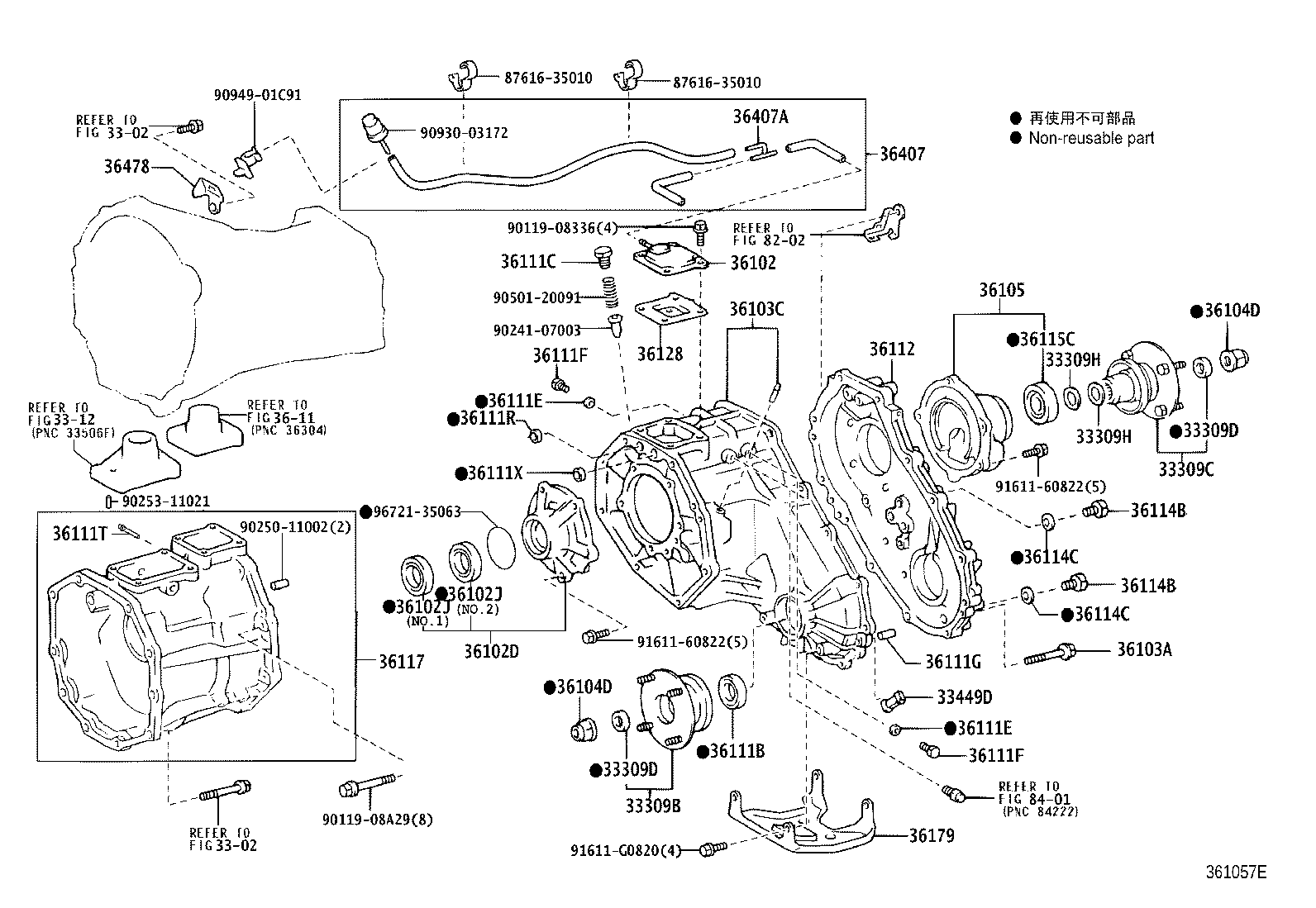

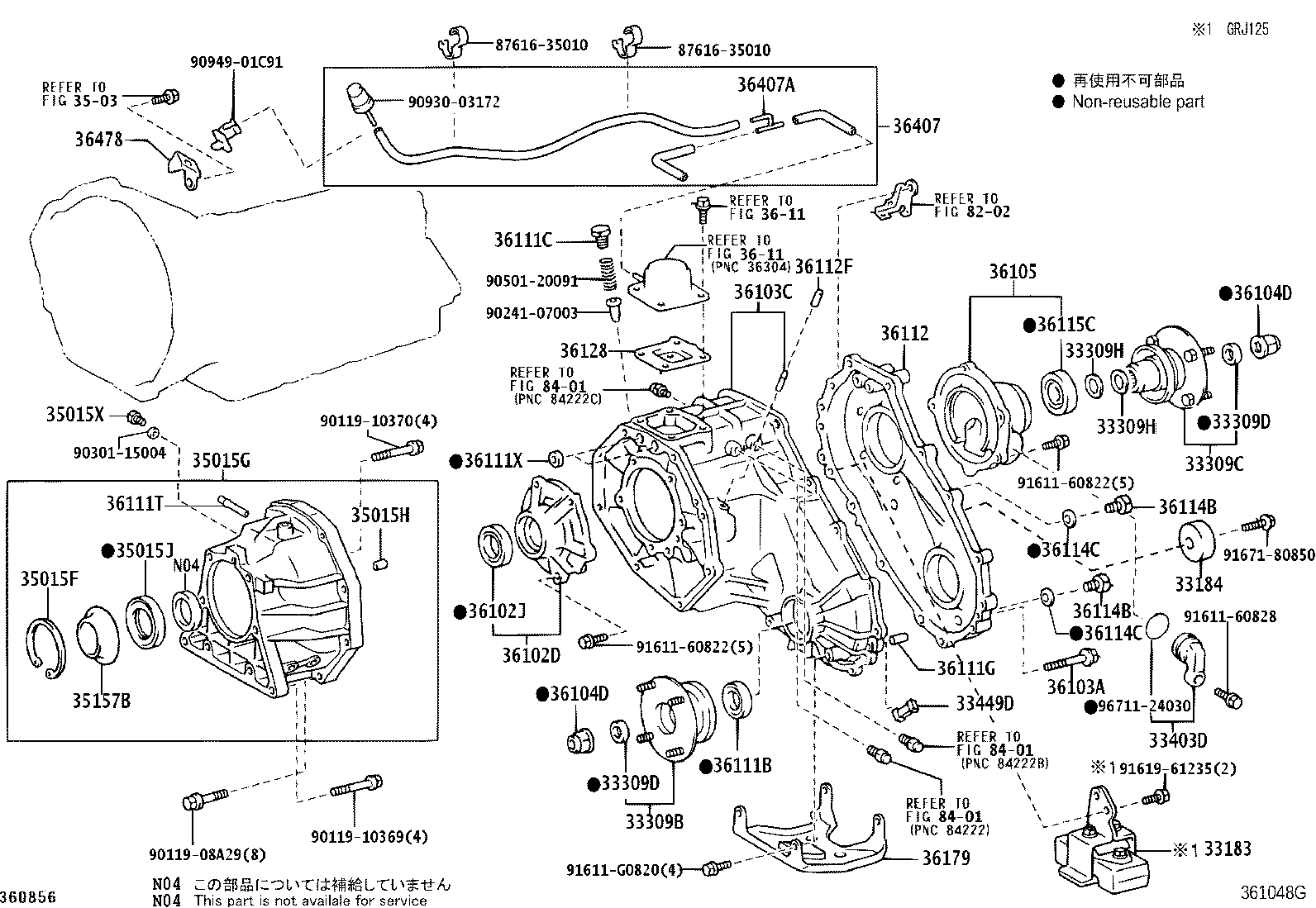

Figure 361058E 361058E 2002-09 → — Figure 361056E 361056E 2004-08 → — Figure 361059E 361059E 2002-09 → — Figure 361057E 361057E 2004-08 → — Figure 360774L 360774L 2002-09 → — Figure 360856E 360856E 2003-01 → — Figure 360775J 360775J 2002-09 → — Figure 360857E 360857E 2003-01 → — Figure 361048G 361048G 2004-08 → — Figure 361049G 361049G 2004-08 → —

Part groups

PNCDescription
33124E Pipe, Oil Receiver(FOR TRANSFER)
33183 Damper, Transfer Dynamic
33184 Weight, Dynamic Damper
33309B Flange Sub-assy, Output Shaft Companion
33309C Flange Sub-assy, Output Shaft Companion
33309D Seal, Oil(FOR TRANSFER OUTPUT SHAFT COMPANION FLANGE)
33309H Washer, Transfer Output Shaft
33403D Cover Sub-assy, Speedometer Driven Hole
33449D Magnet (FOR TRANSFER CASE)
35015F Ring, Hole Snap(FOR TRANSFER ADAPTER)
35015G Adapter, Transfer, Rear
35015H Pin, Ring(FOR TRANSFER CASE)
35015J Seal, Oil(FOR TRANSFER CASE ADAPTER REAR)
35015X Plug, Refill(FOR TRANSMISSION CASE ADAPTER)
35157B Receiver, Transfer Case Rear Adapter Oil
36102 Cover Sub-assy, Transfer Case
36102D Retainer Sub-assy, Transfer RH Bearing
36102J Seal, Type T Oil (FOR TRANSFER COVER)
36103A Bolt (FOR TRANSFER CASE)
36103C Case, Transfer, Front
36104D Nut (FOR TRANSFER OUTPUT SHAFT)
36105 Housing Sub-assy, Transfer Extension, Front
36111B Seal, Oil (FOR TRANSFER CASE)
36111C Plug (FOR TRANSFER CASE)
36111E Gasket (FOR TRANSFER CASE)
36111F Plug (FOR TRANSFER CASE)
36111G Pin, Straight (FOR TRANSFER CASE)
36111R Plug, Tight (FOR TRANSFER CASE)
36111T Tube (FOR TRANSFER CASE)
36111W Plug, Tight NO.2(FOR TRANSFER CASE)
36111X Seal, Oil (FOR TRANSFER CASE), NO.2
36112 Case, Transfer, Rear
36112F Cap, Transfer, Rear Case
36114B Plug, NO.1 (FOR TRANSFER CASE)
36114C Gasket, NO.1 (FOR TRANSFER CASE)
36115C Seal, Type T Oil (FOR TRANSFER EXTENSION HOUSING)
36117 Adapter, Transfer
36117A Seal, Oil(FOR TRANSFER ADAPTER)
36117G Plug, W/Head Straight Screw(FOR TRANSFER ADAPTER)
36128 Deflector, Breather Oil
36179 Protector, Transfer Case Lower
36407 Hose Sub-assy, Transfer Breather
36407A Way, 3(FOR TRANSFER BREATHER HOSE)
36478 Bracket, Transfer Breather
