Toyota Land Cruiser Prado

2002-09 → 2009-08 · chassis GRJ12#,KDJ12# · catalogue 781550 · Europe

Supported model Data version 2010-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Propeller Shaft & Universal Joint

22 part groups · 4 illustrations

Illustrations

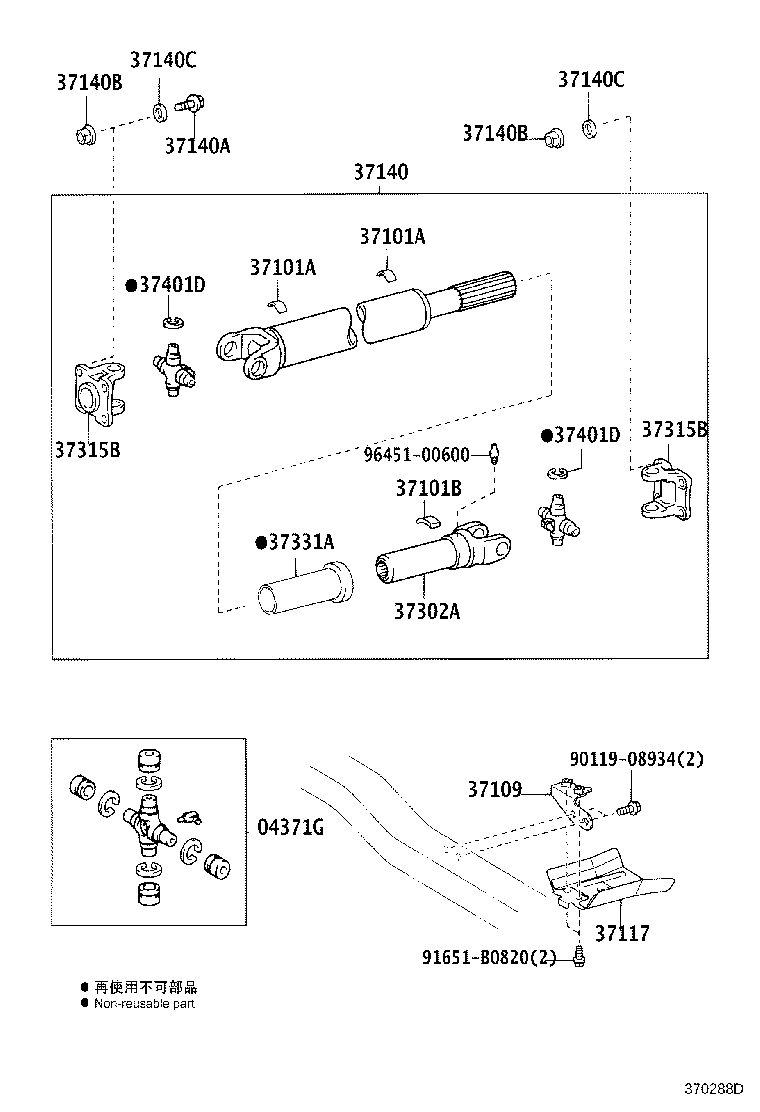

Figure 370284D 370284D 2002-09 → — Figure 370288D 370288D 2003-01 → — Figure 370285G 370285G 2002-09 → — Figure 370286D 370286D 2002-09 → —

Part groups

PNCDescription
04371G Spider Kit, Front Propeller Shaft Universal Joint
04371H Spider Kit, Rear Propeller Shaft Universal Joint
37100A Bolt, NO.1 (FOR PROPELLER SHAFT & DIFFERENTIAL SETTING)
37100C Washer, NO.1 (FOR PROPELLER SHAFT & DIFFERENTIAL SETTING)
37100E Nut, NO.2 (FOR PROPELLER SHAFT & DIFFERENTIAL SETTING)
37101A Piece, Balance, NO.1 (FOR PROPELLER SHAFT)
37101B Piece, Balance, NO.2 (FOR PROPELLER SHAFT)
37109 Bracket Sub-assy, Propeller Shaft Heat Insulator, NO.1
37110 Shaft Assy, Propeller
37117 Insulator, Propeller Shaft Heat
37140 Shaft Assy, Propeller, Front
37140A Bolt (F0R FRONT PROPELLER SHAFT)
37140B Nut (F0R FRONT PROPELLER SHAFT)
37140C Washer (F0R FRONT PROPELLER SHAFT)
37302A Yoke Sub-assy, FR Propeller Shaft Universal J0INT Sleeve
37302B Yoke Sub-assy, RR Propeller Shaft Universal J0INT Sleeve
37315B Y0KE, Front Propeller Shaft Universal J0INT Flange
37315C Yoke, NO.1, Rear Propeller Shaft Universal Joint Flange
37331A Cover Sub-assy, Front Propeller Shaft Sliding Shaft Dust
37331B Cover Sub-assy, Rear Propeller Shaft Sliding Shaft Dust
37401D Ring, Snap (FOR FRONT PROPELLER SHAFT JOINT SPIDER BEARING)
37401E Ring, Snap (FOR REAR PROPELLER SHAFT JOINT SPIDER BEARING)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
