Toyota Land Cruiser Prado
2002-09 → 2009-08 · chassis GRJ12#,KDJ12# · catalogue 781550 · Europe
Supported model
Data version 2010-01

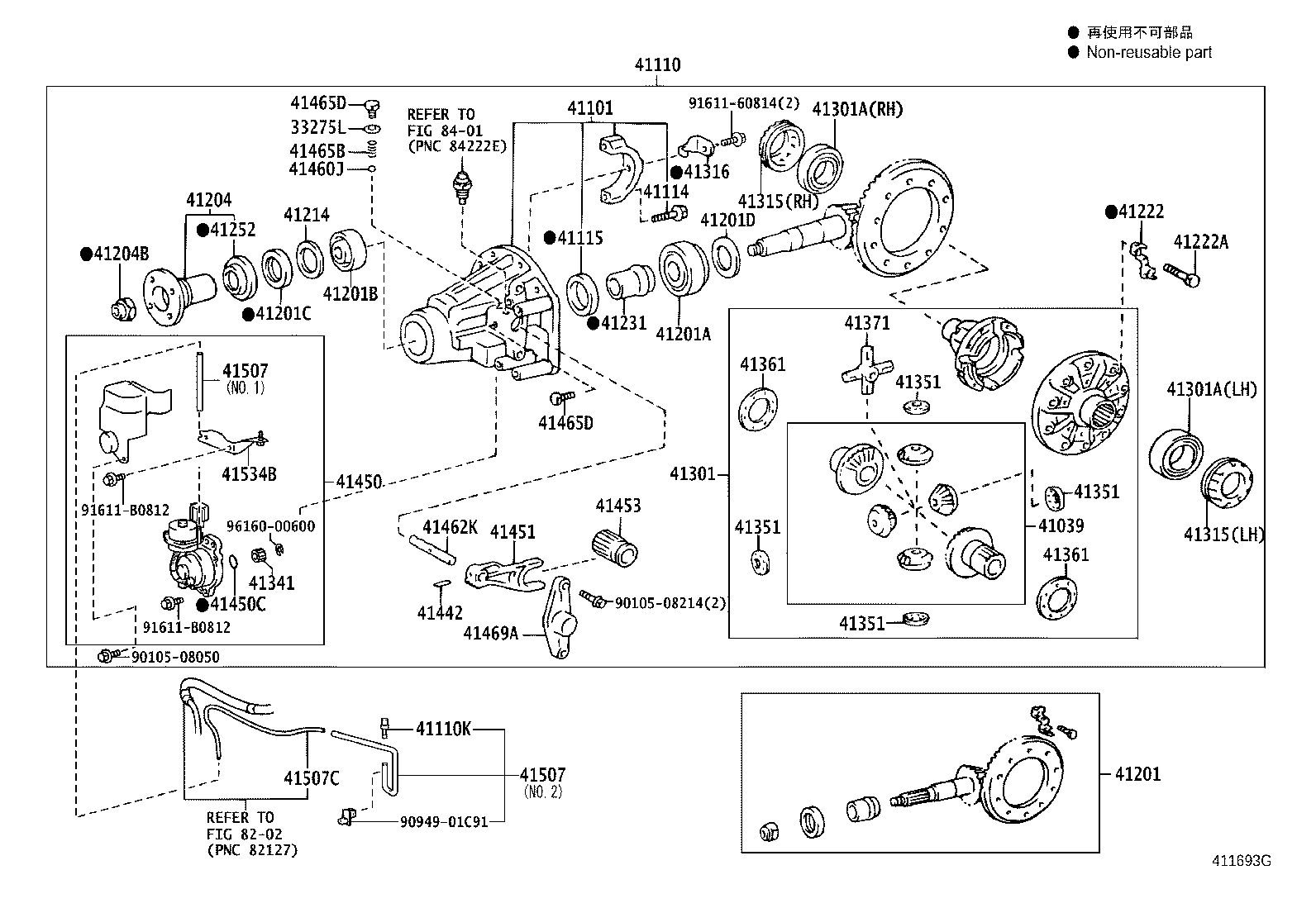

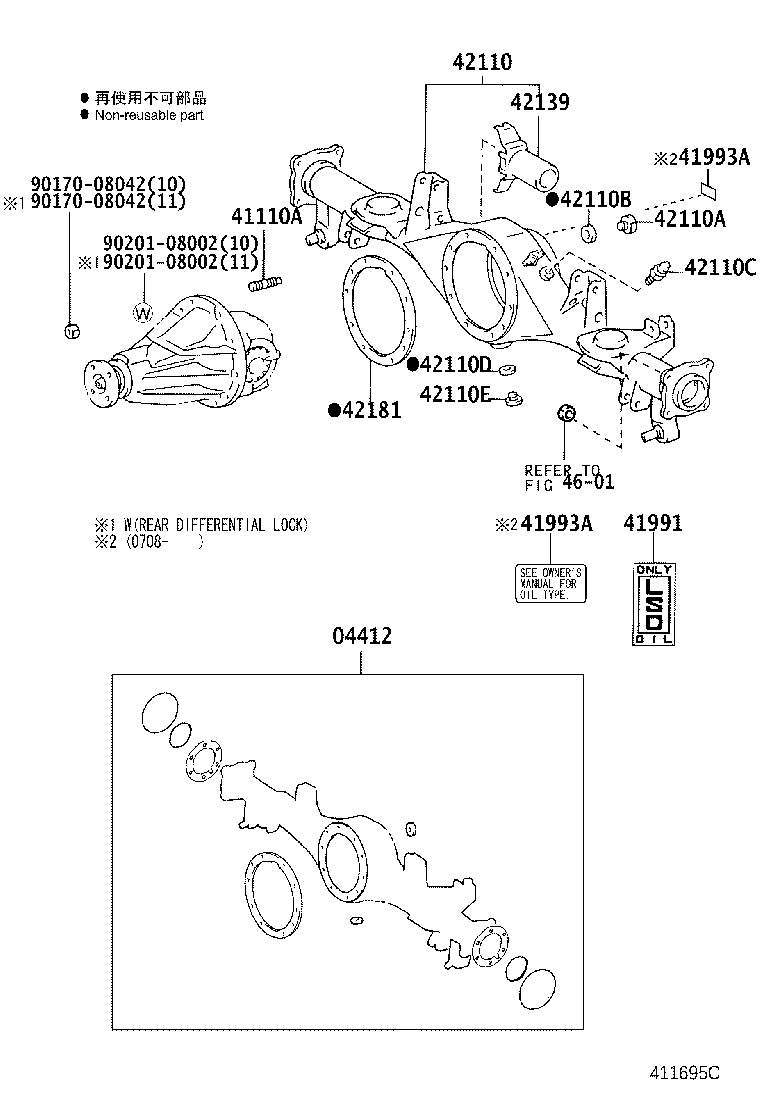

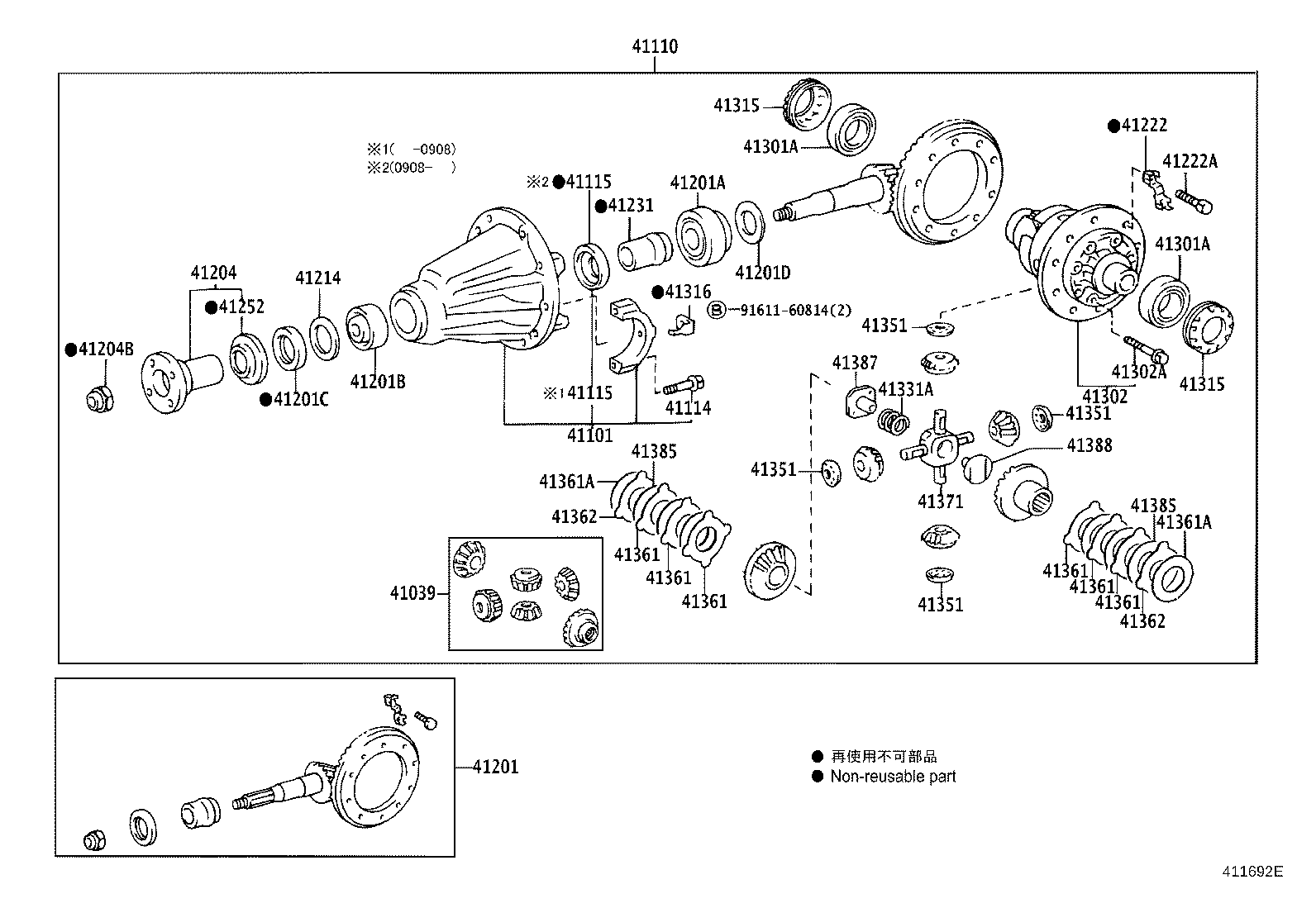

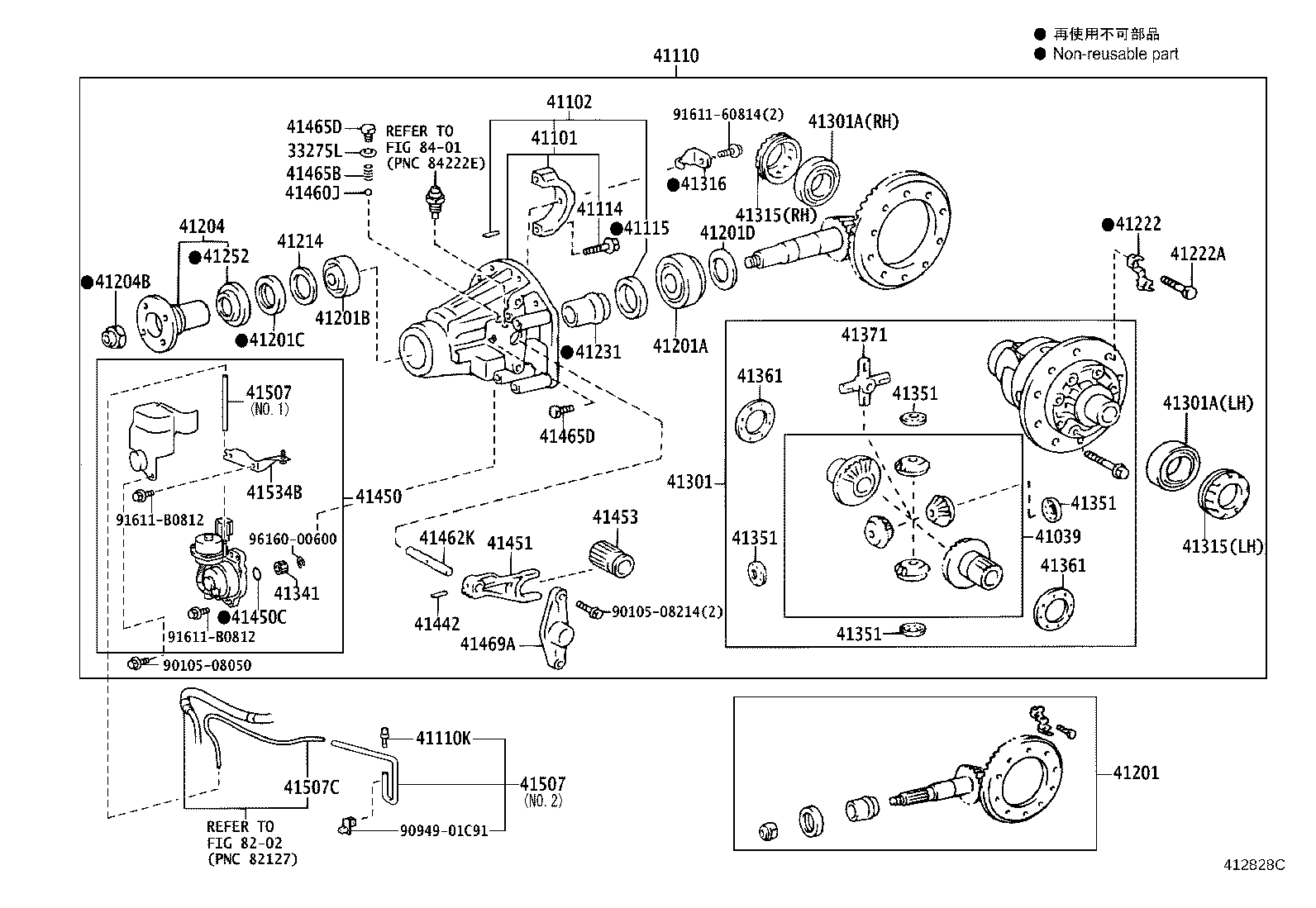

Rear Axle Housing & Differential
61 part groups · 5 illustrations
Part groups
| PNC | Description |
|---|---|
| 04412 | Gasket Kit, Rear Differential Carrier |
| 33275L | Seat, Rear Differential Lock Shift Detent Ball Spring |
| 41039 | Gear Kit, Differential, Rear |
| 41101 | Carrier Sub-assy, Differential, Rear |
| 41102 | Carrier Sub-assy, Differential W/Pin, Rear |
| 41110 | Carrier Assy, Differential, Rear |
| 41110A | Bolt, NO.1 (FOR REAR DIFFERENTIAL CARRIER SET) |
| 41110K | Plug, Breather (FOR REAR DIFFERENTIAL) |
| 41114 | Bolt, Rear Differential Bearing Cap |
| 41115 | Ring, Differential Oil Storage |
| 41201 | Final Gear Kit, Differential, Rear |
| 41201A | Bearing (FOR REAR DRIVE PINION REAR) |
| 41201B | Bearing (FOR REAR DRIVE PINION FRONT) |
| 41201C | Seal, Oil (FOR REAR DIFFERENTIAL CARRIER) |
| 41201D | Washer, Plate (FOR REAR DIFFERENTIAL DRIVE PINION) |
| 41204 | Flange Sub-assy, Rear Drive Pinion Companion, Rear |
| 41204B | Nut (FOR REAR DRIVE PINION) |
| 41214 | Slinger, Rear Differential Drive Pinion Oil |
| 41222 | Plate, Rear Differential Ring Gear Set Bolt Lock |
| 41222A | Bolt (FOR REAR DIFFERENTIAL RING GEAR SET) |
| 41231 | Spacer, Rear Differential Drive Pinion Bearing |
| 41252 | Deflector, Dust (FOR REAR DIFFERENTIAL) |
| 41301 | Case Sub-assy, Rear Differential |
| 41301A | Bearing(FOR REAR DIFFERENTIAL CASE) |
| 41302 | Case Sub-assy, Rear Differential |
| 41302A | Bolt(FOR REAR DIFFERENTIAL CASE) |
| 41315 | Nut, Rear Differential Bearing Adjusting |
| 41316 | Lock, Rear Differential Bearing Adjusting Nut |
| 41331A | Spring, Compression |
| 41341 | Pinion, Rear Differential |
| 41351 | Washer, Rear Differential Pinion Thrust |
| 41361 | Washer, Rear Differential Side Gear Thrust, NO.1 |
| 41361A | Shim(FOR REAR DIFFERENTIAL SIDE GEAR THRUST) |
| 41362 | Washer, Rear Differential Side Gear Thrust, NO.2 |
| 41371 | Spider, Rear Differential |
| 41385 | Plate, Clutch |
| 41387 | Retainer, Spring, RH |
| 41388 | Retainer, Spring, LH |
| 41442 | Bolt OR Pin, Shift Fork Lock |
| 41450 | Actuator, Differential Lock Shift |
| 41450C | Ring, O (FOR REAR DIFFERENTIAL LOCK SHIFT ACTUATOR) |
| 41451 | Fork, Rear Differential Lock Shift |
| 41453 | Sleeve, Rear Differential Lock |
| 41460J | Ball (FOR REAR DIFFERENTIAL LOCK CYLINDER) |
| 41462K | Shaft, Rear Differential Lock Shift Fork |
| 41465B | Spring, Compression (FOR REAR DIFFERENTIAL LOCK RETAINER) |
| 41465D | Plug (FOR REAR DIFFERENTIAL LOCK CYLINDER) |
| 41469A | Retainer, Rear Differential Lock Shaft |
| 41507 | Tube, Rear Differential Lock Actuator Breather |
| 41507C | Tube Sub-assy, Differential Lock Actuator Breather |
| 41534B | Bracket, Differential Breather |
| 41991 | Caution Plate, Rear Differential |
| 41993A | Label, Rear Differential Oil Information |
| 42110 | Housing Assy, Rear Axle |
| 42110A | Plug (FOR REAR AXLE HOUSING FILLER) |
| 42110B | Gasket (FOR REAR AXLE HOUSING FILLER PLUG) |
| 42110C | Plug, Breather (FOR REAR AXLE HOUSING) |
| 42110D | Gasket (FOR REAR AXLE HOUSING DRAIN PLUG) |
| 42110E | Plug (FOR REAR AXLE HOUSING DRAIN) |
| 42139 | Deflector, Rear Axle Housing Oil |
| 42181 | Gasket, Rear Differential Carrier |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
