Toyota Land Cruiser Prado

2002-09 → 2009-08 · chassis GRJ12#,KDJ12# · catalogue 781550 · Europe

Supported model Data version 2010-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Disc Wheel & Wheel Cap

15 part groups · 2 illustrations

Illustrations

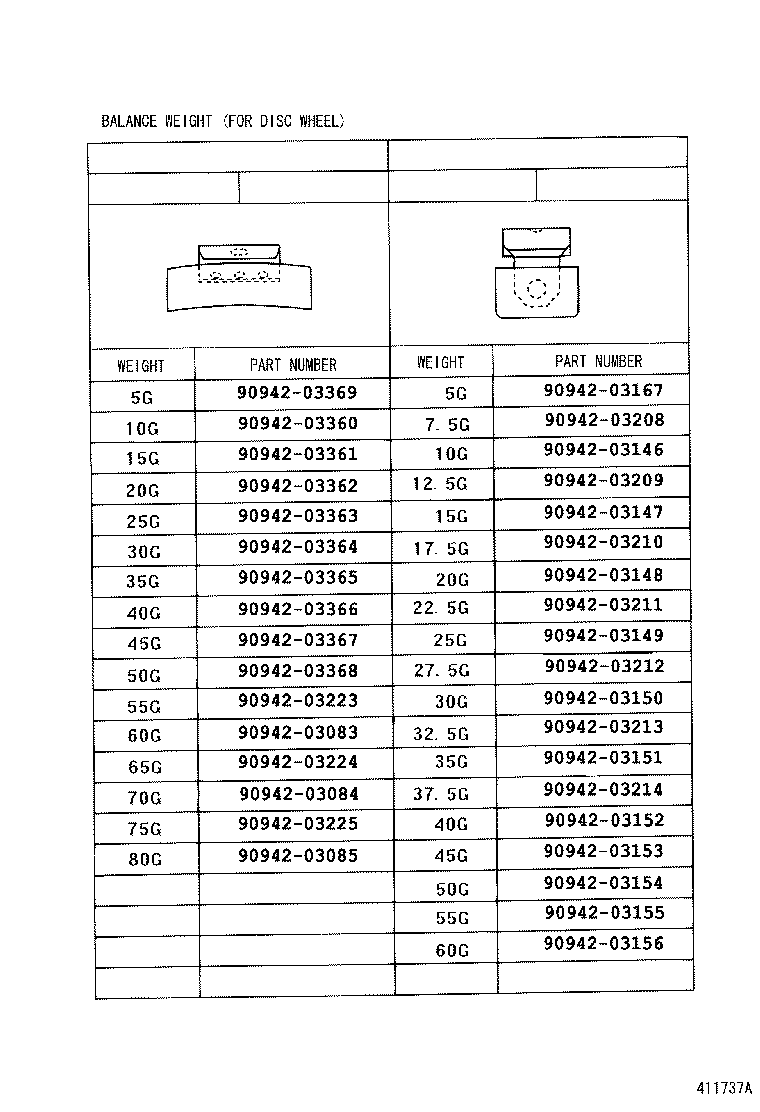

Figure 411736L 411736L 2002-09 → — Figure 411737A 411737A 2002-09 → —

Part groups

PNCDescription
42601A Wheel, Disc (FOR SPARE)
42601C Nut, Hub (FOR AXLE)
42601F Wheel, Disc (FOR FRONT)
42601R Wheel, Disc (FOR REAR)
42603A Ornament Sub-assy, Wheel Hub(FOR FRONT)
42603B Ornament Sub-assy, Wheel Hub(FOR REAR)
42603D Ornament Sub-assy, Wheel Hub(FOR SPARE)
42607B Valve Sub-assy, Tire Pressure Balancer
42607C Valve Sub-assy, Tire Pressure Balancer (FOR SPARE)
42611G Valve (FOR TUBELESS TIRE)
42611J Valve (FOR TUBELESS TIRE SPARE)
42611U Cap, Tire Valve
42611W Cap, Tire Valve (FOR SPARE)
42652 Tire
42652A Tire (FOR SPARE)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
