Toyota Land Cruiser Prado

2002-09 → 2009-08 · chassis GRJ12#,KDJ12# · catalogue 781550 · Europe

Supported model Data version 2010-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Steering Column & Shaft

16 part groups · 2 illustrations

Illustrations

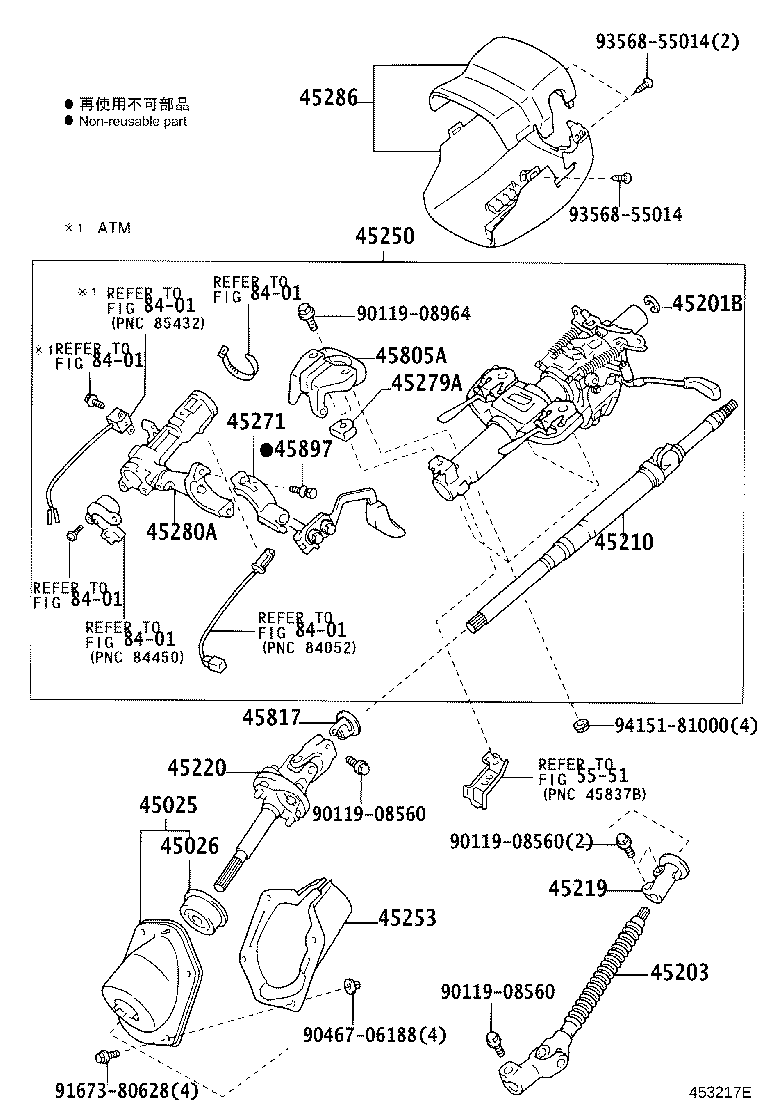

Figure 453215E 453215E 2002-09 → — Figure 453217E 453217E 2002-09 → —

Part groups

PNCDescription
45025 Cover, Steering Intermediate Shaft
45026 Cover Sub-assy, Steering Column Hole, NO.2
45201B Ring, Shaft Snap(FOR STEERING MAIN SHAFT)
45203 Shaft Sub-assy, Steering Intermediate, NO.2
45210 Shaft Assy, Steering Main
45219 Yoke, Steering Sliding
45220 Shaft Assy, Steering Intermediate
45250 Column Assy, Steering
45253 Cover, Steering Column Hole
45271 Clamp, Steering Column, Upper
45279A Attachment, Steering Column Tube, Lwr
45280A Bracket Assy, Steering Column, Upper
45286 Cover, Steering Column
45805A Support Sub-assy, Tilt Steering
45817 Stopper, Steering Shaft Thrust
45897 Bolt, Steering Lock Set
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
