Toyota Land Cruiser Prado

2002-09 → 2009-08 · chassis GRJ12#,KDJ12# · catalogue 781550 · Europe

Supported model Data version 2010-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Front Steering Gear & Link

13 part groups · 3 illustrations

Illustrations

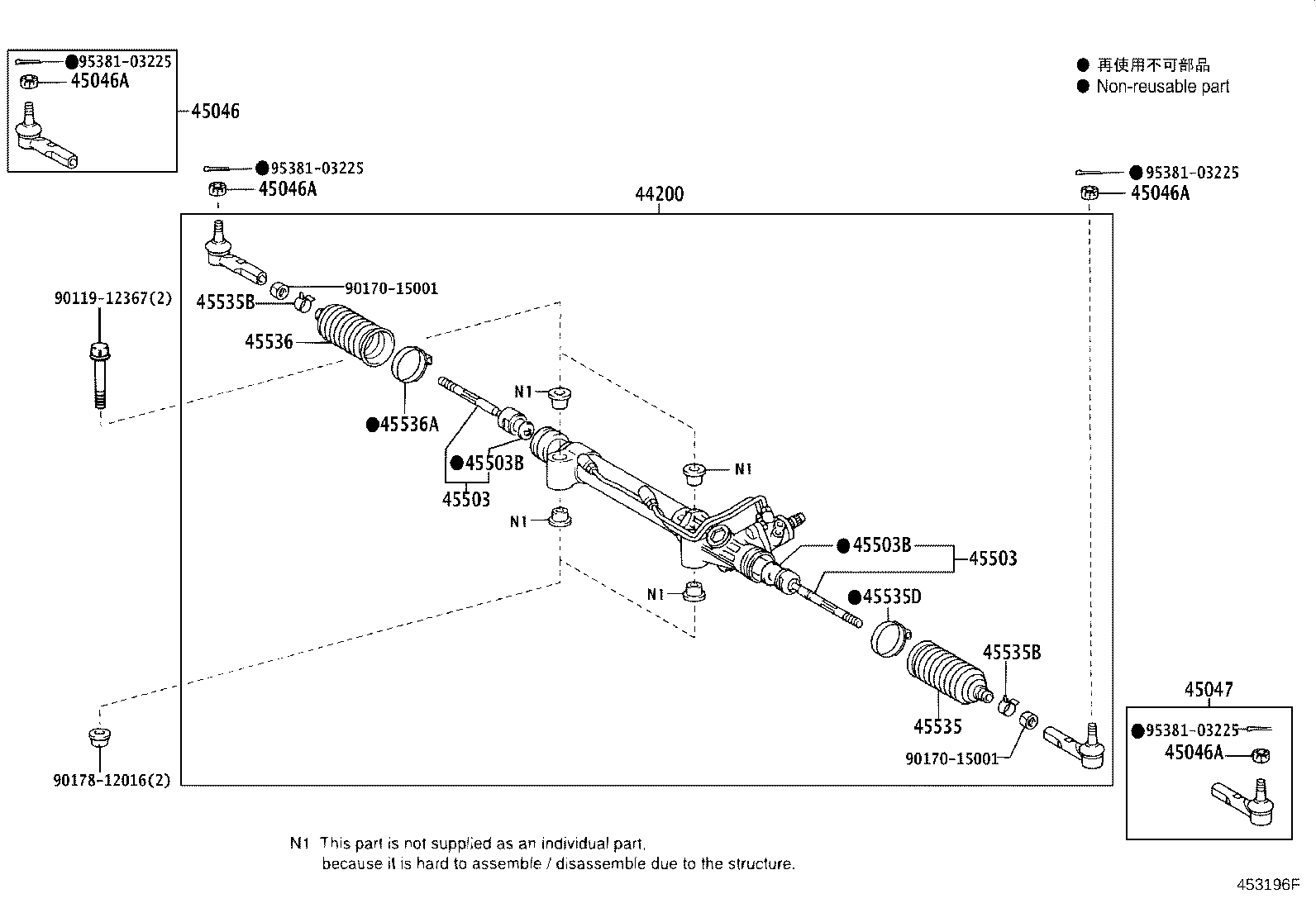

Figure 453195E 453195E 2002-09 → — Figure 453196F 453196F 2002-09 → — Figure 453197C 453197C 2002-09 → —

Part groups

PNCDescription
04445A Gasket Kit, Power Steering Gear(FOR RACK & PINION)
04455 Gasket Kit, Power Steering Control Valve Overhole
44200 Link Assy, Power Steering
45046 End Sub-assy, Tie Rod, RH
45046A Nut, Castle(FOR TIE ROD END)
45047 End Sub-assy, Tie Rod, LH
45503 End Sub-assy, Steering Rack
45503B Washer, Claw(FOR STEERING RACK END)
45535 Boot, Steering Rack, NO.1
45535B Clip(FOR STEERING RACK BOOT)
45535D Clamp(FOR STEERING RACK BOOT NO.1)
45536 Boot, Steering Rack, NO.2
45536A Clamp(FOR STEERING RACK BOOT NO.2)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
