Toyota Land Cruiser Prado

2002-09 → 2009-08 · chassis GRJ12#,KDJ12# · catalogue 781550 · Europe

Supported model Data version 2010-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Brake Booster & Vacuum Tube

10 part groups · 6 illustrations

Illustrations

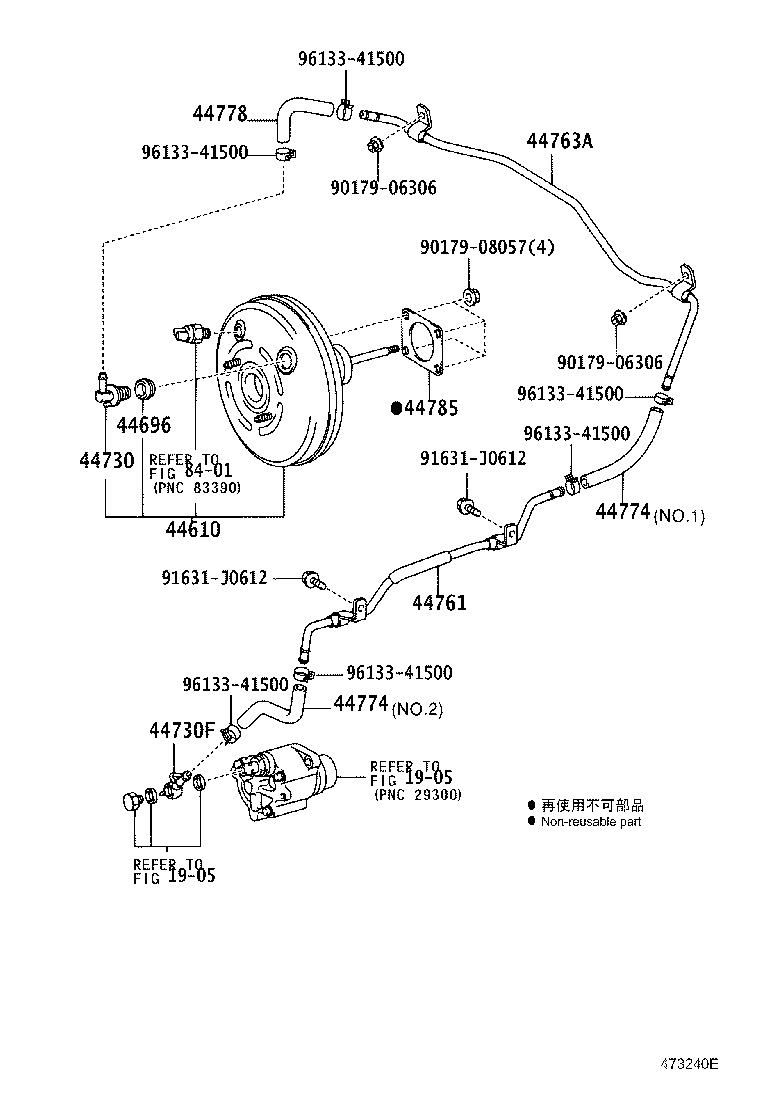

Figure 473239E 473239E 2002-09 → — Figure 473456D 473456D 2003-01 → — Figure 473240E 473240E 2002-09 → — Figure 473457D 473457D 2003-01 → — Figure 473241B 473241B 2002-09 → — Figure 473241B 473241B 2003-01 → —

Part groups

PNCDescription
44610 Booster Assy, Brake
44696 Grommet, Check Valve
44730 Valve Assy, Vacuum Check(FOR BRAKE)
44730F Union, Vacuum Hose(FOR MANIFOLD SIDE)
44761 Tube, Intake Manifold OR Vacuum Pump TO Connector
44763A Tube, Hose TO Hose, NO.1
44773F Hose, Union TO Check Valve
44774 Hose, Union TO Connector Tube
44778 Hose, Connector TO Check Valve
44785 Gasket, Brake Booster
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
