Toyota Land Cruiser Prado

2002-09 → 2009-08 · chassis GRJ12#,KDJ12# · catalogue 781550 · Europe

Supported model Data version 2010-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Front Spring & Shock Absorber

25 part groups · 2 illustrations

Illustrations

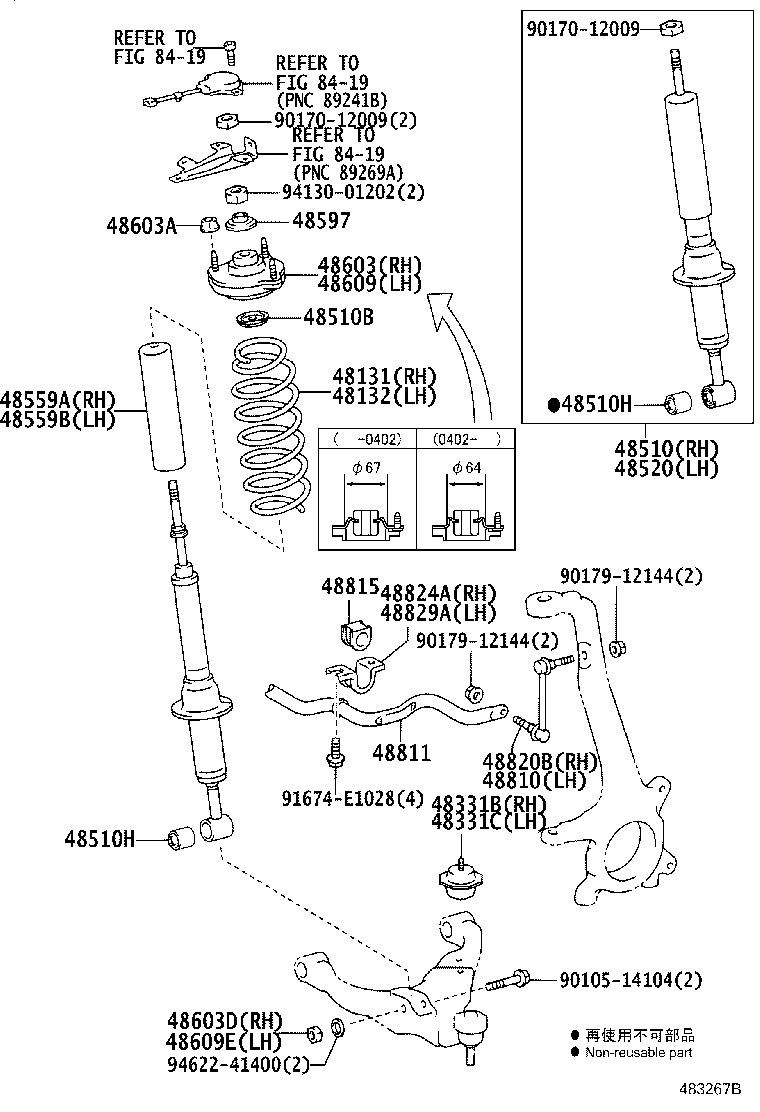

Figure 481551P 481551P 2002-09 → — Figure 483267B 483267B 2002-09 → —

Part groups

PNCDescription
48131 Spring, Front Coil, RH
48132 Spring, Front Coil, LH
48331B Bumper, Front Spring, RH
48331C Bumper, Front Spring, LH
48510 Absorber Assy, Shock, Front RH
48510B Retainer, Cushion, NO.1(FOR FRONT SHOCK ABSORBER)
48510H Bush(FOR FRONT SHOCK ABSORBER)
48510J Cushion, Front Shock Absorber, NO.1
48510Q Retainer, Cushion, NO.3(FOR FRONT SHOCK ABSORBER)
48520 Absorber Assy, Shock, Front LH
48559A Cover, Front Shock Absorber Dust, RH NO.1
48559B Cover, Front Shock Absorber Dust, LH NO.1
48597 Retainer, Shock Absorber Cushion
48603 Support Sub-assy, Front Suspension, RH
48603A Nut(FOR FRONT SUSPENSION SUPPORT)
48603D Nut(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER RH)
48609 Support Sub-assy, Front Suspension, LH
48609E Nut(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER LH)
48680A Nut(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER)
48810 Link Assy, Front Stabilizer, LH
48811 Bar, Stabilizer, Front
48815 Bush, Front Stabilizer Bar, NO.1
48820B Link Assy, Front Stabilizer, RH
48824A Bracket, Front Stabilizer, NO.1 RH
48829A Bracket, Front Stabilizer, NO.1 LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
