Toyota Land Cruiser Prado

2002-09 → 2009-08 · chassis GRJ12#,KDJ12# · catalogue 781550 · Europe

Supported model Data version 2010-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Rear Spring & Shock Absorber

32 part groups · 2 illustrations

Illustrations

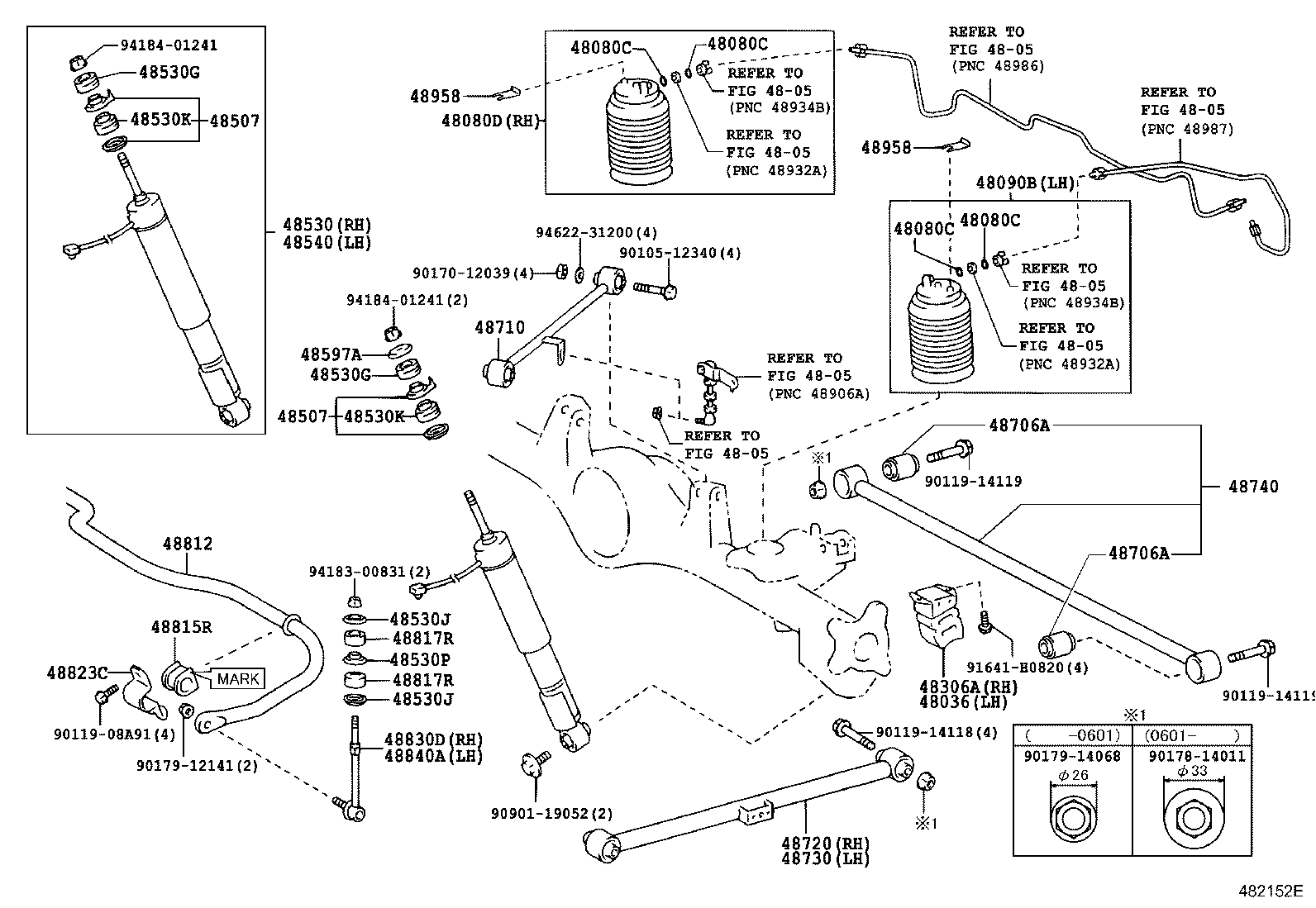

Figure 481575I 481575I 2002-09 → — Figure 482152E 482152E 2002-09 → —

Part groups

PNCDescription
48036 Bumper Sub-assy, Rear Spring, LH
48080C Ring, O(FOR REAR PNEUMATIC CYLINDER RH)
48080D Cylinder Assy, Pneumatic, Rear RH
48090B Cylinder Assy, Pneumatic, Rear LH
48231A Spring, Coil, Rear RH
48231B Spring, Coil, Rear LH
48257C Insulator, Rear Coil Spring, Upper RH
48259A Insulator, Rear Coil Spring, Upper LH
48302 Spring Sub-assy, Hollow
48306A Bumper Sub-assy, Rear Spring, RH
48507 Bracket Sub-assy, Rear Shock Absorber, Lwr
48530 Absorber Assy, Shock, Rear RH
48530G Cushion, Rear Shock Absorber, NO.1
48530J Retainer, Cushion, NO.1(FOR REAR SHOCK ABSORBER)
48530K Cushion, Rear Shock Absorber, NO.2
48530L Cushion, Rear Shock Absorber, NO.3
48530P Retainer, Cushion, NO.2(FOR REAR SHOCK ABSORBER)
48540 Absorber Assy, Shock, Rear LH
48597A Retainer, Rear Shock Absorber Cushion
48706A Bush Sub-assy, Rear Lateral Control Rod
48710 Arm Assy, Upper Control
48720 Arm Assy, Lower Control, RH
48730 Arm Assy, Lower Control, LH
48740 Rod Assy, Rear Lateral Control
48750D Retainer(FOR REAR SUPPORT TO REAR SHOCK ABSORBER)
48812 Bar, Stabilizer, Rear
48815R Bush, Stabilizer(FOR REAR)
48817R Cushion, Stabilizer(FOR REAR)
48823C Cover, Rear Stabilizer Bracket
48830D Link Assy, Rear Stabilizer, RH
48840A Link Assy, Rear Stabilizer, LH
48958 Clip, Pneumatic Cylinder
