Toyota Land Cruiser Prado

2002-09 → 2009-08 · chassis GRJ12#,KDJ12# · catalogue 781550 · Europe

Supported model Data version 2010-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Cab Mounting & Body Mounting

17 part groups · 2 illustrations

Illustrations

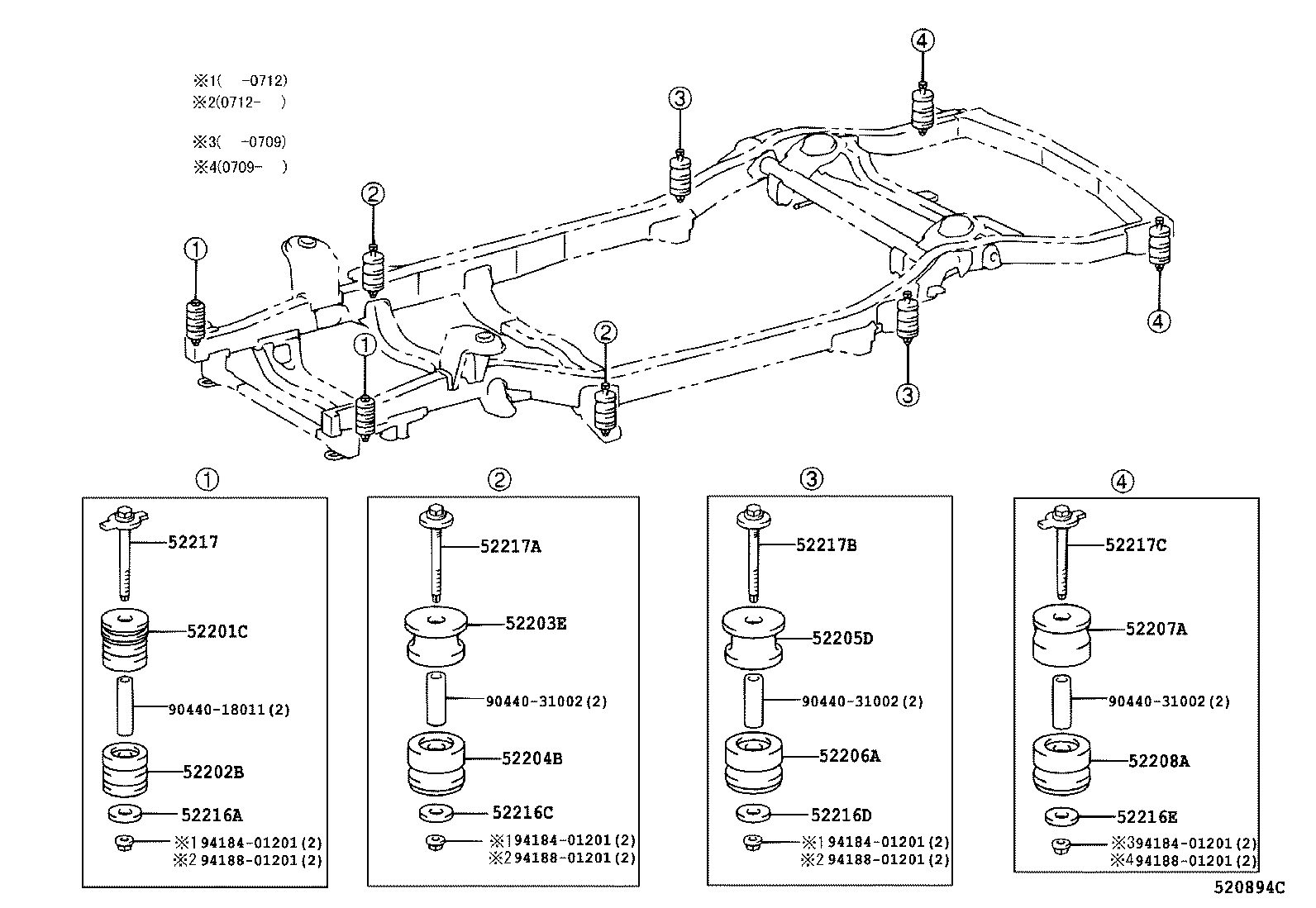

Figure 520893D 520893D 2002-09 → — Figure 520894C 520894C 2002-09 → —

Part groups

PNCDescription
52201C Cushiion Sub-assy, Cab Mounting, NO.1 Upper
52202B Cushiion Sub-assy, Cab Mounting, NO.1 Lower
52203E Cushion Sub-assy, Cab Mounting, NO.2
52204B Cushion Sub-assy, Cab Mounting, NO.2 Lower
52205D Cushion Sub-assy, Cab Mounting, NO.3 Upper
52206A Cushion Sub-assy, Cab Mounting, NO.3 Lower
52207A Cushion Sub-assy, Cab Mounting, NO.4 Upper
52208A Cushion Sub-assy, Cab Mounting, NO.4 Lower
52216A Stopper, Cab Mounting Cushion
52216C Stopper, Cab Mounting Cushion
52216D Stopper, Cab Mounting Cushion
52216E Stopper, Cab Mounting Cushion
52216F Stopper, Cab Mounting Cushion
52217 Bolt, Body Mounting
52217A Bolt, Body Mounting
52217B Bolt, Body Mounting
52217C Bolt, Body Mounting
